Penetration of Endothelial Cell Coated Multicellular Tumor Spheroids by Iron Oxide Nanoparticles

Don N. Ho1,2, Nathan Kohler1, Aruna Sigdel1, Raghu Kalluri3, Jeffrey R. Morgan2 Corresponding address, Chenjie Xu1,4 Corresponding address, Shouheng Sun1 Corresponding address

1. Department of Chemistry, Brown University, Providence, RI 02912
2. Center of Biomedical Engineering, Brown University, Providence, RI 02912;
3. Department of Biological Chemistry and Molecular Pharmacology, Harvard-MIT Division of Health Sciences and Technology, Department of Medicine Beth Israel Deaconess Medical Center, Harvard Medical School, Boston, MA 02114, USA
4. Department of Medicine, Brigham and Women's Hospital, Harvard Medical School, Harvard Stem Cell Institute, Harvard-MIT, Division of Health Sciences and Technology, 65 Landsdowne Street, Cambridge, MA 02139, USA

Ho DN, Kohler N, Sigdel A, Kalluri R, Morgan JR, Xu C, Sun S. Penetration of Endothelial Cell Coated Multicellular Tumor Spheroids by Iron Oxide Nanoparticles. Theranostics 2012; 2(1):66-75. doi:10.7150/thno.3568.
Other styles

File import instruction


Iron oxide nanoparticles are a useful diagnostic contrast agent and have great potential for therapeutic applications. Multiple emerging diagnostic and therapeutic applications and the numerous versatile parameters of the nanoparticle platform require a robust biological model for characterization and assessment. Here we investigate the use of iron oxide nanoparticles that target tumor vasculature, via the tumstatin peptide, in a novel three-dimensional tissue culture model. The developed tissue culture model more closely mimics the in vivo environment with a leaky endothelium coating around a glioma tumor mass. Tumstatin-iron oxide nanoparticles showed penetration and selective targeting to endothelial cell coating on the tumor in the three-dimensional model, and had approximately 2 times greater uptake in vitro and 2.7 times tumor neo-vascularization inhibition. Tumstatin provides targeting and therapeutic capabilities to the iron oxide nanoparticle diagnostic contrast agent platform. And the novel endothelial cell-coated tumor model provides an in vitro microtissue environment to evaluate nanoparticles without moving into costly and time-consuming animal models.

Keywords: iron oxide nanoparticles, tumstatin, tumor penetration, multicellular tumor spheroids, theranostic, magnetic, nanoparticle, imaging, drug delivery, anti-angiogenesis


Iron oxide nanoparticles (Fe3O4 NPs) hold great promise for realizing early tumor diagnosis and therapy, as well as simultaneous monitoring of the therapeutic response [1, 2]. The efficacy of imaging and therapy of these Fe3O4 NPs is typically evaluated by direct observation of their bio-distribution (especially with tumor selectivity), their effects on the quality of life (body weight, tumor size, etc.) and longevity in animal models. Among many evaluation parameters, efficient transport of NPs into tumor tissue in vivo is a critical aspect. Ideally, systemically-administered NPs can preferentially accumulate at tumor sites by the enhanced permeability and retention (EPR) effect, thus reducing toxicity to normal tissue [3]. However, systemically-administered NPs are often subject to a heterogeneous distribution in the tumor tissue and tend to concentrate near the tumor vasculature [4, 5]. This is a result from the increased interstitial fluid pressure and the dense extracellular matrix (ECM) found in the in vivo tumor environment. As intervascular distances in tumors are relatively large (>100 µm) [6], this undesired distribution limits the NP delivery and reduces their therapeutic efficacy [5].

Recently, there are emerging efforts to improve NP penetration via a multistage delivery system [7], or by grafting NPs with tumor penetration peptides [8]. Unfortunately, the verification of these platforms relies heavily on the in vivo models, which are costly, complicated, and time consuming. Given the numerous possible NP designs, it is also unrealistic to test all types of NPs with in vivo models. Thus, an in vitro system that mimics solid tumor properties is highly desired. Multicellular tumor spheroid (MTS), a three-dimensional cluster of cancer cells grown in vitro, mimics the early avascular stage of tumor growth such as the presence of ECM and diffusion gradients of nutrients and wastes [9, 10]. As a result, MTS can contain heterogeneous regions of tumor cell growth including a necrotic center with proliferating cells restricted to the outer rim of the MTS [11]. Their similarities with tumors in vivo have provided an important platform for nanotechnologists to screen various parameters of NPs and to identify those parameters with optimal tumor penetration [12-15]. For example, Goodman et al. examined the penetration of polystyrene NPs (20, 40, 100 or 200nm) in SiHa MTS (~500 um diameter) with and without collagenase treatment [13, 14]. These pioneering studies revealed the potential of MTS as a cost-effective and time-efficient tool for examining NP penetration in deep regions of tumors.

However, MTS models in those studies were limited by their non-uniformity and simplicity. Specifically, MTS size in those studies are heterogeneous, ranging from a few millimeters to hundreds of micrometers, which presents challenges for standardization and comparison of works from different researchers. Furthermore in a biological environment, NPs must extravasate through a leaky vascular endothelium before penetrating into the solid tumor. This added parameter further decreases the transmigration efficiency of NPs and limits the subsequent penetration depth. Unfortunately, this important factor is not present in many MTS studies. Therefore, a uniform in vitro tumor model comprising of both tumor spheroids and a vascular endothelium is highly desired to study the extravasation and penetration of NPs for imaging and therapeutic purposes.

Here, we report an in vitro uniform MTS system with vascular endothelium for the extravasation and penetration studies of Fe3O4 NPs. We used micromolded non-adhesive agarose gels [16] to construct a uniform MTS coated with endothelial cells. Utilizing the micromold and self-assembly techniques, cell-cell sorting interactions formed a model for a tumor core that must be accessed through a leaky vasculature. Rat RG2 cells, a glioblastoma model cell line, formed a MTS core similar to that of a solid tumor, while bovine-pulmonary arterial endothelial (BPAE) cells assembled on the surface of the MTS. The layer of endothelial cells restricted access to the tumor core and acted as the vascular endothelium. This technique formed hundreds of uniform replicates for the endothelium-coated tumor model in a single culture well. We demonstrate the use of this three-dimensional cell-culture platform with Fe3O4 NPs conjugated with tumstatin peptide, a naturally occurring fragment of type IV collagen. Fe3O4 NPs are bio-compatible contrast agents for T2-based magnetic resonance imaging (MRI) [17], while tumstatin peptide binds specifically to αvβ3 integrin on the endothelial cells and can significantly inhibit endothelial cell proliferation [18]. A component of basement membrane, tumstatin acts upon the mTOR pathway inhibiting protein synthesis in endothelial cells. We examine the active T7 fragment (74-98) of tumstatin (3020.85 dalton). The coupling of tumstatin onto Fe3O4 NPs allowed the specific targeting to BPAE cells and inhibited the proliferation of these cells [19, 20]. The penetration depth of tumstatin-Fe3O4 NPs was visualized and quantified by fluorescent confocal imaging and transmission electron microscope (TEM) imaging. Our results establish a uniform in vitro tumor model comprising both tumor spheroid and endothelium that can be used for NP penetration studies. With the help of this model, we demonstrated the specific targeting of tumstatin modified Fe3O4 NPs to endothelium. We believe this work offers new opportunities for the study of NPs penetration.

Materials and methods

All chemicals and solvents except mentioned specifically were of analytical grade from Sigma-Aldrich (St Louis, MO) and were used without further purification. MTS micro-molds were obtained from MicroTissues, Inc, (Providence, RI). Tumstatin was generously donated by Dr. Raghu Kalluri. Rat RG2 glioblastoma cells and BPAE cells (CCL-209) were obtained from the American Type Culture Collection (Rockville, MD). Both cells are maintained in Dulbecco's modified Eagle's medium (DMEM, Invitrogen), supplemented with 10% FBS (Invitrogen), 2mM L-glutamine (Invitrogen), and 1% Pen/Strep (Invitrogen).

Synthesis and modification of Fe3O4 NPs

10 nm Fe3O4 NPs were synthesized through the high temperature decomposition of iron (III) acetylacetonate (Fe(acac)3) in a mixture of benzyl ether and oleylamine. The synthesized NPs were made hydrophilic and functionalized through ligand exchange with dopamine modified polyethylene glycol (DPA-PEG-COOH). Detailed methods are described in our previous publications [21].

Tumstatin labeling with rhodamine B isothiocyanate (Rhod) and subsequent coupling with Fe3O4 NPs

Tumstatin was incubated with Rhod (Invitrogen) in Na2CO3/NaHCO3 (pH = 9) buffer at room temperature for 1 hour (Tumstatin:Rhod = 1:10). The final conjugate was purified by removing the free Rhod through the PD-10 desalting column (GE Healthcare Corp.). Then, Fe3O4 NPs coated with DPA-PEG-COOH (100 µg) were activated with ethyl(dimethylaminopropyl) carbodiimide (EDC) (100ng) and n-hydroxysuccinimide (NHS) (100 ng) in 500 µL phosphate buffered saline (PBS). Then 100 µg tumstatin-Rhod in 100 µL PBS was mixed with Fe3O4 NPs for 2 hours. Tumstatin coated Fe3O4 NPs were purified from free tumstatin through high speed centrifugation (8000 rpm for 15 min).

Characterization of tumstatin-Fe3O4 NPs

Tumstatin-Fe3O4 NPs were visualized through Philips CM20 at 120kV. The hydrodynamic diameters of NPs were measured through Malvern Zeta Sizer S90. The conjugation of tumstatin onto Fe3O4 NPs was confirmed through infrared spectroscopy (IR) by a Bruker Tensor 27 FTIR.

BPAE viability test with tumstatin-Fe3O4 NPs

BPAE cells were seeded in 96-well plates and incubated with NPs under various Fe concentrations for 24 hours. The viability was assessed through colorimetric cell viability assay (MTT assay).

BPAE proliferation test with tumstatin-Fe3O4 NPs

200,000 BPAE cells were seeded in T25 flasks and incubated with NPs (in triplicate) under Fe concentration at 0.1 mg/ml. At 1, 3, 6, and 8 days, BPAE cells were trypsinized and counted.

Tumstatin-Fe3O4 NPs uptake with BPAE and RG2 cells

BPAE and RG2 cells were seeded in T25 flasks with 200,000 seeding density 24 hours before the experiments. Then the medium was replaced with 1% FBS-containing DMEM supplemented with tumstatin-Fe3O4 NPs or Fe3O4 NPs. After 4 hours incubation, the cells were washed with PBS twice and digested with a mixture of nitric acid and hydrogen peroxide (3:1). Fe concentration was quantified with inductively coupled plasma (ICP) atomic emission spectroscopy (Jobin Yvon JY2000).

Preparation of BPAE coated RG2 MTS

Micromolds (MicroTissues, Inc) were prepared as previously described and were autoclave sterilized [16]. Autoclave-sterilized powder Ultrapure™ Agarose (Invitrogen, Carlsbad, California) was dissolved with heating in sterile water to 2% w/v and pipetted into the micromolds. After setting, micromolded agarose gels were separated from the mold, transferred to six-well tissue culture plates, and equilibrated overnight in culture medium. To form MTS, RG2 and BPAE cells were trypsinized, counted, and re-suspended to 500,000 cells per 200 μL of culture medium at a ratio of 1:1 RG2:BPAE. Medium was removed from the tissue culture plates containing the micromolded hydrogels, and 200 μL cell suspension was added dropwise with a micropipette to the center of the seeding chamber of each gel. Cells were allowed to settle into the recesses for 30 min before 5 mL of additional culture medium was carefully added to the medium exchange ports of the micromolded gels. Cells self-assembled within 24 h at 37°C. MTS were maintained in the incubator and culture medium was changed every day. Side view microscopy was obtained as described in previous publications [22].

Live-cell fluorescent staining of MTS with tumstatin-Fe3O4 visualized by confocal microscopy

MTS were cultured in non-adhesive hydrogel for 24 hours and were incubated with culture medium containing Rhod-labeled tumstatin-Fe3O4 NPs (0.1 mg Fe/mL) for 4 hours, and then washed twice with PBS. Fe3O4 NPs labeled with Rhod but without tumstatin were used as a control. MTS were visualized on 1 micron cross-section planes by confocal microscope (Leica TCS SP2 AOBS spectral confocal microscope).

The sorting of glioma and endothelial cell heterotypic microtissues were visualized with staining by fluorescent dyes, CellTracker Red CMTPX and CellTracker Green CMFDA (Invitrogen, Carlsbad, California). Cells were loaded 1 day prior to seeding. Subconfluent flasks were incubated with DMEM containing 2.5 µM CellTracker for 45 min at 37°C. Dye containing DMEM was then discarded and replaced with fresh culture medium. Stained cells were trypsinized and seeded into hydrogels with a 1:1 ratio of endothelial cell and glioma cells. CellTracker Red CMTPX and CellTracker Green CMFDA were imaged by Leica TCS SP2 AOBS spectral confocal microscope (Leica, Wetzlar, Germany) or epi-fluorescent microscopy using a model (Olympus, Tokyo, Japan) with an excitation/detection of 577/602 nm and 492/517 nm, respectively.

TEM preparation of MTS labeled with tumstatin-Fe3O4

MTS were cultured in non-adhesive hydrogels for 24 hours and were incubated with culture medium containing Rhod-labeled tumstatin-Fe3O4 NPs (0.1 mg Fe/mL) for 24 hours, and then washed twice with PBS. MTS were fixed in phosphate-buffered Karnofsky's solution and hydrogels were inverted to isolate MTS. Collected MTS were suspended in fixative for 30 minutes before they were spun down using centrifugation and fixative was aspirated. MTS were stained with 2% osmium tetroxide at 4ºC overnight, followed by dehydration using graded ethanol and embedded in Epon 812 resin. Resin blocks were sectioned using a microtome, doubly stained with uranyl acetate and lead hydroxide, and imaged on TEM (Philips CM20 at 80kV).

SEM preparation of MTS labeled with tumstatin-Fe3O4

MTS were cultured in non-adhesive hydrogels for 24 hours and were fixed in phosphate-buffered Karnofsky's solution. Hydrogels were inverted to isolate MTS. Collected MTS were suspended in fixative for 30 minutes before they were spun down using centrifugation and fixative was aspirated. MTS were dehydrated using graded ethanol and transferred to the critical point drying apparatus for final substitution with liquid CO2. Dried MTS were placed on carbon adhesive SEM tabs and spin-coated for observation and imaging in SEM (Hitachi 2700).

Spheroid immunostaining

MTS cultured in non-adhesive hydrogels for 24 hours were fixed in phosphate-buffered Karnofsky solution (2% paraformaldehyde, 2% glutaraldehyde). Gels were inverted to remove MTS. MTS were washed five times in 0.002% Triton X-100 in phosphate buffered solution (PBS), and MTS were gently agitated for five minutes between washes. Cells in the MTS were then permeablized for one hour in 0.5% Triton X-100 in PBS. MTS were washed twice in PBS, then blocked in 1% BSA for 20 minutes. 10 μL Oregon Green 488®-conjugated phalloidin (Invitrogen, Carlsbad, California) in MeOH was dissolved in 400 μL PBS and incubated for 30 minutes. MTS were washed twice in PBS and blocked with 1% BSA and 4% goat serum. 2 mL of 20 µg/mL of primary antibody (mouse anti-occludin and rabbit anti-zonula occluden 1, Invitrogen, Carlsbad, California) in working solution (4% goat serum, 1% BSA, in PBS) was added and incubated 8 hours overnight at 4 ºC. Primary antibody was removed and blocking solution (working solution, 0.1% Triton in PBS) was added for one hour. MTS were rinsed three times in one mL 20 µg/mL of PBS and secondary antibody (Texas Red-X goat anti-mouse and Alexa Fluor 546 goat anti-rabbit, Invitrogen, Carlsbad, California) was added for 8 hours at 4 degrees Celsius. MTS were then washed 3 times in 1 mL PBS and visualized using confocal microscopy (Zeiss Observer Z1).


To study Fe3O4 NP penetration into MTS, we first functionalized the 10 nm Fe3O4 NPs with tumstatin. Tumstatin binds to αvβ3 integrin, which is highly expressed on the cell surface of proliferative, neovascular endothelial cells and in some cancerous cells [23]. This naturally occurring peptide has shown to significantly suppress endothelial cell proliferation in vitro by inhibiting protein synthesis [18], as a result of its action on anti-angiogenic and pro-apoptotic pathways.

Preparation and characterization of tumstatin-Fe3O4 NP

Fe3O4 NPs were synthesized through high temperature decomposition of Fe(acac)3, which allows for the precise control of particle size and quality that provides higher T2/T2* relaxivity properties[24]. The as-synthesized NPs were made water-soluble through ligand exchange with a synthesized DPA-PEG-COOH polymer accomplished via our previous protocol [21]. Tumstatin was modified with Rhod before conjugation with NPs to allow for quantification and fluorescent visualization. The conjugation of tumstatin onto Fe3O4 NPs was achieved through EDC-NHS coupling, which allows the conjugation of ~4 tumstatin molecules on one single NP (quantified through fluorescence intensity). The prepared tumstatin-Fe3O4 NPs were dispersed in PBS and had a hydrodynamic diameter of about 30 nm. Figure 1 shows the TEM images of the NPs before and after tumstatin coupling, from which we observed that surface treatments did not change the NP morphology. The presence of tumstatin on Fe3O4 NPs was confirmed through IR (Supplementary Material: Fig. S1). Tumstatin conjugation enhanced the uptake of Fe3O4 NPs by αvβ3 integrin-expressing endothelial cells, BPAE cells. As shown Figure 2A, BPAE cells showed more than twice as much uptake of tumstatin-Fe3O4 NPs compared with the more rapidly proliferating RG2 cells at 0.1 mg Fe/mL media concentration. The slowly proliferating BPAE cells had comparable uptake at lower concentrations of 0.01 and 0.001 mg Fe/mL media.

Both tumstatin-Fe3O4 NPs and Fe3O4 NPs were nontoxic to the cells studied as measured by the MTT viability assay under three concentrations (0.1, 0.01, and 0.001 mg Fe/mL) (Figure 2B). However, proliferation of BPAE cells was inhibited by tumstatin-Fe3O4 NPs (0.1 mg Fe/mL) (Figure 2C) as expected, given that tumstatin is an inhibitor of endothelial cell proliferation. BPAE cell number remained relatively constant after 8 days of culture in the presence of tumstatin-Fe3O4 NPs, whereas in the presence of control Fe3O4 NPs cell number increased by 2.7 times.

 Figure 1

(A) Fe3O4 particles as-synthesized and (B) after DPA-PEG-COOH modification and tumstatin conjugation imaged by TEM.

Theranostics Image

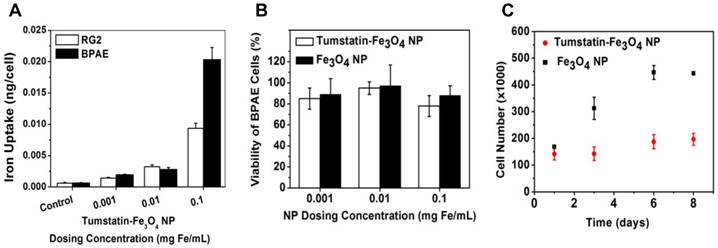

 Figure 2

(A) RG2 and BPAE cells uptake more particles at a higher concentration of tumstatin-Fe3O4 NP as measured by elemental analysis. (B) BPAE cell viability was not significantly affected by the addition of functionalized tumstatin-Fe3O4 particles as compared to untargeted Fe3O4 NPs as measured by an MTT viability assay after 24-hours of incubation. (C) Proliferation of BPAE cells decreased when incubated with tumstatin-Fe3O4 NPs versus non-functionalized Fe3O4 NPs (Fe=0.1mg/ml).

Theranostics Image

Fabrication and characterization of endothelial-coated MTS

To construct the endothelial-coated MTS, two main conditions needed to be satisfied: the formation of MTS core, and the selection of endothelial cell line for the construction of endothelium.

Thus, we first identified the seeding conditions and growth trend of the single cell line RG2 MTS in our base microtissue design method (Supplementary Material: Fig. S2) [16]. Following the initial cell seeding process, there were two stages in the formation of MTS: cell self-assembly and cell growth. The self-assembly occurred within 24 hours right after cell seeding. Once the cell suspension was added into the agarose hydrogel, monodisperse cells settled into the non-adhesive wells, formed cell-cell contacts, and became 3D spheroids. The size of the MTS could be controlled by the seeding number of RG2 cells, thus increasing the number of cells resulted in the formation of spheroids of larger diameter (Supplementary Material: Fig. S3A). For example, at the seeding density of 822,000 cells per hydrogel, RG2 MTS assembled at a diameter of 100µm. The MTS size was dispersed in a Gaussian distribution for each seeding density (Supplementary Material: Fig. S3B). In the following growth stage, the size of MTS increased as a result of RG2 cells proliferation that was revealed by the measurement of metabolic activity (Supplementary Material: Fig. S4).

After the identification of seeding density and growth pattern of the RG2 MTS (core), the next key question is to find a suitable endothelial cell line to develop the endothelium on RG2 MTS. We studied two endothelial cell lines, BPAE and human umbilical vein endothelial cells (HUVEC). Before seeding onto the agarose gels and to facilitate their identification, cells were labeled with fluorescent marker CellTracker. BPAE or HUVEC cells are shown in blue while the MTS that were formed with RG2 cells are shown in green. 24 hours after cell seeding, BPAE cells assembled an endothelium layer on the RG2 MTS, while HUVEC did not coat the MTS. HUVEC cells formed an independent spheroid adjacent to the RG2 MTS (Supplementary Material: Fig. S5). The formation of an independent HUVEC spheroid instead of the formation of an endothelium layer on the RG2 MTS is probably due to stronger HUVEC-to-HUVEC cell interaction as opposed to HUVEC-to-RG2 interactions. The importance of cell line selection was also seen when we tested MTS formed from 9L cells, another glioma cell line. BPAE cells mixed with the 9L cells indiscriminately whereas HUVEC formed small aggregates on the 9L MTS (Supplementary Material: Fig. S5). Although greater versatility with more cell lines is desirable, cell-cell interactions dominate the formation of microtissue structures [23]. Tissue engineering and microtissue formation are continuously being studied to gain greater understanding and obtain greater control. The endothelial cell-coated glioma is a novel microtissue of interest.

After addressing the above two key components, we focused on the RG2 and BPAE model for the remainder of this study due to the desirable endothelial cell-coated glioma MTS formation. Figure 3A shows a smooth RG2 MTS as compared to the cobblestone morphology of BPAE cells when grown individually; the co-culture of BPAE and RG2 cells show a blend between the two structures of a cobblestone surface with smooth core when cultured together. BPAE cells preferentially coat the outside of the RG2 core becoming a tumor core with an endothelial cell shell after 24 hours of self-assembly (Figure 3B&C). The use of non-adhesive, micromolded wells enabled the generation of large numbers of uniform sized spheroids. To examine their structure in more detail, BPAE-coated RG2 MTS were examined using fluorescent, confocal, and SEM after 24-hour of self-assembly. As revealed through Figure 3D, BPAE cells began to form a coating of 1-3 rounded, cobble-stone endothelial cells (resembling that of a leaky vasculature network) on top of a smooth RG2 core. As a marker for endothelium formation, tight junction markers of zona occludens 1 (ZO-1) and occludin were identified by immuno-staining and were observed to co-localize at BPAE cell-cell contacts (Supplementary Material: Fig. S6). Actin cytoskeleton staining co-localized to the cell-cell contacts and correlated with the tight junction contacts.

To quantify the extent of endothelial coating and determine the length of time the coating persisted on the RG2 MTS, we used image analysis of confocal images to measure the amount of continuous endothelial perimeter. The MTS had an endothelial cell-coating with approximately 90% and 85% coverage for days 1 and 2, respectively, after assembly (Supplementary Material: Fig. S7). Although coverage was not complete, the 1-3 layers of endothelial cells on the surface created a tortuous network in the endothelial cell coating. On day 3, endothelial cell coverage decreased to approximately 60% due to the proliferation of the RG2 cells.

Penetration study of tumstatin-Fe3O4 NPs of endothelium-coated MTS

The BPAE-coated RG2 MTS were incubated with tumstatin-Fe3O4 NPs (0.1 µg Fe/mL) for 4 hours. Fe3O4 NPs labeled with Rhod and not conjugated with tumstatin were used as a control (Supplementary Material: Fig. S8). After washing with PBS to remove the unattached NPs, MTS were examined with confocal fluorescence microscopy. As shown in Figure 4A, the tumstatin-Fe3O4 NPs (red) co-localized with the BPAE cells (blue) in the top left and bottom left panel, respectively. A close-up view of the interface between BPAE and RG2 MTS (Figure 4B) confirmed that tumstatin-Fe3O4 NPs preferably bound onto BPAE cells even though some RG2 cells were adjacent to BPAE cells (yellow arrow in Figure 3D bottom). This specific binding indicates that tumstatin-Fe3O4 NPs could act as both a targeting agent to endothelium and a diagnostic to examine tumor vascularization with the help of MRI. Further studies are under way to help assess this possibility.

The BPAE-RG2 MTS labeled with tumstatin-Fe3O4 NPs were further examined with TEM. Given that there was a BPAE coating on the RG2 core (Figure 5A), we identified the interface between the coating and the core by the different morphologies of the BPAE cells and the RG2 cells (Figure 5B). In BPAE cells, the close-up TEM view revealed the presence of tumstatin-Fe3O4 NPs in cell endosomes and the cytoplasm (Figure 5C&D). However, very few tumstatin-Fe3O4 were observed in the core RG2 cells under TEM (Supplementary Material: Fig. S9). This observation combined with the confocal imaging results described above (Figure 4A) indicated endothelial cells limited and even blocked NPs from penetrating into the microtissue, which is similar to the tumor environment in vivo. Supported by this conclusion, Tumstatin-Fe3O4 should be a great candidate for targeting tumor vasculature with potential challenges in penetrating into the tumor mass. To improve the penetration of NPs through the endothelium coating and into the MTS, a higher concentration and smaller hydrodynamic size could potentially be utilized.

 Figure 3

(A) Top-view bright field and custom side-view microscopic images of RG2 and BPAE spheroids with distinct smooth, compact and round, cobblestone morphology (scale bar = 200 μm). (B) Epifluorescence images of BPAE-RG2 MTS in agarose micro-wells show an inital mixed dispersion settling during initial assembly stage and sort to a BPAE-coated RG2 core 24 hours after cell seeding (scale bar = 200 μm). (C) Fluorescent confocal cross-section view of BPAE coverage on RG2 core after 24 hours of assembly. (D) SEM images of BPAE-RG2 MTS having BPAE cells grafted on RG2 cells.

Theranostics Image
 Figure 4

Tumstatin-Fe3O4 NPs (red) selectively target BPAE endothelial cells (blue) in the heterogeneous culture with RG2 glioma cells (green). Median section of BPAE-RG2 spheroids were imaged with confocal microscopy (A). Greater magnification shows cell specificity (B) and an overlay of confocal images shows co-localization throughout the spheroid. Yellow arrow points to one RG2 cell surrounded by the BPAE cells, where BPAE cells showed fluoresce from tumstatin-Fe3O4 NPs but RG2 cell didn't.

Theranostics Image
 Figure 5

TEM examination of MTS labeled with Tumstatin-Fe3O4 NPs. (A) Illustration of the MTS structure; (B) image of the interface between RG2 core and BPAE shell; (C, 2 micron scale bar, and D, 1 micron scale bar) close examination of Tumstatin-Fe3O4 NPs in the endosome and cytoplasm of one BPAE cell (NPs denoted by arrows).

Theranostics Image


Herein, we provided a more thorough in vitro model examining the penetration ability of NPs into a tumor mass, with the aim to provide greater resolution of early detection and drug delivery. In conceiving and testing this model, two criteria guided us: the in vitro model should be similar to the in vivo microenvironment, but easy to reproduce and convenient for analysis; the NP system should be widely accepted in cancer research.

Compared with the conventional models, our endothelial-coated MTS model provides a facile and inexpensive platform between in vitro two-dimensional cell culture and the more laborious, complex and expensive animal model. The characterization of NPs in this three-dimensional in vitro model can be easily performed to examine the next incremental step before going into a more elaborate study. This model can determine the ability to penetrate a leaky tumor vasculature by diffusive properties in biological media before the complex interactions of inflammation and immune responses. Further development of this 3D microtissue model and addition of properties that more mimic the in vivo environment could help examine NPs and other theranostic agents in greater detail before applying them to an animal model. However, due to the simplicity, compared with the in vivo model, systemic interactions could not be examined such as pharmacokinetics/pharmacodynamics of NPs and also the influence of inflammatory phagocytes (tumor associated macrophages). Thus after utilizing our model to screen NPs, the more promising agents should be tested in vivo for the collection of such information.

Fe3O4 NPs are one of the most widely used NPs that are clinically safe and able to act as both imaging contrast agents and therapeutics. Tumstatin has been studied for its anti-angiogenic effects and mechanistic pathways have been elucidated. The in vitro test with cell culture confirmed that the conjugation of tumstatin onto Fe3O4 NP had similar therapeutic effect, but more importantly for our application, the ability to target endothelial cells. The ability for NP penetration into a tumor with leaky vasculature is tested and examined using the 3D in vitro model. Tumstatin-Fe3O4 NP demonstrates this application by providing selective targeting to the leaky tumor vasculature with few NPs present in the tumor core. The increased amounts of tumstatin-Fe3O4 NPs associated with the leaky vasculature is due to the affinity of tumstatin to the newly forming endothelial cell αvβ3 integrins. In addition to this targeting, the 1-3 endothelial cell layer coverage has begun to form an endothelial layer creating a torturous path similar to that found in porous media. This structure effectively increases endothelium surface area and decreases diffusion of nanoparticles as described by basic material properties of porous media and independently conducted diffusion studies (not shown). With 90% coverage at day 1, the 10% of non-coverage is from patent and non-patent network of tortuous channels. The newly forming endothelium has the formation of tight junctions at endothelial cell contacts, but still has pores and channels on the endothelial cell layer, similar to that seen in neovascularization. Tumstatin-Fe3O4 NPs' affinity to vasculature could provide both diagnostic contrast of tumor vasculature in vivo and offer anti-angiogenic properties as shown in conventional cell culture. Greater methods are being developed to study anti-angiogenic effects in the three-dimensional model.

In summary, we have developed and characterized a 3D in vitro platform to study the penetration of NPs into tumors. By utilizing micromolded nonadhesive hydrogels, we have developed a platform composed of a multi-cellular tumor spheroid coated with an endothelium layer. The tumor spheroid mimics the solid tumor while the endothelium coating represents the endothelium of the blood vessel, a significant barrier to the delivery of therapeutics. The platform was tested with a model NP, tumstatin-Fe3O4 NPs that preferentially binds to endothelial cells and inhibits their proliferation. The results showed that tumstatin-Fe3O4 NPs could specifically target to the endothelial cells in a complex 3D microtissue environment. This model has significant potential to help in the testing and optimization of the design of therapeutic/diagnostic nanocarriers and determine their therapeutic capabilities.

Supplementary Material

Fig. S1-S9.



This work was funded, in part, by NIH/NCI 1R21CA12859 (S.S), the Brown Department of Diagnostic Imaging Fund (S.S), the NIRT Program under award DMI-0506661 (J.R.M.). Partial support provided from Rhode Island Biotechnology/Biomanufacturing Training Initiative Grant.

Conflict of Interest

J.R.M. has an equity interest in MicroTissues, Inc. This relationship has been reviewed and managed by Brown University in accordance with its conflict of interest policies.
