Theranostics 2012; 2(9):840-849. doi:10.7150/thno.4385 This issue Cite

Research Paper

Confocal Fluorescence Imaging Enables Noninvasive Quantitative Assessment of Host Cell Populations In Vivo Following Photodynamic Therapy

Soumya Mitra, Oleg Mironov, Thomas H. Foster Corresponding address

Department of Imaging Sciences, University of Rochester Medical Center, Rochester, NY 14642, USA.

Mitra S, Mironov O, Foster TH. Confocal Fluorescence Imaging Enables Noninvasive Quantitative Assessment of Host Cell Populations In Vivo Following Photodynamic Therapy. Theranostics 2012; 2(9):840-849. doi:10.7150/thno.4385.
Other styles

File import instruction


We report the use of optical imaging strategies to noninvasively examine photosensitizer distribution and physiological and host responses to 2-[1-hexyloxyethyl]-2 devinyl pyropheophorbide-a (HPPH)-mediated photodynamic therapy (PDT) of EMT6 tumors established in the ears of BALB/c mice. 24 h following intravenous (IV) administration of 1 μmol kg-1 HPPH, wide-field fluorescence imaging reveals tumor selectivity with an approximately 2-3-fold differential between tumor and adjacent normal tissue. Confocal microscopy demonstrates a relatively homogeneous intratumor HPPH distribution. Labeling of host cells using fluorophore-conjugated antibodies allowed the visualization of Gr1+/CD11b+ leukocytes and major histocompatibility complex class II (MHC-II)+ cells in vivo. Imaging of the treated site at different time-points following irradiation shows significant and rapid increases in Gr1+ cells in response to therapy. The maximum accumulation of Gr1+ cells is found at 24 h post-irradiation, followed by a decrease at the 48 h time-point. Using IV-injected FITC-conjugated dextran as a fluorescent perfusion marker, we imaged tissue perfusion at different times post-irradiation and found that the reduced Gr1+ cell density at 48 h correlated strongly with functional damage to the vasculature as reported via decreased perfusion status. Dual color confocal imaging experiments demonstrates that about 90% of the anti-Gr1 cell population co-localized with anti-CD11b labeling, thus indicating that majority of the Gr1-labeled cells were neutrophils. At 24 h post-PDT, an approximately 2-fold increase in MHC-II+ cells relative to untreated control is also observed. Co-localization analysis reveals an increase in the fraction of Gr1+ cells expressing MHC-II, suggesting that HPPH-PDT is stimulating neutrophils to express an antigen-presenting phenotype.

Keywords: Photodynamic therapy, HPPH, In vivo imaging, Intratumor drug distribution, Confocal fluorescence microscopy, Immune cell imaging.


Photodynamic therapy (PDT) continues to gain clinical acceptance worldwide as a minimally invasive treatment for neoplastic disease [1-3]. In the United States, FDA approval has been given to Porfimer sodium (Photofrin), a first-generation photosensitizer, for the treatment of Barrett's esophagus with high grade dysplasia, obstructing esophageal carcinoma and early and obstructing tracheobronchial carcinoma. Drawbacks posed by Photofrin include prolonged skin photosensitivity and limited tumor selectivity in patients [2]. In an effort to address this challenge, several next generation photosensitizers are being evaluated. Among them, 2-[1-hexyloxyethyl]-2 devinyl pyropheophorbide-a (HPPH) has emerged as a promising candidate. HPPH-PDT has demonstrated excellent safety and efficacy in the treatment of Barrett's esophagus, oral cavity cancers, and early and late stage esophageal and lung cancers [4-6]. Further, HPPH has demonstrated minimal skin photosensitization in preclinical and clinical studies [7].

As drug biodistribution is an important component in determining treatment response and selectivity, several studies have evaluated pharmacokinetics of HPPH and its effectiveness in inducing tumor destruction with different drug-light intervals [4, 8]. These pharmacokinetic measurements have demonstrated that the half-life of HPPH in plasma is 20 - 26 h, which may be compared to the significantly longer elimination half-life of approximately 200 h with Photofrin [8]. This 10-fold lower plasma half-life is the primary reason for the reduced cutaneous photosensitivity associated with HPPH. A study by Lobel et al. in a rat glioma model examined the tumor tissue selectivity for HPPH [9]. They reported a 3:1 tumor-to-normal brain tissue ratio of HPPH concentration at 24 h post-administration with a half-life in tumor tissue of approximately 30 h. However, no studies have yet examined the intratumor distribution of HPPH. We have previously reported on the use of imaging techniques to evaluate the uptake and distribution of several photosensitizers in tumor tissue [10-12]. In this study we investigated the selectivity of HPPH in tumors and its intratumor distribution at a drug-light interval of 24 h using in vivo fluorescence imaging performed in tumors established in ears of mice.

Recruitment of inflammatory cells has important effects on tumor development, and the role of these cells as anti- or pro-tumor agents is a subject of continuing investigation by several groups [13]. In the context of PDT, pre-clinical studies have however demonstrated that effective long term response following therapy is achieved not only by direct oxidative damage to tumor cells and vasculature but also by multiple elements of the host response [14]. These responses, possibly triggered by PDT-induced inflammation, are characterized by increased expression of proinflammatory cytokines and adhesion molecules and rapid leukocyte infiltration into the treated tumor. A significant fraction of these infiltrating leukocytes are neutrophils [1, 15]. de Vree et al. were one of the first groups to report the enhanced accumulation of neutrophils in peripheral blood following PDT irradiation, and the significant contribution of neutrophils was further confirmed with experiments in animal models where depletion of neutrophils using anti-Gr1 monoclonal antibodies resulted in diminished Photofrin-PDT efficacy [16, 17]. Gollnick et al. have shown that PDT with HPPH also initiates a local inflammatory response characterized by neutrophil migration into the treated tumor, albeit less pronounced than that observed with Photofrin PDT [18]. A subsequent study by Kousis et al. elucidated the role of these infiltrating neutrophils in augmenting T-cell proliferation, and thus suggested for the first time a mechanistic link between the acute inflammatory response to PDT and tumor-specific, systemic immunity [19].

Immune responses induced by PDT have thus far been examined using traditional biochemical assays, immunohistochemistry of tissue sections, or flow cytometry. However, these assays and techniques require tissue extraction and processing. To address these limitations and study inflammatory response in minimally perturbed tissue architecture, we undertook a detailed examination of kinetics of host cell infiltration evoked by PDT treatment using a recently reported in vivo optical imaging approach [11, 12]. The technique exploits local administration of fluorophore-conjugated antibodies against cell-specific surface antigens and enables imaging in live mice the population of Gr1+ and MHC-II+ cells in HPPH-treated tissue at different times post-treatment. Using this imaging technique, we demonstrate that a strong inflammatory response characterized with rapid and increased influx of Gr1+ cells is associated with a PDT dose that yields 90% tumor cures. We also observe that in response to PDT, a modest but significantly greater number of Gr1+ cells express major histocompatibility complex class II (MHC-II), thus suggesting a role for them as antigen presenters.

Materials and Methods

Cell culture and tumor model: Mouse mammary cancer EMT6 cells were maintained in monolayer culture in Eagle's basal medium (BME) with 10% fetal bovine serum (complete media) at 37°C. EMT6 tumors were initiated by injection of 5 x 105 EMT6 cells into the ear pinna of 4 - 6 weeks old female BALB/c mice. Animals were followed daily to track tumor growth, and 7 - 10 days after implantation when the tumors reached a volume of approximately 15 - 25 mm3 they were used for experiments as described below.

Photosensitizer administration and light treatment: Mice bearing EMT6 ear tumors were administered 1 μmol kg-1 of the photosensitizer HPPH via intravenous (IV) tail vein injection. At 24 h post HPPH administration, the tumors were subjected to PDT irradiation using 667 nm light from a diode laser (Power Technology Inc., Little Rock, AR). Light was delivered through a GRIN-lens-terminated multimode fiber (OZ Optics, Ottawa, ON, Canada), and the tumors were illuminated with a fluence of 100 J cm-2 at an irradiance of 75 mW cm-2. Controls included untreated ((-) drug, (-) light) animals.

Tumor-response assay: Tumor growth control was used to evaluate the therapeutic efficacy of the HHPH-PDT treatment parameters used for this study. After PDT, tumor dimensions along 3 orthogonal axes were measured daily using digital calipers. Volumes were computed assuming an approximately ellipsoidal shape with the expression, V = (4/3)πr1r2r3. Mice were removed from the study if the volume of the tumor reached twice the pre-treatment volume. Cures were defined as no evidence of palpable tumor 90 days after PDT.

In vivo imaging of photosensitizer uptake and perfusion status using stereofluorescence microscopy: In order to observe large fields of view at high magnification, imaging was performed over the ear tumor of an anesthetized mouse using a Nikon fluorescence stereomicroscope (model SMZ-1500, Nikon Instruments, Melville, NY) equipped with an Xcite illumination source (EXFO, Ontario, Canada). Prior to imaging, hair was removed from the imaged site using Nair. The stereoimaging system can acquire individual fields of view (FOV) as large as 2.7 cm x 2.0 cm, which is large enough to image the entire outer ear. Excitation of HPPH and its fluorescence collection were performed using a custom filter cube (HQ560/120x; 635 DCXR; HQ645LPm, Chroma Technology, Bellows Falls, VT). HPPH localization in the tumor was imaged at 24 h following administration. To visualize perfusion status, 200 μL of 5 mg mL-1 fluorescein isothiocyanate (FITC)-dextran (FD2000S, Sigma-Aldrich, St. Louis, MO) was injected IV via tail vein. Tumor perfusion was examined at different time-points ranging from pre-irradiation to 48 h following PDT. FITC fluorescence was excited and detected using the ENDOW GFP bandpass filter cube (Chroma). High-resolution images of 1390 x 1040 pixels were captured and digitized by a Photometrics 12-bit monochrome CCD camera (CoolSNAPHQ, Roper Scientific, Inc., Trenton, NJ).

In vivo confocal imaging of intratumor photosensitizer distribution, host responses and perfusion status: In vivo imaging of photosensitizer distribution, host responses or perfusion status in tissue on a microscopic scale was performed using a custom laser scanning fluorescence confocal microscope described previously [20]. Briefly, anesthetized mice were placed in a supine position with the ear tumors facing the top of a coverslip mounted on the stage of the inverted microscope. The fluorophores AlexaFluor647 and Allophycocyanin were excited with a 639 nm diode laser and detected using a 647 nm long pass filter (Semrock, Rochester, NY). AlexaFluor488 and FITC were excited at 488 nm from an argon ion laser and detected using a combination of 500 nm long pass and 515/30 bandpass filters (Chroma). The combination of a 100 μm diameter pinhole and a 10x, 0.45 NA objective gave a 6 μm optical section thickness, and the images were acquired at 16 bits with a lateral resolution of 1 μm per pixel.

For immunofluorescence imaging, in vivo antibodies were purchased directly as fluorescent conjugates. We labeled leukocytes using intradermal (ID) administration of 3 μg of anti-mouse Gr1 and CD11b antibodies (Gr1: clone RB6-8C5; CD11b: clone M1/70, Biolegend, San Diego, CA) and imaged their population at different times post irradiation. Major histocompatibility complex class II cells were labeled with antibodies against MHC-II (1.5 μg; Clone M5/114.15.2, Biolegend). AlexaFluor647- or AlexaFluor488-conjugated anti-CD31 antibody (clone MEC13.3, Biolegend) was administered ID in the mouse ear to label the vessels. The ID injection volumes of antibodies were approximately 20 μL and were administered 3 h prior to imaging to allow for clearance of unbound label.

We investigated the microscopic intratumor distribution of HPPH 24 h following administration. HPPH was excited with 514 nm from an argon ion laser, and its emission was detected using a combination of 525 nm and 647 nm long pass filters (Chroma). Vessel perfusion status was imaged in control tissue pre-irradiation and at 24 and 48 h following HPPH-PDT. For any given time-point examined, perfusion in CD31+ vasculature was imaged as early as 5 min post-injection of FITC-dextran.

Image analysis: The images were analyzed using ImageJ 1.43u, a public domain image processing software distributed by the NIH ( All images had fields of view of 800 μm x 800 μm. To obtain cell density in an imaged field, grayscale images of antibody fluorescence were processed to mask Gr1+ cells. Next, the images were thresholded into a binary format. A watershedding algorithm was applied, and the resulting particles were screened for size using the Analyze tool in ImageJ. Size screening was based on the assumption that Gr1+ cells were at least 8 μm in diameter and therefore had a cross sectional area of approximately 50 μm2. The results were analyzed using R version 2.12.0 (R foundation for Statistical Computing; Cell counts at different time intervals were compared using an unpaired 2-tailed t-test without assuming equal variances.

Co-localization analysis: The extent of co-localization between the fluorescence of Gr1+ and MHC-II+ pixels or between Gr1+ and CD11b+ pixels was determined using the Intensity Correlation Analysis tool in ImageJ, a statistical approach based on a cross-correlation analysis introduced by Manders et al. [21]. This analysis yielded coefficients that quantified the co-localized fraction of the signal in the two channels above a specified intensity threshold. The details of the analysis have been reported in a recent study [22].

Results and Discussion

The Kaplan-Meier curves of Figure 1 demonstrate the tumor response to a fluence of 100 J cm-2 delivered at an irradiance of 75 mW cm-2. Among the 10 mice treated with this PDT dose, 9 (90%) were cured as defined by no evidence of tumor 90 days after irradiation. Untreated controls ((−) light, (−) drug) displayed a median tumor doubling time of 6 days (n = 4).

In vivo, whole-mouse fluorescence imaging using the stereofluorescence microscope showed 2-3-fold tumor-to-normal skin selectivity (Figure 2(a)) at 24 h following IV administration of HPPH. We recently reported on the intratumor distribution of the sensitizer, NPe6, wherein we used the antibody labeling technique to label CD31+ tumor vasculature and imaged the spatial distribution and temporal kinetics of NPe6 with respect to vessels following systemic administration [11]. Adopting the same approach, we examined the microscopic pattern of intratumor HPPH distribution using confocal fluorescence imaging.

 Figure 1

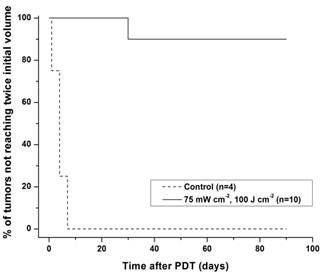

Kaplan-Meier curves of tumor responses to HPPH-PDT. Laser irradiation at 667 nm was performed at an irradiance of 75 mW cm-2 for a fluence of 100 J cm-2 at 24 h after intravenous administration of 1 μmol kg-1 HPPH.

Theranostics Image
 Figure 2

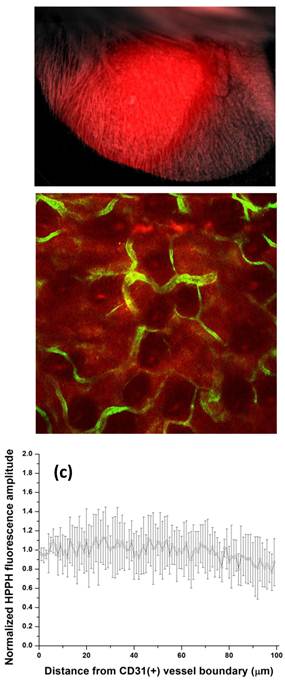

(a) Stereofluorescence image of an EMT6 tumor in the ear of a BALB/c mouse, acquired at 24 h post IV administration of 1 μmol kg-1 HPPH. This representative image is a superposition of a bright field and HPPH fluorescence and highlights the selective uptake of HPPH in the tumor tissue. The HPPH fluorescence intensity in the tumor is approximately 2-3-fold higher than the adjacent normal tissue. (b) In vivo confocal image of intratumor HPPH distribution imaged at a depth of 100 μm into a mouse ear. HPPH fluorescence is in red, and CD31+ vessels labeled by Alexa488-conjugated antibody are in green. (c) HPPH fluorescence as a function of distance from CD31+ vessels, normalized to the fluorescence amplitude at the vessel boundary. The data points are an average of at least four independent measurements, and the error bars represent standard deviations.

Theranostics Image

Figure 2(b) shows a fluorescence image of HPPH distribution (red) with respect to anti-CD31 labeled vasculature (green) at a depth in tissue of 100 μm. The image was acquired 24 h following IV injection of 1 μmol kg-1 HPPH. As illustrated, at this time point HPPH has partitioned from the vasculature into the adjacent parenchyma relatively uniformly. Figure 2(c) shows analysis of HPPH distribution from fields of view from four independent experiments. The mean HPPH fluorescence amplitude is plotted as a function of distance from a vessel wall. Even at a distance of 100 μm the HPPH fluorescence does not drop below 30% of the intensity at the vessel boundary.

PDT induces a local inflammatory response that is characterized by leukocyte infiltration, with a significant fraction of these infiltrating cells being neutrophils [23]. To examine the extent of this response to HPPH-PDT using treatment parameters that resulted in 90% tumor cures, we imaged the influx of Gr1+ cells in vivo into the treated site at 5, 24 and 48 h post-irradiation. Figures 3(a) and (b) illustrate the fluorophore-labeled infiltrating Gr1+ cells imaged in an untreated control and PDT-treated ear, respectively. The image shown in figure 3(c) is a magnified view of an imaged field and demonstrates that confocal imaging can resolve the antibody-labeled Gr1+ cells at an individual cell level. The data summarized in figure 3(d) from multiple independent measurements show an approximately 2.5-fold enhanced Gr1+ cell infiltration in the treated site 24 h post-irradiation compared to untreated control. We also observe a smaller but significant increase in Gr1+ cell accumulation as early as 5 h following treatment. At 48 h post-irradiation, the Gr1+ cell counts decrease and are not significantly different from those at the 5 h time-point. This trend in Gr1+ cell accumulation is remarkably similar to that reported by Gollnick et al. in an elegant study that used identical HPPH-PDT treatment conditions to investigate various mediators of the inflammatory response [18]. Using flow cytometry, the authors found that HPPH-PDT induces an influx of nearly 3-fold higher neutrophils into tumors compared to untreated control at 24 h post-irradiation. The comparable finding between our study and that reported by Gollnick et al. serves as a measure of validation for the in vivo imaging strategy as an assay for host cell populations.

 Figure 3

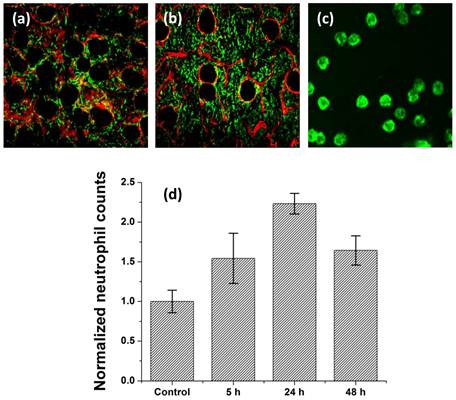

In vivo confocal images of Alexa488-conjugated anti-Gr1+ cells (green) and Alexa647-conjugated anti-CD31 vessels (red) in the tumor-bearing ears of BALB/c mice.. (a) Control ear that received HPPH but was not irradiated, and (b) ear that was PDT-treated. The FOV in these images is 800μm x 800μm. The image in (c) is an expanded view of an anti-Gr1 imaged field to illustrate the high contrast staining of host cells. (d) Mean normalized neutrophil counts in control and PDT-treated sites at time-points of 5, 24 and 48 hours following irradiation. 24 h post-PDT, the treatment induces approximately 2.5-fold higher neutrophil accumulation in the irradiated tissue. The neutrophil counts at 24 h are significantly different from those at control, 5 h and 48 h time-points (P < 0.05).

Theranostics Image

Perfused tumor blood vessels have important functions as the source of local tumor oxygenation and as a route for host cell trafficking [24]. With this motivation, bulk tumor perfusion in vivo was imaged with the stereofluorescence microscope, and microscopic imaging of small numbers of individual vessels was performed using the confocal microscope. Perfusion in live mice was visualized at pre-, 24 h, and 48 h post-irradiation using IV-injected FITC-conjugated high molecular weight dextran as an optical perfusion marker. Figures 4(a-c) are representative stereofluorescence images of perfusion status in an EMT6 ear tumor in the same mouse, followed up to 48 h post-PDT. As illustrated in figures 4(a) and 4(b), there was no detectable difference in perfusion status between the control and treated tumor at 24 h post-treatment. However, at the 48 h time-point a severe perfusion deficit is observed (figure 4(c)). Figures 4(d-f) are confocal images of microscopic patterns of perfusion level (green) in CD31+ labeled vessels (red). Consistent with the stereofluorescence images, we find that relative to the highly perfused vessels observed in control tissue, most of the CD31-positive vasculature in the treated region at 48 h post-irradiation exhibits an absence or low levels of the perfusion marker. This observation of perfusion loss at the 48 h correlates positively with the reduced Gr1+ population density at the same time-point. It is well established that vascular damage may be mediated by neutrophil secretion products such as chemokines, heparin-binding protein and arachidionic acid [25, 26]. Therefore, the reduced perfusion status at 48 h post-PDT is likely triggered by the large accumulation of neutrophils in the tumor tissue. This mode of vascular response is in contrast to the vascular shutdown induced by Visudyne-PDT, where direct damage to ECs leads to rapid loss of vascular barrier function [27]. Further, recent evidence has shown that neutrophils release proteolytic enzymes like MMP-9 upon activation [28]. Therefore, degradation of the extracellular matrix and damage to blood vessels following HPPH-PDT may also be mediated in part by the release of MMPs from the accumulated neutrophil population.

Gr1 is expressed on neutrophils, macrophages, and plasmacytoid dendritic cells [29, 30]. Therefore, the results reported above could potentially reflect cell populations other than neutrophils. In flow cytometry, identification of neutrophils includes positive staining for Gr1 and CD11b and negative staining for F4/80 [19]. We attempted to label in vivo with antibody against F4/80 but observed that commercially available fluorophore-conjugated anti-F4/80 antibodies resulted in unacceptably poor staining. Other investigators have reported similar issues with anti-F4/80 for ex-vivo tissue staining protocols [31]. In the absence of a reliable F4/80 marker and in an effort to further scrutinize the Gr1+ cells in the images, we therefore performed two-color imaging experiments in several control and treated ears using an antibody cocktail that contained anti-Gr1 and anti-CD11b conjugated to AlexaFluor647 and AlexaFluor488, respectively. Figures 5(a) and 5(b) are representative in vivo images from identical fields of view 24 h post-PDT that are comprised exclusively of anti-CD11b or anti-Gr1 fluorescence when excited by 488 or 639 nm light, respectively. Figure 5(c) is a merged image of the two channels and displays strong overlap between the two channels in pixels exhibiting yellow / orange color. The high degree of overlap between pixels that display anti-CD11b and anti-Gr1 labeling is confirmed by co-localization analysis, which yields Manders coefficients of approximately 90%. These coefficients in the treated tissue at 24 h and 48 h post-HPPH-PDT were not different from those measured in untreated controls.

We have recently described imaging of MHC-II+ cells in normal and tumor tissue accomplished using fluorescence labeling in vivo [32]. MHC class II proteins are present on the surface of antigen presenting cells (APCs), majority of which are macrophages and dendritic cells. It is well established that these cells internalize antigens and display a fragment of the antigen, bound to a MHC-II molecule which is recognized by T-cells, leading to their activation and initiation of specific immunity. We therefore imaged the MHC-II+ cell population in untreated control and 24 h post-PDT treated tissue. Figures 6(a) and 6(b) illustrate the MHC-II+ cells (red) in control and treated tissue, respectively. The distribution of MHC-II+ observed at a depth of about 70 μm is demonstrated in these representative images with respect to CD31+ vessels (green). In contrast to the 2-3-fold PDT-induced increase in infiltration of Gr1+ cells (figure 3), our analysis shows a modest but significant increase in the population of MHC-II+ cells at the treated site, with cell counts approximately 50% higher relative to control (figure 6(c)). It is possible that infiltrating macrophages and dendritic cells contribute to this modest increase in MHC-II+ cell counts. However, recent studies have also suggested that neutrophils under stimulation can present MHC-II on their surface and thus function as an APC [33, 34]. Motivated by these findings, we examined if HHPH-PDT can induce Gr1+ cells to present MHC-II. To test whether the fraction of Gr1+ cells expressing MHC-II changes in response to therapy, we imaged Gr1+ and MHC-II+ cells in the same ear following administration of an antibody cocktail that contained anti-Gr1 and anti-MHC-II conjugated to AlexaFluor488 and Allophycocyanin, respectively. Figures 7(a) and 7(b) illustrate representative in vivo confocal images of anti-Gr1+ cells (green) and anti-MHC-II+ cells (red) pre- and 24 h post-irradiation, respectively. Co-localization analysis of these images indicates that in control tissue roughly 21% of Gr1+ pixels have corresponding MHC-II+ pixels, while in treated sites the fraction increases to approximately 28% and 36% at 5 h and 24 h post-irradiation, respectively (figure 7(c)). This suggests that PDT is inducing Gr1+ cells to express an antigen-presenting phenotype. Similar results have been reported by Sun et al., who observed expression of MHC class II on F4/80-/Gr1+ cells that had infiltrated Photofrin-PDT-treated SCCVII tumors [23]. These results are also consistent with the observations of Kousis et al., who examined in detail the role of F4/80-/CD11b+/Gr1+ neutrophils in the stimulation of adaptive immune response [19]. The authors reported that PDT-induced inflammation enables neutrophils to access tumor draining lymph nodes and directly play a role in the enhancement of T-cell activation and proliferation. Our results therefore support the contention that neutrophils may play an important role in stimulating T-cell proliferation in an MHC-II dependent manner.

In conclusion, this study takes advantage of recently established optical imaging strategies to perform an in vivo examination of determinants, ranging from drug distribution to inflammatory response, that are associated with HPPH-PDT efficacy. We present evidence that PDT conditions that yield long term tumor control elicit a strong inflammatory response characterized by influx of Gr1+ cells. The findings suggest a role of these Gr1+ cells as mediators of HPPH-PDT-induced vascular damage and as effectors of adaptive immune response through their release of several secretion products and the expression of an antigen-presenting phenotype, respectively. Our work also highlights certain limitations of optical imaging, at least as implemented here. Flow cytometry offers distinct advantages in identifying cell types using multiple markers because of its ability to label intracellular proteins, its access to angle-resolved scatter, and because contemporary flow systems utilize spectral compensation algorithms and multivariate analysis techniques that are more sophisticated than those available in our optical imaging system and others with which we are familiar.

 Figure 4

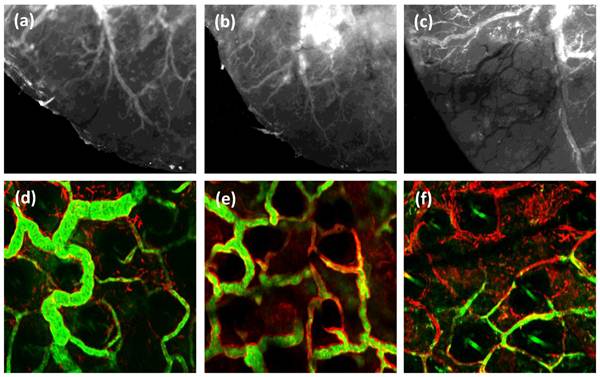

(a-c) Series of stereofluorescence images illustrating vessel perfusion status up to 48 h in an individual ear tumor treated with 100 J cm-2. (a) Untreated control, (b) 24 h post HPPH-PDT and (c) 48 h post-irradiation. These images were acquired from the same mouse tumor for 3 consecutive days. The dark vascular morphology in (c) represents tumor vessels that have lost their perfusion status. The FOV in these images is 3.6 mm x 3.2 mm. (d-f) Representative in vivo confocal fluorescence images of perfusion (green) in CD31+ vessels (red) in (d) untreated control, (e) 24 h and (f) 48 h post HPPH-PDT irradiation. The FOV in these images is 500μm x 500μm.

Theranostics Image
 Figure 5

In vivo confocal fluorescence images of (a) CD11b+ and (b) Gr1+ cells in the same field of view 24 h post-PDT. (c) Merged image showing the extent of overlap between cells expressing CD11b and Gr1 on the surface. The FOV in the images is 800μm x 800μm.

Theranostics Image
 Figure 6

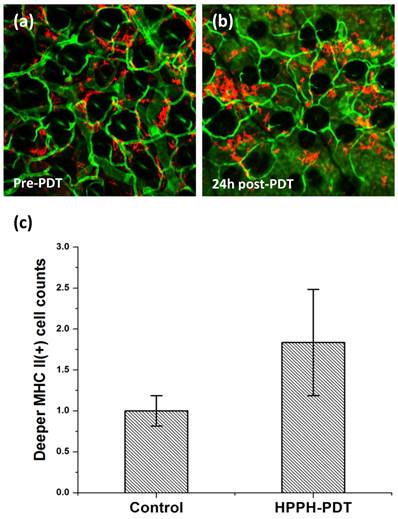

In vivo confocal images of MHC-II+ cells (red) and CD31+ vessels (green). These images were acquired at depths of 70 μm from the tissue surface. (a) Control ear that received HPPH but was not irradiated; (b) PDT-treated site imaged 24 h following irradiation. The field of view in the images is 800μm x 800μm. (c) Mean normalized MHC-II+ cell counts in untreated control and PDT-treated tissue at 24 h following irradiation. MHC-II+ cell population is approximately 1.5 fold higher in PDT-treated vs. control tissue, and the increase is significantly different at the P=0.05 level.

Theranostics Image
 Figure 7

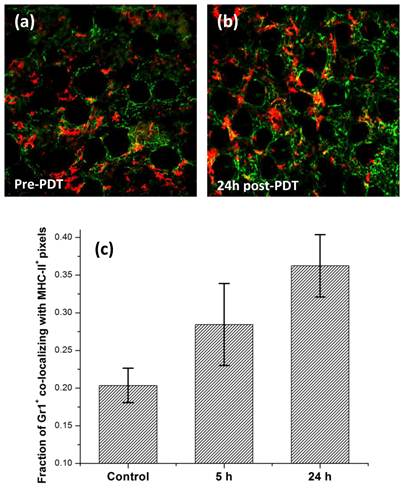

In vivo confocal images of Alexa488-conjugated anti-Gr1+ cells (green) and APC-conjugated anti-MHC-II+ cells (red) in the same field of view (a) pre- and (b) 24 h post-irradiation. These images were analyzed to evaluate the extent of host cells that co-expressed Gr1 and MHC-II receptors on their cell surface. The FOV in the images is 800μm x 800μm. (c) Mean fraction of Gr1+ pixels co-localizing with MHC-II+ pixels evaluated from at least 3 independent experiments for control, 5 h and 24 h post-irradiation. Error bars represent standard deviation. The fractions at 5 h vs. control and 24 h vs. control are significantly different at the P=0.05 and P=0.01 levels, respectively.

Theranostics Image


This work was supported by National Institutes of Health grants CA68409 and P01CA55791 awarded by the National Cancer Institute. The authors thank Dr. Ravindra Pandey for generously providing HPPH. The authors thank Benjamin Giesselman for his help with the tumor response measurements.

Competing Interests

The authors have declared that no competing interest exists.
