A novel octadentate 3-hydroxypyridin-2-one (2,3-HOPO) based di-macrocyclic ligand was evaluated for chelation of 89Zr; subsequently, it was used as a bi-functional chelator for preparation of 89Zr-labeled antibodies. Quantitative chelation of 89Zr4+ with the octadentate ligand forming 89ZrL complex was achieved under mild conditions within 15 minutes. The 89Zr-complex was stable in vitro in presence of DTPA, but a slow degradation was observed in serum. In vivo, the hydrophilic 89Zr-complex showed prevalently renal excretion; and an elevated bone uptake of radioactivity suggested a partial release of 89Zr4+ from the complex.

The 2,3-HOPO based ligand was conjugated to the monoclonal antibodies, HER2-specific trastuzumab and an isotypic anti-gD antibody, using a p-phenylene bis-isothiocyanate linker to yield products with an average loading of less than 2 chelates per antibody. Conjugated antibodies were labeled with 89Zr under mild conditions providing the PET tracers in 60-69% yield. Despite the limited stability in mouse serum; the PET tracers performed very well in vivo. The PET imaging in mouse model of HER2 positive ovarian carcinoma showed tumor uptake of 89Zr-trastuzumab (29.2 ± 12.9 %ID/g) indistinguishable (p = 0.488) from the uptake of positive control 89Zr-DFO-trastuzumab (26.1 ± 3.3 %ID/g).

In conclusion, the newly developed 3-hydroxypyridin-2-one based di-macrocyclic chelator provides a viable alternative to DFO-based heterobifunctional ligands for preparation of 89Zr-labeled monoclonal antibodies for immunoPET studies.

Keywords: immunoPET, positron emission tomography, monoclonal antibody, imaging, 89Zr, radiolabeling, 2, 3-HOPO, 3-hydroxypyridin-2-one.


Over the last two decades, positron emission tomography (PET) has rapidly become an indispensable tool that is used by pharmaceutical companies to accelerate therapeutic development. Nowhere is this more easily observed than with the advent of personalized medicine and the expansion of monoclonal antibodies (mAbs) as targeted therapeutics. PET performed with radiolabeled mAbs (immunoPET) as target specific tracers allows for the whole body assessment of biomarker expression and the non-invasive biodistribution of therapeutic antibodies [1, 2]. Since monoclonal antibodies exhibit a much longer biological half-life than small molecules the most widely used positron emitting radionuclide 18F (T1/2 = 110 min) is not ideal for the radiolabeling of monoclonal antibodies. Zirconium-89 (T1/2 = 3.3 d) appears to be the most suitable residualizing radionuclide for immunoPET applications since its decay half-life synergizes with the biological half-life of a monoclonal antibody to provide enough time for the radiolabeled mAb to be cleared from blood pool while allowing sufficient accumulation at the tissue of interest. The decay of chelating 89Zr to parent 89Y proceeds by positron emission (22.7%) and electron capture (77.3%). Typically 89Zr is coupled to the monoclonal antibody through a bifunctional chelator, which consists of a ligand capable of 89Zr binding and a reactive group that chemoselectively reacts with available lysine or cysteine side chains exposed on the mAb surface. Since Zr4+ is an extremely hard cation the most suitable ligands for 89Zr are expected to be anionic oxygen donors [3], and the most widely used chelator for 89Zr-immunoPET is based on a bacterial siderophore desferrioxamine-B (DFO, Figure 1A). This ligand contains a free amino group, which has been easily derivatized to develop a cadre of bifunctional chelators that have been used to prepare 89Zr-mAbs in numerous pre-clinical and clinical studies [4-6].

Since the hexadentate DFO cannot fulfill the octavalent demands of the Zr4+ cation, it is not considered ideal for satisfying the coordination sphere of the Zr4+ cation. Molecular modeling has suggested that the two remaining coordination sites in Zr-DFO complex could be occupied with two water molecules [7] leading to kinetic instability of the complex and potential release of the radiometal. Although metabolism studies of 89Zr-DFO have never been completed, it is believed that the released 89Zr would bind to plasma proteins, (e.g. transferrin) before being deposited in the bone due to high affinity of Zr4+ for phosphates [8-10]. Indeed, an increased uptake in mineral bone was observed in all preclinical studies with 89Zr-labeled antibodies performed in rodents. To mitigate the risk of 89Zr release, octadentate chelators for 89Zr4+ are being developed in earnest. X-ray crystallographic and molecular modeling studies with Zr4+ complexed by bidentate hydroxamates suggested higher stability of ZrL4 complexes [11], and prompted the development of an octavalent DFO derivative (DFO*; Figure 1B) which was recently prepared by extending DFO by an additional hydroxamate unit. As predicted by the in vitro and in silico studies, the stability of 89Zr-DFO* was found superior to 89Zr-DFO [12].

Catecholates, and hydroxypyridinones (HOPO) were also proposed as ligands for 89Zr chelation [3, 11, 13]. HOPO based chelators were developed as actinide sequestration agents for chelation therapy [14, 15] and some were used for chelating Gd3+ as a contrast agent for MRI imaging [16]. The recent evaluation of 1-hydroxypyridin-2-one based chelator 3,4,3-(LI-1,2-HOPO) (Figure 1C) led to the successful preparation of the 89Zr complex. It's in vitro stability was superior to 89Zr-DFO [13], and small animal PET imaging demonstrated its hepatobiliary clearance, which is in contrast to the rapid renal clearance of 89Zr-DFO. However, observed bone uptake in mice injected with 89Zr-3,4,3-(LI-1,2-HOPO) was higher than the bone uptake in mice receiving 89Zr-DFO. The authors attributed the elevated uptake in bone to a slower hepatobiliary clearance and longer residence time of 89Zr-3,4,3-(LI-1,2-HOPO) in circulation than 89Zr-DFO.Indeed, the subsequent in-vivo study conducted with 89Zr-3,4,3-(LI-1,2-HOPO)-trastuzumab showed lower bone uptake compared to 89Zr-DFO-trastuzumab [17].

Additionally Ma et al. reported the use of H3CP256, a tris(hydroxpyridinone) ligand containing 1,6-dimethyl-3-hydroxpyridin-4-one chelating units and its bifunctional chelator analogue YM103, which contained a maleimide group engineered into the ligand scaffold for facile site specific modifications of antibodies through available, active cysteine residues [18]. While 89Zr-CP256 (Figure 1D) was observed to be highly stable in vitro and in vivo, the stability of 89Zr-YM103-trastuzumab was far less robust. Both acute biodistribution studies and small animal PET imaging revealed an approximate 3-fold increase of radioactivity in the bones of animals injected with 89Zr-YM103-trastuzumab when compared to the bones of animals injected with 89Zr-DFO-trastuzumab. These results led the authors to conclude that the acyclic, tripodal arrangement of the hydroxypyridinone groups in H3CP256 and YM103 were not optimal for the enhanced kinetic stability of the respective 89Zr complexes where prolonged in vivo stability was required.

In this paper, we describe the preparation and evaluation of octadentate chelators containing 3-hydroxypyridin-2-one coordinating units (BPDETLysH22-2,3-HOPO (1); Figure 1E) and its mAb conjugate. The novel "clam shell" design of the bi-macrocyclic chelator 1 was chosen as a compromise between a linear geometry of DFO-like siderophores and rigid macrocyclic geometry to allow for fast chelation of the metal and providing stability of the resulting complex. The free amino group of 1 was derivatized with p-phenylene bis-isothiocyanate to provide an amino-reactive linker for conjugation to monoclonal antibodies via lysine side chains (Figure 1F).

Two antibodies, trastuzumab and anti-gD, were conjugated with 1 and chelated with 89Zr and their in vivo PET imaging properties were compared to the same pair of antibodies labeled by DFO. The mouse model of HER2 positive human ovarian carcinoma (SKOV3) was chosen to compare HER2-specific uptake of 89Zr-trastuzumab labeled by 1 and DFO. An isotypic antibody binding to glycoprotein D (gD) was also labeled with 89Zr using 1 and DFO and used as a negative control to estimate non-specific uptake.

Materials and Methods


Zirconium-89 (89Zr) was purchased from Washington University School of Medicine (St. Louis, MO), IBA Molecular, Inc. (Dulles, VA) or Perkin-Elmer (Waltham, MA) as 89Zr4+ oxalate (89Zr(Ox)2) in 1M oxalic acid solution. Unless otherwise noted, all other chemicals were purchased from Sigma-Aldrich Chemical Co. (St. Louis, MO USA), and solutions were prepared using ultrapure water (18 MΩ-cm resistivity). Anti-human epidermal growth factor receptor 2 (HER2) antibody trastuzumab and the isotypic (IgG1) control anti-gD antibody (anti-glycoprotein D) were produced at Genentech Inc. and stored in 0.01 M sodium acetate, 240 mM sucrose, 0.02% polysorbate 20, pH 5.5. NAP-10 columns were obtained from GE Healthcare (Piscataway, NJ) and Amicon Ultra-4 centrifugal filters (10,000 MWCO) from Millipore (Billerica, MA). NatZr-DFO and 89Zr-DFO were synthesized according to a previously published procedures [19].

Analytical Chemistry

Electrospray ionization (ESI) high-resolution mass spectra (HRMS) were obtained by the Mass Spectrometry Facility, College of Chemistry, University of California, Berkeley, CA. Flash chromatography was performed using EM Science Silica Gel 60 (230 - 400 mesh). NMR spectra were obtained using either Bruker AM-300 or AV-600 spectrometers operating at 300 (75) MHz and 600 (150) MHz for 1H (or 13C) respectively. 1H (or 13C) chemical shifts are reported in parts per million (ppm) relative to the solvent resonances, taken as δ 7.26 (δ 77.0) for CDCl3. For the deprotected macrocycles 1 and 2 (Scheme S1), the observed NMR spectra were very complicated due to the presence of differing conformers/isomers in solution, and are not reported. Analytical HPLC was performed on an Agilent 1200 instrument (Agilent, Santa Clara, CA) equipped with a diode array detector (λ = 280 or 315 nm, 600 nm reference), a thermostat set at 25 ºC, and a Zorbax Eclipse XDB-C18 column (4.6 × 150 mm, 5 µm, Agilent, Santa Clara, CA). The mobile phase of a binary gradient (Method 1: 2-40% B in 20 min; solvent A, 0.1% TFA; solvent B, ACN or Method 2: 10-60% B; 20 min) at a flow rate of 1 mL/min was used for analytical HPLC. All compounds were ≥ 95% pure if not stated otherwise.

 Figure 1

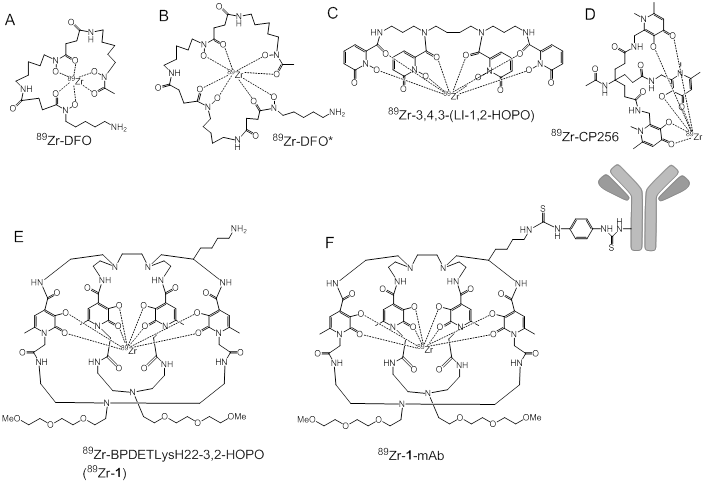

Bifunctional chelators for 89Zr and their proposed modes of 89Zr binding.

Theranostics Image

(View in new window)

Determination of antibody loading with DFO was performed on a Agilent 1200 Series LC with PLRP-S, 1000 Å, column (50 mm × 2.1 mm, Varian Inc., Palo Alto, CA) coupled to an Agilent 6220 Accurate-Mass TOF LC/MS mass spectrometer (Santa Clara, CA). A linear gradient from 34-45% B in 5 min (solvent A, 0.1% formic acid in water; solvent B, 0.1% formic acid in acetonitrile, 0.5 mL/min) was employed with direct injection of the eluent to an electrospray ionization source. Protein concentrations were measured at 280 nm using Eppendorf BioPhotometer (Westbury, NY).

Surface Plasmon Resonance Spectroscopy

DFO- and 1-conjugated trastuzumab (20 μg/mL) were amine coupled to independent channels of a carboxylate sensor surface (COOH2, Sensiq Technologies Inc., Oklahoma City, OK). Serial two-fold dilutions of HER2 extracellular domain antigen were prepared from 50 to 0.2 nM concentration in running buffer containing PBS with 0.02% Tween-20 and were injected across each channel from which the affinity (KD) was determined by a global fit of kon and koff at each concentration.

Analytical Radiochemistry

Radiochemistry reaction progress and purity were analyzed by using a Waters analytical HPLC (Milford, MA), which runs Empower software and is configured with a 1525 binary pump, 2707 autosampler, 2998 photodiode array detector, 2475 multichannel fluorescence detector, 1500 column heater, fraction collector, Grace Vydac 218MS C18 column (5 μm, 4.6 × 250 mm, Grace Davidson, DeerField, IL) and a Carrol Ramsey 105-s radioactivity detector (Berkeley, CA). All ligands (DFO, 1) and associated NatZr-complexes were monitored at 220 nm using a mobile phase consisting of 0.01% TFA/H2O (solvent A) and 0.01% TFA/acetonitrile (solvent B), and a gradient consisting of 0% B to 70% B in 20 min at a flow rate of 1.2 mL/min. In addition, radio-TLC was conducted on a Bioscan AR 2000 radio-TLC scanner equipped with a 10% methane:argon gas supply and a PC interface running Winscan v.3 analysis software (Eckert & Ziegler, Berlin, DE). Varian ITLC-SG strips were employed using a 50 mM DTPA (pH 7) solution as eluent, and the complex 89Zr(Ox)2 as a standard control. Radioactive samples were counted using a Perkin Elmer 2480 Wizard® gamma counter (Waltham, MA; energy window of 500-1500 keV) and standard protocols [19].

The radiochemical purity of 89Zr-Df-mAbs was determined by SEC HPLC on Agilent 1200 series LC system equipped with radiation and UV detectors using TOSOH Biosciences TSKgel G3000SW (7.8 mm × 30 cm × 5 μm), 200 mM sodium phosphate 250 mM sodium chloride, 15% isopropanol pH 7.2 was used as a mobile phase at 0.8 mL/min.

Animal models

All animal experiments were conducted in compliance with Institutional Animal Care and Use Committee guidelines established by Wake Forest University Health Science's or Genentech's Institutional Animal Care and Use Committee. Both are accredited by the Association for Assessment and Accreditation of Laboratory Animal Care (AAALAC). Female NIH Swiss mice (weight, 20-22 g; age, 6-8 weeks) were obtained from Jackson Laboratories (Bar Harbor, ME). NCR nude mice of age 10 weeks were obtained from Taconic (Oxnard, CA). Mice were inoculated on the right flank with 5 × 106 SKOV3 cells (ATCC, Manassas, VA) in a 50:50 ratio of HBSS and phenol red free Matrigel (BD Biosciences, San Jose, CA). Tumor growth was evaluated manually with calipers on a weekly basis. Tumor volume was calculated using a standard formula (volume = 0.52 × [width]2 × [length]).

Synthesis of BPDETLysH22-2,3-HOPO (1)

Bifunctional 3,2-HOPO chelator 1 was prepared under high dilution conditions from tetra-amine and active di-amide precursors followed by acid deprotection. The phenylisothiocyanate derivative 1-NCS was prepared by reaction with p-phenylene bis-isothiocyanate. Further details are described in the Supporting Information.

Synthesis of NatZr-1

To a solution of 1 (0.5 mg, 0.31 µmol) and ZrCl4 (0.11 mg, 0.46 µmol) in 0.5 mL of water was added 0.1 M Na2CO3 to adjust pH 7-7.5. The resulting solution was stirred for 1 h at room temperature. Then the mixture was lyophilized to give a white solid. Formation of NatZr-1 complex was confirmed by ESI-MS analysis. Calculated for C72H107N17O22Zr, 826.83 [(MH2)+2] Found: 826.83 [(MH2)+2].

Synthesis of 89Zr-1

The complexation of 89Zr with 1 was achieved by reacting 10 µg (10 µL, 1.0 mg/mL in water) of 1 with an aliquot of 89Zr(Ox)2 (22.2 MBq) that was diluted in 100 µL of water and pH adjusted to 7-7.5 using 1 M Na2CO3. The reactions were incubated at 24°C for 15 min in a thermomixer (550 rpm). Formation of 89Zr-1, was monitored by radio-TLC using Varian ITLC-SG strips and 50 mM DTPA (pH 7) as the mobile phase. In this system, free 89Zr forms a complex with DTPA and is eluted with the solvent front, while 89Zr-1 remains at the origin. The identity of each radioactive complex was further confirmed by comparing its radio-HPLC elution profile to the UV-HPLC spectrum of NatZr-1.

In vitro serum stability and DTPA challenge study

In vitro stability was carried out by adding 10 µL of each 89Zr-labeled complex (1.85 MBq) to 500 µL DTPA (50 mM, pH 7), or human serum. The solutions (n = 12) were incubated at 37°C for 7 days and were analyzed daily for 1 week by radio-TLC using Varian ITLC-SG strips and 50 mM DTPA (pH 7) as the mobile phase and gamma counting using an energy window of 500-1500 keV and standard protocols [19].

Determination of partition coefficients (logP)

The partition coefficient (LogP) for each complex was determined by adding 5 µL of each 89Zr-labeled complex (approx. 0.2 MBq) to a mixture of 500 μL of octanol and 500 μL of water. The resulting solutions (n = 4) were vigorously vortexed for 5 min at room temperature, then centrifuged at 17,000 rpm for 5 min to ensure complete separation of layers. From each of the four sets, 50 μL aliquot was removed from each phase into screw tubes and counted separately in a gamma counter. Each organic phase was washed with water to remove any radioactivity remaining in the organic phase before gamma counting. The partition coefficient was calculated as a ratio of counts in the octanol fraction to counts in the water fraction.

Biodistribution Studies

Biodistribution studies were conducted using a modified literature procedure [20]. Briefly, female NIH Swiss mice (6-8 weeks old, n = 6) were injected with each 89Zr-labeled complex (0.5 MBq per mouse) via the tail vein, and sacrificed at 2, 4, 24, 48, 72 h post injection (p.i.). Organs and tissues of interest were excised, weighed, and radioactivity was measured on a Perkin Elmer 2480 Wizard® gamma counter (Waltham, MA). The percent injected dose per gram (%ID/g) and percent injected dose per organ (%ID/organ) were calculated by comparison to a weighed, counted standard for each group.

Synthesis of 1-trastuzumab and 1-gD

The 5 mM stock solution of the bifunctional chelator was prepared by dissolving 1-NCS (2.62 mg, 1.5 mmol) in DMF (0.3 mL), the stock solution was then aliquoted and frozen at -20°C. The mAb solution was buffer exchanged into 50 mM sodium acetate pH 8.5 using a NAP-10 column. An aliquot of the 1-NCS stock solution (87 μL, 0.42 μmol; a 6-fold molar excess) was then added to the solution of antibody (10.7 mg, 0.07 μmol) in 50 mM sodium acetate pH 8.5 (0.8 mL) and incubated at 37°C for 90 minutes. The reaction was stopped by buffer exchange on a NAP-10 into 0.01 M sodium acetate, 240 mM sucrose, 0.02% polysorbate 20, pH 5.5 (1.5 mL). The average loading (chelator/antibody ratio) was determined by mass spectrometry.

Synthesis of 89Zr-1-mAb and 89Zr-DFO-mAb

The solution of 89Zr(Ox)2 (74-150 MBq, 100 μL) in 1 M oxalic acid was mixed with 2 M solution of K2CO3 (50 μL) and incubated at room temperature for 3 min after which 0.5 M HEPES buffer pH 7 (650 μL) was added. Then 200 μL of mAb-conjugate (1 mg, 7 nmol) was added to the 89Zr solution providing a total volume of 1 mL. The mixture was incubated at room temperature for 1 h. To remove non-chelated 89Zr4+ the radiolabeled protein was purified using a NAP-10 desalting column pre-equilibrated with 20 mL of the elution buffer. The reaction mixture was loaded on the column and the 89Zr-mAb was eluted with 0.01 M sodium acetate, 240 mM sucrose, 0.02% polysorbate 20, pH 5.5 buffer (1.5 mL). If the purified chelate contained radioactive low molecular weight species, the 89Zr-mAb was further purified using an Amicon Ultra-4 filter (10K).

Determination of in vitro 89Zr-mAb stability in mouse serum

A solution of 89Zr-1-trastuzumab conjugate in 20 mM sodium succinate and 240 mM sucrose, pH 5.5 (0.2-0.4 mL) was added to fresh mouse serum (0.7 mL) and incubated at 37°C for 0-96 h. Samples (70 μL) of the serum solution were analyzed using SEC HPLC.

PET imaging

Mice (n = 5 per group) were injected via the lateral tail vein with approximately 3.7 MBq of 89Zr-mAb (5 mg/kg mAb) in 100 µL of 0.9% saline and imaged 1 hour, 1 day, 3 days, and 6 days p.i. of tracer. PET imaging was conducted using Siemens Inveon MM PET/CT scanners (Siemens Preclinical Solutions, Knoxville, TN, USA). Animals were lightly anesthetized with approximately 3.5% sevoflurane for restraint, and body temperature was maintained at 37°C by warm air flow. PET data were acquired as 15 minute static scans for time points at 2 days p.i. and earlier, and increased to 30 minutes for day 6 scans to compensate for radioactive decay. All PET scans were immediately followed by CT scans for anatomical reference and attenuation correction of PET data. List mode data were reconstructed into images with 128 × 128 in-plane voxels of 0.4 × 0.4 mm and 0.8 mm through-plane voxel thickness using vendor-provided iterative OP-MAP implementation with the hyperparameter β set to 0.05 [21].

Image Analysis

Region of interest (ROI) measurements were performed on multiple axial slices of the tissues using IRW software (Siemens Preclinical Solutions, Knoxville, TN, USA). Decay-corrected signal intensity of tumor and mediastinal blood pool, was measured as percentage of the injected dose per gram (%ID/g), assuming a tissue density of 1 g/cm3.

Statistical Analysis

All of the data are presented as mean ± SD or mean (95% Confidence Interval), and statistical classifications were performed using a student's t test (two-tailed, unpaired). Statistical analysis was performed with R software version 3.0.2 (R Foundation for Statistical Computing, Vienna, Austria) or GraphPad Prism (San Diego, CA). Any p < 0.05 was considered significant.

Results and Discussion

The goal of this work was to evaluate ligand 1 as a novel chelator for 89Zr immuno-PET applications. While similar systems have been suggested as efficient actinide sequestration agents or as chelates for 89Zr [13, 22, 23], the ligand described in this report incorporates 3,2-HOPO coordinating units into a larger di-macrocyclic motif since it is widely accepted that the structural rigidity of the macrocyclic framework will impart additional stability to the resulting radiometal complex that cannot be achieved in acyclic ligands [24]. An additional design feature of this ligand includes the incorporation of an amine functionalized pendant arm that provides an available site for facile bioconjugation to proteins, antibodies, peptides or nanoparticles. The synthesis of this ligand involves the condensation of the tetraamine and activated di-acid intermediates under high dilution conditions, followed by chromatography to yield 1, and further details of the synthesis are provided in the Supporting Information. Additionally, the nonradioactive NatZr-1 was prepared by reacting 1 with a slight excess of ZrCl4 (1.5 equiv.) in water under neutral conditions for 1 h at room temperature, and HPLC analysis of the reaction demonstrated that the product had a retention time of 9.3 minutes, which is similar to that of the free ligand (9.1 minutes, Figure S2). Interestingly, NatZr-1 demonstrated a broadened peak shape in the HPLC chromatogram, which is attributed to the presence of structural isomers. Although ESI-MS analysis of NatZr-1 confirmed the 1:1 binding of Zr4+ to 1 (Figure S1), the presence of isomers is entirely reasonable given the available coordination motifs that ligand 1 may make available to the Zr4+ ion in solution.

Initial radiochemical studies focused on optimizing reaction conditions such as time, temperature, and pH for the efficient and quantitative labeling of 1 with 89Zr. These investigations revealed that 1 could be quantitatively radiolabeled with 89Zr within 15 minutes at ambient temperature suggesting this ligand exhibits 89Zr binding characteristics that are similar to other HOPO and terepthalamide (TAM) ligands reported in the literature [19]. Radio-HPLC analysis revealed that 89Zr-1 exhibited a peak profile similar to that of NatZr-1 and had a retention time of 9.9 minutes. The specific activity (As) for 89Zr-1 was observed to be 0.9 GBq/µmol, and represents an achievable yield that is in agreement with the As of similar 89Zr-complexes [13, 19].

Lipophilicity (LogP), is an important criterion that yields insight into the adsorption, distribution, metabolism, and elimination of 89Zr-complexes in vivo and was determined using a water/octanol partition [25-28]. Although there are many ways to assess a molecule's lipophilicity, a water-octanol experimental model was chosen since it accurately reflects the true partitioning behavior of all species present in each layer. Based upon the results of these studies, 89Zr-1 demonstrates a LogP value of -1.53 ± 0.03, which indicates hydrophilic character, and is most likely due both to charge and the numerous hydrogen bonding motifs this complex presents in solution. While this value suggests that renal excretion would be a preferred route of elimination after in vivo injection, it is interesting to note that the LogP value of this complex at neutral pH is much more positive than that of 89Zr-DFO (-2.83 ± 0.04) or 89Zr-complexes involving di-macrocyclic terepthalamide ligands, which have been recently described in the literature [19].

Although Zr has no known role in biological systems, the uncontrolled release of 89Zr from injected radiopharmaceuticals due to transchelation remains a major concern since Zr's high affinity for phosphorus leads to its eventual deposition into phosphate rich tissues including the liver, kidney and bone [29-31]. Therefore, understanding the stability of 89Zr chelates alone or as part of a radiopharmaceutical is critically important. Accordingly, the stability of 89Zr-1 was assessed in vitro by challenging the radiometal chelate with 50 mM DTPA solution or human serum over the course of seven days at 37°C, and these results are described in Table S1 and Table S2, respectively. Under the experimental conditions described, 89Zr-1 was observed to be more resistant to DTPA challenge than 89Zr-DFO over the seven-day study. After 24 h and 168 h, the amount of 89Zr initially complexed to DFO was reduced by 45% and 59%, respectively, while under similar conditions 89Zr-1 experienced 0% and 22% trans-chelation, respectively. While the stability of 89Zr-1 was not as impressive as ligands reported with similar coordinating motifs [19], the data suggests that the HOPO ligand is vastly superior to DFO in this context. However, stability of 89Zr-1 in serum appeared to be far less impressive, and suggests a discrepancy between the DTPA and serum stability results. While transchelation is one possible explanation for this discrepancy, another explanation could be the binding of intact complex to serum proteins through hydrophobic interactions, and further efforts to characterize these interactions are currently underway.

To assess the global retention and clearance of 89Zr-HOPO in vivo, biodistribution studies were conducted in normal mice and the results of those studies are described in Table S3. By 72 h p.i., 89Zr-1 demonstrated comparable blood clearance to 89Zr-DFO (89Zr-DFO vs 89Zr-1) (blood, 0.000 ± 0.001 %ID/g vs. 0.003 ± 0.002 %ID/g). However, liver and kidney retention remained elevated (89Zr-DFO vs 89Zr-1) (liver, 0.07 ± 0.01 %ID/g vs. 0.43 ± 0.03 %ID/g; kidney, 0.69 ± 0.09 %ID/g vs. 14.73 ± 2.20 %ID/g). The elevated retention of radioactivity in these tissues may reflect several active mechanisms either alone or in concert. For example, elevated retention may result from radiometal complex aggregation or protein binding. Additionally, acid decomplexation, trans-chelation and precipitation caused by lysosomal degradation within cells may also be the cause of the increased radioactivity retention in these tissues. While the nature of the radioactive species is unknown, metabolism studies are currently underway to elucidate whether this retention results from complex aggregation, protein transchelation or 89Zr precipitation in situ.

The affinity of 89Zr for hydroxylapatite, the phosphate-rich molecule found in bone is well documented [29]. Accordingly the amount of 89Zr retained in bone after 89Zr-radiopharmaceutical injection remains a critical metric for determining the utility of new 89Zr chelators. Biodistribution studies involving 89Zr-1 revealed that animals injected with this radiometal complex had more radioactivity retained in their bones than did animals receiving 89Zr-DFO (89Zr-DFO: 0.08 ± 0.01 %ID/g vs. 89Zr-1: 0.28 ± 0.08 %ID/g). Similar studies using an acyclic HOPO ligand architecture also revealed elevated bone retention when compared to DFO, but the true utility of any ligand containing HOPO coordinating units will only be understood once this ligand type is radiolabeled as part of an antibody based radiopharmaceutical [13].

After the evaluation of the radiometal chelate, the performance of 1 as part of a mAb conjugate was evaluated. Accordingly, the amino reactive heterobifunctional chelator 1-NCS was prepared by reacting 1 with p-phenylene bis-isothiocyanate linker. The conjugation of 1-NCS to antibodies (HER2 specific trastuzumab and a control antibody binding gD) was achieved by 90 minutes long incubation of antibody with 6-fold excess of 1-NCS at pH 8.5. The progress of the conjugation was monitored by LCMS and the final loading was determined by mass spectrometry. The reaction yielded monoclonal antibodies covalently modified with 1.7 molecules of 1. The DFO-trastuzumab and DFO-gD were obtained with loading of 1.3 and 1.4 molecules of DFO per antibody according to previously published procedure using Fe3+ protected activated ester TFP-NSucDFO-Fe [6]. The binding of 1-trastuzumab and DFO-trastuzumab to the extracellular domain of HER2 was determined by SPR, and both (0.50 nM and 0.48 nM, respectively), were in very good agreement with the binding affinity of non-modified trastuzumab (0.5 ± 0.1 nM) [32].

The antibodies conjugated with 1 or DFO were labeled with 89Zr using the same protocol. The 89Zr-DFO-mAbs were obtained in 83% and 79% yields, respectively and both had radiochemical purities greater than 95%, 89Zr-1-trastuzumab and 89Zr-1-gD were obtained in 60% and 69% yields, respectively. The purity of of 89Zr-1-trastuzumab and 89Zr-1-gD was greater than 90% by UV, but it was lower as determined by radioactivity detector, 81% and 64% respectively. The impurities present in both tracers labeled with 1 were observed as radioactive low and high molecular weight species, which could not be separated from the radiolabeled mAbs and could not be further characterized (Figure S3). Specific activities of 89Zr-1-mAbs were 30 and 33 MBq/mg and the specific activities of 89Zr-DFO-mAbs were 41 and 44 MBq/mg. The data is summarized in Table S4.

To assess the stability of 89Zr-1-trastuzumab, the tracer was incubated in mouse serum at 37°C for four days and the amount of intact 89Zr-1-trastuzumab was monitored by SEC HPLC. The amount of intact, non-aggregated material in the mouse serum quickly dropped to approximately 50% within first 24 hours then the rate of the loss of the parent material slowed and stabilized around 40% (Figure S4). Similar serum stability profile was observed with the non-conjugated 89Zr-1 complex although the amount of remaining intact 89Zr-1 was close to 90% (Table S2). The products of 89Zr-1-trastuzumab decomposition in mouse serum were observed to be high molecular weight aggregates (40%) while the remaining 20% was attributed to low molecular weight species.

The in vivo PET imaging properties of 89Zr-1-trastuzumab and 89Zr-1-gD were compared to the same antibodies labeled using 89Zr-DFO. A mouse model of HER2 over-expressing ovarian cancer (SKOV3) was chosen to compare the ability of each radiotracer to visualize HER2 positive tumors. The isotypic antibody binding to glycoprotein D from HSV virus (gD) was used as a negative control to estimate non-specific uptake of the tracers as the antigen is absent in mammalian tissue.

The time activity curves for tumor, blood, liver and bone obtained during PET imaging are shown at Figure 2A. The blood pool levels of all tracers measured in the region of interest encompassing the left ventricle were in the range 25-30 %ID/g at 1 h p.i., the value is typical for pre-clinical immunoPET experiments in mice. The only notable difference observed at 1 h p.i. was the elevated liver uptake of 1-labeled antibodies compared to 89Zr-DFO-labeled conjugates. The liver uptake of 89Zr-1-trastuzumab (22.3 ± 2.4 %ID/g) was comparably higher than the uptake of 89Zr-DFO-trastuzumab 16.1 ± 3.5 %ID/g (p = 0.0007). The liver uptake of 89Zr-1-labeled anti-gD reached similar values with 89Zr-1-gD trending higher than DFO-gD (p = 0.053). The elevated liver uptake of tracers labeled with 1 within the first hour p.i. could be attributed to presence of high molecular weight aggregates and lower molecular weight lipophilic impurities in 89Zr-1-trastuzumab and 89Zr-1-gD (Table S4, Figure S3).

Statistically significant differences in retention of the four tracers in the tumor were apparent at 24 h p.i. The tumor uptake of both trastuzumab derived tracers (Figure 2A) was higher than the retention of their anti-gD counterparts (p = 0.0014 for DFO-tracers, and p = 0.0006 for tracers labeled with 1) and no difference in tumor uptake was observed between 89Zr-DFO-trastuzumab and 89Zr-1-trastuzumab. At day 3 p.i. this trend continued while the most pronounced differences were observed after 6 days. At day 6 p.i., the average tumor uptake in the group imaged with 89Zr-1-trastuzumab was 29.2 ± 12.9 %ID/g and the tumor uptake in the group imaged with 89Zr-DFO-trastuzumab was 26.1 ± 3.3 %ID/g, the difference between groups was not statistically significant (p = 0.488). The uptake of the isotypic control antibodies 89Zr-DFO-gD and 89Zr-1-gD in the tumor tissue was 9.2 ± 2.0 %ID/g and 6.0 ± 0.6 %ID/g. The non-specific uptakes of anti-gD antibodies in the tumor were significantly lower than the HER2-specific tumor uptakes of trastuzumab derived tracers, p = 0.001 for DFO chelator and p = 5.7 × 10-5 for 1 respectively. The non-specific uptakes of 89Zr-1-gD and 89Zr-DFO-gD in the tumor were not statistically different (p = 0.468).

A faster clearance of tracers labeled with 1 from blood pool was apparent at 24 h p.i. (Figure 2B). The blood pool uptake of tracers employing 1 was significantly lower than the uptake of DFO-tracers (p = 0.023 for trastuzumab pair and p = 0.012 for gD pair). The trend continued through day 3; at day 6, the blood pool uptake was significantly higher for DFO-conjugated antibodies than for 1-conjugated antibodies (p = 0.0006 for gD pair, and p = 0.003 for trastuzumab pair).

 Figure 2

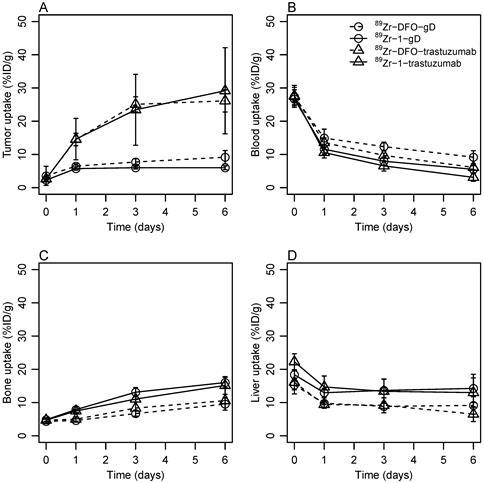

Uptake of 89Zr-labeled antibodies in SKOV3 xenograft, heart, bone and liver was determined by PET imaging of mice bearing SKOV3 tumors.

Theranostics Image

(View in new window)

The elevated liver uptake of antibodies conjugated to 1 observed at 1 h p.i. was present through day 1, 3 and 6 but the slope of the time activity curve was parallel to the liver uptake of DFO labeled tracers supporting the hypothesis that the impurities present in 89Zr-1-trastuzumab and 89Zr-1-gD sequestered in liver and further hepatobiliary metabolism of both (1- and DFO-labeled) tracers proceeded at a similar rate. The liver uptake of trastuzumab derivatives remained roughly constant from day 1 to 6 (Figure 2D) with day 6 levels 6.5 ± 2.2 %ID/g for 89Zr-DFO-trastuzumab compared to 13.0 ± 4.4 %ID/g for 1-trastuzumab (p = 0.01). The liver uptake of 1-gD and 89Zr-DFO-gD reached similar levels and followed the same trend as trastuzumab derived tracers.

The radioactivity uptake in bone reflects the extent of 89Zr release from the complex. The bone uptake measured in the hind leg knee was not different between 89Zr-DFO-gD and 89Zr-DFO-trastuzumab (p = 0.390, 0.388 at days 1 and 6 p.i. respectively) or between 89Zr-1-gD and 89Zr-1-trastuzumab (p = 0.350, 0.474). But it was significantly higher in groups imaged with 89Zr-1-labeled antibodies than in the groups imaged with 89Zr-DFO-labeled antibodies through day 1 to 6 p.i. (Figure 2C). The bone uptake in the group imaged with 89Zr-1-trastuzumab steadily increased and reached 15.1 ± 2.7 %ID/g at day 6; it was significantly (p = 0.0003) higher than the uptake of radioactivity in the bone tissue in the group imaged with 89Zr-DFO-trastuzumab (10.6 ± 1.0 %ID/g). The bone uptake in groups imaged with tracers derived from anti-gD antibody reached similar levels and followed similar trends with significantly (p = 4.6 × 10-5) higher bone uptake in 89Zr-1-gD group than in 89Zr-DFO-gD group at day 6. The elevated bone uptake of 89Zr observed with tracers labeled using 1 compared to the tracers labeled using DFO in PET is in line with the limited stability of 89Zr-1 and 89Zr-1-trastuzumab in serum (Table S2, Figure S4) and the elevated 89Zr-1 bone uptake observed in biodistribution experiment (Table S3). Although a direct comparison has not been conducted, the bone uptake observed with 89Zr-1-labeled antibodies in this study appears to be lower than the uptake of 89Zr-YM103-trastuzumab [18]. Ma et al. reported that PET imaging in mice with 89Zr-YM103-trastuzumab resulted in 25.9 ± 0.6 %ID/g bone uptake at day 7 p.i. which is higher than 15.1 ± 2.7 %ID/g observed at day 6 p.i. in this study. Despite different conjugation chemistries that were used by Ma et al. and in our study, both studies used DFO as the standard 89Zr chelator. The normalization of the bone uptake of 89Zr-1-trastuzumab and 89Zr-YM103-trastuzumab to the bone 89Zr-DFO-trastuzumab allows comparison of the tracers. The ratio of bone uptake of 89Zr-YM103-trastuzumab and 89Zr-DFO-trastuzumab reported by Ma et al. was 4 at day 7 p.i. which is much higher than the same ratio observed in this study (1.4 at day 6). The comparison of normalized bone uptakes revealed much higher in vivo stability of 89Zr-antibodies labeled via bi-cyclic octadentate ligand 1 than the in vivo stability of 89Zr-antibodies labeled using tripodal hexadentate ligand CP256. The use of conformationally constrained octadentate HOPO-based ligands for 89Zr is clearly a step forward on the path to develop 89Zr-chelators superior to DFO. The effect of changing the scaffold topology responsible for positioning the 3,2-HOPO coordination units is the subject of current investigation.

Taken altogether, the impurities present in 1-labeled antibodies likely contributed to the observed higher liver uptake and the elevated bone uptake observed in 1-labeled antibodies was caused by lower stability of 89Zr-1 complex compared to 89Zr-DFO complexes. Despite the lower purity and stability of 1 labeled antibodies the HER2-specific tumor uptakes of trastuzumab derived tracers were identical and the impact of lower stability and purity to overall image quality seems negligible (Figure 3).

 Figure 3

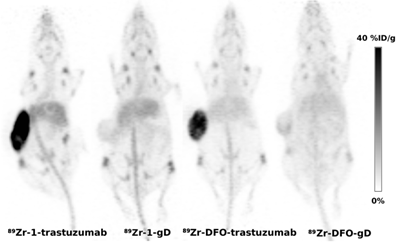

Represenative PET images (maximum intensity projections) obtained using 89Zr-antibodies labeled by 1 and DFO and SKOV3 xenograft bearing mice at day 6 p.i.

Theranostics Image

(View in new window)


The complexes of Zr4+ with 3-hydroxypyridin-2-one based di-macrocyclic ligand 1 were formed in 1:1 ratio and the quantitative chelation of 89Zr4+ was achieved under mild conditions within 15 minutes. The 89Zr-1 was stable in vitro in presence of DTPA, but a slow degradation was observed in serum. In vivo, the hydrophilic 89Zr-1 complex showed prevalently renal excretion; and an elevated bone uptake of radioactivity suggested a partial release of 89Zr4+ from the complex.

The di-macrocyclic ligand 1 was conjugated to monoclonal antibodies, trastuzumab and anti-gD, using a p-phenylene bis-isothiocyanate linker to yield products with an average loading of less than 2 molecules of 1 per antibody. The trastuzumab conjugate retained its binding affinity to HER2. Both antibodies were labeled with 89Zr under mild conditions providing the PET tracers in 60-69% yield and acceptable purity. Despite the limited stability of 89Zr-1-trastuzumab in mouse serum; the PET tracers performed very well in vivo. The PET imaging in mouse model of HER2 positive ovarian carcinoma showed tumor uptake of 89Zr-1-trastuzumab indistinguishable from the uptake of positive control 89Zr-DFO-trastuzumab; however, the non-specific uptake of 89Zr-1 labeled tracers was slightly elevated in liver and bone compared to 89Zr-DFO based tracers.

In conclusion, the presented study demonstrated that the 3-hydroxypyridin-2-one based di-macrocyclic ligand 1 provides a viable alternative to DFO for immunoPET studies. An optimization of the macrocyclic scaffold in respect to positioning the 2,3-HOPO units and increase the in-vivo stability of the complexes is ongoing.


ESI-MS: Electrospray Ionization Mass Spectrometry; ITLC: Instant Thin Layer Chromatography; kBq: Kilobecquerel; KD: Binding Constant; MBq: Megabecquerel; %/ID/g: Percent injected does per gram of tissue; p.i.: post-injection; ROI: Region of Interest; RU: Response Unit; SPR: Surface Plasmon Resonance; TLC: Thin Layer Chromatography, SEC HPLC: Size exclusion column HPLC, HER2: human epidermal growth factor receptor 2
