Multifunctional nanomedicines-enabled chemodynamic-synergized multimodal tumor therapy via Fenton and Fenton-like reactions

Haiyan Gao1#, Zhiping Cao2#, Huanhuan Liu1, Lijuan Chen1, Yan Bai1, Qingxia Wu1, Xuan Yu1, Wei Wei1, Meiyun Wang1,3 Corresponding address

1. Department of Medical Imaging, Henan Provincial People's Hospital & the People's Hospital of Zhengzhou University, Zhengzhou, 450003, P. R. China.
2. School of Biomedical Sciences, Faculty of Medicine, The Chinese University of Hong Kong, Shatin, NT, Hong Kong SAR, 999077, China.
3. Laboratory of Brain Science and Brain-Like Intelligence Technology, Institute for Integrated Medical Science and Engineering, Henan Academy of Sciences, Zhengzhou, 450003, P. R. China.
# These authors contributed equally to this work.

Citation:
Gao H, Cao Z, Liu H, Chen L, Bai Y, Wu Q, Yu X, Wei W, Wang M. Multifunctional nanomedicines-enabled chemodynamic-synergized multimodal tumor therapy via Fenton and Fenton-like reactions. Theranostics 2023; 13(6):1974-2014. doi:10.7150/thno.80887. https://www.thno.org/v13p1974.htm
Other styles

File import instruction

Abstract

Graphic abstract

Chemodynamic therapy (CDT) is well-known for using the tumor microenvironment to activate the Fenton reaction or Fenton-like reaction to generate strong oxidative hydroxyl radicals for tumor-specific treatment. It is highly selective and safe, without depth limitation of tissue penetration, and shows its potential as a new green therapeutic method with great clinical application. However, the catalytic efficiency of reagents involved in the Fenton reaction is severely affected by the inherent microenvironmental limitations of tumors and the strict Fenton reaction-dependent conditions. With the increasing application of nanotechnology in the medical field, combined therapies based on different types of functional nanomaterials have opened up new avenues for the development of next-generation CDT-enhanced system. This review will comprehensively exemplify representative results of combined therapies of CDT with other antitumor therapies such as chemotherapy, phototherapy, sonodynamic therapy, radiation therapy, magnetic hyperthermia therapy, immunotherapy, starvation therapy, gas therapy, gene therapy, oncosis therapy, or a combination thereof for improving antitumor efficiency from hundreds of the latest literature, introduce strategies such as the ingenious design of nanomedicines and tumor microenvironment regulations to enhance the combination therapy, and further summarize the challenges and future perspective of CDT-based multimodal anticancer therapy.

Keywords: Chemodynamic therapy, Combination therapies, Tumor microenvironment, Reactive oxygen species, Nanotechnology

Introduction

Cancer is the second leading cause of death worldwide and brings huge economic burden on families and societies [1]. According to the latest global cancer burden figures for 2020 released by the World Health Organization's International Agency for Research on Cancer (IARC), 19.29 million new cancer cases and 9.96 million cancer deaths occurred worldwide in 2020. Globally, the cancer burden is expected to increase by 50% in 2040 compared to 2020 due to the aging population that is supposed to lead to nearly 30 million new cancer cases. The number of malignant tumor incidences and deaths in China continues to rise, and the annual medical expenditure due to malignant tumors exceeds $220 billion [2]. Thus, exploring efficient treatments and developing innovative anti-cancer drugs will be highly beneficial for reducing the cancer burden and prolonging patients' life expectancy.

Reactive oxygen species (ROS), mainly including superoxide anion (•O2-), singlet oxygen (1O2), hydroxyl radicals (•OH), and hydrogen peroxide (H2O2), are a class of toxic substances that damage cells [3-5]. ROS can damage biological macromolecules such as lipids, proteins, and DNA, and thereby induce cancer cell apoptosis [6-8]. In 2019, Shi's group proposed the concept of “reactive oxygen species science” as an emerging scientific discipline, which systematically expounds on the chemical mechanism, biological effects, and therapy applications of ROS, providing feasible ROS-related cancer treatment strategies [9]. Meanwhile, the rapid development of nanotechnology in recent years has achieved many gratifying results in cross-application with medicine, especially in the field of nanodrug carriers, combination therapies and targeted therapies, which lead to new directions in cancer treatment [10-12]. To date, researchers have prepared a variety of nanomaterials with unique ROS regulation properties, which are widely used in the biomedical field [13-15]. Many anti-tumor approaches can induce ROS production, for instance, chemotherapy, photodynamic therapy (PDT), radiation therapy (RT), sonodynamic therapy (SDT), and chemodynamic therapy (CDT). Compared with other therapies, CDT has the advantages of high selectivity, no depth limitation of tissue penetration, evitable damage to normal tissues, and no need for exogenous energy in reaction activation.

CDT is a new type of tumor treatment technique based on the transformation reaction of endogenous chemical products in tumors using the Fenton or Fenton-like reactions. It has attracted widespread attention from the international academic community after it was proposed in 2016 [16]. Essentially, the Fenton reaction represents a process of Fe2+ catalyzing the highly expressed H2O2 in the tumor microenvironment (TME) to produce highly oxidized •OH (typical reaction scheme: Fe2++H2O2→Fe3++OH•+OHˉ; Fe3++ H2O2→Fe2++HO2•+H+). Many types of iron-based catalysts have been developed for the Fenton reaction, but their efficiency varies: only reagents that readily release Fe (II) exhibit good CDT performance. New century researchers have also explored Fenton-like reactions mediated by copper (Cu), manganese (Mn), cobalt (Co), molybdenum (Mo), titanium (Ti), tungsten (W) and zinc (Zn), vanadium (V), palladium (Pd), silver (Ag), cerium (Ce), ruthenium (Ru) for enhanced CDT efficacy [17-20]. However, developing a Fenton catalyst with excellent CDT performance remains challenge. For example, it was reported that many manganese-based catalysts have been designed for Fenton-like reactions since MnO2 is easily reduced to Mn2+ by GSH in tumors [21]. It is worth noting that Mn2+ exerts Fenton-like activity in the presence of HCO3ˉ and it is necessary to consider that the low concentration of HCO3ˉ in tumors will affect the performance of CDT reagents. Additionally, the CDT also still has the following limitations: (1) the pH (pH 6.5-6.9) in the TME is much higher than that required for the Fenton reaction (pH 2-4); (2) the content of H2O2 (100 μM-1 mM) in the tumor is not enough to produce sufficient •OH, while the overexpression of glutathione (GSH) in the TME (up to 10 mM) can consume •OH and reduce the treatment efficiency; (3) Low catalytic efficiency of Fenton reagents.

Focusing on the problems as mentioned above, several strategies have been developed to enhance the therapeutic efficacy of CDT, some of which are listed in Table 1. For example, modulating the TME states, such as lowing the pH of the tumor [22], designing Fenton reaction reagents that are less dependent on pH [23, 24], increasing the level of H2O2 [17, 25, 26], or consuming GSH in the tumor [27, 28], can improve the therapeutic outcome of CDT. Besides, optimizing the morphology and interface properties of the catalysts could enhance their catalytic ability, since the chemical composition, size, and aggregation of the nanocatalysts have a great impact on the catalytic rate and activity of the Fenton reaction [29]. Nowadays, a variety of nanocatalysts (transition metal nanomaterials, metal-organic nanomaterials, monoatomic nanomaterials, and electron-rich nanomaterials) are synthesized to improve CDT efficiency [30-33]. Moreover, adding physical energy fields such as light, temperature, ultrasonic field, X-ray, and magnetic field can also promote the speed of the Fenton reaction [34-39]. Another option for CDT enhancement is modulating the nutrition or immune system of the tumor to reinforce the overall therapeutic effect [40]. Numerous systems had been designed and developed based on these design principles to accelerate the Fenton reaction. And there are several excellent reviews about the enhanced CDT have been reported. For example, Prof. Bu has systematically described enhanced chemodynamic therapy strategies from the perspectives of material design, microenvironmental regulation of tumor area, and exogenous energy field regulation, respectively [41]. Chen et al. also introduced intensive CDT strategies and CDT-based multimodal anti-cancer therapies [42]. Although the CDT has also been reported in other biomedical applications, CDT-based combination therapies are primarily used in cancer treatment. However, a comprehensive review of recent advances in combining CDT with all other treatment modalities to improve cancer treatment outcomes, as well as the intelligent design of different nanomaterials to enable synergistic enhancement therapy, have not been systematically reported.

 Table 1

Various Fenton/Fenton-like agents for CDT and strategies to enhance CDT.

NanoplatformShape and size(nm)Enhanced strategiesIn vitro In vivo Ref, year
Aptamer/tetraoxane/ heminSpherical: 32.4No dependence on either H2O2 or pH, GSH depletionHepG2HepG2[24], 2021
C5N2/Fe3+Nanosheet,140H2O2 production in both normoxic and hypoxic systems4T14T1[25], 2022
β-cyclodextrin/ hyaluronic acid/ ferrocene-(phenyl- boronic acid pinacol ester /PASpherical, 250Self-Supplying H2O2 and Self-Consuming GSHA549A549[26], 2022
CeO2/MgO2NanosheetBoosting the H2O2 level, high pH- activated (pH = 6.5)HeLaHeLa[17], 2023
Vanadium-PEGNanosheet, 200New catalysts, GSH consumption and O2 production, improving the ionization degree of the nanocatalysts through NIR laserMCF-7MCF-7[27], 2022
Hollow cuprous oxide@nitrogen-doped carbonSpherical-like, 130Lowering the GSH4T14T1[28], 2022
Polyaniline/MoO3-xnanobelts 5-10 μm to nanosheets 200-500structural morphological transformation4T14T1[29], 2023
Iron/DOX /A549cell membrane (CM).Porous,160single-atom catalyst, tumor targetingA549A549[30], 2021
PtN4C single-atom nanozymeSpheroid,110single-atom, H2O2 cycle accumulation and GSH deprivation4T14T1[31], 2022
BiO2-x nanosheetsPlate-shaped thickness: 6-10Oxygen vacancy-richU87U87[32], 2021
BiFe097Mn0.03O3100Electron rich4T14T1[33], 2021
HULK (Liposome, laccase, MOHQ, FeCe6)Spherical-like, 115.64 ± 1.71accelerating the transformation of Fe3+ to Fe2+ by Light4T14T1[34], 2021

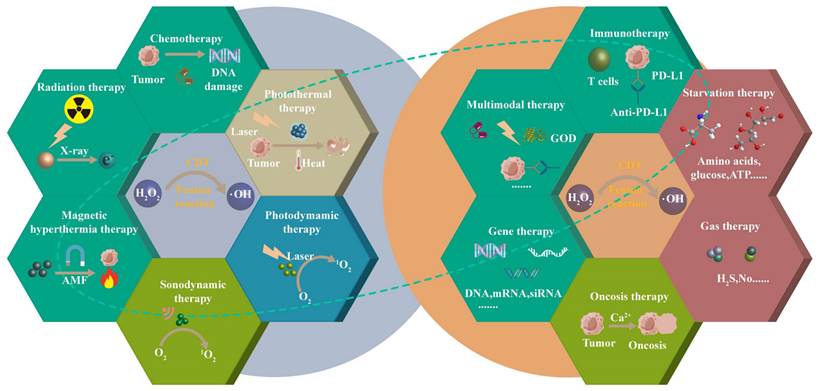

 Scheme 1

CDT combines different therapeutic approaches to achieve multimodal treatment strategies, including chemotherapy, photodynamic therapy, photothermal therapy, sonodynamic therapy, radiation therapy, magnetic hyperthermia therapy, immunotherapy, starvation therapy, gas therapy, gene therapy, oncosis therapy, or a combination thereof.

Theranostics Image

The purpose of this article is to review the latest progress of CDT combined with chemotherapy, phototherapy, SDT, RT, magnetic hyperthermia therapy (MHT), immunotherapy, starvation therapy (ST), gas therapy (GS), gene therapy (GT), oncosis therapy (OT), or a combination thereof (Scheme 1). CDT combined with ion interference therapy (IIT) and electrodynamic therapy (EDT) are also introduced. Each section mainly contains some representative rational designs and advances in CDT strategies, a summary of each treatment method and its future perspective, and the comparison of the advantages and disadvantages of different combination therapies in the ending. We want to provide readers with a more comprehensive understanding of each combination therapy's advantages, and the “1+1> 2” or “1+1+1>3” anti-tumor therapeutic effects. Finally, we also propose the challenges of CDT therapy and look forward to future development, especially the application prospects of microfluidic technology and cell membrane encapsulation technology in CDT-based combination therapy.

CDT-based Combination therapy

The single treatment of CDT cannot completely eradicate the tumor, which paves the way for the combined treatment to enhance CDT. According to previous reports, CDT-based combination cancer treatments are being widely reported to achieve satisfactory treatment outcomes. We will show the representative examples of CDT/chemotherapy, CDT in combination with therapies based on external stimuli (light, ultrasound, x-rays, magnet) and chemical and biological stimuli (immunization, nutrition, gas, gene silencing, bioactive ions) for synergistic enhancement (Table 2).

 Table 2

Combination therapies based on CDT in recent years.

Therapeutic agentsCDT agentMaterialShape and size (nm)In vitroIn vivoCell viability
(c [μg/mL])
Enhanced strategiesRef, year
CDT- chemotherapy
DoxFe2+Dox@Cu2O-PEG NCsSpherical cluster, 78.36MCF-7MCF-715% (2)Self-supplying H2O2[52], 2020
CPTFe2+/ Fe3+MIL53@F-@cancer cell membranesHexagonal,
120
MCF-7Hep 2227% (100)CPT replenishes H2O2, cancer cell membrane endows immune escaping[54], 2022
BTZHemin-Zn complexesHe-Zn@HA-BTZQuadrilateral, 140-150MDA-MB-231MDA-MB-23125% (2.5 uM)Self-supplying Fenton catalyst and H2O2, repolarizing macrophages from M2 to M1[55], 2022
β-lapaCu2+β-lapa@Cu-PMsSpherical core-shell, 120SMMC-7721, A549,4T1SMMC-772110% (200)Heightening intracellular H2O2, GSH dominated copper transfer[57], 2022
(Oxa(IV)Mn2+HSA-Oxa(IV) - HSA- Mn2+/GODSpherical, 1404T1,
MCF-7, B16F10
4T1IC50: 4.33The conversion of the Oxa(IV) into Oxa(II) was beneficial for the consumption of GSH, GOD upregulated the H2O2 level[58], 2022
CDT-PDT
Ce6Mn2+MnO2-doped CeO2 load with Ce6Rod, length:130 width:15HeLaLewis15.6% (Ce6: 8)Ce6 induced oxygen starvation triggers the generation of H2O2[69], 2022
TPyPMn2+H-MnO2@TPyP@BroHollow sphere, 240MCF-7MCF-720% (300)Producing O2, Bro promotes the accumulation of H-MnO2@TPyP@Bro[77], 2022
4-DCF-MPYMCu2+CaO2-FM@Cu-ONS@HCSphere, 120.4HeLa, 4T1, COS-74T110% (100)O2/H2O2 self-sufficient[78], 2022
Fe/Mn-ZIF-8Fe2+/Mn2lanthanide-doped NPs @Fe/Mn-ZIF-8Sphere, 75.4HeLaU1410.2% (500)Dual doping of Fe2+/Mn2+ decreases the bandgap of the ZIF-8 photosensitizer/ GSH depletion[84], 2022
CDT-PTT
Carbon dotsFe2+/ Fe3+RCDs@MIL-100Polyhedral, 1804T1, HC114T15% (1000)GSH depletion/ hyperthermal-enhanced CDT[89], 2022
BODIPYFe2+(BODIPY)-Fe (III)Spherical, 40HeLaHeLa10% (50)Outstanding Fenton catalytic performance/ strong NIR-II absorbing ability[91], 2020
CuSCu2+Cu-MOF [Cu- (bpy)2(OTf)2]Square, side lengths 1.2 μmCT-26CT-2619.1% (500 uM)H2S consumption, CuS generated in situ, smaller CuS enhances Fenton-like reaction[96], 2022
CoS QDsCoS QDsCoS QDs5.8 nmLO2, A431, MDA-MB-231, 4T14T14T1:20% (1 mM) A431:40% (1 mM)Regulating the photothermal conversion efficiency, promoting the Fenton catalytic capability, hyperthermal-enhanced CDT[100],
2022
CDT-SDT
Fe-porphyrinFe2+MMSN@Au-Fe(TPP)@LMSpiky, 302.2 ± 1.4HUVEC, B16F10B16F1020% (200)Producing H2O2, US augmentes cascade-catalytic[112], 2022
Ce6Cu2+Cu/CaCO3@Ce6Approximately spherical4T14T1<10% (100)self-supply of oxygen, Ca2+ overloading-sensitizes CDT/SDT, GSH deprivation[114], 2022
TiO2/Ti3C2Cu2+Ti3C2/CuO2/BSANanosheet,189U87U87<40% (Ti:50 μg/mL)In situ generation of sonosensitizers, H2O2 generation, enhanced separation of e-and h+[118], 2022
BaTiO3Cu2+Cu2-xO-BTOCubic, 162.3 ± 3.5NIH-3T3, 4T14T118.9% (400)Continuous accumulation of electrons and holes, electron-hole pairs separation and migration[119], 2022
Au NPsMn2+Au-MnO NPsSnowman, 20MCF-797H<40% (200)Generation smaller Au NPs in situ, numerous cavitation nucleation sites[121], 2020
CDT-RT
CaO2/Fe3+/ ZIF-8)Fe2+/ Fe3+CaO2/Fe3+/ ZIF-8Spherical, 45.52patient-derived cancer cellspatient-derived cancer cells<25% (200)Self- sufficient H2O2, O2[125], 2020
Hf-BPYFe2+(Hf-BPY-Fe)Octahedral, 100HeLaHeLa24.5% (80 ppm)Electron-rich environment accelerates the reduction from Fe3+ to Fe2+[131], 2020
SnS2/Fe3O4Fe2+/ Fe3+SnS2@Fe3O4 NPsHetero-geneous nanoparticleHeLa, HUVECsHeLa40% (90)X-ray enhances Fe2+/Fe3+ cycling for CDT[134], 2021
SPIONCsFe2+SPIONCsSpherical-like, 60-200NCI-H460H46028.9% (90)Increasing the production of H2O2[136], 2022
CDT-MHT
iron oxideFe2+GOD/iron oxide nanocatalystsflower-likePC3PC3<10% (100)Down-regulate HSP expression, supplying abundant H2O2[148], 2020
Fe3O4Fe2+Fe3O4Nanospheres, 3004T14T1<40% (100)Suppressing the expression of HSP70 and HSP90, heat facilitates CDT[149], 2020
MnFe2O4Fe2+Ir@ MnFe2O4NPs: 11.24 ± 1.11 nmHeLaHeLa14% (400)depletion of GSH, Enhanced cell sensitivity to MHT[150], 2020
CDT-immunotherapy
αPDL1Fe2+/ Fe3+GOx/αPDL1/OEGCG/Fe3+/POEGMA-b-PTKDOPA110.3 ± 7.24T14T110% (GOx: 1 U/mL)Producing H2O2, enhanced immunogenic cell death[161],2022
Bacterium substrateAu@PtE. coli/Au@Ptcore-shell,575HeLa, COS-7, HepG2, B16-F10B16-F10IC50 :0.6 ppmWeaken the GSH, tumor targeting ability of bacteria[164], 2021
Ferrocene - MOF/Vk3Fe2+Ferrocene - MOF/Vk3150.2 ± 22.6L929, 4T14T115% (Vk3:100)Vk3- mediated H2O2 producing, promoting DC maturation[165], 2023
MnOxMn2+MnOx- ovalbuminNanospikes4T14T130% (800)Ultrahigh loading efficiencies for ovalbumin and tumor cell fragment[168], 2020
CDT-ST
GODMn2+Mn3O4/GOD co-loaded organosiliconSpherical, 503T3, SMMC-7721SMMC-772112.7% (75)supplying O2 and H2O2[174], 2023
Au NPsZIF-67 (Co2+)ZnO2@Au@ZIF-67Spherical, 604T1, NIH/3T3, HUVEC4T1<10% (4)generating O2 and H2O2[175], 2023
LOX, TA-Fe (III)Fe2+PFOB/ LOX-TA- Fe (III)core-shell,182 ± 134T1, CT26, MCF-10A4T120% (LOX: 1.2)dual-depletion of lactate and ATP, O2 and H2O2 self-supply[181], 2021
CDT-GS
NOCu2+, Mo4+Mo/Cu9S5/ L-ArginineSpherical with huge cavity4T1, L9294T130% (200)Depletion of GSH, ultrasound enhances NO release, NO inhibits protective autophagy[184], 2022
COMn2+MnCo@UiO-67-bpy@GOxSpherical, 90HeLa, L929 MCF- 7HeLa7% (160)Producing H2O2, accelerating CO release[185], 2022
H2SFe2+FeS@BSASpherical, 50Huh7, WRL-68Huh720% (20)H2S induced H2O2 amplification[186], 2020
CDT-GT
siS100A4Mn2+ErNPs@MnO2-siS100A4-RGDSpherical, 50MDA-MB-231, MCF-10AMDA-MB-23110% (20)GSH-depletion, superior tumor-targeting[197], 2021
DNAzymeCu2+DNAzyme-Cu2+-TASpherical, 2004T14T125% (200)depletion of GSH, ultra-high loading capacity[205], 2021
CDT-OT
CaCO3Fe2+calcium-and iron-doped silica loaded with DHASpherical, 80MDA-MB-231, 4T14T110% (200)Fe2+ interacted with DHA to generate C-centered radicals to amplify CDT[209], 2022
CDT-based other combinations
ITTCu2+CaO2-CuO2@HASpherical,1204T1, CT26, B16F10, L9294T117.5% (120)H2O2 self-supplying, GSH depletion[212], 2022
EDTW5+POM@ZIF-8Spherical, 210HeLaHeLa30% (100)Enhanced ROS levels[214], 2022
CDT in combination with trimodal therapy
CDT- chemotherapy-PTTFe2+Mitoxantrone- -GOx@γ-Fe2O3Spherical, 86.24T14T110% (11.52)H2O2 amplification[216], 2022
CDT-ST- chemotherapyMn2+zeolitic-imidazolate- framework@MnO2/DoxPolygonal,230HeLa, HUVECHeLa30% (200)Reducing the recombination rate of e- and h+, Producing O2[217], 2022

CDT in Combination with Chemotherapy

Chemotherapy, which uses highly toxic drugs to induce DNA bond breakage and interfere with DNA synthesis to kill cancer cells, has played a key role in cancer treatment [43]. However, unsatisfactory drug delivery, suboptimal anti-tumor effects, severe side effects, and drug resistance have severely weakened its clinical outcomes. Numerous studies have shown that nanomedicines combining chemotherapy with CDT provide synergistic effects in inhibiting tumor growth and suppressing tumor metastasis. Nanomaterial-based CDT systems have been shown to achieve a high load of drugs, enhance the enrichment of drugs in tumors, trigger drug release effectively, improve drug efficacy and reduce their systemic toxicity. In the meantime, chemotherapy drugs could also increase H2O2 concentrations to enhance the effectiveness of CDT.

Doxorubicin (Dox) is commonly used in the treatment of solid tumors and is widely accepted clinically. However, systemic toxicity and multidrug resistance have hampered its clinical application. In addition, Dox may damage normal tissue and cause a range of side effects such as nephrotoxicity, cardiotoxicity, and liver toxicity [44]. Developing an effective way to improve the therapeutic effect of Dox in cancer treatment is highly urgent. Metal-organic framework (MOF) is widely used in the medical field and is a promising material for biological application [45,46]. MIL-100, a member of the MOFs family, often serves as a carrier of Dox to achieve synergistic CDT/chemotherapy due to its high drug-loading capacity [47-49]. Considering the fact that the reaction rate of Fe2+ (k = 63-76 M-1s-1) and the conversion rate of Fe3+ to Fe2+ (k = 0.001-0.01 M-1s-1)are slow, Cu ion-based Fenton reagents were developed for Dox carriers to increase hydroxyl radical generation by increasing catalytic efficiency, a novel core-shell metal-organic framework Cu-MOF@SMON/Dox-HA with high drug load, pH/GSH dual responsiveness and good biocompatibility was used for CDT combination chemotherapy [51]. In another system, intelligent Dox@Cu2O-PEG nanoclusters (NCs) was prepared to enhance CDT/chemotherapy by Cu+-mediated Fenton reaction. To increase the stability and compatibility of the NCs, Cu2O was externally modified with hydrophilic Polyethylene glycol (PEG) to form Cu2O-PEG NCs, which was followed by loading with Dox. The porosity of Cu2O-PEG NCs showed the admirable capacity of Dox loading, and the high-density PEG shell-mediated passive action guaranteed efficient accumulation of Dox in the tumor area. What's more, the rapid release of Dox by pH-induced decomposition of Cu2O-PEG NCs not only exerts chemotherapeutic effects but also activates nicotinamide adenine dinucleotide phosphate oxidases (NOx) by converting O2 into •O2- simultaneously, which is further catalyzed by superoxide dismutase to form endogenous H2O2 to enhance CDT via Cu+-mediated Fenton reaction [52]. The high expression of GSH and limited H2O2 content in tumor cells seriously affect the efficiency of tumor treatment. Fortunately, platinum (Pt), β-lapachone (β-lapa), camptothecin (CPT) and bortezomib can activate the NOx in tumor cells and trigger a cascade of reactions that ultimately produce H2O2 [53-55]. In Zhang's study, Fe3O4 nanoclusters were first rearranged by doping Gd and then self-assembled into hollow magnetic nanoclusters (HMNC), which presented excellent weak acid and GSH responsiveness. The hollow structure could effectively load with platinum (IV) precursor drugs. And a large number of oxygen vacancies could capture oxygen molecules, which enhanced the catalytic activity of HMNC and promotes the production of intracellular ROS. The target agent iRGD-PEG-NH2 was then conjugated to the surface of the HMNC-O2 to develop iHMNCPt-O2 with tumor targeting [56]. Platinum (IV) in iHMNCPt-O2 would consume GSH in tumor sites and formed platinum (II), which was capable of causing DNA damage and inducing apoptosis. Additionally, iHMNCPt-O2 could release oxygen molecules for relieving tumor hypoxia. Subsequently, exogenous and endogenous oxygen molecules were efficiently converted into •O2- catalyzed by NOX, the increased •O2- concentration promoted H2O2 production to further improve the efficiency of CDT. Besides, the deprivation of GSH and the production of oxygen significantly improved the effectiveness of CDT and chemotherapy. The cascade reactions provide a new method for accelerating the Fenton-like reaction and enhancing the effect of combination therapy (Figure 1A).

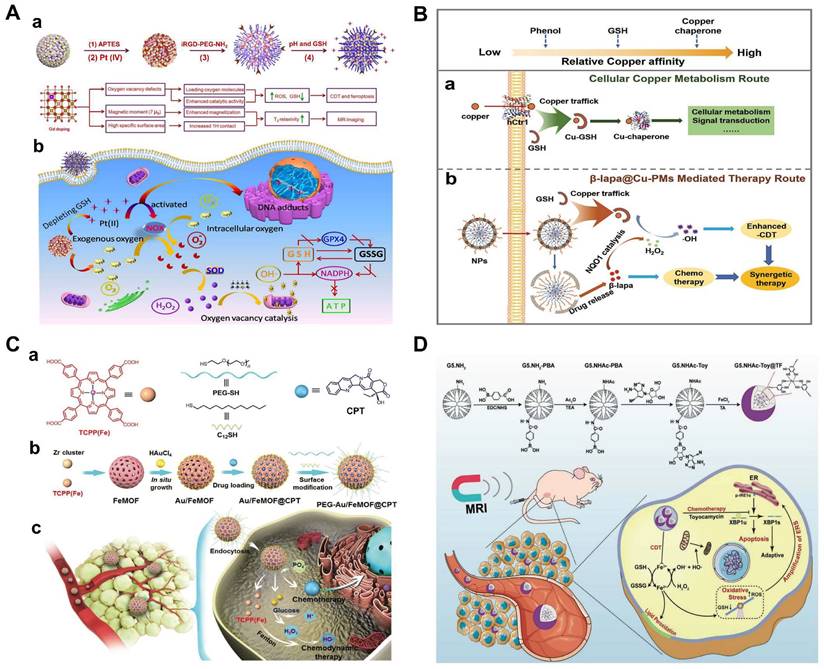

 Figure 1

(A) Schematic illustration of the construction of a) iHMNCPt-O2 nanoplatform and b) the pathways on which it acts to synergistically accelerate cancer death by combining CDT with chemotherapy. Reproduced with permission [56]. Copyright 2020, American Chemical Society. (B) Schematic illustration of a) the intracellular copper metabolism route mediated by GSH and b) the biomimic mechanism of the β-lapa@CuPMs therapy route in tumor cells. Reproduced with permission [57]. Copyright 2021, American Chemical Society. (C) a) The cartoon illustration and chemical structures of the building blocks (TCPP(Fe), PEG-SH, C12SH, and CPT). b) Preparation of the hybrid nanomedicine PEG-Au/FeMOF@CPT. c) High tumor accumulation of PEG-Au/FeMOF@CPT NPs via passive targeting and subsequently cancer cell uptake. Triggered by the intracellular phosphate, the chemotherapeutic drug CPT is released and the cascade catalytic reactions are activated. H2O2 generated through the oxidation of glucose by Au NPs acts as chemical fuel for Fenton reaction to produce highly toxic ROS to realize chemo/chemodynamic therapy. Reproduced under the terms of the http://creativecommons.org/licenses/by/4.0/ License [59], published by WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim. (D) Schematic illustration of the preparation of G5.NHAc-Toy@TF nanocomplexes for MR imaging and chemotherapy/CDT of tumors in vivo through ERS amplification. Reproduced with permission [61]. Copyright 2021, Wiley-VCH.

Theranostics Image

In another recent study, a GSH-responsive biocompatible nanodrug, called β-lapa@Cu-PMs, was designed [57]. The nanodrug combined chemotherapy with chemo-enhanced CDT by coordinating with copper-polydopamine (Cu-PDA) micelles (polystyrene-β-poly(acrylic), PS-b-PAA) micelles, and encapsulated the hydrophobic chemotherapy drug β-lapa. β-lapa@Cu-PMs could achieve copper transfer through GSH response, where copper ions were exchanged from the bicoordination center of PDA phenol (low affinity for Cu(I)) to the thiol site of GSH (high affinity for Cu). After the copper ions escaped, the shell was broken down to release the anticancer drug β-lapa, while β-lapa amplified intracellular H2O2 levels, further reacted with Cu(I) to generate highly toxic •OH and caused oxidative damage to cells (Figure 1B).

In addition, glucose oxidase (GOD/GOx) has the ability to catalyze the production of H2O2 by glucose, meeting the requirements for in situ generation of H2O2. Multifunctional nanomaterials loaded with chemotherapy drugs and GOD are feasible measures to improve synergistic therapy [58]. However, uncontrollable reactions between GOx and glucose during delivery and the relatively low operational stability of GOx hinder the practical in vivo application of this strategy. Thus, the hybrid nanomaterial Au/Fe MOF NPs with GOx-mimic catalytic activity for CDT/chemotherapy were synthesized by growing Au NPs on the surface of Fe MOF, followed by loading with CPT (Figure 1C). The hybridization of Au-NPs greatly improved the stability of nanomedicines in the physiological environment. Attributed to the complex structure, the blood circulation time and tumor accumulation of Au/FeMOF@CPT NPs significantly increased. When Au/FeMOF@CPT NPs were internalized, high concentrations of phosphate within cancer cells triggered their collapse, resulting in complete drug release and activation of cascade catalytic reactions. The Au NPs oxidized glucose to produce H2O2, which can further work as a chemical fuel for enhanced CDT to achieve the synergistic anticancer effect [59]. More importantly, the catalytic activity of Au-NPs could be reasonably controlled by their surface hydrophobicity and subsequent interaction with water soluble glucose so as to specifically activate their enzyme-mimicking catalytic ability in cancer cells, thereby solving the thorny problem of natural GOx for cancer treatment.

Recently, chemotherapy drugs acting on endoplasmic reticulum stress (ERS) may be ideal for combination with CDT to achieve enhanced combined antitumor therapy [55]. Toyocamycin (Toy), as a promising anti-cancer drug, can prevent IRE1α splicing X-box binding protein 1 (XBP1u) to effectively inhibit the survival of cancer cells [60]. In the latest study, a dendritic polymer-drug conjugate using tannic acid (TA) chelated Fe3+ was used for MR imaging-guided tumor CDT/chemotherapy by ERS amplification [61]. First, G5 poly(amidoamine) (PAMAM) dendritic macromolecules with amine terminations (G5.NH2) were linked to PBA, acetylated to neutralize the remaining terminal amines (G5.NHAc-PBA), and covalently coupled with Toy by borate ester bonds to obtain the G5.NHAc-Toy@TF complex. The G5. NHAc-Toy@TF nanomedicines had good stability, responsive drug release behavior, and could generate cytotoxic hydroxyl radicals through the Fenton reaction, thereby amplifying ERS for improved CDT/chemotherapy of cancer cells in vitro and xenograft breast tumor models in vivo (Figure 1D).

Many other CDT-like agents and chemotherapeutic drugs have also been explored for synergistic treatment. Artesunate (ASA) is a semi-synthetic derivative of artemisinin and is commonly used as an antimalarial agent [62]. In Hou's work, Methotrexate (MTX), gadolinium (Gd) and ASA have been incorporated into NPs, which could be activated by tumor-specific endogenous FeII for ROS amplification and enhancing CDT/chemotherapy. ASA-MTX-GdIII NPs were specifically endocytosed by tumor cells. The released ASA could be catalyzed by tumor-specific overexpressed endogenous FeII ions and produce enough ROS to enhance the CDT, which enabled a synergistic effect with the adjuvant chemotherapy of MTX. It is worth mentioning that the highly toxic ROS induced by tumor-specific endogenous stimulation could avoid the use of exogenous conditions and the limitations of severe Fenton conditions [63]. Furthermore, vorinostat has also been used to synergize with the CDT by being encapsulated into CuNPs through strong coordination with copper ions. Vorinostat can inhibit the activity of histone deacetylases (HDACs) overexpressed in tumor cells to achieve the purpose of synergistic cancer treatment [64]. Apart from the above substances, parthenolide, tirapazamine, and other chemotherapeutic drugs have been explored to cooperate with Fenton reaction-mediated CDT to enhance the therapeutic effect [65, 66].

In short, the combination of CDT and chemotherapy has a significant synergistic effect, which not only enhances the efficacy of CDT by increasing the concentration of H2O2 by chemotherapy drugs, but also reduces the side effects of drugs. It enables drugs to effectively spread within tumors, improves drug bioavailability and circulating half-life in vivo. However, the relatively low drug loading and slow release of Fenton reagent may weaken its anti-tumor effects, and systemic side effects caused by chemotherapy drugs are difficult to be completely suppressed, and newly introduced nanocarriers might further increase side effects. The development of carrier-free nanomedicines, or “non-toxic to toxic” transformation caused by microenvironmental stimulation, or nanomedicines constructed from organic materials with high biocompatibility, good biodegradability, and high drug load, may be the way forward. In addition, the elevated H2O2 concentration caused by chemotherapy drugs is limited both the electron donor and the oxygen content of the tumor. In hypoxic regions, it isn't easy to produce sufficiently high concentrations of H2O2.

CDT in Combination with PDT

PDT has been explored as a minimally invasive treatment modality for oncological and non-oncological diseases, which relies on specific wavelength of light irradiation to activate photosensitizers to produce biotoxic singlet oxygen [67]. PDT is one of the typical ROS-involved antitumor therapies, which mainly relies on photosensitizers such as porphyrins, chlorins derivatives, or photoactive nanoparticls (NPs) to generate ROS by electron transfer or energy transfer under external light to induce apoptosis and necrosis. PDT has many advantages, including non-invasive, low side effects, and low systemic toxicity [68, 69]. However, several drawbacks, such as oxygen dependence and limited light penetration depth, still limit ROS production and compromise the therapeutic results for conventional PDT.

The combined therapy of PDT and CDT is therefore important and imperative to overcome the limitations of single treatment. Chlorine e6 (Ce6), as a representative photosensitizer, is a suitable chlorine derivative for the PDT [70, 71]. However, the poor water solubility prevents the application of Ce6. Aimed to this, a MnO2-doped CeO2 nanozyme-based nanomedicine (Ce6@CMNRs) was reported to load with Ce6 for tumor-specific synchronous activation of CDT/PDT [69]. Tumor overexpressed H2O2 replaced Ce6 on the Ce6@CMNRs surface by competing for coordination and decomposed into •OH under acidic conditions to achieve CDT. At the same time, the substituted Ce6 triggered the PDT under laser irradiation, which was inhibited before the replacement occurred. In addition, activated PDT-induced oxygen deficiency further induced the production of H2O2 to constantly replace the residual Ce6 of surface coordination, resulting in the complete activation of PDT and CDT (Figure 2A). More importantly, due to the property of CeO nanorods, various molecules could coordinate to their surface and be replaced by H2O2 through competitive coordination. Therefore, other kinds of photosensitizers or chemotherapeutic drugs can also be selected to coordinate on the surface of CeO2-MnO2 nanorods to achieve different types of combined treatment and imaging modes. In addition, other Fenton reagent-based materials were also used as carriers for Ce6 to enable enhanced synergistic therapy. For examples, hollow structured manganese carbonate (MnCO3) nanocubes or MIL-100 NPs could ensure efficient Ce6 loading for CDT/PDT [72,73]. Additionally, the assembly of Ce6-modified carbon dots and Cu2+ could restore PDT under the stimulation of TME, which avoided the phototoxicity of photosensitizers in normal tissues [74].

Notoriously, the hypoxic state and high expression of GSH seriously affect the effect of PDT or CDT. Based on this, various reagents for O2 release and GSH consumption have been developed [75, 76]. In order to improve the enrichment of photosensitizers in the deep tumor and ameliorate the hypoxia of the TME, a multifunctional hollow PDT nanoplatform (H-MnO2@TPyP@Bro) composed of MnO2, porphyrin (TPyP) and bromelain (Bro) was successfully designed [77]. In this system, Bro digested collagen, thereby enhancing H-MnO2@TPyP@Bro enrichment in deeper areas of the tumor. MnO2 not only reacted with GSH, released Mn2+ ions and subsequently catalyzed the conversion of H2O2 to •OH to achieve CDT, but also catalyzed H2O2 to produce O2 in situ, reducing tumor hypoxia and thus improving PDT. It is worth noting that the hollow nanostructures of MnO2@TPyP@Bro could improve the utilization rate of light through multiple reflections and maximize the effect of PDT. In addition, the released Mn2+ could activate MRI to supervise the treatment process (Figure 2B). H-MnO2@TPyP@Bro in combination with CDT and PDT has great potential in the treatment of hypoxic tumors.

In another recent study, an O2/H2O2 self-sufficient nanodrug CaO2-FM@Cu-ONS@HC (CF@CO@HC) was designed for enhanced CDT/PDT combination therapy. CaO2 NPs were first prepared, then loaded with a high-efficiency photosensitizer 4-DCF-MPYM (4-FM), followed by CaO2 FM cores encapsulated with Cu2+ and tetrasulfide bond-doped smart silicone shells (Cu-ONS) (Figure 2C). After endocytosis into 4T1 tumor cells, Cu2+ and tetrasulfide bonds could be reduced by high concentrations of GSH. The exposed CaO2 was then biodegraded to produce H2O2 and O2 and release photosensitizers at the same time. Taken together, CF@CO@CH overcame the barriers of tumor hypoxia in PDT and H2O2 deficiency in CDT. Besides, GSH depletion capacity further improved the therapeutic effect of ROS-mediated CDT/PDT synergistic therapy [78].

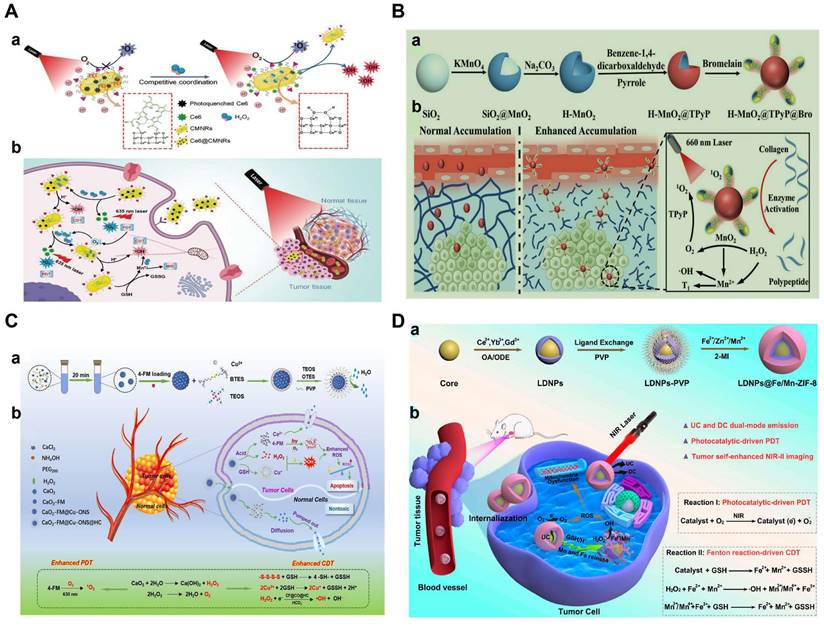

 Figure 2

(A) a) Schematic mechanism of the competitive coordination process for the CeO2-MnO2 nanozyme. b) Schematic illustration of Ce6@CMNRs for tumor specific synchronously activated combination therapy under the guidance of MRI. Reproduced with permission [69]. Copyright 2022, Wiley-VCH. (B) a) Schematic illustration for the synthesis of H-MnO2@TPyP@Bro. b) Enzyme activation of H-MnO2@TPyP@Bro toward collagen digestion for enhanced accumulation of nanoparticles in the tumor [77]. Copyright 2022, Wiley-VCH. (C) Schematic of a) preparation process and b) therapeutic mechanism of CF@CO@HC for PDT/CDT synergistic therapy. Reproduced with permission [78]. Copyright 2022, American Chemical Society. (D) Schematic diagram for the preparation of LDNPs@Fe/Mn-ZIF-8 a) and the mechanism of catalytic therapy and NIR-II imaging of LDNPs@Fe/Mn-ZIF-8 in the TME under NIR laser irradiation (b). Reproduced with permission [84]. Copyright 2022, American Chemical Society.

Theranostics Image

Apart from the above photosensitizers, FeTCPP/Fe2O3 NPs (organic framework nanoparticles based on tetra (4-carboxyphenyl) porphyrin) with peroxidase activity that catalyze H2O2 to form 1O2 [79], ultra-thin two-dimensional metal-organic frameworks Cu-TCPP composed of Cu2+ and TCPP ligands that selectively produce 1O2 in the TME [80], and 1.2-[1-hexyloxyethyl]-2-divinyl pyrophosphate-a (HPPH), a second-generation photosensitizer with significantly reduced phototoxicity [81] have also been used in the combined therapy of CDT and PDT.

However, conventional organic photosensitizers suffer from poor stability, low solubility, low loading capacity, and early release from the carrier, which seriously prevent further clinical applications of PDT. Recently, semiconductors, photocatalysts and metal-organic framework (MOF)-based nanocomposites (ZIF-8) have been considered as potential photosensitizers due to their high photostability, good biocompatibility, and wide photo-response ranging from UV to visible light and used to achieve CDT by reacting with the overexpression of H2O2 and GSH [82, 83]. ZIF-8 has broad application prospects in cancer diagnosis and treatment because of its rich physicochemical properties. However, due to the wide band gap and specific response to ultraviolet light, the photocatalytic anti-cancer application of ZIF-8 is still limited. In view of this, Prof. Yang et al. developed lanthanide-doped nanoparticles (LDNPs) doped with Fe/Mn bimetals and coated with ZIF-8 (LDNPs@Fe /Mn-ZIF-8) for NIR-II imaging-guided CDT/PDT [84]. LDNPs@Fe /Mn-ZIF-8 can achieve dual-mode red upconversion (UC) and NIR-II downconversion (DC) emission under NIR laser irradiation. At the optimal doping concentration (concentration of Ce3+ was 20%), the emission intensity of UC and DC NIR-II of LDNPs was 30.2 and 13.2 times higher than that of pure nuclear nanoparticles, respectively, which also made LDNPs@Fe/Mn-ZIF-8 with excellent UC-mediated PDT and NIR-II optical imaging capabilities. In addition, the double doping of Fe2+/Mn2+ significantly reduced the band gap (5.1 eV to 1.7 eV) of the ZIF-8 photosensitizer and expanded its excitation threshold to the visible region (650 nm). Therefore, Fe/Mn-ZIF-8 was effectively excited by UC photons to achieve photocatalytically-driven PDT. Furthermore, Fe/MnZIF-8 could also be degraded in the TME to release Fe2+/Mn2+ ions, which in turn produced •OH through Fenton-like reactions to implement CDT. At the same time, the degradation of Fe/Mn-ZIF-8 also equipped nanosystem with self-enhanced tumor NIR-II imaging capabilities, which provided precise guidance for CDT/PDT (Figure 2D).

Besides, in order to overcome the undesired damage to normal tissue caused by the non-specific uptake of photosensitizers, the receptor-mediated pathway was applied to precisely deliver photosensitizers to the cancer site. In one nanosystem, HA-Ru nanoaggregates (NAs) were hybridized from Cys-HA and Ru NPs, which rationally integrated receptor-mediated targeting (RMT) and tumor-microenvironment responsiveness for enhanced cancer phototherapy. HA components endowed HA-Ru NAs with RMT properties to selectively identify CD44-overexpressed cancer cells, which would effectively improve the specificity and efficacy of phototherapy. And Ru-NPs were considered to be “smart” Ru-based nanozymes that achieved H2O2-responsive therapy for the first time. Ru NPs not only exhibited NIR-mediated photothermal and photodynamic functions, but also possessed catalytic enzymatic and peroxidase-like activities that could catalyze the H2O2 to O2 for tumor hypoxia relief and toxic •OH for CDT. Meanwhile, Ru-based nanomaterials with PAI and CT capabilities were also used for tumor diagnosis, enabling the integration of tumor diagnosis and treatment [85]. Besides, phthalocyanine photosensitizers, such as ZnPc, have also been explored for CDT/PDT antitumor therapy [86].

In conclusion, the combination of CDT/PDT is mainly achieved by loading the photosensitizer on the Fenton reagent or coordinating the self-assembly of transition metal ions with the photosensitizer, which can increase the concentration of ROS in TME under photoexcitation. The efficacy of PDT depends on O2 and laser, however, the hypoxic environment and limited depth of light penetration limit the efficiency of ROS generation during PDT. A combination of PDT and CDT is an effective strategy to increase ROS content and activity. However, High levels of GSH, the hypoxic environment and low concentrations of H2O2 in cancer cells are the main barriers to PDT and CDT. In order to maximize the therapeutic effect of PDT and CDT, Photosensitizers with the Fenton effect that can reduce intracellular GSH levels, ameliorate hypoxia, or increase intracellular H2O2 levels need to be further developed. At the same time, the phototoxicity of photosensitizers, the poor tumor enrichment effect of small molecule photosensitizers, the lower quantum yield of inorganic photosensitizers, and the limited maximum penetration depth of light are all fatal shortcomings affecting the efficiency of this combination therapy.

CDT in Combination with PTT

PTT is a minimally invasive tumor treatment technology, which uses photothermal conversion agents (PTAs) to absorb near-infrared light and converts the absorbed light energy into heat so that the temperature of the tumor site rises, thereby inducing apoptosis of tumor cells [87]. However, PTT alone is less effective in deep tumors due to the limited tissue penetration of light. A combination of CDT and PTT is a viable way to improve treatment outcomes. Some PTAs with inherent peroxidase could be designed to enhance the CDT effect by encapsulating Fenton reagents. Additionally, PTAs with the Fenton effect or Fenton-like effect can solve the contradiction between photothermal conversion efficiency and biodegradability because PTAs with catalytic ability are usually able to respond to TME, which makes them with slow degradation and little loss of photothermal conversion ability [88]. What's more, the increased temperature will accelerate the chemical reaction kinetics, resulting in a higher reaction rate and product yield per unit of time. Studies have shown that the local temperature rise induced by near-infrared light significantly accelerated the Fenton reaction in the tumor, which could improve the therapeutic effect of CDT [34].

Large numbers of nanotherapeutics such as small organic molecules (e.g. porphyrin, boron dipyrrole (BODIPY), phthalocyanine and croconaine), transition metal-based materials, carbon materials, noble-metal nanostructures, and semiconductor polymers have been designed for synergistic PTT and CDT in cancer treatment. MOF materials have attracted widespread attention in CDT/PTT combination therapy due to their abundant active sites and relatively large surface area. One recent study reported that MIL-100 MOF as a photothermal material carrier and TME stimuli-responsive nanomedicines for CDT/PTT has been reported. In this study, near-infrared emitting carbon dots (RCDs) were initially prepared using GSH as the precursor. They had strong photothermal conversion ability under 660nm laser irradiation, which could be used for efficient PTT (Figure 3A). The RCDs@MIL-100 was then self-assembled by hydrothermal method using RCD, FeCl3, and trimellitic acid solutions [89]. In TME, RCDs@MIL-100 consumed the amount of GSH and increased the concentration of Fe2+, then the released Fe2+ reacted with H2O2 to produce •OH for CDT. Moreover, increased temperature at the tumor site promoted RCDs@MIL-100 and GSH redox reactions, accelerated the Fenton reaction between Fe2+ and H2O2, induced oxidative stress amplification, and improved the thermal sensitivity of cancer cells. On the other hand, the released small-sized RCD efficiently entered the deep tissues of the tumor to improve the efficiency of the PTT and switched from the “off” state of quenching caused by aggregation to the “on” state of fluorescence recovery, thus enabling fluorescence imaging of tumor tissue. Therefore, GSH depletion and high temperature induced by photothermal heating intensified the tumor-specific oxidative stress amplification, and the effective synergy of CDT and PTT was practical under the guidance of near-infrared fluorescence imaging. In another study, Dai's group used polyethyleneimine (PEI)-coated Fe3O4 to react with PEGylated multiwalled carbon nanotubes (MWNTs), and then combined with GOX. The as-obtained therapeutic agent could convert glucose into H2O2 and gluconic acid, which would enhance the Fenton reaction catalyzed by Fe3O4 nanoparticles. Besides, the mild heat accelerated the chemical reaction kinetics, which produced more •OH per unit time and enhanced the efficacy of CDT/PTT [90].

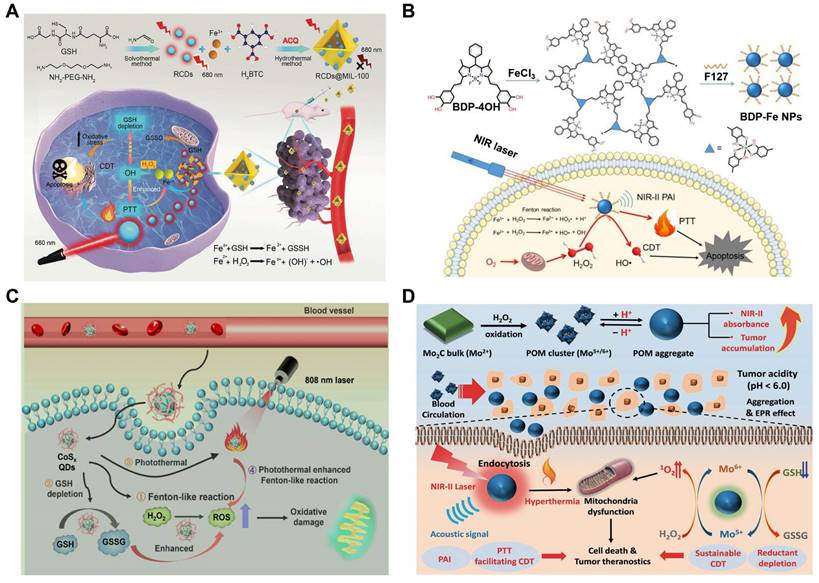

 Figure 3

(A) Schematic representation of the principle of the RCDs@MIL-100 nanoplatform for TME-activated cancer imaging and chemodynamic photothermal combined therapy. The ACQ is abbreviation for aggregation-caused quenching. Reproduced with permission [89]. Copyright 2022, Wiley-VCH. (B) Synthetic route and schematic diagram of BDP-Fe NPs for the synergistic PTT and CDT. Reproduced with permission [94]. Copyright 2020, The Royal Society of Chemistry. (C) Schematic illustration of biodegradable CoSx QDs for PTT and hyperthermal-enhanced CDT of tumors. Reproduced with permission [100]. Copyright 2022, American Chemical Society. (D) Illustration of synthesis and working mechanisms of the POM. Reproduced with permission [101]. Copyright 2019, Wiley-VCH.

Theranostics Image

In recent years, significant progress has been made in the optimal design of small organic molecule photothermal agents to improve their photophysical and photochemical properties. Nanoscale coordination polymers (NCPs) formed by metal and organic ligands have attracted significant attention in the Fenton reaction. The separated metal centers could endow NCP with rich catalytic sites and excellent TME response properties. Meanwhile, it also served as an electron transfer medium to tune the type of ROS. Furthermore, the 3D structure of NCPs linked by rigid ligands formed a large number of mesopores, which would increase the probability of contact between the active substrate (e.g., H2O2, O2, H2O) and the metal or ligand, and accelerate the generation of ROS [91]. And the introduction of photoactive ligands greatly contributed to NCP phototherapy. The photoactive ligands of NCP are mainly concentrated on porphyrin derivatives, such as indocyanine green and IR825. However, NIR-I (usually 808nm) absorption of cyanine dyes limited their application [92]. Compared with the commonly used NIR-I light source, NIR-II (1000nm-1700nm) provided a better tissue penetration for deep tumor treatment [93]. Thus, three-dimensional boron dipyrrole ethylene (BODIPY)-Fe3+ coordination polymer nanoparticles (BDP-NPs), which could passively target tumor sites through the EPR effect, have been developed [94]. Benefiting from the 3D structure of BDP-Fe NPs, H2O2 could more easily enter the NPs, interact with Fe3+, and remain stable in TME, which was further catalyzed to produce •OH. More importantly, BDP-NPs can extend the light absorption to 1300 nm with higher photothermal conversion, exhibiting synergistic chemodynamic/photothermal therapy (Figure 3B).

In addition to carbon-based materials and small molecules, transition metal-based materials with specific structures have shown great potential in PTT due to their strong NIR absorption, excellent photothermal conversion efficiency, and magnetism [95, 96]. Chen et al. first synthesized a novel subminiature bovine serum albumin (BSA)-CuFeS2 NPs using biomineralization strategy. They used BSA as a template and bonded copper and iron ions through the excellent affinity of carboxyl and surfactant to enhance its biocompatibility [97]. The BSA-CuFeS2 NPs exhibited unique pH-independent Fenton-like reaction characteristics that could efficiently generate •OH in a slightly acidic tumor environment. Additionally, BSA-CuFeS2 NPs had good photothermal conversion efficiency for PTT and for enhancing CDT. In addition, the ultra-small size gave BSA-CuFeS2 NPs the ability to quickly excrete from the body through the kidney and liver to avoid long-term and systematic toxicity effectively. in vivo and in vitro experiments showed that BSA-CuFeS2 NPs had no apparent toxicity and could significantly enhance the therapeutic outcome of CDT/PTT. Another study synthesized the photothermal Fenton nanocatalyst (PFN) by incorporating MnO2, CuS, and HSA in the acidic TME for NIR-II guided PTT and CDT [98]. Furthermore, a new two-dimensional (2D) FPS-PVP platform with high NIR-II photothermal conversion efficiency (up to 43.3%) and superior Fenton catalytic activity based on biocompatible FePS3 (called FPS) nanosheets have also been developed for CDT/PTT as well [99].

Transition metal dichalcogenide (TMD) quantum dots (QDs), such as cobalt sulfide (CoSx), have attracted some attention due to their advantages such as atomic-scale thickness, direct band gap, and good electronic properties. The inherent polyvalence in Co, combined with the wide absorption range in the NIR window, makes CoSx a potential candidate for PTT/CDT therapeutics. In order to precisely control the photothermal conversion efficiency (PCE) and Fenton-like activity of CoSx ODs, Professor Zhu's group has devised a simple and gentle strategy to synthesize a series of biocompatible CoSx ODs with varying degrees of defects for the first time to optimize CDT and PTT [100]. To study defect engineering, CoSx QDs with different sulfur defects were prepared by varying the initial feed molar ratios of Co2+ and S2- (1:0.5, 1:1, 1:2, 1:4, 1:6, and 1:8 and named them CoSx ODs 1:0.5, CoSx ODs 1:1, CoSx QDs 1:2, CoSx-QDs 1:4, CoSx- ODs 1:6, and CoSx ODs 1:8). After a series of experiments, it was found that the CoSx QDs 1:2 group showed relatively high PCE and methylene blue degradation rates, so the synergistic therapeutic effect of CoSx QDs 1:2 may be higher than that of other sulfur level groups. When CoSx QDs were endocytosed by cells, they could induce cancer cell death in four processes simultaneously: (1) a Fenton-like reaction, CoSx QDs catalyzed endogenous H2O2 to produce ROS; (2) converting GSH to GSSG through redox reactions, disrupting the cellular antioxidant defense system; (3) ablation of cancer cells by PTT of CoSx QDs; and (4) heat generation increased the Fenton reaction rate between CoSx QDs and H2O2. In addition, the degradability and low toxicity of CoSx QDs may lead to efficient metabolism and clearance with good biocompatibility and biosafety (Figure 3C). Therefore, defect-driven CoSx QDs could be used as a tumor-specific multifunctional drug with flexible and controllable efficacy in future cancer treatment.

Many other transition metal materials, such as molybdenum and tungsten, have also been developed as combined therapeutic agents for photothermal and chemodynamic therapy. Molybdenum-based (Mo5+/6+) nanotherapeutics are of great interest since the reduced Mo5+ ions make PTT and PAI possible via internal photo-induced charge transfer. A typical example here was Mo2C-derived polyoxometalate (POM) clusters prepared by self-assembling in mild acidity, which enhanced NIR-II absorption and provided better tissue permeability for deep tumor treatment [101]. The POM would accumulate in tumors due to the enhanced permeability and retention (EPR) effect, then MO5+ was oxidized to Mo6+, which could produce a large amount of toxic 1O2. Enhanced CDT efficiency was also attributed to the POM's photothermal properties and GSH depletion ability. Under the in vivo guidance of PAI, CDT/PTT combination therapy showed excellent effects in tumor ablation and prevention of tumor recurrence (Figure 3D).

Similarity, tungsten also has been studied for its biological applications [102]. Tungsten oxide is a common photocatalyst for the degradation of organic dyes. Considering the presence of W5+ and W6+ valence states in WO3, it also shows excellent potential as the Fenton-like reagent. Despite this, limited studies have investigated the potential CDT application of WO3, and the photothermal enhancement of CDT even gets less attention. A previous study showed that ultrasmall WO3-x@γ-PGA NPs were prepared for PAI-guided synergistic PTT/CDT therapy. The obtained WO3-x@γ-PGA NPs exhibited good NIR-II photothermal properties. They utilized mild heat to promote the efficacy of CDT, demonstrating photothermally enhanced CDT effects both in vitro and in vivo [103]. Notably, this study used mild PTT to amplify the Fenton reaction and achieved a high therapeutic effect. Meanwhile, mild PTT can effectively avoid collateral damage to adjacent healthy cells due to heat diffusion.

Therefore, the combination of CDT and PTT can produce a significant synergistic effect. The increased temperature not only accelerates the catalytic efficiency of the Fenton/Fenton-like reaction, but also promote blood circulation and increase oxygen at the tumor site, constructing a microenvironment more suitable for CDT. And it is worth noting that CDT can improve the heat sensitivity of tumor cells through oxidative stress induction. The fatal disadvantage of PTT in the treatment process is the low penetration depth in the body, which significantly limits the application of PTT, and the local hyperthermia of the tumor caused by PTT may damage normal tissue. To overcome the issue of light penetration in the body, the researchers used ultrasound instead of lasers. In addition, the NIR-II window can provide more robust tissue penetration depth. Thus, the combination of NIR-II laser-mediated PTT and CDT could achieve better treatment outcomes. With the further improvement of optical transmission technology, such as built-in optical fibers or wireless photons, this combination will be a promising treatment for removing deeper tumors.

CDT in Combination with SDT

Ultrasound (US), a non-invasive sound wave with high tissue penetration depth, has a wide range of biomedical applications, i.e., drug release control, tumor eradication, and SDT [104]. SDT is a novel treatment modality that makes use of ultrasound stimulation to activate sonosensitizers to produce ROS, cavitation, bubbles, heat, etc. [105, 106]. Benefiting from the deep tissue penetration, SDT is more suitable for clinical applications than PDT [107]. However, hypoxia and excess GSH hinder the effectiveness of SDT alone [108]. CDT/SDT combination therapy could significantly improve the efficiency of tumor treatment by increasing ROS production. In addition, a recent study has found that the introduction of US can enhance the activity of the Fenton reaction and directly improve the efficiency of CDT [109]. Due to the great clinical potential of SDT/CDT in treatment of deep tumors, it is considered as the development direction of bimodal therapy.

There is no doubt that ultrasound-activated sensitizers play an important role in SDT. From the early organic molecules to the current inorganic sonosensitizers, the use of sonosensitizers in SDT has been shown to be effective in enhancing therapeutic outcomes. Traditional sonosensitizers are mainly organic molecules, i.e., porphyrins, chlorophylls, curcumin and Ce6 [110]. These organic molecules could be activated upon ultrasound exposure from the ground to the excited state, leading to ROS production [111]. Porphyrin and its derivatives are the most used sonosensitizers in SDT and have been extensively studied. However, these small porphyrins are less chemically and biologically stable and require further optimization. A series of recent studies have found that metalloporphyrin complexes can optimize these properties [112]. For instance, Liu's group had designed a multifunctional nanoplatform (named R-S-NTP) based on Fe (III), meso-tetrakis (4-sulfonatophenyl) porphyrin (TPPS), Bis (DPA-Zn)-RGD, and manganese superoxide dismutase (SOD2, an important antioxidant enzyme) siRNA for enhancing the production of ROS through targeted delivery and triple regulation methods, including SOD2 down-regulation, glutathione depletion and Fenton reaction (Figure 4A). In this smart system, sonosensitizer TPPS had high ROS generation and could be assembled with Fe (III) to obtain Fe (III)/TPPS nanostructures. Bis (DPA-Zn)-RGD not only imparted the ability of Fe (III)/TPPS to target active tumor but also acted as a vector for siRNA delivery. After R-S-NTP was internalized by cells, the released Fe3+ reacted with GSH, and the subsequent depletion of GSH thus enhanced the Fenton reaction and SDT. SOD2 siRNA downregulated SOD2 expression, resulting in a significant increase in the production of •O2- and Fe2+, which provided a steady stream of raw materials for the Fenton reaction and further strengthened the CDT. Furthermore, cells treated with R-S-NTP+US showed higher ROS production compared to the control groups. These results indicated that R-S-NTP exhibited excellent cell uptake, reduced antioxidant capacity, and enhanced CDT and SDT [113]. However, nanotherapeutics prepared by chelating organic sonosensitizers with Fenton ions are limited by the low water solubility of chelates and the poor stability during ultrasonic treatment. Therefore, it is necessary to develop stable carriers to load sonosensitizer.

As an O2-dependent treatment, SDT will aggravate tumor hypoxia and greatly inhibit its effect. Therefore, O2 should also be a breakthrough to improve the efficiency of the synergistic treatment. Calcium (Ca2+) overload-mediated mitochondrial membrane potential decreases, causing mitochondrial breathing disorders, which in turn trigger ROS outbreaks. Thus, the fabrication of calcium-based NPs with tumor-responsive Ca2+ release causes persistent mitochondrial dysfunction, which could be a new strategy for the treatment of malignant tumors. In Professor Lin's work, a Cu-containing TME response decomposition CaCO3 nanoplatform loaded with Ce6 was constructed (Cu/CaCO3@Ce6, or CCC NPs) (Figure 4B). CCC NPs released Ca2+, Cu2+ and Ce6 under the action of weak acids and GSH. Cu+-mediated Fenton reaction was used for CDT. At the same time, the influx of Ca2+ led to mitochondrial dysfunction and intensified oxidative stress. Moreover, Ce6 in tumor cells produced a large amount of 1O2 under US irradiation for SDT. Subsequently, with the help of H2O2, continuous Cu2+ influx induced the generation of O2 to alleviate the hypoxia in solid tumors, which in turn enhanced SDT [114]. The platform integrates oxygen self-supply, GSH deprivation, and ROS amplification to achieve the synergistic CDT/SDT treatment effect of 4T1-bearing mice.

In the past five years, the development of inorganic sonosensitizers for CDT/SDT has rapidly increased, such as titanium dioxide NPs, gold NPs, graphene, and mesoporous silica. Compared with organic sonosensitizers, they have superior physical and chemical properties and stability [115, 116]. Pure TiO2 NPs, as sonosensitizers, possess a low quantum yield of ROS due to rapid electron (e-)-hole (h+) recombination (50 ± 30 ns). Therefore, ultrafine titanium oxide nanorods (TiO1+x NRs) modified with PEG were successfully prepared [117]. Different from the oxygen-deficient structure of TiO1+x, which limited the US-triggered electron-hole pair recombination, the obtained PEG-TiO1+x NRs showed high efficiency of US-triggered ROS generation. Moreover, TiO1+x NRs had horseradish-like peroxidase activity and could catalyze H2O2 to produce •OH for CDT. Therefore, under ultrasound therapy, PEG-TiO1+x-NRs can be used as a sonosensitizer and CDT agent for highly effective tumor ablation. However, direct delivery of sonosensitizers to tumor tissue is limited by inefficient delivery and potential toxicity. Here, Professor Chen reported a TME-responsive 2D nanosonosensitizer/nanocatalyst (Ti3C2/CuO2@BSA) that achieved high-performance synergistic CDT/SDT tumor treatment by generating sonosensitizers in situ [118]. The integration of CuO2 nanoparticles on 2D Ti3C2 enabled in situ generation of H2O2 under acidic tumor conditions for oxidation of Ti3C2 to generate TiO2 nanosensitizers, while the carbon matrix enhanced the separation of e- and h+ after oxidation, further improving the SDT effect. Furthermore, ultrasound irradiation also enhanced Cu+-induced Fenton-like responses to generate more ROS, thus synergizing SDT tumor treatment. The experimental results proved the synergistic therapeutic effect of SDT/CDT in vitro and in vivo (Figure 4C). In addition, piezoelectric semiconductors were used to improve SDT and increase ROS generation activity through US-induced carrier separation and band bending. Benefiting from the piezoelectric effect, the piezoelectric heterostructure of Cu2-xO-BaTiO3 was prepared as a sonosensitizer and chemodynamic agent to improve the generation of ROS and the synergistic CDT/SDT treatment effect on refractory breast cancer in mice [119].

Au NPs is an another sonosensitizer candidate which has been reported for synergetic CDT/SDT [120]. A novel US and GSH bis-responsive JNP vesicles (JNP-Ve) sonosensitizer that was prepared by grafting the block copolymer with hydrophilic thioglycol (PEG-SH) block and hydrophobic ROS-sensitive poly-(1,4-phenylacetone-dimethylthione) (PPADT-SH) block onto Janus Au-MnO NPs [121]. Subsequently, under the stimulation and initiation of US, vesicles were broken down into small Janus Au-MnO NPs). And then GSH initiated MnO degradation, releasing Mn2+ for CDT, while releasing a smaller size Au NP with many cavitation nucleation sites for SDT. This two-step dissociation strategy not only improved the penetration of NP, but also increased the generation of ROS due to cavitation and Mn2+-induced Fenton-like reaction and achieved synergistic SDT/CDT to inhibit in situ liver tumor growth (Figure 4D).

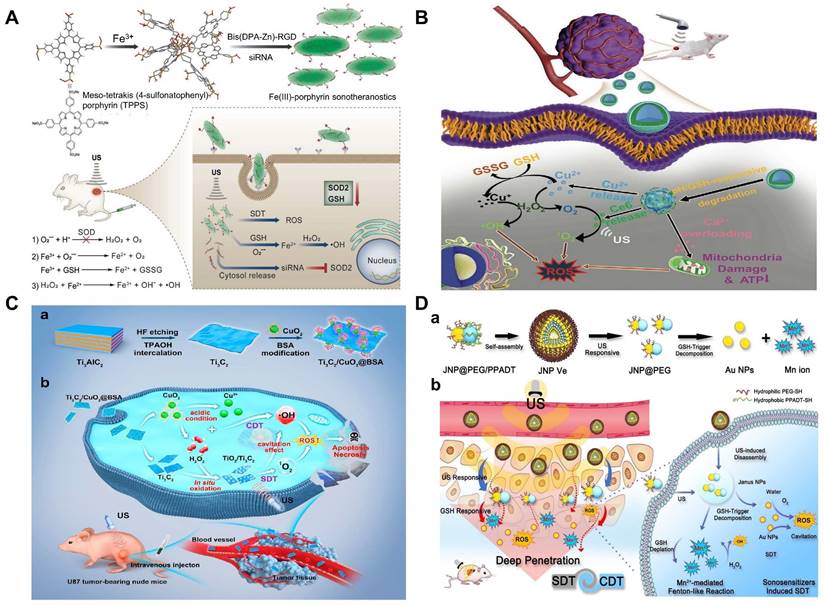

 Figure 4

(A) Schematic illustration of the R-S-NTP serving as a multifunctional sonotheranostics. This sonotheranostics was fabricated via coordinating Fe (III) and TPPS, followed by anchoring with Bis (DPA-Zn)-RGD and manganese superoxide dismutase (SOD2)-siRNA. The R-S-NTP could substantially accumulate in the tumor via EPR effect and the active tumor-targeting ability of RGD. Upon uptake by cancer cells, the R-S-NTP could specifically down-regulate SOD2 expression, trigger GSH depletion and Fenton reaction generation, and thus achieve highly efficient anticancer therapy. Reproduced with permission [113]. Copyright 2019, Wiley-VCH. (B) Cu/CaCO3@Ce6 nanoparticles (CCC NPs)-dominated advanced cancer therapy via multiple reactive oxidative species (ROS) amplification [114]. Copyright 2022, Wiley-VCH. (C) Schematic illustration of 2D MXene-originated in situ nanosonosensitizer generation for augmented and synergistic sonodynamic tumor nanotherapy. a) Schematic illustration of the synthesis of Ti3C2/CuO2@BSA nanosheets. (b) Synergetic chemodynamic and sonodynamic therapeutic process of 2D Ti3C2/CuO2@BSA nanosheets under US irradiation. Reproduced with permission [118]. Copyright 2022, American Chemical Society. (D) Illustration of a) self-assembly of amphiphilic Janus Au-MnO NPs into functional vesicles and b) their sequential US and GSH-induced disassembly into small JNPs with deep tumor penetration for synergistic SDT/CDT. Reproduced with permission [121]. Copyright 2020, Wiley-VCH.

Theranostics Image

In conclusion, CDT/SDT combination therapy can significantly improve the treatment efficiency of tumors by increasing total ROS production. Hypoxia may lead to severe resistance to O2-dependent SDT, which could lead to failure of treatment. CDT relies on endogenous rather than external energy stimulation. However, tumor endogenous response substrates are limited, which limits the therapeutic effect of CDT. When CDT is combined with SDT, the enlarged production of ROS can significantly improve the therapeutic effect on tumors. Organic sonosensitizers are loaded in well-stabilized carriers to avoid premature exposure and transport to the tumor site with minimal loss. The high tumor specificity of inorganic sonosensitizers integrating CDT and SDT allows them to better accumulate in tumor cells. However, compared to PTT and PDT, the mechanism of SDT is more complex. At present, there are many studies on the mechanism of SDT, but there is still no clear conclusion, and more research is needed on the synergy of multiple mechanisms leading to cell death in the future.

CDT in Combination with RT

RT is the main approach for clinical cancer treatment. It is a kind of local treatment method that uses radiation to treat tumors. ROS-mediated DNA damage is the main mechanism of radiation-induced cell death [122]. However, due to the radiation resistance of tumor cells, the therapeutic effect of RT is unsatisfactory [123]. Tumor hypoxia is a major cause of RT resistance [124]. Combining RT with CDT is a promising strategy to improve the efficacy of tumors. On the one hand, Fenton and Fenton-like reagents can catalyze H2O2 to produce O2 to alleviate tumor hypoxia for enhanced RT, and X-ray irradiation can enhance mitochondrial respiration and increase H2O2 production for enhanced CDT. On the other hand, CDT produces •OH in situ can significantly increase oxidative stress, enhance the radio-sensitivity of tumor cells, further improve the anti-tumor effect of RT.

Nanoscale metal-organic frameworks (nMOFs) pave the way for enhanced radiation energy deposition at tumor sites. In a study, a nanoplatform with MOF structure (called CFM) formed by the co-doping of CaO2 nanodots and Fe3+ ions were developed [125]. As an oxidative stress amplifier, CFM could achieve self-sufficient H2O2 and O2 for enhanced CDT and RT. CFM degraded rapidly at a lower pH and hypoxic TME to release Fe3+, Ca2+, O2 and H2O2. Fe3+ was subsequently reduced to Fe2+ by GSH, which could participate in the Fenton reaction and induce apoptosis. The production of O2 has also been confirmed to overcome the RT resistance (Figure 5A). CFM-mediated in vitro toxicity was indirectly demonstrated by DCFH-DA staining and γ-H2AX immunofluorescence staining. As shown in Figure 5B, the fluorescence intensity of the CFM treatment group increased significantly. Due to the presence of CaO2, CFM could considerably increase the intracellular H2O2 level and consume GSH. The resulted H2O2 was further catalyzed by the Fenton-like reaction with Fe3+ ions to generate •OH. Moreover, results from the γ-H2AX immunofluorescence staining showed that the double-stranded DNA broke within patient-derived xenograft (PDX) tumor cells for the CFM + RT treatment group, indicating that CFM enhanced the radiation sensitivity of tumor cells as well as intracellular oxidative stress. MTT results proved that the cell viability in the CFM + RT combined treatment group was significantly decreased. Next, we evaluated the in vivo anti-tumor efficacy of CFM in mice with PDX tumors of loaded bladder cancer. FM + RT and CM + RT treatment can achieve partial inhibition of tumor growth compared to the control group of animals with rapid tumor growth. In contrast, the combination of CFM + RT treatment can obtain the most robust tumor growth inhibition. Ki-67 staining indicated that the combination of RT + CFM treatment significantly reduced the number of cancer cells, and mice's weight monitoring and H&E staining demonstrated the system safety of CFM nanocomposites (Figure 5C).

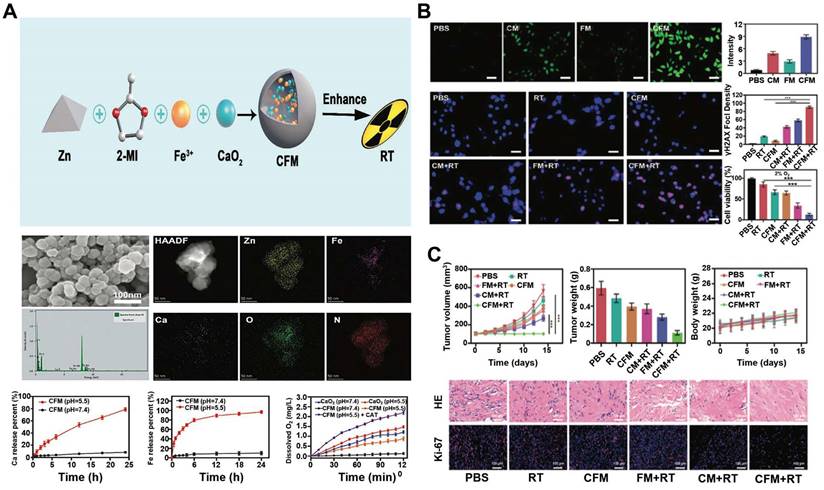

 Figure 5

(A) Schematic illustration of CFM supplying intratumoral H2O2 and O2 for enhanced chemodynamic therapy and radiotherapy. SEM images of CFM; EDS mapping of CFM after washing with distilled water; Ca2+ and Fe3+ release in buffer solutions with different pH values; oxygen generation under a range of experimental conditions was evaluated using a dissolved oxygen meter. (B) Assessment of the in vitro efficacy of CFM. DCFH-DA was visualized and quantified in tumor cells treated as indicated. Scale bars = 20 μm. Representative images of DNA fragmentation and nuclear condensation within tumor cells following the indicated treatments, with DAPI and g-H2AX being used to visualize nuclei and DNA fragmentation, respectively. Scale bars: 50 μm. Quantitative assessment of γ-H2AX foci density (γ-H2AX foci/100 /μm2) for >100 cells per treatment condition. Following control, RT, CFM, FM + RT, CM + RT, and CFM + RT treatment, an MTT assay was used to assess 4T1 tumor cell survival under 2% O2 conditions (n = 5). *P < 0.05, **P < 0.01, ***P < 0.005; Student's t-test. (C) Tumor volume and body weight curves in mice bearing Representative H&E and Ki-67 stained sections from mice treated as indicated. Data are means ± SD (n = 5). *P < 0.01, **P < 0.005, ***P < 0.001; Student's t-test. Reproduced with permission [125]. Copyright 2020, The Royal Society of Chemistry.

Theranostics Image

High-Z metal nanoparticles include bismuth, hafnium, gold, gadolinium, silver and metal oxide nanoparticles are widely used for enhanced RT/CDT combination therapy [126, 127]. Li's group developed a Cu2+ doped BiOCl nanotherapeutic platform called BCHN (BiOCl/Cu2+-H2O2 @PVP) [128]. BCHN could release self-carried H2O2 in a slightly acidic environment. Then, BCN interacted with excessive GSH in tumor cells to consume GSH. At the same time, Cu2+ was reduced to Cu+ by GSH, Cu2+ and Cu+ interacted with self-sufficiency and endogenous H2O2 to produce large amounts of •OH for CDT and O2 for alleviating tumor hypoxia. The sustained production of •OH and depletion of GSH regulated intracellular oxidative stress levels, achieving oxidative stress-enhanced CDT and RT. Besides, the presence of high Z element bismuth could also help locally accumulate more radiation power at the tumor site, which would no doubt enhance radiotherapy. Synergistic CDT/RT effectively inhibited tumor cell proliferation and improved tumor control.

In addition, Hafnium-based metal-organic frameworks (Hf-nMOFs), formed from a mixture of Hf4+ ions and organic bridging ligands, have also emerged as radiation sensitizers due to their excellent X-ray energy absorption and conversion capabilities. The porous and tunable morphology can so far be loaded with different components for a variety of applications [129, 130]. With this in mind, introducing Fe3+ into Hf-nMOFs (named Hf-BPY-Fe) could make the platform suitable for CDT and RT [131]. Hf-BPY-Fe has been shown to improve the efficacy of radiation therapy through a combination of mechanisms: the sustained ROS induced by the Fenton reaction altered the cell cycle distribution and contributed to the increased radiosensitivity of tumors. Simultaneously, after irradiation, Hf4+ in Hf-BPY Fe could generate a large number of high-energy electrons while relaxing into a low-energy state in the nMOF pores, creating an electron-rich environment. These enriched electrons in nMOF accelerated the reduction of Fe3+ to Fe2+, further promoted the generation of •OH in the Fenton process and achieved synergistic CDT and RT tumor therapy. Moreover, Hf-BPY-Fe could delay the DNA damage response by interfering with certain proteins involved in the DNA repair signaling pathway. The system offered a new approach for radiosensitization in the whole process of tumor treatment and intervention of eventual DNA repair (Figure 5D).

Furthermore, metal oxides-based nanozymes have been rapidly developed in CDT/RT in recent years [132,133]. In one study, the researchers chose the classical Fe3O4 NPs as a template to design a nanozyme consisting of SnS2 nanoplates and Fe3O4 quantum dot with moving or mixed redox states (Fe2+/Fe3+) (named SnS2@Fe3O4 NPs, SF NPs) [134]. In the presence of X-rays, the redox cycle of these nanomaterials with mobile or mixed redox states was accelerated to enhance their enzymatic activity. The SF NPs nanozymes with peroxidase-like activity could decompose H2O2 into highly toxic ROS. The SnS2 cofactor, which acted as an electron donor, could be triggered to transfer electrons to Fe3O4 under external X-ray irradiation so as to promote the regeneration of Fe2+ on the surface of Fe3O4. The regenerated Fe2+ ions provided a steady stream of raw materials for the Fenton reaction, then reacted with H2O2 to continuously generate ROS, leading to severe tumor damage. Since the SF NPs selectively exerted enzyme activity in TME under X-ray irradiation, it could help reduce the damage to normal tissues. This nanocomposite provided a new avenue for developing synergistic effects of radiotherapy and CDT based on X-ray-enhanced enzyme effects. Another study reported a novel X-ray responsive Cu2(OH)PO4 NPs that could simultaneously respond to H2O2 and X-ray for CDT/RT [135]. Under X-ray irradiation, the NPs generated CuI sites through photoelectron transfer that were used as Fenton-like catalysts to break down overexpressed H2O2 into •OH. Therefore, X-ray-triggered Fenton-like reaction provides a more controllable and reliable method to improve CDT/RT and reduce side effects. This strategy confirms that the radiosensitization process can only be carried out in hypoxic tumors, minimizing damage to surrounding healthy tissue. Additionally, in the latest study, Prof. Sun's team achieved MR-guided synergistic CDT/RT using only superparamagnetic iron oxide nanoclusters (SPIONC) [136]. After pulmonary delivery in situ lung cancer, SPIONC had an enhanced penetration and retention effect in lung cancer, then broke down into smaller nanoparticles in an acidic microenvironment to improve tissue penetration and released more iron ions for CDT. The composition of this system is very simple, but the fate of nanoclusters remains to be studied. Besides, in-depth studies of the long-term toxicity and metabolism of clusters are needed.

In summary, the high radiation dose required in the RT can have huge side effects on healthy tissues, and the mild doses of X-ray can overcome the above shortcomings. In addition, mild X-ray doses can activate the surface properties of nanomaterials and improve Fenton catalysis, X-ray irradiation can also enhance mitochondrial respiration and increase the production of H2O2. In short, the combination of RT and CDT show the respective advantages of X-ray high tissue penetration and in situ ROS generation for intratumor-Fenton/Fenton-like reactions to achieve the synergistic increase of ROS levels. However, the efficacy of ROS-mediated tumor therapy is severely limited by tumor hypoxia and ROS-induced protective autophagy. Reactive nitrogen species (RNS)-activated nitrosative stress for tumor treatment is expected to overcome many drawbacks of traditional ROS therapy and significantly improve the therapeutic effect of hypoxic tumors. Intracellular nitrosative stress induces intracellular biomacromolecular damage mainly through peroxynitrite (ONOO-), nitrite, hydrogen peroxide, or peroxidase pathways, resulting in a series of cell death. Therefore, the overproduction of ONOO- in tumors is expected to be an effective method for RT sensitization. For example, Yang reported the controllable ONOO--enhanced silica nanoscintillator (PEG/SCNPs@DMSN-SNO-g-C3N4, P/SMNO-C) as a promising strategy to enhance intracellular nitrosative stress, making it an effective X-ray-controlled RT treatment for postoperative colon cancer [137]. Recently, two-dimensional nanoplatforms containing NO donor-modified LiYF4: Ce scintillators and graphite carbonitride nanosheets have also been developed for on-demand generation of highly cytotoxic ONOO-, further improving the efficacy of radiotherapy by directly inducing mitochondrial and DNA damage [138]. Moreover, Yang's group also developed a versatile core-shell radiosensitizer (SCNPs@DMSN@CeOx-PEG) for image-guided X-PDT by optimizing energy matching between the nanooscillators core and the semiconductor shell [139]. Therefore, CDT/RT based RNS has great perspectives for improvement in the future.

CDT in Combination with MHT

MHT was first proposed by Gilchrist in 1957 [140]. MHT relies on the heat dissipation of magnetic NPs in an alternating magnetic field (AMF) to heat diseased tissue and damage cancer cells. MHT is a non-invasive in situ treatment with no depth limitation and minimal adverse effects on surrounding healthy tissue [141, 142]. However, the efficacy of MHT is limited by tumor recurrence due to upregulation of heat shock proteins (HSPs) and thermal resistance due to overdose administration of magnetic NPs [143, 144]. ROS and competitive adenosine triphosphate (ATP) depletion are essential targets that can block excessive HSP production [145]. What's more, the high temperatures generated by magnetic NPs can accelerate the Fenton reaction. As a result, the combination of CDT and MHT is expected to improve therapeutic outcomes.

Iron oxide, manganese ferrite, and zinc ferrite are used as magnetic NPs, which can also be used as MRI contrast agents for disease diagnosis and are therefore particularly suitable for in situ CDT/MHT of cancers [146, 147]. A recent study showed that a hollow iron oxide nanocatalysts loaded with GOD (named HIONCs-GOD) were successfully fabricated for chemodynamic-hyperthermia synergistic therapy [148]. Fe2+ mediated the Fenton reaction to generate ROS, which induced cell apoptosis and down-regulated HSP expression, thereby alleviating heat resistance. On the other hand, Fenton efficiency was also enhanced by HIONCs-mediated MHT, GOD-mediated H2O2 accumulation, and elevated acidity of the tumor microenvironment. In addition, the peroxidase-like activity of HIONCs facilitated the conversion of H2O2 to O2, overcoming the limitation of tumor hypoxia on therapeutic efficacy (Figure 6A). When being exposed to an AMF for 10 min, the temperature increased to 50°C at a concentration of 6 mg/mL of HIOCs. While a low concentration of HIOCS, saying 0.1 mg/mL, only led to a slight temperature increase by about 3°C, suggesting that the rate of temperature increase was related to the concentration of HIONCs. And the results of the temperature curve showed that HIOCS-GOD was favorable to magnetic therapy, and the loading of GOD did not affect its magnetic-thermal performance. The magnetothermal effect of HIONCs-GOD on PC3 tumor-bearing mice showed the highest tumor temperature in the HIONCs + AMF group and the HEIONC-GOD + AMF group rose rapidly to nearly 43°C, compared to only a slight increase in body temperature in the PBS + AMF group (Figure 6B, a-f). The therapeutic effect of the nanocatalysts in vivo further suggested that nude mice in the HIONCs-GOD + AMF group showed more pronounced tumor growth inhibition, good weight gain and better survival rates than other groups, which was attributed to the synergistic combination of CDT, MHT, and starvation therapy and the superior biocompatibility of HIONCs-GOD (Figure 6C, a-c). Furthermore, tumor proliferation, necrosis testing, and H&E staining results showed HIONCs-GOD + AMF-treated tumor cells underwent severe apoptosis and morphological changes. More importantly, the expression levels of HSP70 and HSP90 in the HIONCs-GOD + AMF group were significantly lower than those in the other groups due to the HIONCs-GOD induced starvation effect and the production of large amounts of H2O2 by GOD (Figure 6C, d-i). This multifunctional nanocarrier system achieved synergistic CDT/MHT/starvation treatment of prostate tumors.

To improve the peroxidase-like activity and magneto-thermal conversion efficiency of Fe3O4 nanoparticles, hollow Fe3O4 mesocrystals (MCs) were successfully constructed by an improved solvothermal method. The high-efficiency MH-CDT synergistic tumor treatment using a single Fe3O4 component was realized. Due to the unique magnetic properties of the mesocrystal structure, the Fe3O4 MCs exhibited an excellent magneto-thermal conversion efficiency and higher peroxidase-like activity than Fe3O4 polycrystals (PCs) [149]. The Fe3O4 MCs-mediated Fenton reaction induced the decomposition of H2O2 to •OH, which damaged tumor cells and reduced the expression of HSPs, making tumor cells more susceptible to MH attack. Besides, MH-mediated hyperthermia in situ could in turn promote CDT and achieve a mutually reinforcing effect between MH and CDT, effectively eradicating tumors.

In another recent study, a mitochondria-targeted magnetothermal nanozyme (Ir@MnFe2O4NPs) was also used for efficient CDT/MHT cancer therapy [150]. Mitochondria is an essential organelle responsible for cellular energy production and cell survival, and they are also involved in many critical physiological processes, such as apoptosis, signal transduction, and ROS production. The above properties make mitochondria excellent targets for tumor therapy [151, 152]. Based on the above system, MnFe2O4 NPs had a good magnetic caloric performance and had an excellent catalytic activity. After modification by cyclometallated iridium (III) complexes, the excellent mitochondria-targeting agent, MnFe2O4 was delivered to the mitochondria for precise and effective cancer treatment. The superior magneto-thermal properties of Ir@MnFe2O4 NPs caused local temperature increases, resulting in mitochondrial damage and cell death. In addition, Fe (III) in MnFe2O4 NPs was reduced to Fe (II) by GSH, which lead to GSH depletion, and the increase of intracellular Fe (II) also enhanced the rate of the Fenton reaction, producing more •OH. Furthermore, disruption of intracellular redox homeostasis further amplified the effect of MHT. Moreover, Ir@MnFe2O4NPs could be used for two-photon imaging and MRI, allowing for more precise and effective cancer treatment.

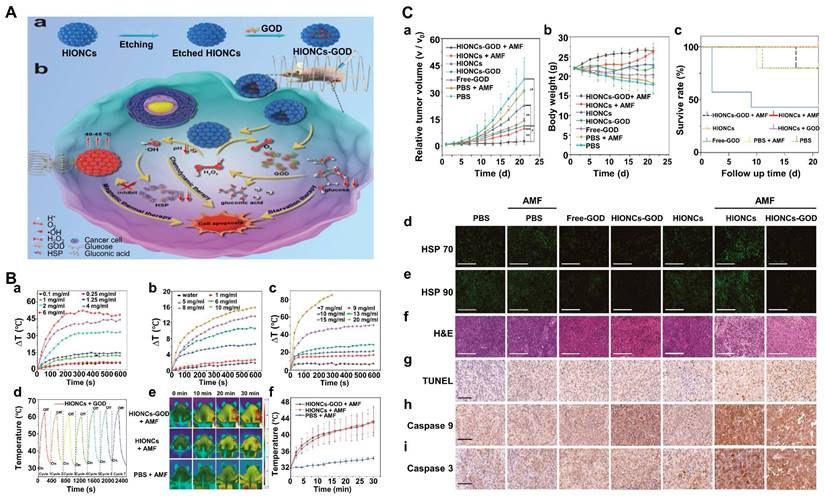

 Figure 6

(A) a) Synthesis of etched HIONCs and the encapsulation of GOD into HIONCs. b) GOD-induced starvation chemodynamic therapy for enhanced magnetic hyperthermia therapy in the hypoxic tumor microenvironment. HIONC-mediated oxygen replenishment simultaneously enhanced starvation therapy. (B) Quantitative temperature curve of ultrapure water and HIONCs in vitro: a) microcentrifuge tube, b) gel, and c) cattle liver. d) Heating curves of the HIONCs-GOD dispersion in water (10 mg/mL) exposed to the AMF of 513 kHz at 1001.1 A/m for seven on/off cycles. e) Thermal images of PC3 tumor-bearing mice after exposure to the AC magnetic field, including HIONCs-GOD + AMF, HIONCs + AMF, and PBS + AMF. (f) Temperature curve against time for the HIONCs-GOD, HIONC, and phosphate-buffered saline (PBS) groups in vivo. The temperature changes were recorded with a thermal infrared camera. (C) (a) Relative tumor volume after treatment. The animals were monitored every other day (n = 5, *P < 0.05, **P < 0.01). (b) Relative body weight of mice in the different groups after treatment. (c) Survival curves of different groups during the 21 d observation period. Representative images of PC3 tumor tissue sections at 24 h after treatment with PBS, PBS + AMF, free GOD, HIONCs-GOD, HIONCs, HIONCs + AMF, or HIONCs-GOD + AMF: immunofluorescence staining with (d) anti-HSP70 and (e) anti-HSP90 antibody, (f) H&E, and (g-i) immunohistochemical staining. Green: HSP70 and HSP90 expressing region. The white scale bar in (d-f) is 200 μm. (g) TUNEL, (h) caspase 9, (i) caspase 3. The black scale bar in (g-i) is 100 μm. Reproduced with permission [148]. Copyright 2020, American Chemical Society.

Theranostics Image

Therefore, combined CDT and MHT are considered to be an ideal strategy for synergistic treatment of cancer. This mutually reinforcing nanosystem has been shown to overcome the shortcomings of both MHT and CDT. The generation of ROS during CDT can inhibit the expression of HSPs and reduce the thermal tolerance of cells, thereby significantly improving the therapeutic efficiency of MHT. The increase in temperature caused by MHT can speed up the Fenton reaction and improve the catalytic efficiency of the material. Unlike PTT, which uses light to generate heat to kill tumors, MHT can handle deep tumors in various tissues due to its superior tissue penetration. However, it is worth noting that in order to achieve the ideal treatment temperature, the concentration of materials used in MHT is usually higher, which may increase the potential toxicity of the therapy. Therefore, there is an urgent need to develop materials with high magnetocaloric conversion capabilities.

CDT in Combination with Immunotherapy

Immunotherapy shows an excellent potential in the treatment of malignant tumors by reactivating anti-tumor immune cells and overcoming immune evasion of tumors [153]. Based on the mechanisms of immunotherapy, a variety of immunotherapeutic tools have been developed, including immune checkpoint inhibitors, small molecule immunomodulators, cancer vaccines, lysozyme viruses, engineered T cells, and agonistic antibodies against co-stimulatory receptors [154-156]. Immune checkpoint blocking (ICB) therapy based on programmed cell death 1 (PD1) and programmed death ligand 1 (PDL1). Cytotoxic T-lymphocyte associated protein 4 (CTLA-4) is one of the effective strategies to activate antitumor immunity, which has made great progress in treating a wide range of malignancies in recent years [157]. However, the effectiveness of immunotherapy is severely affected by the immunosuppression of microenvironment [158]. In addition, TME also plays an important role in immunosuppression to aggravate cancer proliferation and metastasis. As a result, both tumor cells and associated TMEs lead to low response rates, ultimately leading to unsatisfactory immunotherapy. Elevated levels of tumor oxidative stress by CDT can induce immunogenic cell death (ICD) and reverse immunosuppression of TME, promoting an anti-tumor immune response. Based on this, combining CDT immunotherapy is considered ideal for improving tumor outcomes.

Rationally designed CDT nanosystems combined with ICB therapy show great potential to maximize the anticancer efficacy. Herein, a multifunctional covalent organic framework (COF)-based nanocomposite was designed for synergistic photo-, chemodynamic- and immunotherapies [159]. Specifically, 1,3,5-tris(4-aminophenyl) benzene (TAPB) 2,5-dimethox-yterephthaldehyde (DMTP)-COF was synthesized at room temperature, followed by the introduction of iron trichloride to form Fe-COF, then poly (p-phenylenediamine) was polymerized on the surface of the COF using Fe3+ as the oxidizing agent. Fe3+/Fe2+ redox couples will further catalyze the overexpressed H2O2 in the tumor to •OH by the Fenton reaction, and the increased temperature induced by poly(p-phenylenediamine) also accelerated the production of •OH and enhanced CDT. Furthermore, in the presence of anti-PDL1 checkpoint blockade therapy, tumor-associated antigens could induce a robust anti-tumor immune response and effectively inhibit tumor metastasis (Figure 7A). For targeted delivery anti-mouse programmed death ligand 1 antibody (αPDL1) and enhanced immune efficiency, Ge et al. demonstrated a ROS-responsive αPDL1/GOx nanocomplex for the combination of CDT and ICB. Nanocomplexes (P/G@EF-TKNPs) were prepared by complexing proteins, αPDL1/GOx, and oligomerized (-)-epigallocatechin-3-O-gallate (OEGCG), then chelating them with Fe3+, and finally overlaying the block copolymer into POEGMA-b-PTKDOPA (Figure 7B). OEGCG, as a promising natural protein carrier adjuvant, has been demonstrated excellent performance in αPDL1 delivery [160]. POEGMA blocks acted as shells that protect the integrity of nanocomplexes in blood circulation, and PTKDOPA fragments as chelating agents for the formation of Fe3+ and protein complex. When P/G@EF-TKNPs entered tumor cells, GOx catalyzed glucose to produce H2O2 for enhanced CDT and promoted the release of tumor-associated antigens (TAAs). Moreover, the released αPDL1 bound specifically to PDL1 on tumor cells for ICB. Finally, the nanocomplexes induced superior systemic immune responses, effectively inhibiting the growth of primary and distant tumors in the mice bilateral 4T1 tumor models [161].

CTLA-4 blockers capable of altering the immunosuppressive microenvironment were also used to treat metastatic tumors [162]. In a study, FePt NPs were loaded onto PEI-modified black phosphorus nanosheets (BPNs) and then modified with folic acid to achieve the FePt/BP-PEI-FA NCs [163], which exhibited excellent Fenton reaction for CDT, photothermal and photodynamic effects under 808 nm for PTT and 660 nm NIR irradiation for PDT, respectively. FePt NPs, as a ferroptosis agent, could convert endogenous H2O2 to ROS through the Fenton reaction. The synergistic effect of PTT, PDT and CDT effectively inhibit tumor growth. Meanwhile, tumor-associated antigens released during PTT treatment stimulated anti-tumor immune responses. By further combining with CTLA-4 blocking therapy, it efficiently controlled residual and metastatic tumor growth (Figure 7C). In addition, bacteria can activate innate and adaptive immune responses in vivo, and using microbes is an ideal strategy to combine ICB with CDT in precision ROS therapy against tumors. For example, Au@Pt core-shell nanozyme decorated on the surface of bacteria could be promising agents of CDT in cancer treatment and the further immunotherapeutic effect was induced by bacterium-induced [164]. In another study, Fc-based MOF Vk3-loaded cascading catalytic nanoplatform was reported for enhanced CDT/immunotherapy based on Vk3-induced H2O2 amplification and •OH-mediated ICD for immunotherapeutic effect [165].

To reverse the immunosuppressed tumor microenvironment and acquire an immune memory effect, Liu and his colleagues reported a novel artificial enzyme Cu2-xTe-NEs with tunable enzyme-mimetic activity under NIR-II light. The Cu2-xTe-NEs had both glutathione oxidase and peroxidase-like activities, which could efficiently catalyzed GSH and H2O2, producing large amounts of ROS [166]. Besides, the defect-induced NIR-II absorption endowed Cu2-xTe NEs with NIR-II photothermal effect, and the enzymatic activity and Fenton reaction rate of Cu2-xTe-NEs were significantly enhanced under NIR-II light. Moreover, the sustained oxidative stress generated by the Cu2-xTe-NEs reversed the immunosuppressed tumor microenvironment and established an immune memory effect that eradicated primary and metastatic tumors and inhibited tumor recurrence. Additionally, by optimizing composition and morphology, a unique eggshell nanohybrid (Fe3O4@C/MnO2-PGEA, FCMP) with innate immunomodulatory effects was constructed. The intrinsic immunomodulatory effects of FCMP had been used to reprogram macrophages to the M1 phenotype and induce maturation of dendritic cells, and the fully exposed Fe3O4 nuclei and MnO2 shells could maximize CDT and significantly inhibit the growth of primary and distant tumors [167].

Furthermore, nanovaccine-based immunotherapies are known for their high efficiency, minimal side effects and toxicity, antigen-specific immunity, and long-term immunological memory effects. As an integral component of cancer nanovaccines, immune adjuvants play a vital role in antigen delivery and immune enhancement. In one study, MnOx nanospikes (NSs) with large mesoporous structures were evaluated as a TME-responsive nano-adjuvants. They had extremely high loading efficiency with ovalbumin (OVA) and tumor cell debris. MnOx immune adjuvants were proven to induce ICD via CDT and ferroptosis [168]. Using OVA protein as a model antigen, the MnOx-OVA-treated group exhibited the best maturation of dendritic cells (DCs) and T-cell activation and the highest levels of interleukin-6 (IL-6) and tumor necrosis factor-α secretion. 4T1 tumor cell fragments (TF) were used as cognate antigens for the treatment of 4T1 tumors in vivo. Attributable to the synergistic effect of MnOx-mediated ICD induced by CDT and TF-mediated immunotherapy, effective primary and distal tumor growth inhibition was observed in the treatment group (Figure 7D). In another recent study, MoS2-CuO heterogeneous nanocomposites were first designed by integrating semiconducting CuO and flower-like MoS2 in a two-step hydrothermal method, then loaded with both BSA and the immune adjuvant imiquimod (R837). The obtained MoS2-CuO@BSA/R837 (MCBR) nanoplatform significantly achieved enhanced antitumor effects of synergistic CDT/immunotherapy/PTT and excellent CT/NIR/MRI multimodal imaging performance [169]. In this nanoplatform, CuO was a typical CDT reagent that reacted with the overexpressed H2O2 in TME to generate •OH through a Fenton-like reaction, and the photothermal effect of MoS2 significantly increased the Fenton reaction rate and increased the •OH yield. At the same time, MCBR-based PTT and PT-enhanced CDT released tumor associated antigens (TAAs), which could bind to R837, an immunostimulatory adjuvant, that effectively inhibits primary and metastatic tumors by promoting DC maturation, secreting cytokines, and increasing CD4+ T cells and CDT cells.

Therefore, CDT combined immunotherapy has broad prospects in eradicating primary tumors, inhibiting metastatic tumors and preventing tumor recurrence. CDT can induce ICD and reverse immunosuppression of TME. However, CDT alone is often insufficient to reverse the immunosuppressive microenvironment. Thus, phototherapy is generally introduced in conjunction with CDT to boost immunity. Moreover, the combination of CDT and immunotherapy is still in its early stages, and their synergistic mechanisms still need further study due to complex immune mechanisms. In addition, it should be noted that excessive immune activation may also lead to an autoimmune response, which can induce autoimmune diseases. In summary, an in-depth exploration of the therapeutic mechanism and optimal regimen of CDT combined immunotherapy is the focus of current research.

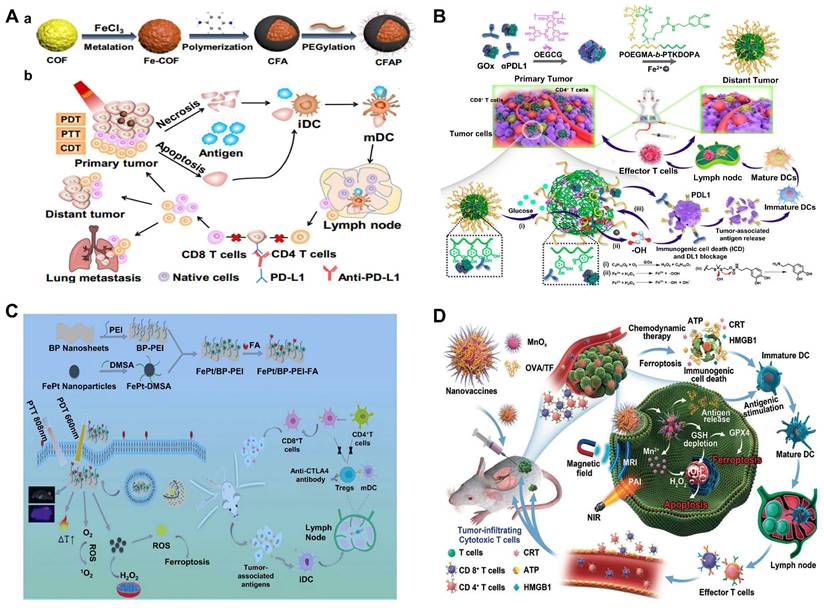

 Figure 7

(A) Illustration of a) preparation and b) synergistic cancer therapy of CFAP. Reproduced with permission [159]. Copyright 2020, American Chemical Society. (B) Schematic illustration for the a) preparation of P/G@EF-TKNPs and b) mechanism of in vivo CombinationTherapy of CDT and ICB [161]. Copyright 2022, American Chemical Society. (C) Schematic illustration of the preparation of FePt/BP-PEI-FA NCs and dual-modal imaging (MR and thermal imaging)-guided synergistic PTT/PDT/CDT cancer therapies as well as photothermally-enhanced immunotherapy. Reproduced with permission [163]. Copyright 2020, The Royal Society of Chemistry. (D) Illustration of MnOx-OVA/tumor cell fragment (TF) nanovaccines for MR/PA dual-mode imaging-induced cancer immunotherapy. Reproduced with permission [168]. Copyright 2020, Wiley-VCH.

Theranostics Image

CDT in Combination with ST

Starvation treatment, by means of consuming nutrients in tumor cells, has been widely explored in tumor treatment [170]. GOD/GOx is considered a key enzyme in the starvation therapy, which can effectively catalyze the oxidation of glucose to gluconic acid and H2O2, thereby cutting off the energy supply of cancer cells to inhibit their growth. This process is known as GOD-based starvation therapy. Nevertheless, due to the continuous consumption of O2 molecules and nutrients, as well as the spread and degradation of GOD in the tissue, it is difficult to eliminate tumors by relying on GOD alone. Hence, combined starvation therapy and CDT mediated by multifunctional nanomaterials based on GOD and Fenton reagent (Fenton-like reagent) have been proven effective in enhancing tumor therapy. GOD catalyzes glucose oxidation to gluconic acid and H2O2, resulting in reduced pH value and elevated H2O2 concentration, which can accelerate the efficiency of the Fenton reaction. In one study, GOD was loaded onto the surface of Cu2+-doped hollow mesoporous SiO2 nanoparticles (HMSN-Cu-GOD) for tumor-selective combination CDT and starvation therapy [171]. After being internalized by tumor cells, the HMSN-Cu-GOD catalyzed the conversion of glucose to H2O2 for the next Fenton reaction in the presence of oxygen. And the glucose acid induced pH reduction promoted the release of Cu2+, which was further reduced by GSH and participated in the Fenton-like reaction. In vitro and in vivo experiments demonstrated that HMSN-Cu-GOD had superior synergistic effects on CDT and starvation therapy. For enhancing drug accumulation and therapeutic efficacy in tumors, a study reported peanut-shaped multifunctional nanomedicines (CuS-PGH-NMs) by encapsulating CuS in polylysine-glucose oxidase-HA shells, CuS-PGH-NMs showed significant uptake by tumor cells due to EPR effects and CD44 receptor-mediated targeting effects. The nanocomposite would decompose in cells, and the released GOx consumed endogenous glucose for starvation treatment. The excessive H2O2 was then converted to •OH by Cu+-mediated Fenton-like reaction for CDT. Furthermore, excessive H2O2 in turn accelerated Cu2+/Cu+ conversion for enhanced CDT, thereby achieving effective tumor growth inhibition through synergistic starvation/CDT therapy [172]. To achieve long-term tumor retention of GOx, in situ gelatinized nanomedicine was prepared by mixing the hydrogel precursors N, N-dimethylacrylamide and polyethylene glycol diacrylate with GOx and GA-Fe nanocomplexes, which allowed long-term tumor retention of GOx and GA-Fe and destroyed the breast cancer tumors effectively [173].

However, the glucose consumption efficiency of GOx is limited in the hypoxic TME. Although H2O2 can be converted to oxygen under the action of catalase, but the limited H2O2 in the tumor microenvironment also limits the intrinsic oxygen production. Based on the above situation, a great quantity of nanomedicines with self-supplied oxygen and hydrogen peroxide have been developed [174, 175]. Besides, Professor Xu proposed a closed-loop strategy for controlled oxygen delivery, release and utilization [176]. The study used ZIF-8 as a template to enrich proteins on the surface using its positive potential, hemoglobin (Hb) and GOx were then added, followed by adding tannic acid (TA) to construct the metal-protein-polyphenol network structure. Finally, oxygen was loaded onto the capsule by a strong affinity with Hb (Figure 8A). Hb is an excellent oxygen carrier and has peroxidase-like properties. After being internalized by cancer cells, GOx-mediated glycolysis continues to supply H2O2 for Hb catalysis, achieving enhanced ST and CDT. In this system, O2 can be released in time in two ways as needed: 1) depletion of O2 during glycolysis facilitated the release of O2 from Hb; 2) H2O2 can oxidize Hb to methemoglobin, promoting the release of O2 owing to the different affinity between oxygen and Hb/MHb. The nanomedicine demonstrated good GOx/Hb activity and ability to deliver GOx/Hb across membranes and was applied for the first time in the co-treatment of cancer at the small animal level.

The efficiency of GOx catalytic reactions is strongly dependent on oxygen concentration, but hypoxic conditions in TME result in low GOx activity. Thus, other types of starvation therapy have been explored. Amino acids are nutrients in cells and essential components of proteins, which play a fundamental role in maintaining the cytoskeleton and the cellular life cycle. The deficiency of amino acids may directly lead to the collapse of the cytoskeleton and disruption of cellular metabolism, resulting in cell death [177, 178]. Therefore, the induction of amino acid depletion holds promise as an alternative approach to enhance tumor suppression. L-amino acid oxidase (AAO) catalyzes the production of amino acids α-ketoacids, releasing H2O2 and ammonia. α-ketoacids can regulate the pH of tumors, promote Fenton or Fenton-like reactions, and H2O2 can also continuously provide substrates for Fenton reactions. Based on this concept, Han's group used hollow Fe3+/ tannic acid (HFE-TA) nanocapsules as carriers to deliver AAO for synergistic tumor treatment [179]. By wrapping it in the 4T1 cancer cell membrane, the biosafety of NPs was improved, and NPs were endowed with immune escape and tumor-targeting ability. AAO molecules specifically catalyzed the oxidative deamination of L-amino acids and lower pH at the tumor site, At the same time, the up-regulated H2O2 concentration promoted the HFe-TA-mediated Fenton reaction and enhanced •OH production. Benefiting from the functions mentioned above, this platform achieved synergistic effect of starvation and CDT for the tumor treatment.

Lactic acid is considered a metabolic waste product of glycolysis in tumor cells. However, lactic acid accumulation-induced tumor angiogenesis, metastasis, and immunosuppression could promote tumor growth and invasion. Therefore, lactic acid is considered to be an effective target for regulating the abnormal metabolism of TME by blocking production or direct depletion. In addition, ATP is the most direct energy source in living organisms. By inhibiting the production of ATP, the energy demand of cancer cells can be blocked, which is an effective way to improve the effectiveness of cancer treatment [180]. In a recent study, nanoagents that self-supply O2 are designed to enhance CDT/starvation therapy by producing •OH, depleting lactic acid and ATP [181]. In this therapeutic system, the core of perfluorooctyl bromide (PFOB) nanodroplets was coated with LOX-loaded TA-Fe (III) complex layer (PFOB@TA-Fe (III)-LOX, PTFL) (Figure 8B). After being internalized by tumor cells, O2-self-sufficient PTFL NPs delivered O2 to alleviate hypoxia, the loaded LOX catalyzed the oxidation of lactic acid with O2, resulting in lactic acid depletion and H2O2 production. Meanwhile, the TA-Fe (III) complex excreted intracellular ATP as an energy source and decomposed into TA and Fe (III) ions. The released Fe (III) ions were further reduced to Fe (II) ions by TA, which then catalyzed the decomposition of H2O2 into cytotoxic •OH for enhanced CDT. Another study reported a pH-responsive nanoselenium-coated manganese carbonate deposited iron oxide nanoparticles (MCDION Se) platform for combing CDT with starvation therapy [182]. The system enabled enhanced synergistic effect due to H2O2 producing and ATP inhibition, and MRI could monitor the tumor treatment process.

In short, combining CDT with starvation Therapy cuts off the energy source for cancer cells and produces a significant CDT-enhancing effect by lowering pH and producing H2O2 during starvation treatment. And acidic conditions can further decompose nano-delivery systems and facilitate cascade reactions. However, the non-specific accumulation of free GOx or LOX in normal tissues inevitably limits the efficiency of CDT and enhances its cytotoxicity. Therefore, the choice of nanocarriers is very important to enhance the efficiency of this combination therapy.

CDT in combination with GS

Gas therapy is a kind of treatment method based on special gas signal molecules, which can synergize or directly induce cancer cell apoptosis [183]. Gas therapy was initially achieved by direct inhalation or drinking of gas-rich water, and later nanomedicines were developed to achieve more efficient treatments. To date, three main gas molecules, including nitric oxide (NO), carbon monoxide (CO), and hydrogen sulfide (H2S), have been investigated [184-186]. Previous studies have shown that H2S and NO, as signaling molecules, can lead to vasodilation and decreased vascular tone in solid tumors, which can help alleviate tumor hypoxia and induce upregulation of H2O2 levels. Therefore, the combination of gas therapy with CDT for tumor clearance has been gradually developed in recent years.

 Figure 8

(A) Schematic illustration of the prepared process of nanocapsule and the strategies for synergistic therapy. The design of self-sufficient hydrogen peroxide and oxygen by using glucose oxidase and hemoglobin ultimately reinforced cascade reactions for tumor therapy. Reproduced with permission [176]. Copyright 2022, Wiley-VCH. (B) a) Schematic illustration of PTFL NPs synthesis. b, c) Schematic illustration of PTFL NPs for PA imaging-guided synergistic and cascade metabolic-chemodynamic therapy. Reproduced under the terms of the http://creativecommons.org/licenses/by/4.0/ License [181], published by WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim.

Theranostics Image

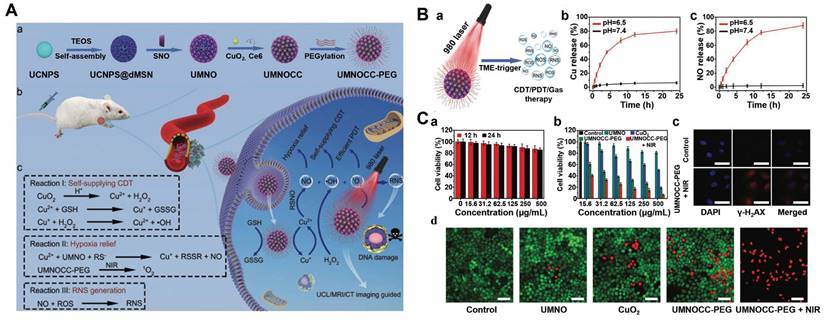

 Figure 9

(A) a) Schematic illustration for the synthesis of UMNOCC-PEG. b) Scheme of the tumor theranostic application and (c) therapeutic mechanism of UMNOCC-PEG for the improvement of PDT induced by NIR, Cu2+-initiated CDT and gas therapy. (B) a) Schematic illustration of NO release from UMNOCC-PEG. b) Cumulative Cu release and c) quantitative assessment of NO generation from UMNOCC-PEG under different pH conditions. (C) a) The cell viabilities of L929 fibroblast cells upon incubation with UMNOCC-PEG for 12 h and 24 h. b) The cell viabilities of HeLa cells after being treated under different conditions. c) γ-H2AX-stained HeLa cells treated with PBS and UMNOCC-PEG (0.5 W/cm2, 500 μg/mL). Scale bar: 50 μm. d) CLSM images of HeLa cells co-stained with calcein AM (live cells, green) and propidium iodide (dead cells, red) after being treated under different conditions (0.5 W/cm2, 500 μg/mL). Scale bar: 50 μm. Reproduced with permission [187]. Copyright 2020, The Royal Society of Chemistry.

Theranostics Image

NO can act as an apoptosis inducer by interacting with O2, superoxide ions, and transition metals to produce reactive nitrogen oxide species with high oxidative toxicity. The combination of CDT and NO-assisted gas therapy could increase the killing effect of cancer cells. For example, Yang et al. coated a mesoporous silica layer on the surface of upconversion NPs to increase the loading capacity of NO donors and subsequently packed copper peroxide nanodots, Ce6 and PEG into the silica pores to obtain UCNPs@dMSN-SNO@CuO2-Ce6 PEG (UMNOCC-PEG, Figure 9A) [187]. After endocytosis by cancer cells, copper peroxide nanodots decomposed in acidic TME and generated large amounts of copper ions and H2O2 and substantial NO for enhanced CDT treatment and gas therapy, respectively. Importantly, the simultaneous release of ROS and NO ensured efficient production of RNS, which could directly induce DNA damage by triggering free radical peroxidation. In addition, UMNOCC-PEG was able to alleviate hypoxia and deplete GSH, thereby enhancing the efficacy of PDT. As shown in Figure 9B (a-c), the release of copper ions was as high as 80% at pH 6.5. Notably, the presence of copper ions allows UMNOCC-PEG to have a relatively robust and rapid release of NO at pH 6.5, leading to enhanced NO therapy. In vitro, UMNOCC-PEG + NIR showed the highest therapeutic efficacy, significantly reducing HeLa cell survival rate to 6.4%. In addition, cells treated with UMNOCC-PEG+NIR lasers showed a distinct γ-H2AX fluorescence signal within the nucleus compared to the control group, suggesting that UMNOCC-PEG+NIR enhanced DNA damage (Figure 9C, a-c). Then, cell dead-live staining showed that almost all cells died in the UMNOCC-PEG+NIR group, indicating that UMNOCC-PEG enabled synergistic CDT/PDT/NO treatment (Figure 9C, d). Additionally, SNP anion ([Fe-CN)5NO]2-), as a GSH-responsive NO donor, can release NO upon activation of GSH in tumor cells. Zhou et al. successfully synthesized SNP/MgMnFe-LDH (S2MFL) supramolecular nano-reagent containing both Mn2+ and SNP anions, and the synergistic effect of Mn2+ and SNP can produce high levels of ONOO- to cause DNA fragmentation for synergistic CDT/NO anti-tumor [188].

Previous studies have shown that H2S induced an upregulation of H2O2 levels, which was highly beneficial in enhancing the therapeutic effect of CDT. Combining CDT and H2S therapy into a single nanoplatform will achieve more effective anti-cancer effects. For instance, Cai et al. successfully prepared FeS@BSA nanoclusters based on the self-assembly of ferrous sulphate and BSA to form H2S-enhanced CDT system [186]. Under an acidic environment, FeS@BSA degraded to release H2S and Fe2+. The released H2S gas inhibited catalase activity in cancer cells to promote H2O2 levels, which further enhanced the Fe2+-mediated Fenton reaction, and significantly improved intracellular ROS production. The results confirmed that the treatment system could achieve superior anti-tumor performance under MRI guidance. In another study, Huang et al. used BSA as a template to synthesize size-controlled and biodegradable sub-stable γ-phase manganese sulfide nanomaterials (named MnS@BSA) for gas therapy-induced CDT [189]. At pH 6.8, H2S was released for gas therapy, and manganese ions were released for CDT and MRI. in vivo experiments have shown that intravenous injection of MnS@BSA significantly inhibited tumor growth and greatly prolonged the survival of tumor-bearing mice.

Additionally, hydrogen therapy has also shown excellent therapeutic properties for many diseases, including cardiovascular disease, neurodegenerative disease, and cancer [190]. To avoid the limitations caused by poor targeting, high diffusivity, and low solubility of hydrogen, a H2 self-generated nanoplatform through in situ water splitting induced by NIR laser was developed. The core-shell structure nanoplatform (CSNPs) was composed of NaGdF4: Yb, Tm/g-C3N4/Cu3P (UCC) and ZIF-8, and further modified with the targeted molecule folic acid [191]. CSNPs were selectively captured by tumor cells due to acid-responsive ZIF-8 shell, EPR effect and folate receptor-mediated endocytosis. Z-scheme heterojunction g-C3N4/Cu3P generated H2 and ROS for H2 therapy and PDT under 980nm laser irradiation. In addition, Cu (I) in Cu3P could convert H2O2 into •OH for CDT through a Fenton reaction. Besides, the local temperature rising in the tumor area increased the Fenton reaction rate of Cu(I) with H2O2. Additionally, GSH in tumor TME could reduce Cu (II) to Cu (I), ensuring a continuous Fenton reaction. Moreover, photogenerated electrons in g-C3N4 also oxidized GSH to GSSG to reduce the antioxidant capacity of tumors. Thus, CDT will have a better therapeutic effect. Particularly, hydrogen therapy has an excellent potential for reducing tissue inflammation caused by oxidative stress in PDT or excessive heat in PTT [192,193]. Therefore, CDT combined with phototherapy and H2-assisted gas therapy can produce better tumor treatment results.

In conclusion, the combination of gas therapy and CDT can significantly improve oxidative stress or nitrosative stress to effectively kill the tumor. CDT/gas therapy also reduce the amount of toxic gas to reduce its side effects on normal tissues. As a "green" therapy, gas therapy has been recognized as a new cancer treatment strategy. However, the limitations of gas therapy, such as the short half-life of gases, the instability of gas donors, and the controlled release of gases, also put forward high requirements for the design of carrier for synergistic therapy. Moreover, the biological effect of gas therapy is largely dependent on the treatment site, concentration, and duration. Thus, it is important to monitor their concentration and biodistribution in the body. The development of multifunctional nanosystems that integrate diagnostic and therapeutic functions to optimize cancer treatment deserves full recognition.

CDT in Combination with GT

Gene therapy is a method of transforming exogenous therapeutic genes into cells, and then changing the original gene expression of cells to treat diseases through the transcription and translation of exogenous genes [194]. Nearly fifteen years ago, gene therapy was first proposed for the treatment of inherited single-gene diseases. Soon after, its potential applications extended to diseases such as cancer [195]. Gene therapy is an early-stage cancer treatment with high efficacy and few side effects. The shortcomings of current gene-based therapies emphasize the need for a multifunctional vector, which could promote efficient cellular uptake of nucleic acid reagents and enable combination therapy of multiple therapeutic modalities. Small interfering RNA (siRNA)-mediated gene therapy works by specifically silencing the expression of oncogenic target genes, possessing low cytotoxicity and superior therapeutic outcome [196]. Recently, Zhang et al. prepared a MnO2-coated rare earth nanoprobe (ErNPs@MnO2-siS100A4-RGD) [197] as siS100A4 carrier, and then modified the nanoprobe with the polypeptide Arg-Gly-Asp (RGD) to ensure precise tumor targeting property (Figure 10A). MnO2 acted as a vector for siRNA delivery and reacted with GSH in the TME, which greatly enabled precise gene therapy for tumors and achieved GSH-depletion-enhanced CDT by Mn2+ mediated Fenton-like reaction. Lanthanum fluorescent nanoprobes have been extensively developed and studied to precisely target tumors' localization [198]. In this system, researchers combined ErNPs with MnO2 to further construct a TME-activated tumor localization nanoplatform. S100A4 is one of the proteins closely related to breast cancer growth and metastasis [199]. siS100A4 degraded the mRNA of S100A4 and inhibited the expression of the corresponding protein, which limited tumor growth and metastasis. After internalization, siS100A4 nanodrugs could be dissolved under GSH, releasing Mn2+ ions and siRNA. Figure 10B showed ErNPs@MnO2-FAM-siRNA-RGD diffused into the cytoplasm, while cells incubated with free FAM-siRNA showed almost no green fluorescence. Figure 10C, a showed that MDA-MB-231 cells treated with ErNPs@MnO2-siS100A4-RGD produced higher •OH than in the control group, and the results of MDA-MB-231 western blot in Figure 10C, b further confirmed the downregulation of S100A4 in MDA-MB-231 cells. MTT analysis of MDA-MB-231 cells after exposure to PBS, siS100A4 alone, and ErNPs@MnO2-siS100A4-RGD showed the synergistic effect between CDT and gene silencing was more effective in killing tumor cells (Figure 10C, c). Another study designed a siRNA-modified amorphous iron oxide (AIO) nanodrug with modulated TME. siRNA was encapsulated within nanoparticles to improve its system stability, while the nanoparticles surface was modified with PEG encapsulation to prolong blood circulation and was not easily recognized by mononuclear phagocyte systems in the liver and spleen. siRNA achieved endosomal escape by osmolality and/or endosomal membrane oxidation induced by iron ions released by AIO. This gene therapy led to acidosis-induced tumor cell death by modulating the glycolytic pathway based on silencing carboxylic acid transporters (MCTs), and the released iron ions would react with H2O2 to produce •OH through a Fenton-like reaction. Notably, the silencing of MCT4 blocked the outflow of intracellular lactic acid, which further stimulated more production of H2O2 to amplify the Fenton-like reaction and oxidative damage to tumor cells, so as to achieve effective CDT/gene combination therapy [200].

In recent years, DNA nanomaterials have been used as therapeutic vectors for precise cancer treatment [201]. DNAzyme is a single-stranded DNA having various catalytic functions that can precisely catalyze the cleavage of DNA or RNA in cells, down-regulate disease-related proteins, and thus exert therapeutic effects [202]. However, the efficiency of DNAzyme depends heavily on delivery systems and metal ions that act as cofactors to activate catalytic activity [203]. In a recent study, Yang et al. reported a DNA nanocomplex (DNC-ZMF) that contained cascading DNAzyme and promoter-like zinc-manganese ferrite (ZMF) for combining gene therapy/CDT. In addition, AS1411 aptamers were integrated into DNA sequences to achieve specific tumor targeting, increased cell uptake and reduced systemic toxicity (Figure 10D). The nanocomposite targeted and entered tumor cells by recognizing nucleolin. It was then decomposed by H+ and GSH in the tumor and further released Zn2+ and Mn2+ to initiate subsequent combination therapy: DNAzyme-1 catalyzed the self-breaking of ultra-long DNA strands with Zn2+ as a cofactor, producing fragments containing DNAzyme-2; DNAzyme-2 catalyzed the lysis of mRNA with Mn2+ as a cofactor, resulting in the down-regulation of early growth reaction protein 1 (EGR-1), thereby inhibiting the proliferation of tumor cells and promoting their apoptosis. Moreover, Zn2+, Mn2+, and Fe2+ induced the catalytic generation of •OH by the Fenton reaction, which was the CDT process. In particular, the sequential cascade enzyme reaction initiated by the two DNAzymes maximized the therapeutic function of DNAzyme, thereby realizing low-toxicity and efficient combination therapies to eradicate tumors [204]. Furthermore, Chen et al. formed the hybrid nanoparticles (Cu-Dzy) through the interaction of DNAzyme and Cu2+ coordination, which had ultra-high loading capacity and could effectively co-deliver DNAzyme and Cu2+ into cancer cells for combined therapy. In order to improve the stability of Cu-Dzy NPs in the physiological environment, they were coated with a thin layer of the metal phenolic network to generate the final nanostructure (Cu-Dzy@TA). After entering cancer cells, the DNAzyme released from hybrid NPs silenced human vascular endothelial growth factor-2 (VEGF2) mRNA for gene therapy. Meanwhile, GSH reduced Cu2+ to Cu+, which catalyzed endogenous H2O2 to generate high toxicity •OH for CDT. In summary, the specific gene silencing, GSH depletion, and •OH generation induced amplified cascade antitumor effects [205].

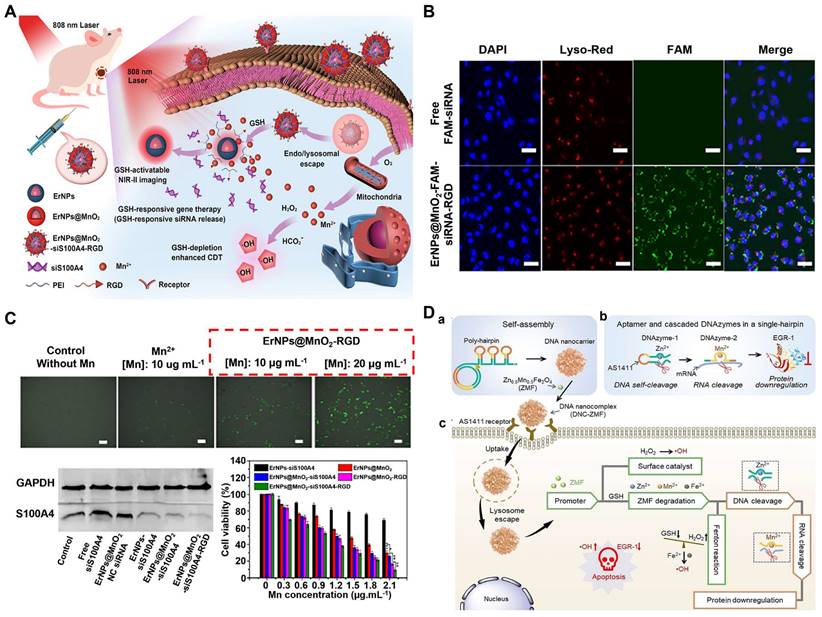

 Figure 10

(A) Schematic illustration of GSH stimuli-responsive lanthanide-doped NIR-II luminescent nanoprobes for TNBC precise gene therapy in synergism with CDT. (B) CLSM images of MDA-MB-231 cells incubated with free FAM-siRNA or ErNPs@MnO2-FAM- siRNA-RGD for 4 h (scale bar: 100 μm). (C) a). Intracellular detection of •OH produced by Mn2+ and ErNPs@MnO2, and green fluorescence represents the generated •OH (scale bar: 100μm). MDA-MB-231 cells treated with different concentrations of MnCl2 (10 μg/mL) of Mn and ErNPs@MnO2 (10, 20 μg/mL of Mn), respectively, b). Expression of S100A4 in the MDA-MB-231 cells determined by western blot analysis, c). Cytotoxicity of ErNPs-siS100A4, ErNPs@MnO2, ErNPs@MnO2-siS100A4, ErNPs@ MnO2-RGD, and ErNPs@MnO2-siS100A4-RGD in MDA-MB-231 cells (n = 4, *p < 0.05, **p < 0.01, and ***p < 0.001). Reproduced with permission [197]. Copyright 2021, American Chemical Society. (D) Molecular design of DNA nanocomplex containing cascade DNAzymes and promoter-like Zn-Mn-Ferrite (ZMF) for combined gene/chemo-dynamic therapy. (a) Construction of DNA nanocomplex (DNC- ZMF). (b) Cascade catalytic cleavage of DNAzymes. (c) Proposed antitumor mechanism (intracellular catalytic activity and chemical reactions) of DNC-ZMF in the combined gene/chemo-dynamic therapy. Reproduced with permission [204]. Copyright 2022, Wiley-VCH.

Theranostics Image

In conclusion, designing gene therapy platforms with the ability to reduce the pH of TME is a viable strategy to enhance the effect of CDT. The RNAi NP platform can reconstruct acidic TME by MCT-4 silencing, optimize the catalytic efficiency of Fenton/Fenton-like reactions, and ultimately improve the anti-cancer efficiency of CDT. However, the efficient and sustained expression of exogenous genes in cells is the key to the success of gene therapy, which is closely related to the selection of vectors.

CDT in combination with OT

Oncosis is defined as cytoplasmic swelling and nuclear lysis, in which the integrity of the cell membrane is destroyed, and DNA is broken into nonspecific fragments, resulting in cell lysis and inflammatory reaction [206, 207]. Studies have shown that the interaction of dihydroartemisinin (DHA) with ferrous ions could generate ROS, which will avoid the restrictions of exogenous conditions, endogenous H2O2, and strict Fenton's reaction conditions [208]. However, lower intracellular Fe2+ concentrations may be an obstacle to this strategy. To overcome this limitation, Prof. He developed a multifunctional nanomaterial that could co-deliver DHA and Fe to the tumor site, then induced effective CDT combined with chemotherapy and OT [209]. The mesoporous silica nanoparticles were prepared as carriers, doped with calcium and iron to obtain CFMSN, and loaded with DHA for constructing CFMSN@DHA. After entering cancer cells, CFMSN@DHA with catalytic activity could directly convert intracellular H2O2 into highly toxic •OH for CDT. Meantime, the acidic tumor microenvironment triggered the release of Ca2+ and Fe3+, which caused the particles to collapse, and was accompanied by DHA release for chemotherapy. The released Fe3+ was further reduced to Fe2+ by high concentrations of intracellular GSH. After that, the produced Fe2+, on the one hand, activated the Fenton reaction to produce •OH. On the other hand, cleaved the peroxide bond of DHA to generate free radicals. Finally, the increasing levels of ROS in cells significantly amplified the efficacy of CDT. In addition, the release of Ca2+ caused overload for OT. Interestingly, DHA inhibited intracellular Ca2+ efflux and maintained high cytosolic Ca2+ levels to enhance Ca2+-mediated OT. Thus, CFMSN@DHA has produced high anti-cancer effects through chemotherapy, CDT, and OT.

To avoid DHA leakage from the carrier, which may lead to limited efficacy and severe side effects, Tang and his colleagues developed a drug delivery and programmed release platform (NMOF) based on Fe3O(OOC)6 metal clusters and 4,4,4-(porphyrin-5,10,15,20-tetradecyl) tetrabenzoic acid (TCPP). Then DHA was encapsulated within the pores of the NMOF, and then the CaCO3 mineralized layer was further coated on the NMOF by biomineraliation to form NMOF@DHA @CaCO3 [210]. This drug delivery platform could prevent drug leakage during in vivo transportation and enable site-specific release of DHA at the tumor site. When the prepared nanomedicine reached the tumor site, the outer CaCO3 mineralized layer dissolved in the weakly acidic microenvironment of the tumor site, generating NMOF@DHA and Ca2+ ions. The Fe3+ ions in NMOF were then reduced to Fe2+ by the high concentration of GSH in cancer cells, resulting in complete structural collapse, leading to the release of DHA and activation of the photosensitizer TCPP, thereby enabling synergistic Fe2+-DHA-mediated CDT, Ca2+-DHA-mediated OT, and TCPP-mediated PDT (Figure 11A). As shown in Figure 11B, the NMOF@DHA @CaCO3 +Laser group produced a large amount of ROS in 4T1 cells, as demonstrated by fluorescent probe DCFH-DA staining. The lowest cell viability in the NMOF@DHA@CaCO3 +Laser group was confirmed by MTT assay. Bright field images of 4T1 cells from different treatments showed that the cells underwent oncosis due to the introduction of DHA and Ca2+ (Figure 11C, a-b). The significant anti-cancer effect of the NMOF@DHA@CaCO3 +laser group in vivo was confirmed by monitoring tumor growth in 4T1 tumor-bearing mice (Figure 11D, a-d). The above results indicated that the prepared nanoplatform was a safe and effective drug delivery system.

CDT-based other combination cancer therapy

CDT combined therapy has made significant progress in the field of anti-tumor, and each treatment has its advantages and disadvantages (Figure 15). In addition to the CDT-based combination strategy described above, other combined strategies have been developed. Recently, Professor Bu's group described that bioactive ions are involved in many important processes, including osmotic pressure and acid-base balance maintenance, catalysis and signaling pathway activation, protein and enzyme composition, and biomolecular targeting. Their abnormal distribution/accumulation in cells may lead to irreversible damage or biochemical reactions that activate the production of cytotoxic components, leading to cell death. This action of ions could be used as a new oncology treatment technique called ion interference therapy [211]. In order to improve the anti-tumor efficiency of CDT, a lot of efforts have been made to increase the level of H2O2. As an efficient H2O2 self-supply, various metal peroxide nanomaterials have attracted more and more attention in enhancing tumor treatment. However, a single metal peroxide is insufficient to achieve more effective anti-tumor properties. Here, Yang et al. synthesized hyaluronic acid-modified calcium peroxide and copper peroxide nanocomposites through a simple one-step strategy (Figure 12A). Due to the EPR effect and the specific recognition of hyaluronic acid with the CD44 protein on the surface of tumor cells, nanodrugs effectively accumulated at the tumor site, then large amounts of Ca2+, Cu2+, and H2O2 could be released simultaneously in TME. With the help of glutathione depletion, a large number of •OH were produced by the enhanced Fenton reaction between Cu2+ and self-sufficient H2O2. Moreover, overloaded Ca2+ could lead to mitochondrial damage, which enhanced oxidative stress in tumor cells. In addition, the imbalance of calcium transport channels caused by oxidative stress could further promote tumor calcification and necrosis, so the synergistic effect of CDT caused by Cu2+ and IIT caused by Ca2+ show more satisfactory antitumor efficiency than single treatment [212].

 Figure 11

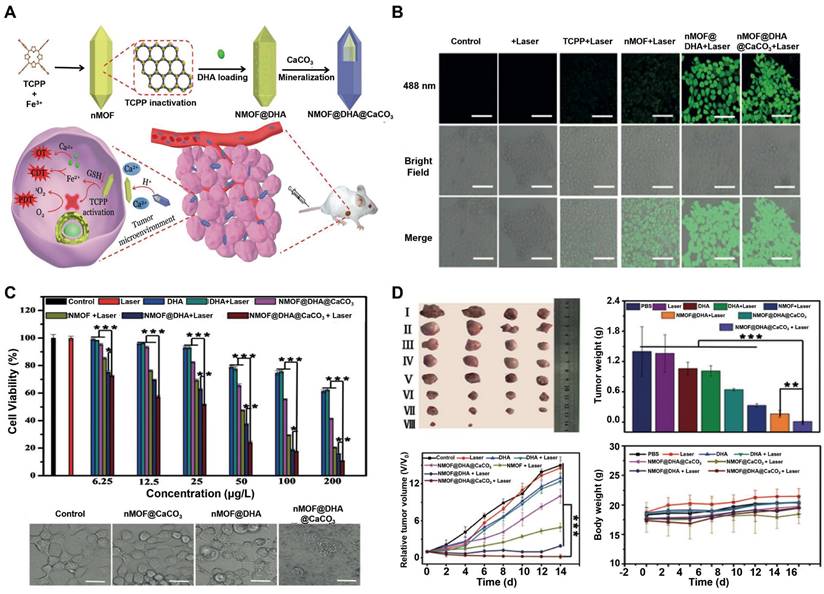

(A) Schematic illustration of the preparation of the nanoplatform and the programmed drug release for cancer therapy. (B) Confocal fluorescence imaging of 4T1 cells treated under different conditions to evaluate ROS production based on DCFH-DA fluorescence intensity. The nanoparticles were incubated with 4T1 cells for 4 h, then DCFH-DA probes were incubated for 20 min with 4T1 cells before irradiation. Scale bars are 100 mm. (C) in vitro therapy effect. (a) MTT assay of 4T1 cells with different treatments at different concentrations. (b) Morphology of 4T1 cells with different treatments. Scale bars are 25 mm. (*P < 0.05, **P<0.01, ***P<0.001). (D) in vivo anticancer effect. a) Picture of tumors dissected on the 14th day after different treatments (I: PBS, II: Laser, III: DHA, IV: DHA + Laser, V: NMOF@DHA@CaCO3, VI: NMOF + Laser, VII: NMOF@DHA + Laser, and VIII: NMOF@DHA@CaCO3 + Laser). b) Average tumor weights in different treatment groups. c) Tumor growth curve after the mice received different treatments. d) Body-weight changes within 14 days during treatment. (*P < 0.05, **P < 0.01, ***P < 0.001). Reproduced with permission [210]. Copyright 2019, Wiley-VCH.

Theranostics Image

Electrodynamic therapy, as a new dynamic treatment strategy, can generate •OH under electric stimulation, showing obvious advantages in bacterial infection and clinical transformation [213]. Recently, Professor Wang's team reported the results of electrodynamic therapy combined with CDT in the treatment of cancer. Polyoxometalate-modified zeolitic imidazolate framework-8 nanoparticles (POM@ZIF-818-21 NPs) were designed and synthesized (Figure 12B). In acidic TME, POM acted as an electrosensitizer to generate ROS in an electric field environment. At the same time, POM can further release W5+ by catalyzing the decomposition of H2O2 under acidic conditions and producing •OH through Fenton-like reactions. In this work, POM@ZIF-8 NP was shown to have significant antitumor efficacy in vitro and in vivo [214].

Enhanced EDT is achieved by the rational design of nanoelectrosensitizers. In most cases, Pt nanoparticles are used as nanoelectrosensitizers for EDT-mediated tumor therapy [215]. However, the potential functional mechanism of nano-electrosensitizers to enhance catalytic activity remains to be further studied. In addition, the application of EDT is limited to tumor treatment and antibacterial wound dressings, and there is a great need to explore more details based on multiple disease models.

CDT in combination with trimodal therapy

Compared with two-modal combination therapy, three-modal synergistic therapy can achieve higher antitumor effects with reduced dosages administered. So far, a large number of studies have been reported on three-modality combination therapy, such as the synergistic effect by CDT-phototherapy-immunotherapy trimodal therapy, which has been partially demonstrated above [159, 163]. Other CDT-based combination therapies include CDT-chemotherapy-phototherapy [216], CDT-SDT-chemotherapy [217], CDT-chemotherapy-MHT [218], CDT-starvation therapy-PTT [219], CDT- PTT-RT [220]. In this section, we will highlight several representative examples to illustrate the enhanced therapeutic efficacy of CDT-based trimodal cancer therapy.

 Figure 12

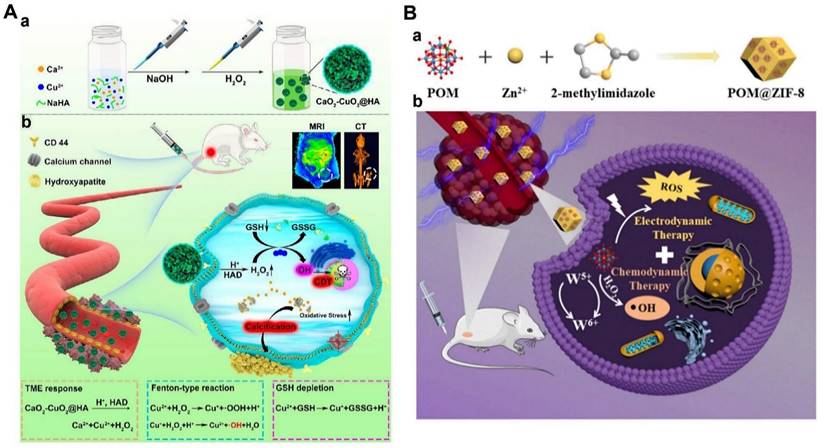

(A) Schematic illustration of the synthesis and antitumor performance of CaO2-CuO2@HA NC. Reproduced with permission [212]. Copyright 2022, American Chemical Society. (B) Schematic illustration of POM@ZIF-8 NPs for the synergistic electrodynamic/chemodynamic tumor treatment; a) Preparation of POM@ZIF-8 NPs; b) Anticancer mechanism of POM@ZIF-8 NPs. Reproduced with permission [214]. Copyright 2022, American Chemical Society.

Theranostics Image

One example is CDT-SDT-chemotherapy based trimodal therapy [217]. As emerging non-invasive treatment modalities, SDT and CDT are often limited by the hypoxic environment of tumors. Here, Liu et al. constructed degradable therapeutics (ZIF-90@MnO2/DOX, mZMD NCs) based on mesoporous zeoliteimidazole salt backbone @MnO2/doxorubicin hydrochloride nanocomposites, which achieved enhanced SDT/CDT/chemotherapy by modulating TME and overcoming drug resistance (Figure 13A). When mZMD accumulated to the tumor site, they broke down and released DOX in response to US irradiation and TME. MnO2 not only oxidized GSH to enhance oxidative stress, but also converted endogenous H2O2 to O2 to improve hypoxic TME, enhancing chemotherapy for Dox and providing substrates for the SDT. At the same time, the generated Mn2+ promoted the separation of e--h+ under US radiation for enhanced SDT and catalyzed endogenous H2O2 to •OH for CDT. The mZM composite structure reduced the US-induced recombination rate of e- and h+ to further improve SDT. In addition, the released Zn2+ inhibited electron transport chain, which disrupted the redox balance of TME and inhibited the production of ATP and the expression of P-glycoprotein (P-gp), further overcoming the resistance of cancer cells to DOX. The results show that mZMD NCs achieve the synergistic effect of enhancing SDT/CDT/chemotherapy and greatly inhibited the growth of tumor cells. In addition, mZMD NCs had good biocompatibility and biosafety. Therefore, smart biodegradable mZMD provides new insights for developing biomaterials for ROS-related therapeutic strategies.

In order to improve the therapeutic effect of bone metastases, the current treatment strategy mainly focuses on the combination of chemotherapy and phototherapy, in order to overcome the limited tissue penetration depth of NIR-I light, Professor Fan et al. jointly reported a phototherapy nanoparticle (BTZ/Fe2+@BTF/ALD) for NIR-II fluorescence imaging and NIR-II photoacoustic imaging-guided NIR-II PTT, chemotherapy and CDT of breast cancer bone metastasis [221]. This phototherapy was performed by integrating dopamine-modified NIR-II absorption of donor-receptor-donor small molecules (BBT-FT-DA), borate anticancer drug Bortezomib (BTZ), and Fe2+ as CDT catalysts into a bone-targeted ligand alendronate modified amphiphilic pegylated phospholipid. In acidic and H2O2 overexpressed TME, boric acid-catechol bonds are severed and BTZ and Fe2+ ions are released to initiate chemotherapy and CDT. Using the mouse 4T1 bone metastasis model, BTZ/Fe2+@BTF/ALD significantly inhibited the progression of tumor cells in bone tissue by synergistic NIR-II PTT/chemotherapy/CDT effect (Figure 13B). Overall, this work provides new insights to guide the development of NIR-II phototherapy in the treatment of bone metastases in breast cancer.

 Figure 13

(A) Synthetic process and mechanism diagram of enhancing SDT and overcoming cancer drug resistance of mZMD. Reproduced with permission [217]. Copyright 2022, Wiley-VCH. (B) Schematic illustration of 1064 nm light-activated NIR-II phototheranostic nanoplatform (BTZ/Fe2+@BTF/ALD) for combined NIR-II PTT/chemotherapy/CDT of breast cancer bone metastases. Reproduced under the terms of the http://creativecommons.org/licenses/by/4.0/ License [221], published by WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim.

Theranostics Image

CDT in combination with multimodal therapy

The heterogeneity, complexity, and diversity of malignancies often result in unsatisfactory treatment outcomes, while bimodal and trimodal treatment strategies can partially alleviate this dilemma. However, bimodal and trimodal therapies with low risk of recurrence, no drug resistance, and worse efficacy still remain a great challenge [222, 223]. Therefore, CDT-based combination therapies by integrating four or more therapies are considered a good option in the fight against cancer.

In a recent study, Lin et al. prepared a hollow CMS@GOx nanodrugs composed of Cu2MoS4 (CMS) and GOx, which possessed GSH peroxidase-like and catalase-like activities for depriving overexpressed GSH in the tumor environment and for generating O2 from endogenous H2O2 [224]. The generated O2 activated GOx to achieve starvation therapy, and regenerated H2O2 enhanced the Cu+ and Mo4+-mediated CDT. In addition, CMS's strong absorption in the NIR showed significant PTT and PDT performance. After modification with PEG-4000, PEGylated CMS had excellent biocompatibility and overcame the immunogenicity of the host immune system. More importantly, the synergistic treatment could stimulate DCs maturation, resulting in a robust immune response, enabling CDT/PDT/PTT/starvation therapy/immunotherapy (Figure 14A). PEGylated CMS + H2O2 at pH 6.75 increased O2 content with significant bubble production. The generation of O2 alleviated tumor hypoxia and triggered the catalytic oxidation of glucose by GOx, resulting in the production of large amounts of H2O2 and starvation therapy mediated by intracellular glucose. At the same time, the number of regenerated H2O2 accelerated the formation of •OH efficiency by the Fenton-like reaction. In addition, CMS also exhibited good GSH consumption characteristics and high photothermal conversion performance under 1064 nm laser irradiation. It could also be used as a photosensitizer triggered by a 1064 nm laser to produce high •O2- (Figure 14B, a-f). Additionally, it showed that this PEGylated CMS could significantly induce DC maturation and then stimulate an immune response for efficient anti-tumor immunotherapy (Figure 14C, a-e). Furthermore, the in vivo anti-tumor results showed that PEGylated CMS@Gox + 1064 nm + anti-CTLA4 therapy could remove the primary tumor and significantly inhibit the growth of distant tumors (Figure 14D, a-c). Therefore, combining PEGylated CMS with 1064 nm laser irradiation and checkpoint blockade therapy for synergistic treatment is beneficial for effective elimination of primary tumors and inhibition of tumor metastasis.

Multimodal therapy can integrate the advantages of multiple therapeutic approaches into a nanoplatform, the synergy between different therapies can significantly improve the treatment effect. Combined therapies can simultaneously hinder cancer cell homeostasis/metabolism at multiple target mountains, reduce dose, reduce side effects, inhibit metastatic tumors, and prevent or delay the development of acquired drug resistance. However, complex nanosystems often have side effects on normal tissues. Thus, multimodal therapy does not mean that several different treatment methods are randomly combined into a single nanoplatform. In addition, it is not advisable to assemble nanocomposites only for the purpose of multimodal therapy. The most ideal combined treatment system should give play to their unique strengths and achieve low side effects.

 Figure 14

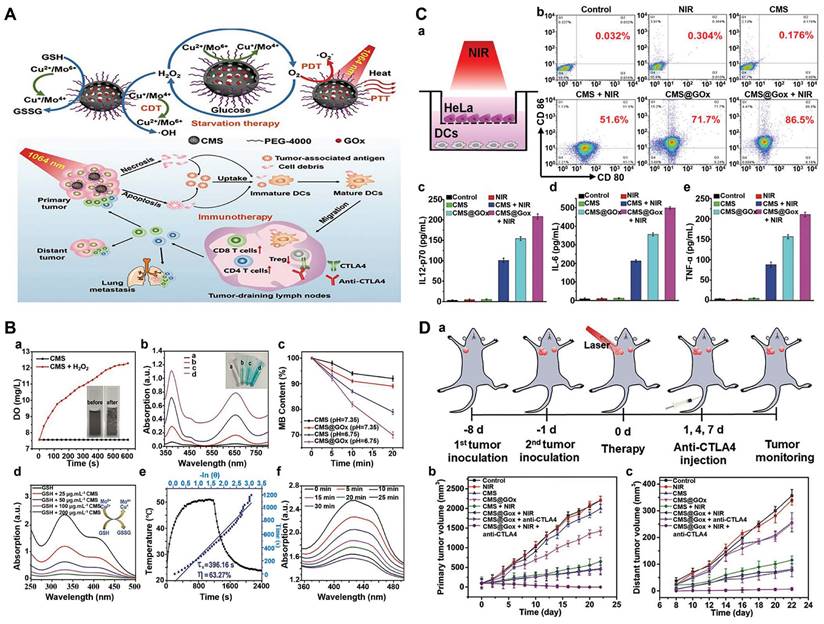

(A) Schematic illustration of fabrication and mechanism of PEGylated CMS@GOx for PTT/PDT/CDT/starvation therapy. The mechanism of antitumor immune responses induced by PEGylated CMS@GOx-based phototherapy in combination with checkpoint blockade therapy. (B) a) O2 generation curve of CMS aqueous solution (200 μg/mL, pH = 6.75) without and with H2O2 addition (100 × 10-6 m). Illustrations are O2 generation photographs of CMS with H2O2 addition before and after 1 h; b) H2O2 generation in CMS@GOx solution arising from the addition of different concentrations of glucose, a: 0 × 10-3 m, b: 2 × 10-3 m, c: 4 × 10-3 m, d: 8 × 10-3 m; c) Degradation of MB over CMS or CMS@GOx (200 μg/mL) due to the generation of •OH in 1 mg/mL of glucose solution containing H2O2 (100 × 10-6 m) at different pH values; d) GSH deple- tion (89 × 10-6 m) under the reduction of different concentrations of CMS; e) Heating and cooling curves of CMS aqueous solution (200 μg/mL, 1 mL) under 1064 nm (0.48 W/cm2) laser irradiation, linear time data obtained from the cooling period; f) Depletion of DPBF over CMS due to •O2- generation (65 μg/mL of CMS, 0.48 W/cm2 of 1064 nm laser). (C) a) A scheme illustrating the transwell insert system; b) Quantification of CD80 and CD86 expression on the surface of human bone- marrow-derived DCs after different treatments by ow cytometry; c-e) The secretion levels of IL-12p70, IL-6, and TNF-α by ELISA assay in DC suspensions after different treatments. (D) a) Scheme of PEGylated CMS@GOx-based synergistic comprehensive treatment combined with anti-CTLA4 checkpoint blockade treatment for bilateral tumor models in Balb/c mice. b, c) Growth curves of primary tumor volume and distant tumor volume in Balb/c mice with different treatments. Reproduced with permission [224]. Copyright 2019, Wiley-VCH.

Theranostics Image

Outlook and challenges

To improve the efficacy of anti-tumor drugs and reduce systemic toxicity, many therapies are combined with each other. Synergies between different therapies may improve the antitumor effects of low-dose drugs or low-power phototherapy, thereby minimizing potential toxicity to healthy tissues. Nanotechnology plays an important role in combination therapies as nanoplatforms provide carriers for integrating various formulations associated with different treatment modalities. The combination of CDT with other treatment modalities can provide the advantages of each treatment modality, resulting in additional and synergistic therapeutic effects. In addition, CDT-based multimodal therapy has broad prospects for drug resistance in the treatment of anti-multidrug resistance (MDR) and hypoxia-related tumors. Despite the enormous therapeutic potential of CDT technology, it is still in its infancy, and there are still challenges in the clinical translation process.

Currently, the biosafety of nanomaterials is a great challenge for clinical translation. CDT often releases low-cost transition metal ions with high Fenton activity to trigger the conversion of intracellular H2O2 into highly active •OH to kill tumors. However, the major problem is that exogenous administration of excessive Fenton-type heavy metals, such as iron, manganese, copper, and cobalt, may cause potential adverse effects on human health, including acute and chronic toxicity. Therefore, it is very desirable to explore new functional materials to circumvent this problem. Besides, the synthesis of nanoparticles with controllable size and shape is particularly important for their physical and chemical properties. In the traditional methods of synthesizing nanoparticles, the reaction conditions fluctuate randomly and are difficult to control. The direct consequence is that the nanoparticles have large particle size, uneven size, low encapsulation rate, single particle morphology and large batch difference. The existence of these problems has promoted the application and development of microfluidic technology in this field. Microfluidic devices can fabricate nanoparticles in a highly repeatable and high-throughput manner. Microfluidic chips can manipulate fluids in micron-scale channels, which are widely used in nanotechnology. Compared with traditional synthesis technology, the microfluidic system has the following advantages in synthesizing nanoparticles: short mixing time, small particle size, uniform size, high encapsulation rate, diverse particle morphology and good controllability. But in the application process, the challenges of manufacturing, automation and channel blockage must also be solved. Nevertheless, microfluidics still has great potential and great promise in solving the development of large-scale, cost-effective nanoparticle synthesis. Additionally, more methods are needed to comprehensively study the biosafety of nanomaterials, and a series of challenges such as the evaluation criteria of nanomaterials' therapeutic effects and the disclosure of deeper biological principles, which still need to be solved by multidisciplinary researchers.

Moreover, the development of nanocarriers with superior tumor targeting and evasion of immune system recognition in order to achieve the specificity and high efficiency accumulation of nanomedicines at tumor sites, while reducing toxicity to normal tissues remains a top priority for CDT therapy. Although there are a variety of targeted strategies that are widely used for the simultaneous delivery of multiple drugs, problems still remain. For instance, the immune rejection reaction of nanomaterials, the formation of “protein crown” during blood transport, and in vivo stability and targeting ability of nanomaterials. In recent years, a bionic drug delivery system combining nanoparticles and biomimetic materials has been explored for its use in tumor treatment, making nanodrugs self-identify substances and avoiding recognition by the immune system. Among the many bionic materials, the cell membrane is one of the most suitable materials that impart unique biological properties to nanoparticles. For example, the protein and glycosyl groups on the red blood cell membrane surface endow the nanoparticles with longer system retention time, less reticuloendothelial system uptake, low immunogenicity, high biocompatibility, and improved blood-brain barrier permeability, etc. Especially, cancer cell membranes rely on surface antigens with domains, which adhere to homologous cells and homologous binding proteins, providing immune evasion and homologous adhesion. These functions are difficult to fully reproduce with synthetic materials. At the same time, by modifying tumor-targeting peptides on the cell membrane surface, the enrichment of nanodrugs in the tumor can be effectively improved. However, it is particularly difficult to achieve this surface modification by commonly used chemical reaction methods, which not only damages the protein distribution of cell membranes, but also causes problems such as biological macromolecule crosslinking, protein inactivation, and poor reproducibility due to low reaction controllability, which in turn greatly reduces the practicality of this chemical targeting modification strategy. The development of genetic engineering technology provides a new way to solve the above problems, in particular, the use of CRISPR engineering technology to achieve the expression of targeted ligands on cell membranes in vivo. The method is simple and controllable, and the ligand's expression is stable. Through cell membrane technology, the nanomedicines can merge complex and unique surface physicochemical properties of the source cell, and the stability of the nanoparticles has significantly improved. The use of cell membrane wrapping technology facilitates the stable in vivo transportation of drugs and their specific release at the tumor site.

This review comprehensively summarizes the latest research in tumor chemodynamic therapy combined with other model therapies, promotes the deep integration of materials, chemistry, physics, biology, and medicine, and sets a model for cross-integration of multiple disciplines in the field of natural sciences.

Abbreviations

CDT: chemodynamic therapy; TME: tumor microenvironment; ROS: reactive oxygen species; DDS: drug delivery system; MOF: metal-organic framework; ASA: artesunate; MTX: methotrexate; PD-L1: programmed death ligand-1; CTLA-4: cytotoxic T-lymphocyte associated protein 4; TAAs: tumor associated antigens; ICD: immunogenic cell death; NOx: nicotinamide adenine dinucleotide phosphate oxidases; SOD2: manganese superoxide dismutase; PDT: photodynamic therapy; NPs: nanoparticles; PTT: photothermal therapy; RT: radiation therapy; SDT: sonodynamic therapy; MHT: magnetic hyperthermia therapy; OT: oncosis therapy; HSPs: heat shock proteins; siRNA: small interfering RNA.

 Figure 15

List of some types of CDT-based combination therapies and their typical features.

Theranostics Image

Acknowledgements

This research was supported by Natural Science Foundation of Henan Province, China (222300420354, 212300410240), National Natural Science Foundation of China (81720108021, 81601466, 82001783), Medical Science and Technology Research Project of Henan Province (SBGJ202101002).

Competing Interests

The authors have declared that no competing interest exists.

References

1. Miller KD, Nogueira L, Devasia T, Mariotto AB, Yabroff KR, Jemal A. et al. Cancer treatment and survivorship statistics, 2022. CA Cancer J Clin. 2022;72:409-36

2. Zheng RS, Zhang SW, Zeng HM, Wang SM, Sun KX, Chen R. et al. Cancer incidence and mortality in China, 2016. J Natl Cancer Cent. 2022;2:1-9

3. Nathan C, Cunningham-Bussel A. Beyond oxidative stress: an immunologist's guide to reactive oxygen species. Nat Rev Immunol. 2013;13:349-61

4. Gligorovski S, Strekowski R, Barbati S, Vione D. Environmental implications of hydroxyl radicals ((•)OH). Chem Rev. 2015;115:13051-92

5. Nosaka Y, Nosaka AY. Generation and detection of reactive oxygen species in photocatalysis. Chem Rev. 2017;117:11302-36

6. Hayyan M, Hashim MA, AlNashef IM. Superoxide ion: generation and chemical implications. Chem Rev. 2016;116:3029-85

7. Mu QX, Jiang GB, Chen LX, Zhou HY, Fourches D, Tropsha A. et al. Chemical basis of interactions between engineered nanoparticles and biological systems. Chem Rev. 2014;114:7740-81

8. Trachootham D, Alexandre J, Huang P. Targeting cancer cells by ROS-mediated mechanisms: a radical therapeutic approach?. Nat Rev Drug Discov. 2009;8:579-91

9. Yang BW, Chen Y, Shi JL. Reactive Oxygen Species (ROS)-based nanomedicine. Chem Rev. 2019;119:4881-85

10. Farokhzad OC, Langer R. Impact of nanotechnology on drug delivery. ACS Nano. 2009;3:16-20

11. Bayda S, Adeel M, Tuccinardi T, Cordani M, Rizzolio F. The history of nanoscience and nanotechnology: from chemical-physical applications to nanomedicine. Molecules. 2019;25:112

12. Song WT, Anselmo AC, Huang L. Nanotechnology intervention of the microbiome for cancer therapy. Nat Nanotechnol. 2019;14:1093-03

13. Arvapalli DM, Sheardy AT, Bang J, Wei JJ. Antiproliferative and ROS regulation activity of photoluminescent curcumin-derived nanodots. ACS Appl Bio Mater. 2021;4:8477-86

14. Sun Y, Sun XL, Li X, Li W, Li CY, Zhou YM. et al. A versatile nanocomposite based on nanoceria for antibacterial enhancement and protection from aPDT-aggravated inflammation via modulation of macrophage polarization. Biomaterials. 2021;268:120614

15. Zhang YC, Li Y, Huang SQ, Zhang HM, Lin Q, Gong T. et al. Enhanced anti-metastatic therapy with down-regulation of heparinase expression by ROS-responsive micellar nanoparticles. Nanoscale. 2021;13:15267-77

16. Zhang C, Bu WB, Ni DL, Zhang SJ, Li Q, Yao ZW. et al. Synthesis of iron nanometallic glasses and their application in cancer therapy by a localized Fenton reaction. Angew Chem Int Ed Engl. 2016;55:2101-6

17. Yan YY, Han RL, Zhang HJ, Song PX, Wei XJ, Hou YF. et al. H2O2 self-sufficient nanoplatform based on CeO2 QDs decorated MgO2 nanosheet for amplified chemodynamic therapy. Colloids Surf B Biointerfaces. 2023;221:112997

18. Liu M, Wu HS, Wang SL, Hu JZ, Sun BW. Glutathione-triggered nanoplatform for chemodynamic/metal-ion therapy. J Mater Chem B. 2021;9:9413-22

19. Zhang ST, Jin LH, Liu JH, Liu Y, Zhang TQ, Zhao Y. et al. Boosting chemodynamic therapy by the synergistic effect of co-catalyze and photothermal effect triggered by the second near-infrared light. Nanomicro Lett. 2020;12:180

20. Qiao XH, Xue LY, Huang H, Dai XY, Chen Y, Ding H. Engineering defected 2D Pd/H-TiO2 nanosonosensitizers for hypoxia alleviation and enhanced sono-chemodynamic cancer nanotherapy. J Nanobiotechnology. 2022;20:186

21. Wang Q, Q BT, Li J, Liu YQ, Dong J, Peng XY. et al. Multifunctional MnO2/Ag3SbS3 Nanotheranostic Agent for Single-Laser-Triggered Tumor Synergistic Therapy in the NIR-II Biowindow. ACS Appl Mater Interfaces. 2022;14:4980-94

22. Fu LH, Hu YR, Qi C, He T, Jiang S, Jiang C. et al. Biodegradable manganese-doped calcium phosphate nanotheranostics for traceable cascade reaction-enhanced antitumor therapy. ACS Nano. 2019;13:13985-94

23. Yin XL, Liu P, Xu XC, Pan JM, Li X, Niu XH. Breaking the pH limitation of peroxidase-like CoFe2O4 nanozyme via vitriolization for one-step glucose detection at physiological pH. Sens Actuators B Chem. 2021;328:129033

24. Xuan WJ, Xia YH, Li T, Wang LL, Liu YL, Tan WH. Molecular Self-Assembly of Bioorthogonal Aptamer-Prodrug Conjugate Micelles for Hydrogen Peroxide and pH-Independent Cancer Chemodynamic Therapy. J Am Chem Soc. 2020;142:937-44

25. Ma J, Peng XX, Zhou ZX, Yang H, Wu KQ, Fang ZZ. et al. Extended conjugation tuning carbon nitride for non-sacrificial H2O2 photosynthesis and hypoxic tumor therapy. Angew Chem Int Ed Engl. 2022;61:e202210856

26. Bai Y, Shang QQ, Wu J, Zhang HT, Liu CP, Liu K. Supramolecular self-assemblies with self-supplying H2O2 and self-consuming GSH property for amplified chemodynamic therapy. ACS Appl Mater Interfaces. 2022;14:37424-35

27. Nie YC, Zhang WL, Xiao WQ, Zeng WW, Chen T, Huang WQ. et al. Novel biodegradable two-dimensional vanadene augmented photoelectro-fenton process for cancer catalytic therapy. Biomaterials. 2022;289:121791

28. Meng XF, Zhou K, Qian Y, Liu HJ, Wang XY, Lin YF. et al. Hollow cuprous oxide@nitrogen-doped carbon nanocapsules for cascade chemodynamic therapy. Small. 2022;18:e2107422

29. Hu TT, Xue BL, Meng FQ, Ma L, Du YH, Yu SL. Preparation of 2D Polyaniline/MoO3-x superlattice nanosheets via intercalation-induced morphological transformation for efficient chemodynamic therapy. Adv Healthc Mater. 2023 e2202911

30. Liu Y, Yao M, Han WX, Zhang HR, Zhang SS. Construction of a single-atom nanozyme for enhanced chemodynamic therapy and chemotherapy. Chemistry. 2021;27:13418-25

31. Xu QQ, Zhang YT, Yang ZL, Jiang GH, Lv MZ, Wang H. et al. Tumor microenvironment-activated single-atom platinum nanozyme with H2O2 self-supplement and O2-evolving for tumor-specific cascade catalysis chemodynamic and chemoradiotherapy. Theranostics. 2022;12:5155-71

32. Yuan X, Wang LL, Hu MM, Zhang LL, Chen H, Zhang DL. Oxygen vacancy-driven reversible free radical catalysis for environment-adaptive cancer chemodynamic therapy. Angew Chem Int Ed Engl. 2021;60:20943-51

33. Zhao PR, Jiang YQ, Tang ZM, Li YL, Sun BX, Wu YL. Constructing electron levers in perovskite nanocrystals to regulate the local electron density for intensive chemodynamic therapy. Angew Chem Int Ed Engl. 2021;60:8905-12

34. Zhou TJ, Xu Y, Xing L, Wang Y, Jiang HL. A harmless-harmful switchable and uninterrupted laccase-instructed killer for activatable chemodynamic therapy. Adv Mater. 2021;33:e2100114

35. Yang L, Jia PP, Song SS, Dong YS, Shen RF, He F. et al. On-demand triggered chemodynamic therapy by NIR-II light on oxidation-prevented bismuth nanodots. ACS Appl Mater Interfaces. 2022;14:21787-99

36. Sang DM, Wang K, Sun XL, Wang Y, Lin HM, Jia R. et al. NIR-driven intracellular photocatalytic O2 evolution on Z-Scheme Ni3S2/Cu1.8S@HA for hypoxic tumor therapy. ACS Appl Mater Interfaces. 2021;13:9604-19

37. Klein S, Hübner J, Menter C, Distel LVR, Neuhuber W, Kryschi C. A facile one-pot synthesis of water-soluble patchy Fe3O4-Au nanoparticles for application in radiation therapy. Appl Sci. 2019;9:15

38. Wu HA, Liu L, Song LN, Ma M, Gu N, Zhang Y. Enhanced tumor synergistic therapy by injectable magnetic hydrogel mediated generation of hyperthermia and highly toxic reactive oxygen species. ACS Nano. 2019;13:14013-23

39. Shen JC, Rees TW, Zhou ZG, Yang SP, Ji LN, Chao H. A mitochondria-targeting magnetothermogenic nanozyme for magnet-induced synergistic cancer therapy. Biomaterials. 2020;251:120079

40. Wang X, Luo JL, Wang J, Cao J, Hong YR, Wen Q. et al. Catalytically active metal-organic frameworks elicit robust immune response to combination chemodynamic and checkpoint blockade immunotherapy. ACS Appl Mater Interfaces. 2023;15:6442-55

41. Tang ZM, Zhao PR, Wang H, Liu YY, Bu WB. Biomedicine meets Fenton chemistry. Chem Rev. 2021;121:1981-19

42. Zhou YF, Fan SY, Feng LL, Huang XL, Chen XY. Manipulating intratumoral Fenton chemistry for enhanced chemodynamic and chemodynamic-synergized multimodal therapy. Adv Mater. 2021;33:e2104223

43. Weeks JC, Catalano PJ, Cronin A, Finkelman MD, Mack JW, Keating NL. et al. Patients' expectation about effects of chemotherapy for advanced cancer. N Engl J Med. 2012;367:1616-25

44. Sritharan. S, Sivalingam. N. A comprehensive review on time-tested anticancer drug doxorubicin. Life Sci. 2021;278:119527

45. Ma YY, Su Z, Zhou LM, He LC, Hou ZY, Zou JH. et al. Biodegradable metal-organic-framework-gated organosilica for tumor-microenvironment-unlocked glutathione-depletion-enhanced synergistic therapy. Adv Mater. 2022;34:e2107560

46. Wang DD, Jana D, Zhao YL. Metal-organic framework derived nanozymes in biomedicine. Acc Chem Res. 2020;53:1389-00

47. Hu ZM, Xu CN, Liang YH, Liu TY, Tian HY, Zhang YC. Multifunctional drug delivery nanoparticles based on MIL-100 (Fe) for photoacoustic imaging-guided synergistic chemodynamic/chemo/photothermal breast cancer therapy. Materials & Design. 2022;223:111132

48. Gorban IE, Soldatov MA, Butova VV, Medvedev PV, Burachevskaya OA, Belanova A. et al. ᶫ-Leucine loading and release in MIL-100 nanoparticles. Int J Mol Sci. 2020;21:9758

49. Xue T, Xu CN, Wang Y, Wang YB, Tian HY, Zhang YC. Doxorubicin-loaded nanoscale metal-organic framework for tumor-targeting combined chemotherapy and chemodynamic therapy. Biomater Sci. 2019;7:4615-23

50. Bao WE, Liu XW, Lv YL, Lu GH, Li F, Zhang F. et al. Nanolongan with multiple on-demand conversions for ferroptosis-apoptosis combined anticancer therapy. ACS Nano. 2019;13:260-73

51. Dong JL, Ma K, Pei YX, Pei ZC. Core-shell metal-organic frameworks with pH/GSH dual-responsiveness for combined chemo-chemodynamic therapy. Chem Commun. 2022;58:12341-44

52. Wu HS, Chen FH, You CQ, Zhang Y, Sun BW, Zhu Q. Smart porous core-shell cuprous oxide nanocatalyst with high biocompatibility for acid-triggered chemo/chemodynamic synergistic therapy. Small. 2020;16:e2001805

53. Wang S, Wang ZT, Yu GC, Zhou ZJ, Jacobson O, Liu YY. et al. Tumor-specific drug release and reactive oxygen species generation for cancer chemo/chemodynamic combination therapy. Adv Sci. 2019;6:1801986

54. Zhang WT, Liu C, Liu ZW, Zhao CQ, Zhu JW, Ren JS. et al. A Cell Selective Fluoride-Activated MOF Biomimetic Platform for Prodrug Synthesis and Enhanced Synergistic Cancer Therapy. ACS Nano. 2022;16:20975-84

55. Huang YJ, Guan ZL, Ren LL, Luo Y, Chen MX, Sun Y. et al. Bortezomib prodrug catalytic nanoreactor for chemo/chemodynamic therapy and macrophage re-education. J Control Release. 2022;350:332-49

56. Xu R, Xu ZW, Si YC, Xing X, Li QD, Xiao JM. et al. Oxygen vacancy defect-induced activity enhancement of Gd doping magnetic nanocluster for oxygen supplying cancer theranostics. ACS Appl Mater Interfaces. 2020;12:36917-27

57. Wang QH, Li XL, Mao JY, Qin X, Yang SB, Hao JN. et al. Biomimic binding affinity gradients triggered GSH-response of core-shell nanoparticles for cascade chemo/chemodynamic therapy. Adv Healthc Mater. 2022;11:e2101634

58. Yang GB, Wang DD, Phua SZF, Bindra AK, Qian C, Rui Zhang R. et al. Albumin-based therapeutics capable of glutathione consumption and hydrogen peroxide generation for synergetic chemodynamic and chemotherapy of cancer. ACS Nano. 2022;16:2319-29

59. Ding Y, Xu H, Xu C, Tong ZR, Zhang ST, Bai Y. et al. A nanomedicine fabricated from gold nanoparticles-decorated metal-Organic framework for cascade chemo/chemodynamic cancer therapy. Adv Sci (Weinh). 2020;7:2001060

60. Pandey S, Djibo R, Darracq A, Calendo G, Zhang HH, Henry RA. et al. Selective CDK9 inhibition by natural compound toyocamycin in cancer cells. Cancers. 2022;14(14):3340

61. Wang ZQ, Guo YQ, Fan Y, Chen JW, Wang H, Shen MW. Metal-phenolic-network-coated dendrimer-drug conjugates for tumor MR imaging and chemo/chemodynamic therapy via amplification of endoplasmic reticulum stress. Adv Mater. 2022;34:e2107009

62. Zhang SR, Yuan H, Guo Y, Wang K, Wang XY, Guo ZJ. Towards rational design of RAD51-targeting prodrugs: platinumIV-artesunate conjugates with enhanced cytotoxicity against BRCA-proficient ovarian and breast cancer cells. Chem Commun. 2018;54:11717-20

63. Fan ZX, Jiang BL, Zhu QX, Xiang SJ, Tu L, Yang YF. et al. Tumor-specific endogenous FeII-activated, MRI-guided self-targeting gadolinium-coordinated theranostic nanoplatforms for amplification of ROS and enhanced chemodynamic chemotherapy. ACS Appl Mater Interfaces. 2020;12:14884-4

64. Wang L, Zhang ZC, Ding YW, Wu JH, Hu YQ, Yuan AH. Novel copper-based and pH-sensitive nanomedicine for enhanced chemodynamic therapy. Chem Commun (Camb). 2020;56:7753-56

65. Gao WB, Wei SP, Li Z, Li L, Zhang XW, Li CH. et al. Nano magnetic liposomes-encapsulated parthenolide and glucose oxidase for ultra-efficient synergistic antitumor therapy. Nanotechnology. 2020;31:355104

66. Guo YX, Jia HR, Zhang XD, Zhang XP, Sun Q, Wang SZ. et al. A glucose/oxygen-exhausting nanoreactor for starvation- and hypoxia-activated sustainable and cascade chemo-chemodynamic therapy. Small. 2020;16:e2000897

67. Luo DD, Carter KA Miranda D, Lovell JF. Chemophototherapy: an emerging treatment option for solid tumors. Adv Sci (Weinh). 2017;4:1600106

68. Tang XL, Wang Z, Zhu YY, Xiao H, Xiao Y, Cui S, Lin BL, Yang K, Liu HY. Hypoxia-activated ROS burst liposomes boosted by local mild hyperthermia for photo/chemodynamic therapy. J Control Release. 2020;328:100-11

69. Chen Y, Liu Y, Guo CM, Yin C, Xie C, Fan QL.Self-amplified competitive coordination of MnO2-doped CeO2 nanozyme for synchronously activated combination therapy. Adv Funct Mater. 2023; 33: 2209927.

70. Ding JJ, Lu GH, Nie WD, Huang LL, Zhang YH, Fan WL. et al. Self-activatable photo-extracellular vesicle for synergistic trimodal anticancer therapy. Adv Mater. 2021;33:e2005562

71. Liu W, Ma XQ, Jin YY, Zhang J, Li Y, Tang YX. et al. Chlorin e6-biotin conjugates for tumor-targeting photodynamic therapy. Molecules. 2021;26:7342

72. Wang P, Liang C, Zhu JW, Yang N, Jiao AH, Wang WJ. et al. Manganese-based nanoplatform as metal ion-enhanced ROS generator for combined chemodynamic/photodynamic therapy. ACS Appl Mater Interfaces. 2019;11:41140-7

73. Sheng S, Liu F, Lin L, Yan N, Wang YB, Xu CN. et al. Nanozyme-mediated cascade reaction based on metal-organic framework for synergetic chemo-photodynamic tumor therapy. J Control Release. 2020;328:631-39

74. Sun S, Chen Q, Tang ZD, Liu C, Li ZJ, Wu AG. et al. Tumor microenvironment stimuli-responsive fluorescence imaging and synergistic cancer therapy by carbon-dot-Cu2+ nanoassemblies. Angew Chem Int Ed Engl. 2020;59:21041-48

75. Xu JT, Shi RP, Chen GY, Dong SM, Yang PP, Zhang ZY. et al. All-in-One theranostic nanomedicine with ultrabright second near-infrared emission for tumor-modulated bioimaging and chemodynamic/photodynamic therapy. ACS Nano. 2020;14:9613-25

76. Yang BC, Dai ZC, Zhang GR, Hu ZF, Yao XX, Wang S. et al. Ultrasmall ternary FePtMn nanocrystals with acidity-triggered dual-ions release and hypoxia relief for multimodal synergistic chemodynamic/photodynamic/photothermal cancer therapy. Adv Healthc Mater. 2020;9:e1901634

77. Zhu XH, Wang M, Wang HH, Ding YH, Liu YF, Fu ZC, et al.Multifunctional hollow MnO2@Porphyrin@Bromelain nanoplatform for enhanced photodynamic therapy. Small. 2022; 18: e2204951.

78. Chen MM, Zhao SJ, Zhu JL, Feng E, Lv FY, Chen WL. et al. Open-source and reduced-expenditure nanosystem with ROS Self-Amplification and glutathione depletion for simultaneous augmented chemodynamic/photodynamic therapy. ACS Appl Mater Interfaces. 2022;14:20682-92

79. Zhao YW, Wang J, Cai X, Ding P, Lv HY, Pei RJ. Metal-organic frameworks with enhanced photodynamic therapy: synthesis, erythrocyte membrane camouflage, and aptamer-targeted aggregation. ACS Appl Mater Interfaces. 2020;12:23697-06

80. Wang C, Cao F, Ruan Y, Jia X, Zhen W, Jiang X. Specific generation of singlet oxygen through the russell mechanism in hypoxic tumors and GSH depletion by Cu-TCPP nanosheets for cancer therapy. Angew Chem Int Ed Engl. 2019;58:9846-50

81. Li L, Yang Z, Fan WP, He LC, Cui C, Zou JH. et al. In Situ polymerized hollow mesoporous organosilica biocatalysis nanoreactor for enhancing ROS-mediated anticancer therapy. Adv Funct Mater. 2020;30:1907716

82. Younis MR, He G, Lin J, Huang P. Graphene-semiconductor nanocomposites for cancer phototherapy. Biomed Mater. 2021;16:022007

83. Bonet-Aleta J, Garcia-Peiro JI, Hueso JL. Engineered nanostructured photocatalysts for cancer therapy. Catalysts. 2022 12, 167

84. Li CS, Ye J, Yang X, Liu S, Zhang ZY, Wang J. et al. Fe/Mn bimetal-doped ZIF-8-coated luminescent nanoparticles with up/downconversion dual-mode emission for tumor self-enhanced NIR-II imaging and catalytic therapy. ACS Nano. 2022;16:18143-56

85. Wang WL, Guo ZX, Lu Y, Shen XC, Chen T, Huang RT. et al. Receptor-mediated and tumor-microenvironment combination-responsive Ru nanoaggregates for enhanced cancer phototheranostics. ACS Appl Mater Interfaces. 2019;11:17294-05

86. Huang YJ, Jiang YL, Xiao ZH, Shen YF, Huang LF, Xu XY. et al. Three birds with one stone: A ferric pyrophosphate based nanoagent for synergetic NIR-triggered photo/chemodynamic therapy with glutathione depletion. Chem Eng J. 2020;380:122369

87. Yue Y, Zhao X. Melanin-Like Nanomedicine in Photothermal Therapy Applications. Int J Mol Sci. 2021;22:399

88. Zhang QH, Guo QB, Chen Q, Zhao XX, Pennycook SJ, Chen HR.Highly efficient 2D NIR-II photothermal agent with fenton catalytic activity for cancer synergistic photothermal-chemodynamic therapy. Adv Sci. 2020; 7:1902576.

89. Bai YL, Zhao JJ, Zhang LL, Wang SL, Hua J, Zhao SL. et al. A smart near-infrared carbon dot-metal organic framework assemblies for tumor microenvironment-activated cancer imaging and chemodynamic-photothermal combined therapy. Adv Healthc Mater. 2022;11:e2102759

90. Liu XH, Liu Y, Wang JN, Wei TX, Dai ZH. Mild hyperthermia-enhanced enzyme-mediated tumor cell chemodynamic therapy. ACS Appl Mater Interfaces. 2019;11:23065-71

91. Zhang Y, Wang FM, Shi L, Lu MR, Lee KJ, Ditty MM. et al. Nanoscale coordination polymers enabling antioxidants inhibition for enhanced chemodynamic therapy. J Control Release. 2023;354:196-06

92. Chu X, Zhang LF, Li YL, He Y, Zhang Y. Chang Du. NIR responsive doxorubicin-loaded hollow copper ferrite@polydopamine for synergistic chemodynamic/photothermal/chemo-therapy. Small. 2023;19:e2205414

93. Qian Y, Zhang JH, Zou JL, Wang XY, Meng XF, Liu HJ. et al. NIR-II responsive PEGylated nickel nanoclusters for photothermal enhanced chemodynamic synergistic oncotherapy. 2022; 12: 3690-02.

94. Ou CJ, Zhang YW, Ge W, Zhong LP, Huang Y, Si WL. et al. A three-dimensional BODIPY-iron(iii) compound with improved H2O2-response for NIR-II photoacoustic imaging guided chemodynamic/photothermal therapy. Chem Commun. 2020;56:6281-84

95. Li L, Cao LJ, Xiang X, Wu XZ, Ma L, Chen F. et al. ROS-catalytic transition-metal-based enzymatic nanoagents for tumor and bacterial eradication. Adv Funct Mater. 2022;32:2107530

96. Wang CB, Xue FF, Wang MX, An L, Wu D, Tian QW. 12D Cu-Bipyridine MOF Nanosheet as an agent for colon cancer therapy: A three-in-One approach for enhancing chemodynamic therapy. ACS Appl Mater Interfaces. 2022;14:38604-16

97. Chen Q, Luo Y, Du WX, Liu Z, Zhang SJ, Yang JH. et al. Clearable theranostic platform with a pH-independent chemodynamic therapy enhancement strategy for synergetic photothermal tumor therapy. ACS Appl Mater Interfaces. 2019;11:18133-44

98. Sun HT, Zhang YY, Chen SY, Wang RZ, Chen Q, Li JC. et al. Photothermal Fenton nanocatalysts for synergetic cancer therapy in the second near-infrared window. ACS Appl Mater Interfaces. 2020;12:30145-54

99. Zhang QH, Guo QB, Chen Q, Zhao XX, Pennycook SJ, Chen HR. Highly efficient 2D NIR-II photothermal agent with Fenton catalytic activity for cancer synergistic photothermal-chemodynamic therapy. Adv Sci (Weinh). 2020;7:1902576

100. Lu J, Jiang ZY, Ren J, Zhang W, Li P, Chen ZZ. et al. One-pot synthesis of multifunctional carbon-based nanoparticle-supported dispersed Cu2+ disrupts redox homeostasis to enhance CDT. Angew Chem Int Ed Engl. 2022;61:e202114373

101. Liu GY, Zhu JW, Guo H, Sun AH, Chen P, Xi L. et al. Mo2C-derived polyoxometalate for NIR-II photoacoustic imaging-guided chemodynamic/photothermal synergistic therapy. Angew Chem Int Ed Engl. 2019;58:18641-46

102. Ke SR, Min X, Liu YG, Mi RY, Wu XW, Huang ZH. et al. Tungsten-based nanocatalysts: research progress and future prospects. Molecules. 2022;27:4751

103. Liu P, Wang YR, An L, Tian QW, Lin JM, Yang SP. Ultrasmall WO3-x@γ-poly-l-glutamic acid nanoparticles as a photoacoustic imaging and effective photothermal-enhanced chemodynamic therapy agent for cancer. ACS Appl Mater Interfaces. 2018;10:38833-44

104. Chowdhury SM, Abou-Elkacem L, Lee T, Dahl J, Lutz AM. Ultrasound and microbubble mediated therapeutic delivery: Underlying mechanisms and future outlook. J Control Release. 2020;326:75-90

105. Wu TT, Liu Y, Cao Y, Liu ZH. Engineering macrophage exosome disguised biodegradable nanoplatform for enhanced sonodynamic therapy of glioblastoma. Adv Mater. 2022;34(15):e2110364

106. Cao TGNY, Kang JH, You JY, Kang HC, Rhee WJ, Ko YT. et al. Safe and targeted sonodynamic cancer therapy using biocompatible exosome-based nanosonosensitizers. ACS Appl Mater Interfaces. 2021;13:25575-88

107. Guan HY, Zou PJ, Lin R, Xiao L, Fang ZY, J Chen JY, et al.Implantable self-powered therapeutic pellet for wireless photodynamic/sonodynamic hybrid therapy of cancer recurrence inhibition, tumor regression. Nano Energy. 2023; 105: 108002.

108. Dong YS, Dong SM, Liu B, Yu CH, Liu J, Yang D. et al. 2D piezoelectric Bi2MoO6 nanoribbons for GSH-enhanced sonodynamic therapy. Adv.Mater. 2021;33:2106838

109. Huang P, Qian XQ, Chen Y, Yu LD, Lin H, Wang LY. et al. Metalloporphyrin-encapsulated biodegradable nanosystems for highly efficient magnetic resonance imaging-guided sonodynamic cancer therapy. J Am Chem Soc. 2019;139:1275-84

110. Zhang K, Meng XD, Yang Z, Dong HF, Zhang XJ. Enhanced cancer therapy by hypoxia-responsive copper metal-organic frameworks nanosystem. Biomaterials. 2020;258:120278

111. Li D, Yang Y, Li DF, Pan J, Chu CC, Liu G. Organic sonosensitizers for sonodynamic therapy: from small molecules and nanoparticles toward clinical development. Small. 2021;17:e2101976

112. Yuan HM, Zhang LY, Ma T, Huang JB, Nie GX, Cao SJ. et al. Spiky cascade biocatalysts as peroxisome-mimics for ultrasound-augmented tumor ablation. ACS Appl Mater Interfaces. 2022;14:15970-81

113. Zhu J, Chu CC, Li DS, Pang X, Zheng HL, Wang JQ. et al. Fe(III)-porphyrin sonotheranostics: a green triple-regulated ROS generation nanoplatform for enhanced cancer imaging and therapy. Adv Funct Mater. 2019;29:1904056

114. Zhao YJ, Bian YL, Xiao X, Liu B, Ding BB, Cheng ZY. et al. Tumor microenvironment-responsive Cu/CaCO3-based nanoregulator for mitochondrial homeostasis disruption-enhanced chemodynamic/sonodynamic therapy. Small. 2022;18:e2204047

115. Gong F, Cheng L, Yang NL, Betzer O, Feng LZ, Zhou Q. et al. Ultrasmall oxygen-deficient bimetallic oxide MnWOX nanoparticles for depletion of endogenous GSH and enhanced sonodynamic cancer therapy. Adv Mater. 2019;31:e1900730

116. Han XX, Huang J, Jing XX, Yang DY, Lin H, Wang ZG. et al. Oxygen-deficient black titania for synergistic/enhanced sonodynamic and photoinduced cancer therapy at near infrared-II biowindow. ACS Nano. 2018;12:4545-55

117. Wang XW, Zhong XY, Bai LX, Xu J, Gong F, Dong ZL. et al. Ultrafine titanium monoxide (TiO1+ x) nanorods for enhanced sonodynamic therapy. J Am Chem Soc. 2020;142:6527-37

118. Zhang M, Yang DY, Dong CH, Huang H, Feng GY, Chen QQ. et al. Two-dimensional MXene-originated in situ nanosonosensitizer generation for augmented and synergistic sonodynamic tumor nanotherapy. ACS Nano. 2022;16:9938-52

119. Zhao YC, Wang SB, Ding YM, Zhang ZY, Huang T, Zhang YL. et al. Piezotronic effect-augmented Cu2-xO-BaTiO3 sonosensitizers for multifunctional cancer dynamic therapy. ACS Nano. 2022;16:9304-16

120. Wang F, Wang B, You W, Chen G, You YZ. Integrating Au and ZnO nanoparticles onto graphene nanosheet for enhanced sonodynamic therapy. Nano Res. 2022;15:9223-33

121. Lin XH, Liu SY, Zhang X, Zhu R, Chen S, Chen XY. et al. An ultrasound activated vesicle of janus Au-MnO nanoparticles for promoted tumor penetration and sono-chemodynamic therapy of orthotopic liver cancer. Angew Chem Int Ed Engl. 2020;59:1682-88

122. Vozenin MC, Hendry JH, Limoli CL. Biological benefits of ultra-high dose rate FLASH radiotherapy: sleeping beauty awoken. Clin Oncol (R Coll Radiol). 2019;31:407-15

123. Zhang CY, Liang Y, Wang X, Dong XH, Zhou RY, Gu ZJ. et al. Tumor microenvironment-responsive Cu2(OH)PO4 nanocrystals for selective and controllable radiosentization via the x-ray-triggered Fenton-like reaction. Nano Lett. 2019;19:1749-57

124. Wang H, Jiang H, Van De Gucht M, De Ridder M. Hypoxic radioresistance: can ROS be the key to overcome it?. Cancers (Basel). 2019;11:112

125. Suo M, Liu ZM, Tang WX, Guo JC, Jiang W, Liu Y. et al. Development of a novel oxidative stress-amplifying nanocomposite capable of supplying intratumoral H2O2 and O2 for enhanced chemodynamic therapy and radiotherapy in patient-derived xenograft (PDX) models. Nanoscale. 2020;12:23259-65

126. Choi JY, Kim G, Cho SB, Im HJ. Radiosensitizing high-Z metal nanoparticles for enhanced radiotherapy of glioblastoma multiforme. J Nanobiotechnology. 2020;18:122

127. Lv B, Zhang HL, Zheng XP, Wang H, Ge WQ, Ren YP. et al. Structure-oriented catalytic radiosensitization for cancer radiotherapy. Nano Today. 2020;35:100988

128. Liu YT, Zhang J, Du J, Song K, Liu JL, Wang X. et al. Biodegradable BiOCl platform for oxidative stress injury-enhanced chemodynamic/radiation therapy of hypoxic tumors. Acta Biomater. 2021;129:280-92

129. Ni KY, Lan GX, Chan C, Quigley B, Lu KD, Aung T. et al. Nanoscale metal-organic frameworks enhance radiotherapy to potentiate checkpoint blockade immunotherapy. Nat Commun. 2018;9:2351

130. Lan GX, Ni KY, Xu ZW, Veroneau SS, Song Y, Lin WB. Nanoscale metal-organic framework overcomes hypoxia for photodynamic therapy primed cancer immunotherapy. J Am Chem Soc. 2018;140:5670-73

131. Gong T, Li YL, Lv B, Wang H, Liu YY, Yang W. et al. Full-process radiosensitization based on nanoscale metal-organic frameworks. ACS Nano. 2020;14:3032-40

132. Fan KL, Xi JQ, Fan L, Wang PX, Zhu CH, Tang Y. et al. In vivo guiding nitrogen-doped carbon nanozyme for tumor catalytic therapy. Nat Commun. 2018;9:1440

133. Wang ZZ, Zhang Y, Ju EG, Liu Z, Cao FF, Chen ZW, et.al. Biomimetic nanoflowers by self-assembly of nanozymes to induce intracellular oxidative damage against hypoxic tumors. Nat Commun. 2018;9:3334

134. Zhang CY, Wang X, Dong XH, Mei LQ, Wu XC, Gu ZJ. et al. X-ray-facilitated redox cycling of nanozyme possessing peroxidase-mimicking activity for reactive oxygen species-enhanced cancer therapy. Biomaterials. 2021;276:121023

135. Zhang CY, Yan L, Wang X, Dong XH, Zhou RY, Gu ZJ. et al. Tumor microenvironment-responsive Cu2(OH)PO4 nanocrystals for selective and controllable radiosentization via the x-ray-triggered Fenton-like reaction. Nano Lett. 2019;19:1749-57

136. Li YB, Yang J, Gu GY, Guo X, He CB, Sun JM. et al. Pulmonary delivery of theranostic nanoclusters for lung cancer ferroptosis with enhanced chemodynamic/radiation synergistic therapy. Nano Lett. 2022;22:963-72

137. Liu SK, Li WT, Zhang YY, Zhou JL, Du YQ, Dong SM. et al. Tailoring silica-based nanoscintillators for peroxynitrite-potentiated nitrosative stress in postoperative radiotherapy of colon cancer. Nano Lett. 2022;22:6409-17

138. Liu SK, Li WT, Chen HX, Zhou JL, Dong SM, Zang PY. et al. On-demand generation of peroxynitrite from an integrated two-dimensional system for enhanced tumor therapy. ACS Nano. 2022;16(6):8939-53

139. Liu SK, Fang LY, Ding H, Zhang YY, Li WT. et al. Alternative strategy to optimize cerium oxide for enhanced X-ray-induced photodynamic therapy. ACS Nano. 2022;16:20805-19

140. Gilchrist RK, Medal R, Shorey WD, Hanselman RC, Parrott JC, Taylor CB. Selective inductive heating of lymph nodes. Ann Surg. 1957;146:596-06

141. Ding BB, Zheng P, Ma PA, Lin J. Manganese oxide nanomaterials: synthesis, properties, and theranostic applications. Adv Mater. 2020;32:e1905823

142. Greeson EM, Madsen CS, Makela AV, Contag CH. Magnetothermal control of temperature-sensitive repressors in superparamagnetic iron nanoparticle-coated bacillus subtilis. ACS Nano. 2022;16:16699-12

143. Minnaar CA, Szasz A. Forcing the antitumor effects of HSPs using a modulated electric field. Cells. 2022;11:1838

144. Song YH, Di JT, Jia YL, Yong ZZ, Xu JF. Temperature-dependent resistance of carbon nanotube fibers. Nanotechnology. 2022;33:23

145. Zhang H, Gong WB, Wu S, Perrett S. Hsp70 in redox homeostasis. Cells. 2022;11:829

146. Liu N, Wu L, Zuo WB, Lin Q, Liu JX, Jin QY. et al. pH/thermal-sensitive nanoplatform capable of on-demand specific release to potentiate drug delivery and combinational hyperthermia/chemo/chemodynamic therapy. ACS Appl Mater Interfaces. 2022;14:29668-78

147. Silvestri N, Gavilán H, Guardia P, Brescia R, Fernandes S, Samia ACS. et al. Di- and tri-component spinel ferrite nanocubes: synthesis and their comparative characterization for theranostic applications. Nanoscale. 2021;13:13665-80

148. Ying WW, Zhang Y, Gao W, Cai XJ, Wang G, Wu XF. et al. Hollow magnetic nanocatalysts drive starvation-chemodynamic-hyperthermia synergistic therapy for tumor. ACS Nano. 2020;14:9662-74

149. Du WX, Liu TZ, Xue FF, Cai XJ, Hen Q, Zheng YY. et al. Fe3O4 mesocrystals with distinctive magnetothermal and nanoenzyme activity enabling self-reinforcing synergistic cancer therapy. ACS Appl Mater Interfaces. 2020;12:19285-94

150. Shen JC, Rees TW, Zhou ZG, Yang SP, Ji LN, Chao H. A mitochondria-targeting magnetothermogenic nanozyme for magnet-induced synergistic cancer therapy. Biomaterials. 2020;251:120079

151. Delaunay S, Pascual G, Feng B, Klann K, Behm M, Hotz-Wagenblatt A. Mitochondrial RNA modifications shape metabolic plasticity in metastasis. Nature. 2022;607:593-03

152. Sainero-Alcolado L, Liaño-Pons J, Ruiz-Pérez MV, Arsenian-Henriksson M. Targeting mitochondrial metabolism for precision medicine in cancer. Cell Death Differ. 2022;29:1304-17

153. Rosenberg SA, Restifo NP, Yang JC, Morgan RA, Dudley ME. Adoptive cell transfer: a clinical path to effective cancer immunotherapy. Nat Rev Cancer. 2008;8:299-08

154. He JJ, Xiong XX, Yang H, Li DD, Liu XF, Li S. et al. Defined tumor antigen-specific T cells potentiate personalized TCR-T cell therapy and prediction of immunotherapy response. Cell Res. 2022;32:530-42

155. Huang AC, Zappasodi R. A decade of checkpoint blockade immunotherapy in melanoma: understanding the molecular basis for immune sensitivity and resistance. Nat Immunol. 2022;23:660-70

156. Saxena M, van der Burg SH, Melief CJM, Bhardwaj N. Therapeutic cancer vaccines. Nat Rev Cancer. 2021;21:360-78

157. Sharma P, Allison JP. The future of immune checkpoint therapy. Science. 2015;348:56-61

158. Johnson A, Townsend M, O'Neill K. Tumor microenvironment immunosuppression: a roadblock to CAR T-cell advancement in solid tumors. Cells. 2022;11:3626

159. Liu SN, Zhou Y, Hu CL, Cai LH, Pang ML. Covalent organic framework-based nanocomposite for synergetic photo-, chemodynamic-, and immunotherapies. ACS Appl Mater Interfaces. 2020;12:43456-65

160. Yongvongsoontorn N, Chung JE, Gao SJ, Bae KH, Yamashita A, Tan MH. et al. Carrier-enhanced anticancer efficacy of sunitinib-loaded green tea-based micellar nanocomplex beyond tumor-targeted delivery. ACS Nano. 2019;13:7591-02

161. Li X, Zhou QH, Japir Abd Al-Wali MM, Dutta D, Lu NN, Ge ZS. Protein-delivering nanocomplexes with Fenton reaction-triggered cargo release to boost cancer immunotherapy. ACS Nano. 2022;16:14982-99

162. He X, Xu CQ. Immune checkpoint signaling and cancer immunotherapy. Cell Res. 2020;30:660-69

163. Yao XX, Yang BC, Wang S, Dai ZC, Zhang DS, Zheng XW. et al. A novel multifunctional FePt/BP nanoplatform for synergistic photothermal/photodynamic/chemodynamic cancer therapies and photothermally-enhanced immunotherapy. J Mater Chem B. 2020;8:8010-21

164. Zhang WY, Liu JW, Li XY, Zheng Y, Chen LF, Wang DD. et al. Precise chemodynamic therapy of cancer by trifunctional bacterium-based nanozymes. ACS Nano. 2021;15:19321-33

165. Wang X, Luo JL, Wang J, Cao J, Hong YR, Wen Q. et al. Catalytically active metal-organic frameworks elicit robust immune response to combination chemodynamic and checkpoint blockade immunotherapy. ACS Appl Mater Interfaces. 2023;15:6442-55

166. Wen M, Ouyang J, Wei CW, Li H, Chen WS, Liu YN. Artificial enzyme catalyzed cascade reactions: antitumor immunotherapy reinforced by NIR-II light. Angew Chem Int Ed Engl. 2019;58:17425-32

167. Zhao XY, Guo KL, Zhang K, Duan S, Chen MW, Zhao NN. et al. Orchestrated yolk-shell nanohybrids regulate macrophage polarization and dendritic cell maturation for oncotherapy with augmented antitumor immunity. Adv Mater. 2022;34:e2108263

168. Ding BB, Zheng P, Jiang F, Zhao YJ, Wang MF, Chang MY. et al. MnOx nanospikes as nanoadjuvants and immunogenic cell death drugs with enhanced antitumor immunity and antimetastatic effect. Angew Chem Int Ed Engl. 2020;59:16381-84

169. Jiang F, Ding BB, Liang S, Zhao YJ, Cheng ZY, Xing BG. et al. Intelligent MoS2-CuO heterostructures with multiplexed imaging and remarkably enhanced antitumor efficacy via synergetic photothermal therapy/ chemodynamic therapy/ immunotherapy. Biomaterials. 2021;268:120545

170. Yu SJ, Chen ZW, Zeng X, Chen XS, Gu Z. Advances in nanomedicine for cancer starvation therapy. Theranostics. 2019;9:8026-47

171. Wang YM, Song M. pH-responsive cascaded nanocatalyst for synergistic like-starvation and chemodynamic therapy. Colloids Surf B Biointerfaces. 2020;192:111029

172. Chen Q, Zheng ZL, He XJ, Rong S, Qin YF, Peng XY. et al. A tumor-targeted theranostic nanomedicine with strong absorption in the NIR-II biowindow for image-guided multi-gradient therapy. J Mater Chem B. 2020;8:9492-01

173. Hao Y, Dong ZL, Chen MC, Chao Y, Liu Z, Feng LZ. et al. Near-infrared light and glucose dual-responsive cascading hydroxyl radical generation for in situ gelation and effective breast cancer treatment. Biomaterials. 2020;228:119568

174. Wu H, Li XL, Liu S, Wang QH, Cao YY, a Hao JN. et al. GSH-responsive organosilica hybrid nanosystem as a cascade promoter for enhanced starvation and chemodynamic therapy. Adv Healthc Mater. 2023;12:e2201262

175. Xu MM, Liu Y, Luo WR, Tan FR, Dong DH, Li WC. et al. A multifunctional nanocatalytic system based on Chemodynamic-Starvation therapies with enhanced efficacy of cancer treatment. J Colloid Interface Sci. 2023;630:804-16

176. Yu Q, Zhou J, Song J, Zhou H, Kang B, Chen HY. et al. A cascade nanoreactor of metal-protein-polyphenol capsule for oxygen-mediated synergistic tumor starvation and chemodynamic therapy. Small. 2023;19:e2206592

177. Butler M, van der Meer LT, van Leeuwen FN. Amino acid depletion therapies: starving cancer cells to death. Trends Endocrinol Metab. 2021;32:367-81

178. Soares TG, Santos JLD, de VAlvarenga VG, Santos JSC, Leclercq SY, Faria CD. et al. Biochemical and functional properties of a new l-amino acid oxidase (LAAO) from Micrurus lemniscatus snake venom. Int J Biol Macromol. 2020;154:1517-27

179. Chu Q, Zhu HM, Liu B, Cao GD, Fang C, Wu YL. et al. Delivery of amino acid oxidase via catalytic nanocapsules to enable effective tumor inhibition. J Mater Chem B. 2020;8:8546-57

180. Vultaggio-Poma V, Sarti AC, Virgilio FD. Extracellular ATP: a feasible target for cancer therapy. Cells. 2020;9:2496

181. Tian F, Wang SY, Shi KD, Zhong XJ, Gu YT, Fan YD. et al. Dual-depletion of intratumoral Lactate and ATP with radicals generation for cascade Metabolic-chemodynamic therapy. Adv Sci. 2021;8:e2102595

182. Xiao JM, Zhang GL, Xu R, Chen H, Wang HJ, Tian G. et al. A pH-responsive platform combining chemodynamic therapy with limotherapy for simultaneous bioimaging and synergistic cancer therapy. Biomaterials. 2019;216:119254

183. Yu LD, Hu P, Chen Y. Gas-generating nanoplatforms: material chemistry, multifunctionality, and gas therapy. Adv Mater. 2018;30:e1801964

184. Wang Y, Jing DN, Yang JW, Zhu SJ, Shi J, Qin XR. et al. Glucose oxidase-amplified CO generation for synergistic anticancer therapy via manganese carbonyl-caged MOFs. Acta Biomater. 2022;154:467-77

185. Zhou ZR, Gao ZM, Chen W, Wang XZ, Chen ZK, Zheng ZC. et al. Nitric oxide-mediated regulation of mitochondrial protective autophagy for enhanced chemodynamic therapy based on mesoporous Mo-doped Cu9S5 nanozymes. Acta Biomater. 2022;151:600-12

186. Xie CK, Cen D, Ren ZH, Wang YF, Wu YJ, Li X. et al. FeS@BSA nanoclusters to enable H2S-amplified ROS-based therapy with MRI guidance. Adv Sci. 2020;7:1903512

187. Liu SK, Li WT, Dong SM, Zhang FM, Dong YS, Tian BS. et al. An all-in-one theranostic nanoplatform based on upconversion dendritic mesoporous silica nanocomposites for synergistic chemodynamic/photodynamic/gas therapy. Nanoscale. 2020;12:24146-61

188. Guo ST, Yang XT, Guan SY, Lu J, Zhou SY. et al. Bioinspired construction of an enzyme-mimetic supramolecular nanoagent for RNS-augmented cascade chemodynamic therapy. ACS Appl Mater Interfaces. 2022;14:46252-61

189. He T, Qin XL, Jiang C, Jiang DW, Lei S, Lin J. et al. Tumor pH-responsive metastable-phase manganese sulfide nanotheranostics for traceable hydrogen sulfide gas therapy primed chemodynamic therapy. Theranostics. 2020;10:2453-62

190. Wu Y, Yuan M, Song JB, Chen XY, Yang HH. Hydrogen gas from inflammation treatment to cancer therapy. ACS Nano. 2019;13:8505-11

191. Wang Q, Ji YS, Shi JS, Wang LL. NIR-driven water splitting H2 production nanoplatform for H2-mediated cascade-amplifying synergetic cancer therapy. ACS Appl Mater Interfaces. 2020;12:23677-88

192. Zhao PH, Jin ZK, Chen Q, Yang T, Chen DY, Meng J. et al. Local generation of hydrogen for enhanced photothermal therapy. Nat Commun. 2018;9:4241

193. Nekouei F, Nekouei S, Pouzesh M, Liu Y. Porous-CdS/Cu2O/graphitic-C3N4 dual p-n junctions as highly efficient photo/catalysts for degrading ciprofloxacin and generating hydrogen using solar energy. Chem Eng J. 2020;385:123710

194. Friedmann T, Roblin R. Gene therapy for human genetic disease?. Science. 1972;175:949-55

195. Zabaleta N, Unzu C, Weber ND, Gonzalez-Aseguinolaza G. Gene therapy for liver diseases-progress and challenges. Nat Rev Gastroenterol Hepatol. 2023

196. Zhang JF, Shen HW, Xu JJ, Liu L, Tan JW, Li MH. et al. Liver-targeted siRNA lipid nanoparticles treat hepatic cirrhosis by dual antifibrotic and anti-inflammatory activities. ACS Nano. 2020;14:6305-22

197. Ming LY, Song L, Xu JX, Wang RQ, Shi JP. et al. Smart manganese dioxide-based lanthanide nanoprobes for triple-negative breast cancer precise gene synergistic chemodynamic therapy. ACS Appl Mater Interfaces. 2021;13:35444-55

198. Zhu XJ, Li JC, Qiu XC, Liu Y, Feng W, Li FY. Upconversion nanocomposite for programming combination cancer therapy by precise control of microscopic temperature. Nat Commun. 2018;9:2176

199. Ismail TM, Bennett D, Platt-Higgins AM, Al-Medhity M, Barraclough R, Rudland PS. S100A4 elevation empowers expression of metastasis effector molecules in human breast cancer. Cancer Res. 2017;77:780-89

200. Liu YL, Ji XY, W L Tong W, Askhatova D, Yang TY, Cheng HW. et al. Engineering multifunctional RNAi nanomedicine to concurrently target cancer hallmarks for combinatorial therapy. Angew Chem Int Ed Engl. 2018;57:1510-13

201. Mou QB, Ma Y, Ding F, Gao XH, Yan DY, Zhu XY. et al. Two-in-one chemogene assembled from drug-integrated antisense oligonucleotides to reverse chemoresistance. J Am Chem Soc. 2019;141:6955-66

202. Liu RD, McConnell EM, Li JX, Li YF. Advances in functional nucleic acid based paper sensors. J Mater Chem B. 2020;8:3213-30

203. Huang PJJ, de Rochambeau D, Sleiman HF, Liu JW. Target self-enhanced selectivity in metal-specific DNAzymes. Angew Chem Int Ed Engl. 2020;59:3573-77

204. Yao C, Qi HD, Jia XM, Xu YW, Tong ZB, Gu Z. et al. A DNA nanocomplex containing cascade DNAzymes and promoter-like Zn-Mn-Ferrite for combined gene/chemo-dynamic therapy. Angew Chem Int Ed Engl. 2022;61:e202113619

205. Liu CZ, Chen YX, Zhao J, Wang Y, Shao YL, Gu ZJ. et al. Self-assembly of copper-DNAzyme nanohybrids for dual-catalytic tumor therapy. Angew Chem Int Ed Engl. 2021;60:14324-28

206. Weerasinghe P, Buja LM. Oncosis: an important non-apoptotic mode of cell death. Exp Mol Pathol. 2012;93:302-08

207. Guan RL, Chen Y, Zeng LL, Rees TW, Jin CZ, Huang JJ. et al. Oncosis-inducing cyclometalated iridium(iii) complexes. Chem Sci. 2018;9:5183-90

208. Fan ZX, Jiang BL, Zhu QX, Xiang SJ, Tu L, Yang YF. et al. Tumor-specific endogenous FeII-activated, MRI-guided self-targeting gadolinium-coordinated theranostic nanoplatforms for amplification of ROS and enhanced chemodynamic chemotherapy. ACS Appl Mater Interfaces. 2020;12:14884-04

209. Shao L, Hu TS, Fan XY, Wu XZ, Zhou FF, Chen BT. et al. Intelligent nanoplatform with multi therapeutic modalities for synergistic cancer therapy. ACS Appl Mater Interfaces. 2022;14:13122-35

210. Wan XY, Zhong H, Pan W, Li YH, Chen YY, Li N. et al. Programmed release of dihydroartemisinin for synergistic cancer therapy using a CaCO3 mineralized metal-organic framework. Angew Chem Int Ed Engl. 2019;58:14134-39

211. Liu YY, Zhang M, Bu WB. Bioactive nanomaterials for ion-interference therapy. VIEW. 2020;1:18

212. Liu B, Bian YL, Liang S, Yuan M, Dong SM, He F. et al. One-step integration of tumor microenvironment-responsive calcium and copper peroxides nanocomposite for enhanced chemodynamic/ion-Interference therapy. ACS Nano. 2022;16:617-30

213. Hu H, Feng W, Qian XQ, Yu LD, Chen Y, Li YH. Emerging nanomedicine-enabled/enhanced nanodynamic therapies beyond traditional photodynamics. Adv Mater. 2021;33:e2005062

214. Song Y, Sun Y, Tang ML, Yue ZY, Ni JT, Zhao JG. et al. Polyoxometalate modified by zeolite imidazole framework for the pH-responsive electrodynamic/chemodynamic therapy. ACS Appl Mater Interfaces. 2022;14:4914-20

215. Chen T, Chu Q, Li MY, Han GR, Li X. Fe3O4@Pt nanoparticles to enable combinational electrodynamic/chemodynamic therapy. J Nanobiotechnology. 2021;19:206

216. Pan YB, Zhu Y, Xu CX, Pan CS, Shi Y, Zou JH. et al. Biomimetic yolk-shell nanocatalysts for activatable dual-modal-image-guided triple-augmented chemodynamic therapy of cancer. ACS Nano. 2022;16:19038-52

217. Guan SQ, Liu XJ, Li CL, Wang XY, Cao DM, Wang JX. et al. Intracellular mutual amplification of oxidative stress and inhibition multidrug resistance for enhanced sonodynamic/chemodynamic/chemotherapy. Small. 2022;18:e2107160

218. Liu N, Wu L, Zuo WB, Lin Q, Liu JX, Jin QY. et al. pH/thermal-sensitive nanoplatform capable of on-demand specific release to potentiate drug delivery and combinational hyperthermia/chemo/chemodynamic therapy. ACS Appl Mater Interfaces. 2022;14:29668-78

219. Zhou GZ, Li M. Near-Infrared-II plasmonic trienzyme-integrated metal-organic frameworks with high-efficiency enzyme cascades for synergistic trimodal oncotherapy. Adv Mater. 2022;34:e2200871

220. Xie WS, Ye JL, Guo ZH, Lu JS, Gao XH, Wei Y. et al. Ultrafast fabrication of iron/manganese co-doped bismuth trimetallic nanoparticles: a thermally aided chemodynamic/radio-nanoplatform for low-dose radioresistance. ACS Appl Mater Interfaces. 2022;14:21931-44

221. Sun PF, Qu F, Zhang C, Cheng PF, Li XY, Shen QM. et al. NIR-II excitation phototheranostic platform for synergistic photothermal therapy/chemotherapy/chemodynamic therapy of breast cancer bone metastases. Adv Sci. 2022;9:e2204718

222. Lu T, Prakash J. Nanomedicine strategies to enhance tumor drug penetration in pancreatic cancer. Int J Nanomedicine. 2021;16:6313-28

223. Li C, Zheng XC, Chen WZ, Ji SL, Yuan Y, Jiang XQ. Tumor microenvironment-regulated and reported Nanoparticles for overcoming the self-confinement of multiple photodynamic therapy. Nano Lett. 2020;20:6526-34

224. Chang MY, Wang M, Wang MF, Shu MM, Ding BB, Li CX. et al. A multifunctional cascade bioreactor based on hollow-structured Cu2MoS4 for synergetic cancer chemo-dynamic therapy/starvation therapy/phototherapy/immunotherapy with remarkably enhanced efficacy. Adv Mater. 2019;31:e1905271

Author contact

Corresponding address Corresponding author: Meiyun Wang; Mailing address: Department of Medical Imaging, Henan Provincial People's Hospital & the People's Hospital of Zhengzhou University, Zhengzhou, 450003, P. R. China. Email: mywangedu.cn.


Received 2022-11-15
Accepted 2023-3-6
Published 2023-3-21


Citation styles

APA
Gao, H., Cao, Z., Liu, H., Chen, L., Bai, Y., Wu, Q., Yu, X., Wei, W., Wang, M. (2023). Multifunctional nanomedicines-enabled chemodynamic-synergized multimodal tumor therapy via Fenton and Fenton-like reactions. Theranostics, 13(6), 1974-2014. https://doi.org/10.7150/thno.80887.

ACS
Gao, H.; Cao, Z.; Liu, H.; Chen, L.; Bai, Y.; Wu, Q.; Yu, X.; Wei, W.; Wang, M. Multifunctional nanomedicines-enabled chemodynamic-synergized multimodal tumor therapy via Fenton and Fenton-like reactions. Theranostics 2023, 13 (6), 1974-2014. DOI: 10.7150/thno.80887.

NLM
Gao H, Cao Z, Liu H, Chen L, Bai Y, Wu Q, Yu X, Wei W, Wang M. Multifunctional nanomedicines-enabled chemodynamic-synergized multimodal tumor therapy via Fenton and Fenton-like reactions. Theranostics 2023; 13(6):1974-2014. doi:10.7150/thno.80887. https://www.thno.org/v13p1974.htm

CSE
Gao H, Cao Z, Liu H, Chen L, Bai Y, Wu Q, Yu X, Wei W, Wang M. 2023. Multifunctional nanomedicines-enabled chemodynamic-synergized multimodal tumor therapy via Fenton and Fenton-like reactions. Theranostics. 13(6):1974-2014.

This is an open access article distributed under the terms of the Creative Commons Attribution License (https://creativecommons.org/licenses/by/4.0/). See http://ivyspring.com/terms for full terms and conditions.
Popup Image
