Annealing-modulated nanoscintillators for nonconventional X-ray activation of comprehensive photodynamic effects in deep cancer theranostics

Yao-Chen Chuang1*, Chia-Hui Chu1*, Shih-Hsun Cheng1,2, Lun-De Liao1, Tsung-Sheng Chu1, Nai-Tzu Chen3, Arthur Paldino4, Yu Hsia1, Chin-Tu Chen2, Leu-Wei Lo1 Corresponding address

1. Institute of Biomedical Engineering and Nanomedicine Research, National Health Research Institutes, 35 Keyan Road, Zhunan 350, Taiwan.
2. Department of Radiology, The University of Chicago, Chicago, IL 60637, USA.
3. Department of Cosmeceutics, China Medical University, 91 Hsueh-Shih Road, Taichung, Taiwan 40402.
4. Faculté de médecine Lyon-Est, Université Claude Bernard, 8 Avenue Rockefeller, Lyon 69008, France.
*These authors contributed equally to this work.

Citation:
Chuang YC, Chu CH, Cheng SH, Liao LD, Chu TS, Chen NT, Paldino A, Hsia Y, Chen CT, Lo LW. Annealing-modulated nanoscintillators for nonconventional X-ray activation of comprehensive photodynamic effects in deep cancer theranostics. Theranostics 2020; 10(15):6758-6773. doi:10.7150/thno.41752. https://www.thno.org/v10p6758.htm
Other styles

File import instruction

Abstract

Graphic abstract

Photodynamic therapy (PDT), which involves the generation of reactive oxygen species (ROS) through interactions of a photosensitizer (PS) with light and oxygen, has been applied in oncology. Over the years, PDT techniques have been developed for the treatment of deep-seated cancers. However, (1) the tissue penetration limitation of excitation photon, (2) suppressed efficiency of PS due to multiple energy transfers, and (3) insufficient oxygen source in hypoxic tumor microenvironment still constitute major challenges facing the clinical application of PDT for achieving effective treatment. We present herein a PS-independent, ionizing radiation-induced PDT agent composed of yttrium oxide nanoscintillators core and silica shell (Y2O3:Eu@SiO2) with an annealing process. Our results revealed that annealed Y2O3:Eu@SiO2 could directly induce comprehensive photodynamic effects under X-ray irradiation without the presence of PS molecules. The crystallinity of Y2O3:Eu@SiO2 was demonstrated to enable the generation of electron-hole (e--h+) pairs in Y2O3 under ionizing irradiation, giving rise to the formation of ROS including superoxide, hydroxyl radical and singlet oxygen. In particular, combining Y2O3:Eu@SiO2 with fractionated radiation therapy increased radio-resistant tumor cell damage. Furthermore, photoacoustic imaging of tumors showed re-distribution of oxygen saturation (SO2) and reoxygenation of the hypoxia region. The results of this study support applicability of the integration of fractionated radiation therapy with Y2O3:Eu@SiO2, achieving synchronously in-depth and oxygen-insensitive X-ray PDT. Furthermore, we demonstrate Y2O3:Eu@SiO2 exhibited radioluminescence (RL) under X-ray irradiation and observed the virtually linear correlation between X-ray-induced radioluminescence (X-RL) and the Y2O3:Eu@SiO2 concentration in vivo. With the pronounced X-RL for in-vivo imaging and dosimetry, it possesses significant potential for utilization as a precision theranostics producing highly efficient X-ray PDT for deep-seated tumors.

Keywords: Photodynamic therapy, annealing, nanoscintillator, fractionated radiotherapy, X-ray induced radioluminescence, vascular remodeling, radioresistance

Introduction

More than ten million individuals worldwide are diagnosed with cancer annually, and effective technologies for eradicating tumors are urgently needed. Traditional approaches such as surgery, chemotherapy, radiation therapy, photodynamic therapy (PDT), and hyperthermia have shown great success in widespread clinical and preclinical use. Among those promising approaches, PDT, a noninvasive and site-directed medical technique based on the destruction of tumor tissues by light inducing reactive oxygen species (ROS) generation, has undergone extensive investigations in recent years. In PDT, a photosensitizer (PS) is activated by a specific wavelength of light to generate ROS or free radicals that can react with the local microenvironment, and eventually results in cell death and tissue devastation [1,2]. In terms of spatial selectivity in PDT, specific targeting of the PS to the tumor compartment by attaching with various targeting ligands is crucial. Tumor specific accumulation followed by local irradiation facilitates targeted damage to malignant tissue while sparing surrounding healthy tissues [3].

To date, the current clinical use of PDT has been limited to superficial layers of tissues, such as in skin cancer, lung cancer, and esophageal cancer that are easily accessible. A major challenge in most traditional PDT is the difficulty in delivering UV or visible light into the subsurface for PS activation. This limits clinical applications of PDT due to the short penetration depth of illumination light, which leads to ineffective treatment of deep-seated tumors [4,5]. One auspicious strategy to overcome the limitation of PDT for deep tumor treatment is the development of novel near-infrared (NIR) PSs or using nanoparticles as PS carriers to establish two-photon PDT or upconversion nanoparticle- mediated PDT [6-9], which aims to minimize tissue interference and improve penetration depth. For example, Cheng et al. showed that the mesoporous silica nanoparticles (MSN) co-encapsulated two-photon absorbing dyes and PS enabled high-energy transfer rates for two-photon activated PDT. The two-photon PDT system enhanced the energy transfer rate up to unprecedented 93% to yield efficacy in deep tissue [10]. In another study by Chen et al., plasmon-enhanced photoluminescence of GNRs induced by two-photon excitation at NIR wavelength demonstrated the intra-particle energy transfer. This phenomenon induced singlet oxygen generation, which is worthy of studying its potential for development in clinical translation [11]. However, even with this advancement, the photon penetration depth can only be increased to a few centimeters into soft tissue [12]. Moreover, reduced 1O2 generation efficiency has been reported by using NIR-activated PSs, and the efficiency of energy transfer from NP toward the PS has usually limited the clinical use of PDT [8,13].

Many recent alternative approaches have been developed to improve tissue penetration capability of PDT, including microwave [14,15], ultrasound [16] and X-ray [17-19]. Among them, X-ray, with the highest penetration depth, was proposed as an energy source to interact with scintillating nanoparticles and then activate PDT, which could be termed as X-ray excited PDT (hereinafter called as X-ray PDT). In a pilot study, Chen et al. developed self-lighting PDT, in which nanoparticles upon exposure to extrinsic X-rays emit luminescence in the visible region of the spectrum, activating the attached PS, and resulting in the efficient generation of 1O2 [20]. Apart from this, the use of photons from Cerenkov radiation (CR) has been emerging as an internal light source to activate PS in vivo. Cerenkov luminescence is mainly composed of UV-blue photons, which deliver rapid and localized excitation source for Cerenkov luminescence induced PDT without prolonged radiation exposure to healthy tissue [21]. Even though, remarkable results of cancer eradication in vitro and in vivo have been observed in recent years [22-24], the investigation, evaluation and application of deep PDT for clinical use are still in its infancy. Much room remains for improving the efficiency of X-ray PDT, including photobleaching of organic PSs during X-ray irradiation [25], PS loading efficiency for maximized 1O2 production [24,26], matching and fluorescence resonance energy transfer (FRET) efficiency between scintillator and PS [27,28], and illumination fluence and fluence rate [29,30]. Moreover, the hypoxia microenvironment of tumor, either pre-existing or as a result of oxygen depletion during PDT, can significantly decrease the effectiveness of PDT-induced cell killing [8,31,32]. To minimize the hypoxia-limited therapeutic effect in PDT, a circumventive strategy was developed involving a combination of scintillators and inorganic PSs, such as ZnO or TiO2. These approaches not only reduced the possibility of PS photodestruction, but also provided a solution to diminish the O2-dependence of PDT [33]. Furthermore, in the context of cancer therapy, radiation therapy still plays a critical role in the management of more than 50% of cancer cases. The success of radiation therapy also depends on clinical and radiobiological factors. For example, delivering the dose in single or hypofractionated schedule may increase the therapeutic index of treatment compared to conventionally hyperfractionated radiation therapy. However, hyperfractionated radiation therapy could open temporarily closed blood vessels and result in as short-term local reoxygenation and change cellular radiosensitivity during multifraction delivery [34]. Therefore, the radiation dose is believed to be a double-edged sword in X-ray PDT.

Herein, we reported the development of silica-coated scintillating Y2O3:Eu nanoparticles (Y2O3:Eu@SiO2) that undergo annealing treatment could exhibit not only enhanced photoluminescence efficiency, but also the ability to generate cytotoxic singlet oxygen, superoxide anion and hydroxyl radical upon X-ray irradiation without the incorporation of any additional PS. In this case, the excitation energy is absorbed first by the host lattices, and the electrons (e-) of NPs are promoted across the band gap to the conduction band, which creates a hole (h+) in the valence band. We observed that ROS generation may result from electrons in the conduction band and holes in the valence band that exhibit high reducing and oxidizing power, respectively. We further implemented a fractionated radiation regimen with Y2O3:Eu@SiO2 to explore an approach relevant to clinical conventionally fractionated radiation therapy. By comparing radio-sensitive (CAOV3) and radio-resistant (SKOV3) ovarian cancer cells, our established annealing-modulated Y2O3:Eu@SiO2 could improve the radiotherapy efficacy of CAOV3 cells by means of ROS generation and inducing reoxygenation to overcome tumor hypoxia. Our work demonstrated that the as-synthesized Y2O3:Eu@SiO2 had potential applications in X-ray PDT with RL-visualized nanodosimetry to overcome the radio-resistant cancers.

Experiment section

Chemicals and materials

Y(NO3)3, Eu(NO3)3, urea, tetraethylorthosilicate (TEOS), ammonium hydroxide (30%), and ethanol were purchased from Acros. Diphenolbenzofuran (DPBF), dihydroethidium (DHE), coumarin-3-carboxylic acid (3-CCA), and 5-tertbutoxycarbonyl-5-methyl-1-pyrroline N-oxide (BMPO) were obtained from Sigma Chemical Co. Propidium Iodide (PI) and YO-PRO-1 was purchased from Invitrogen. All chemicals were used as received without further purification.

Synthesis of Y2O3:Eu@SiO2 nanoparticles

In a typically synthetic procedure via the urea homogeneous precipitation method [35], 0.04 mol•L-1 Y(NO3)3·6H2O, 0.002 mol•L-1 Eu(NO3)3·6H2O, and 2 mol•L-1 urea were mixed together, and then aged for 4 h at 85 ºC. Then, the light-white precursors were collected by centrifugation, washed repeatedly with deionized water, and then dried in an oven at 60 ºC. The precursor of Y2O3:Eu was obtained after drying this product at 80 ºC for 12 h. Coating of SiO2 was carried out by hydrolysis of tetraethoxysilane (TEOS) [34]. Firstly, 250 mg of Y2O3:Eu NPs was dispersed in 100 mL ethanol by sonication for 15 min, and then mixed with 1 mL ammonia (25 wt% purity) with vigorous stirring. Then 0.6 mL TEOS was then added dropwise to the solution. After stirring at room temperature for 1.5 h, the resultant products were washed several times with ethanol and water, and the as-synthesized materials were dried at 60 ºC, and then sintered at 800 ºC in air for 4 h.

Characterization

Particle morphology of Y2O3:Eu and Y2O3:Eu@SiO2 samples was characterized via transmission electron microscope (TEM, Hitachi, H-7650 operating at an acceleration voltage of 80 kV). The excitation sources for the X-ray photoluminescence spectra and X-ray excited optical imaging were the intensity modulated radiotherapy system at the University of Chicago. The irradiator was operating in the range from 40 to 225 kV acceleration potential (no Cu filter), 1~25 mA tube current, and a 15 mm diameter collimator. The emission spectra were recorded using fiber optic cables connected to a fluorescence spectrometer (USB 4000) from Ocean Optics. For the optical imaging, 10 mg of Y2O3:Eu@SiO2 nanoparticles was packed into a 1.6 mm ID borosilicate glass tube phantom. The phantom was irradiated with the 140 kV / 20.89 mA, a 15 mm diameter collimated X-ray source, and imaging was performed by a Canon 5D Mark II with Canon 35 mm lens, F 1.4 L (stopped down to F 8.0).

Reactive oxygen species (ROS) detection in solution

For the quantification of ROS, three specific species, i.e., singlet oxygen (1O2), superoxide anion (O2•-), and hydroxyl radical (•OH), were chosen for their biological importance. Generation of these species was measured by three kinds of probes, DPBF (absorbance: 402 nm) and 3-CCA (excitation: 395 nm, emission: 450 nm) were dedicated to the quantification of integrated amounts of 1O2, and •OH, respectively. Both of DHE and BMPO were assigned to the quantification of O2•- [37-39]. Two hundred and fifty micrograms of Y2O3:Eu@SiO2 was suspended with 1 mL PBS for ROS measurement. ROS probe was premixed with Y2O3:Eu@SiO2 and then diluted by PBS for the designed final concentration. The resulting final concentrations of DPBF, DHE, and 3-CCA were 40 μM, 10 μM and 25 μM, respectively. Solutions were then exposed to X-rays by using a commercial cabinet X-ray system with the standard X-ray tube operated at 150 kV and 15 mA. Singlet oxygen measurements were made by following the loss of UV absorbance of DPBF in the aqueous Y2O3:Eu@SiO2 solutions. In the DHE measurement, the solution was excited at 465 nm, and its fluorescence intensity at 585 nm was measured. In the BMPO measurement, the characteristic spectrum of BMPO/•OH adduct (aN = 13.56, aβH = 12.30, and aγH = 0.66) was measured.

Phantom preparation and calibration curve establishment

Intralipid, with a refractive index close to soft tissue and negligible absorption in visible spectral region has been widely used as tissue-mimicking phantom. Intralipid phantoms were prepared according to the literature [38]. Briefly, 2.5 g of type A gelatin was added to 50 mL of deionized water, then the mixture was heated to a temperature above the gelatin's melting point until the gelatin dissolved completely and the solution turned transparent. Subsequently, 0.5 g of intralipid and various concentrations of Y2O3:Eu@SiO2 were added into the gelatin-water solution followed by filling cylindrical molds with the final solution, and let the hydrogel solidify at room temperature. For constructing the calibration curve, an imaging system was established; consisting of an X-ray source (RS-2000, Rad Source Co., Ltd) positioned approximately 20 cm above the intralipid phantom, and a CCD camera module placed perpendicularly to the irradiation source and 30 cm away from the phantom. Black curtains were used to darken the imaging space. Acquired X-RL images were further processed using MATLAB.

In vivo radioluminescence imaging

For RL studies, nude mice were anesthetized with isoflurane (1.5~2% inhalation), and the SKOV3 human ovarian cells (5 x106 cells in 0.2 mL PBS) were subcutaneously injected into right flanks of the mice. When the tumors reached approximately 500 mm3, tumors were intratumoral injected with different concentration of Y2O3:Eu@SiO2 and imaged after 1 h using the homemade radioluminescence system operating at 160 kVp and 5 mA. At the end of the study when the survived mice were sacrificed, all tumors in each study group were measured by ICP-MS to quantify the concentration of Y2O3:Eu@SiO2. All mice were anesthetized with an intraperitoneal injection of a ketamine hydrochloride and xylazine cocktail prior to imaging.

Cell culture

SKOV3 (human ovarian cancer) and CAOV3 (human ovarian cancer) cell lines were purchased from American Tissue Culture Collection (ATCC). SKOV3 and CAOV3 cells were cultured in McCoy's 5A (Gibco) and DMEM (Gibco), respectively. All cell lines were incubated at 37 °C in a fully humidified atmosphere of 5% CO2.

In vitro confocal images of cytotoxicity of Y2O3:Eu@SiO2 and radiotherapy effects

To determine the in vitro radiotherapy effects, SKOV3 and CAOV3 ovarian cancer cells were cultured in McCoy's 5A and DMEM medium containing 10% fetal bovine serum (FBS) at 37 °C under 5% CO2. Cells were seeded at a density of 3×104 on a 60 mm dish to permit cell attachment. Until 80% cell density, the cells were carefully washed with phosphate-buffered saline (PBS), refreshed with fresh medium containing 50 μg mL-1 of Y2O3:Eu@SiO2, and then incubated at 37 °C and 5% CO2 for 3h or 24 h. After incubation, the cells were rinsed with PBS three times to remove the excess nanoparticles and placed in fresh medium that contained YOPRO-1 and PI dyes. The cell nuclei were stained with 1 μM Hoechst 33342 for 10 min and washed three times with PBS. For cell morphology and fluorescence imaging, YOPRO-1 was excited at 488 nm and monitored using a 525 ± 5 nm bandpass filter, while PI was excited at 535 nm and monitored using a 620 ± 5 nm bandpass filter. Images were collected using a confocal microscope (Zeiss LSM 710).

Cytotoxicity in vitro

The cytotoxic effect of the Y2O3:Eu@SiO2 was determined by a standard MTT assay in 96 well plates. Approximately 5 × 103 cells were placed in each well and cultured at 37 °C with 5% CO2. After 24 h of incubation, the media were removed and replaced with fresh medium supplemented with 10% FBS containing Y2O3:Eu@SiO2 at concentrations ranging from 0 μg mL-1 to 100 μg mL-1. After 24, the medium containing Y2O3:Eu@SiO2 was replaced by 180 μL fresh medium, followed by the addition of 20 μL MTT. After 4 h of culturing, the medium was substituted with DMSO (150 μL); the survival rate was evaluated via absorbance measurements at 570 nm.

Clonogenic assay

Appropriate cell numbers were plated for survival analysis. Culture medium was removed and replaced with nanoparticle-containing culture medium for 24 h at 37 °C. Radiation was delivered in a single dose of 1~2 Gy over an appropriate field size at 150 keV and 250 keV, respectively. After irradiation, cells were harvested, counted, and seeded on a 100 mm dish. Cell cultures were then incubated for 10-14 days at 37 °C in 5% CO2 in air and 95% humidity. Colonies are fixed with glutaraldehyde (6.0% v/v), stained with crystal violet (0.5% w/v), and counted with each experiment performed in quadruplicate.

In vivo radiotherapy combined with X-ray activated PDT effect

All experiments that involved animals were performed in accordance with the guide for the care and use of laboratory animals and approved by the Institutional Animal Care and Use Committee of National Health Research Institutes. In vivo experiments were conducted using five to six-week-old female nude mice (BioLASCO Taiwan Co., Ltd.). The mice were anesthetized with isoflurane (1.5~2% inhalation), and the SKOV3 human ovarian cells (5 x106 cells in 0.2 mL PBS) were subcutaneously injected into right flanks of the mice. The tumors were allowed to reach approximately 500 mm3 in volume estimated with the formula 1/2 (L × W2), where L and W were the length and width, respectively. The mice were randomized to various treatment groups: control (n= 6), Y2O3:Eu@SiO2 (16 mg/kg, n = 6), radiation (total 8 Gy; four fractions of 2 Gy every day, n = 6), and combination (n=6). In the group of combined treatment, 0.1 mL of 16 mg/kg Y2O3:Eu@SiO2 solution was administered to each mouse via multipoint intratumoral injection. After 1 h post-injection, the tumors in mice were irradiated using an X-ray irradiator (RS-2000, Rad Source Co., Ltd). Tumor volume observations were measured by caliper twice per week. For each group, immunohistochemical analyses were performed on tumors collected 5 d post-injection and end of experiment.

Measurement of oxygen distribution by photoacoustic imaging

To measure the oxygen saturation (sO2) inside the SKOV3 solid tumor, the PA C-scan (i.e., two-dimensional scanning) was performed to acquire functional and reference images. Before and after intratumoral administration of 1 mg of Y2O3:Eu@SiO2 and treated with 8 Gy X-ray (four fractions of 2 Gy every day), sO2 around the tumor was measured at the end of radiation therapy by the differential optical absorption of oxygenated, deoxygenated hemoglobin and total hemoglobin at different wavelengths of 850 nm, 750 nm and 800, respectively. To facilitate comparison of sO2 patterns at different groups, the regions of interest (ROI) in tumor were employed in the proximity of reagents' injection site, and identified using ultrasound imaging. Photoacoustic B-scans of the mice generating average oxygenated and deoxygenated hemoglobin signals were analyzed by custom-developed software based on MATLAB® (R2007a, The MathWorks, USA), and sO2 is defined as sO2 = [HbO2]/ [HbO2]+[Hb].

Dual-color immunofluorescent analysis of tumors

The therapeutic effects were determined by active caspase-3 and Annexin V immunostaining. The cryosections of tumor tissue collected from 5 d post-injection (5 μm thick) were washed three times, with PBS for 5 min and fixed with freshly prepared 4% paraformaldehyde in PBS, for 15 min at room temperature. The sections were probed overnight with a polyclonal rabbit anti-mouse active caspase-3 antibody (GeneTex) and rabbit anti-mouse Annexin V (GeneTex) at 4 °C, followed by incubation with peroxidase-conjugated polyclonal goat anti-rabbit antibodies IgG (DyLight488) (GeneTex) and goat anti-rabbit IgG (Alex Fluor594) for 1 h, at room temperature. The sections were counterstained with Hoechst 33342 for 30 min and mounted with glass coverslips. The tissue sections were then analyzed by fluorescence microscopy.

The cryosections of tumor tissue collected from end of experiment (5 μm thick) were fixed with freshly prepared 4% paraformaldehyde in PBS, for 15 min at room temperature and washed 3 times with PBS. The sections were probed overnight with mouse anti-CD31 antibody (GeneTex) and rabbit anti-αSMA antibody (GeneTex) at 4 °C, followed by incubation with polyclonal goat anti-mouse IgG (DyLight488) antibodies and polyclonal goat anti-rabbit IgG (DyLight594) antibodies (GeneTex) for 1 hour, at room temperature. The sections were counterstained with Hoechst 33342 for 30 min and mounted with glass coverslips. The tissue sections were then analyzed by fluorescence microscopy and quantified by ImageJ software.

Results and discussion

The low-temperature reflux method, utilizing urea-assisted precipitation, was employed to systematically synthesize nanocrystal compositions. The morphology of calcined Y2O3:Eu was characterized by TEM and is shown Figure 1A. From the image, it can be observed that the naked Y2O3:Eu nanoparticles appeared as homogeneous and monodisperse nanospheres with an average size of 160 nm. For biological applications, water solubility is critical. Coating Y2O3:Eu with SiO2 is the most popular strategy to increase the water solubility of nanoparticles. Additionally, since the induced luminescence could be quenched by water and organic molecules via a mechanism similar to fluorescence resonance energy transfer (FRET), SiO2 could decrease non-radiative transition to prevents the quenching of luminescence quenching [41,42]. Therefore, the Y2O3:Eu nanoparticles were coated with a thin layer of silica using the modified Stöber method and the core-shell structure for the Y2O3:Eu@SiO2 can be clearly seen due to the different electron penetrability for the cores and shells (as shown in Figure 1B). The Y2O3:Eu cores are black spheres with an average size of 160 nm, and the shells have a gray color with an average thickness of 9 nm. It was reported by Liu and colleagues that silica-based nanoparticles with size between 100 and 200 nm own the best efficiencies of the cellular uptake and endosomal escape [43,44]. In addition, the coating thickness of outer silica layer has some effect on ROS generation. Due to the extremely short lifespan and severely limited diffusion distance (< 20 nm), ROS only acts in its immediate vicinity. To strike the balance between ROS generation and biocompatibility, a thin silica-layer (<10 nm) was used in our study. Figure 1C shows the EDX spectra of Y2O3:Eu@SiO2. It is explicitly shown from Figure 1C that Y, Eu, and Si peaks are at normal energies, which indicates that the composition of coated layer is SiO2. The TEM and EDS results as described above confirm the uniform coating of silica shell on our synthesized Y2O3:Eu@SiO2 nanoparticles. Following synthesis, the optical properties of Y2O3:Eu@SiO2 nanoparticles were thoroughly characterized. A typical RL spectrum of an aqueous suspension of Y2O3:Eu@SiO2 nanoparticles under X-ray irradiation is shown in Figure 1D. The complete RL spectra were collected and subsequently curve-fitted (Gaussian), and exhibited the characteristic luminescence bands at 590 nm, 610 nm, and 627 nm, which can be assigned to 5D07F1, 5D07F2, and 5D07F3 transitions of the Eu3+ ion, respectively, indicating that Eu3+ sites act as luminescence centers. Based upon the findings in the extant literature, the spectral properties of our RL spectrum of Y2O3:Eu@SiO2 nanoparticles appear essentially similar to those that were recorded under either UV excitation or X-ray irradiation [45,46].

 Figure 1

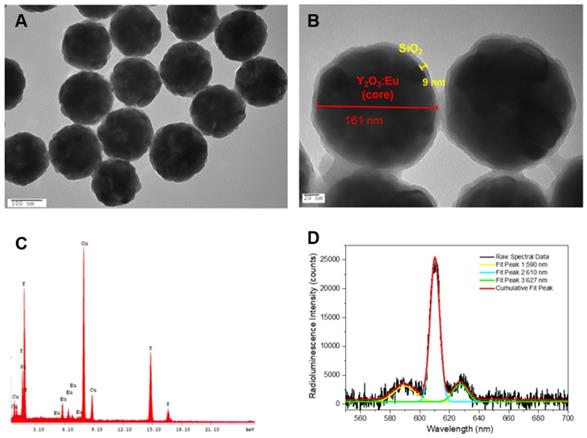

Characterization of Y2O3:Eu@SiO2. TEM images of (A) Y2O3:Eu and (B) Y2O3:Eu@SiO2; (C) EDX analysis of Y2O3:Eu@SiO2 particles, and (D) Typical radioluminescence spectra showing dominant emission peaks at 590, 610 nm, and 627 nm, as well as their corresponding, independent Gaussian curve-fits.

Theranostics Image

We have compared photoluminescence and ROS generation efficiency between annealed and pre-annealed nanoparticles. Both photoluminescence and ROS generation of pre-annealed Y2O3:Eu nanoparticles are significantly weaker than those of annealed Y2O3:Eu nanoparticles (data no shown), the results are in consistent with previous reports. The precursor (Y(OH)CO3·H2O):Eu3+ nanoparticles contains many hydroxyl groups and is either amorphous or paracrystalline. Due to the defects produced during the preparation process and impurities contained in the raw materials, the samples inevitably have quenching centers (traps), which induce non-radiative transitions and decrease the photoluminescence and ROS generation efficiency. Therefore, a calcination process is indispensable for dehydroxylation and crystallization [47-49]. We next investigated X-RL imaging and radio-sensitization of different Eu doping concentrations to determine if there is an Eu-dependent effect. First, the dependence of RL intensity from Eu3+ content was measured, as showed in Figure 2A. It is observed that the relative intensity of 610 nm X-RL first increased up to 2 mol% of Eu3+ concentration, and then decreased while Eu3+ dopant concentration continuously increased. This decrease of X-RL as the doping Eu3+ level higher than 2 mol % should be resulting from the concentration dependent quenching caused by the cross-relaxation between neighboring Eu3+ ions [50,51]. Thus, the optimal concentration of Eu3+ ions in our prepared Y2O3:Eu@SiO2 is 2 mol% at the time of synthesis. Scintillators are generally capable of converting high-energy X-rays and gamma rays into UV-visible lights. Limited investigations exist on ROS generation from scintillators. In the case of X-ray inducible PDT, energy transfer may occur if a significant overlap exists between the emission of the donor and the absorption of the acceptor. In order to elucidate the ROS generation mechanism in our study, the contribution of Eu3+ concentration to the enhanced generation of hydroxyl radical under X-ray irradiation was estimated by electron paramagnetic resonance (EPR) spectrum (Figure 2B). In the case in which Y2O3:Eu@SiO2 was mixed with BMPO under X-ray irradiation, the EPR revealed a four-line spectrum which implied an BMPO-OH adduct [52]. It is worth noting that as shown in Figure 2C, the intensities of O2•-/•OH EPR signals for the as-prepared particles with various Eu3+ doping concentrations showed no significant difference. Thus, we do not expect a dominant contribution of Eu3+ ions to the ROS generation process under X-ray excitation. At the same time, the RL of Y2O3:Eu@SiO2 was also observed in the absence of O2, as shown in Figure 2D. Moreover, no significant RL variation was found between the normal and O2 ablation conditions, which indicated that implied RL in our established system is an O2- systems, and thus Y2O3:Eu@SiO2 could be employed in image-guided radiotherapy.

PDT allows the destruction of tumors by generating more reactive oxygen species, most often by the singlet oxygen via type II reaction. Herein, the contribution of Y2O3:Eu@SiO2 to the enhanced generation of singlet oxygen production under X-ray irradiation was quantified by measuring the decrease in the optical absorption at 420 nm of Y2O3:Eu@SiO2 nanoparticles suspended in DPBF. Figure 3A illustrates the photobleaching of DPBF in H2O in the presence of Y2O3:Eu@SiO2 nanoparticles as a function of X-ray dose, relative to a pristine DPBF control (nanoparticle-free) solution. The decrease of DPBF absorption with X-ray dose in the Y2O3:Eu@SiO2 nanoparticle suspension reflects the efficient generation of highly reactive 1O2. Recently, some groups reported that silica coating enhanced luminescent intensity and suspensibility of Eu-doping phosphor [53-55]. However, with a thick silica layer, the efficiency of the radio-sensitizer may be reduced because it is difficult for reactive singlet oxygen species to diffuse out of the silica layer [56]. In our study, the result demonstrated that there was no obvious effect in the sensitization enhancement under thin silica coating.

 Figure 2

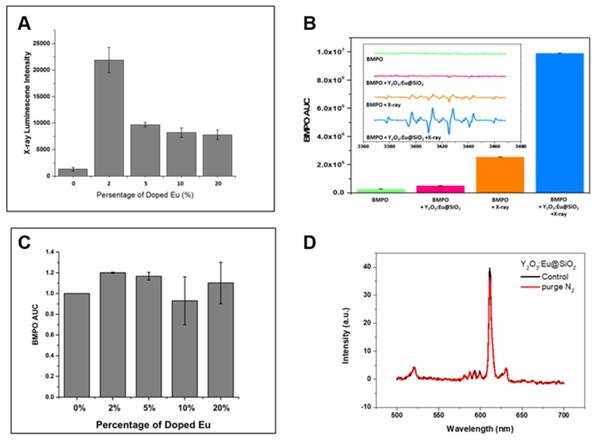

RL and O2•-/•OH generation variation at different conditions. (A) Emission spectrum Y2O3:Eu@SiO2 with different Eu3+; (B) concentration demonstration of superoxide anion/hydroxyl radical enhanced by Y2O3:Eu@SiO2 under ionizing irradiation; (C) Relative ESR intensity Y2O3:Eu@SiO2 with different Eu3+ concentration. (D) Emission spectra of Y2O3:Eu@SiO2 nanoparticle before (black) and after bubbling N2 gas (red).

Theranostics Image
 Figure 3

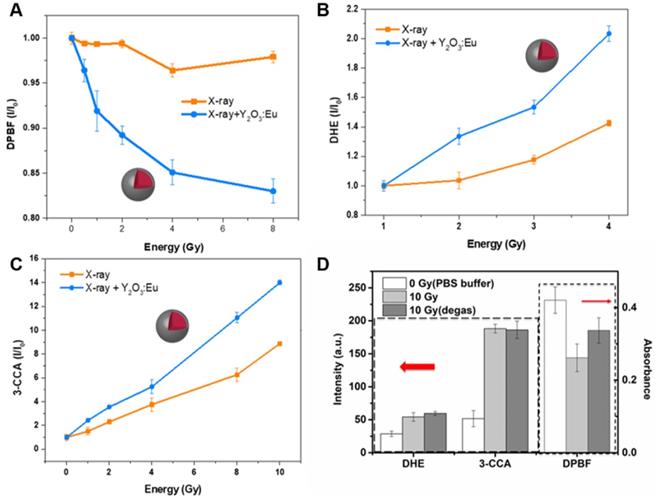

ROS generation kinetics of Y2O3:Eu@SiO2 as a function of X-ray absorbed energy. (A) 1O2 measured by DPBF; (B) O2•- measured by DHE; and (C) •OH measured by 3-CCA. (D) ROS generation of Y2O3:Eu@SiO2 before (light grey) and after bubbling N2 gas (dark grey) with 10 Gy X-ray. The samples of Y2O3:Eu@SiO2 without X-ray irradiation is as control group (checkered).

Theranostics Image

Besides singlet oxygen, other biologically important reactive oxygen species (ROS), such as •OH and O2•-, were also characterized during the X-ray excitation of Y2O3:Eu@SiO2 nanoparticles. The DHE is highly sensitive to O2•- and responses increased as the X-ray absorbed energy. As shown in Figure 3B, only Y2O3:Eu@SiO2 yielded a considerable amount of O2•- under X-ray irradiation. Furthermore, we employed 3-CCA as a trapper to determine whether hydroxyl radical generation can be enhanced by irradiated Y2O3:Eu@SiO2. From the result shown in Figure 3C, one can clearly observe the enhanced generation of •OH that arises from the presence of Y2O3:Eu@SiO2 nanoparticles as a function X-ray irradiation dose. Furthermore, it was statistically determined that the 1O2, O2•-, and •OH generations were enhanced by 8.0, 5.4 and 1.6-fold, respectively, in use of Y2O3:Eu@SiO2 mediated X-ray PDT.

In previous investigations, metallic materials with a high atomic number (Z), such as gold nanoparticles have been demonstrated to enhance photoelectric and Compton effects (and thus the subsequent emissions of secondary electrons) to augment radiation therapy efficacy. However, there are only limited investigations on ROS generation from scintillators. Y2O3 was shown to be an effective scintillator that procures self-trapped excitons at defect sites within the bulk matrix under X-ray irradiation. The incident X-ray photons promote electronic transitions from the valence band to the conduction band and create holes (h+) with oxidizing power in the valence band, and electrons (e-) with reducing power in the conduction band, respectively [57,58]. In this work, the contribution of annealing-treated Y2O3:Eu@SiO2 to the enhanced generation of a specific type of ROS (e.g., •OH, O2•- and 1O2) could be related to the electronic structures of the Y2O3:Eu@SiO2 nanoparticles, as well as the redox potentials (EH) of the different ROS generation reactions. Specifically, upon X-ray illumination, a part of energy could transfer from Y2O3 nanoscintillators to the Eu3+ optical center for fluorescence emission; another part of X-ray energy would be imparted to generate electron-hole pairs (Scheme 1). The photoexcited electrons and holes then react with an aqueous electron acceptor (i.e., molecular oxygen) and donor (i.e., water and hydroxyl ions), respectively, to produce different types of ROS. In a previous study, Li and coworkers reported that ROS generation reactions are thermodynamically favorable and predictable by aligning valance band (Ev), conduction band (Ec), and EH, and vice versa [59]. As has been demonstrated in previous research, the band gap of Y2O3 is 5.6 eV, and the theoretical Ev and Ec were 5.25 eV and -0.35 eV, respectively [60]. As shown in Figure 3, our experimental results indicated that Y2O3:Eu@SiO2 generated more O2•- than the control alone. This suggests that, since the Ec value of Y2O3 (-0.35 eV) is lower than the EH of O2/ O2•- (-0.2 eV), electrons could transfer from Y2O3 to O2 and drive superoxide anion generation. Similarly, the EH for •OH and 1O2/O2 generation is approximately 2.2 eV and 1.8 eV, respectively. This means that the holes of Y2O3 (Ev = 5.25 eV) could theoretically oxidize H2O into •OH, and drive 1O2 production in Y2O3 solution. It is noteworthy that, unlike conventional PDT that is dependent on the availability of oxygen concentration for Type II reaction, our established PDT effect comprises both Type II energy transfer (oxygen-dependent) and Type I redox reactions (oxygen-independent), and thus minimizes the impediment imposed by the tumor hypoxia on PDT. To further evidence this claim and investigate forms of induced ROS, Y2O3:Eu@SiO2 responses to the absence of O2 gas were monitored using different indicators for specific ROS inductions following X-ray irradiation. As shown in Figure 3D, a pronounced decrease of singlet oxygen was observed after O2 deprivation under ambient temperature. By contrast, no significant reductions were found in hydroxyl radical and superoxide anion generations in the absence of O2. Given the observations, Y2O3:Eu@SiO2 produces comprehensive X-ray activated photodynamic reactions that encompass 1O2, hydroxyl radical, and superoxide anion, implicating its highly potential utility in PDT for hypoxic cancers.

In order to investigate the use of Y2O3:Eu@SiO2 for biomedical X-ray excited optical luminescence (XEOL) imaging applications, a cabinet irradiator unit was outfitted with a detector positioned perpendicular to a light-tight imaging space (Figure 4A). To determine the temporal resolution of the X-RL imaging system, RL from 0.1 to 3 mg of Y2O3:Eu@SiO2 in 10% gelatin with 1% intralipid phantom were captured under various detector exposures following X-ray irradiation (Figure 4B). Next, to confirm the practical application of X-RL of Y2O3:Eu@SiO2, various concentrations of Y2O3:Eu@SiO2 were i.t injected into the back flanks tumor of the mice. Anesthetized mice were imaged over 10 s using our custom X-RL imaging system operating under 160 kVp and 5 mA. RL emissions from the 1 mg Y2O3:Eu@SiO2 inclusion were clearly detectable from the injection site (Figure 4C). In order to test the feasibility of our proposed method in real samples, the mice were sacrificed, and the unknown concentrations of Y2O3:Eu@SiO2 in different tumors were analyzed using ICP-MS. The analytical results are shown in Table 1. The results obtained with X-RL imaging were in good agreement with those obtained by using the ICP-MS method, with a relative error of less than 10%, except 1 mg of Y2O3:Eu@SiO2. These results demonstrate that our proposed method in this work is applicable for real-time detection in in vivo study. As shown in Figure 3, we have demonstrated that the ability of ROS generation of Y2O3:Eu@SiO2 is independent of europium dopant ion concentration. In addition, in consideration of lanthanide ions are close in ionic radius to yttrium (for example, 1.933 A° for Yb, 1.761 A° for Er and 1.8 A° for Y), the lanthanide ions could be incorporated into the Y2O3 host without significant lattice distortions. It implicated that we could replace europium with other rare-earth elements (such as Yb3+ and Er3+), so to shift the corresponding radioluminescences toward longer wavelengths for better tissue penetration.

 Scheme 1

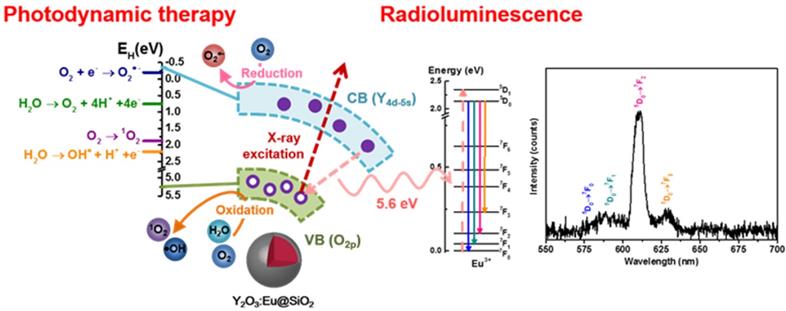

Plot for potential mechanism of ROS generation and radio-luminescence (RL) in Y2O3:Eu@SiO2.

Theranostics Image
 Figure 4

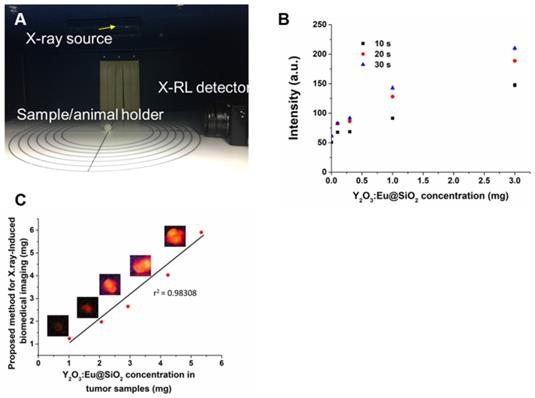

X-RL image for deep tissue imaging activated by X-ray. (A) X-RL imaging system consists of a highly sensitive X-RL detector (CCD camera) and X-ray irradiator cabinet is enclosed within a light tight environment. (B) Exposure sensitivity of the X-RL imaging system was assessed by exciting Y2O3:Eu@SiO2 phantoms under 160 kVp X-rays. (C) The in-vivo calibration curve of X-RL intensity vs. particle concentration using subcutaneously inoculated SKOV3 tumor model.

Theranostics Image
 Figure 5

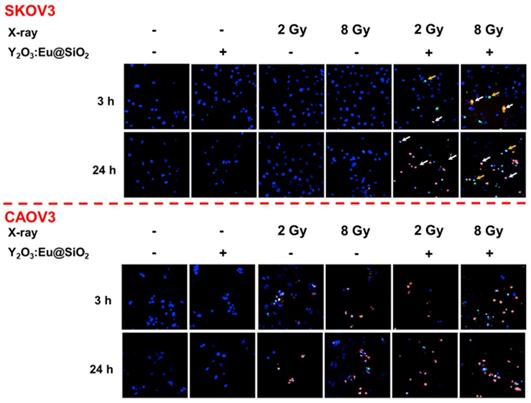

X-ray PDT induced cellular damage in ovarian cells. Confocal fluorescence microscopy images showing the radiotherapy performance of radioresistant SKOV3 (upper) and radiosensitive CAOV3 (bottom) cancer cells. YO-PRO-1 (green) and propidium iodide (PI) signals (red) denote leakage of the cell and nuclear membranes, respectively. The accumulative Y2O3:Eu@SiO2 enhanced the ROS generation and increased frequencies of early apoptosis (yellow) and necrosis (white).

Theranostics Image
 Table 1

Comparison of Y2O3:Eu@SiO2 concentrations measured using ICP-MS and X-RL in subcutaneously inoculated SKOV3 tumor model

Sample No.ICP-MSProposed methodaRelative error (%)
11.0158 (mg)1.2393 (mg)18%
22.0641 (mg)1.9695 (mg)4.8%
32.9323 (mg)2.6457 (mg)10.8%
44.2409 (mg)4.0297 (mg)5.2%
55.3345 (mg)5.9025 (mg)9.6%

a Using radioluminescence property of Y2O3:Eu@SiO2.

Prior to any biological application, the cytotoxicity of the as-prepared Y2O3:Eu@SiO2 was first assessed by an MTT assay. Different concentrations of Y2O3:Eu@SiO2 were incubated with either CAOV3 or SKOV3 cells for 24 h in cell culture medium. As shown in Figure S1, at a concentration as high as 100 μg mL-1, the cell viability of both CAOV3 and SKOV3 still remained above 90% after 24 h incubation with Y2O3:Eu@SiO2, demonstrating the excellent biological compatibility of Y2O3:Eu@SiO2. As mentioned above, we have demonstrated that the X-ray irradiation of annealing-treated Y2O3:Eu@SiO2 nanoparticles generated ROS via comprehensive photodynamic effects (both Type I and II). Consequently, we evaluated if the ability of the as-synthesized Y2O3:Eu@SiO2 to generate ROS and induce cell damage after exposure to X-ray radiation which using both radio-sensitive (CAOV3) and radio-resistant (SKOV3) cell lines. As shown in Figure 5, untreated and Y2O3:Eu@SiO2 treated CAOV3 cells exhibited negligible change in cell viability. Under X-ray irradiation, cells showed positive for PI staining within 3 h, as an indication of cell death, and the number of viable cells decreased after 24 h incubation. In contrast with CAOV3 cells, SKOV3 cells exhibited negligible change in cell viability in untreated, Y2O3:Eu@SiO2, and X-ray alone groups. We postulate that these finding reflect that the radio-resistant SKOV3 cells eliminated the ROS by its intracellular repair capability [61]. The combined treatment showed cells with a positive signal for YO-PRO-1 at the initial phase (3 h), indicating changes in plasma membrane permeability. At the late phase (24 h), the majority of cells were positive for PI staining. These results demonstrated that our Y2O3:Eu@SiO2 overcame the resistance of SKOV3 cells.

The destruction of tumor cells following X-ray irradiation of Y2O3:Eu@SiO2 nanoparticles was determined by clonogenic assay, i.e., based upon the ability of a single cell to grow, post-treatment, into a colony. As shown in Figure 6, significant killing of both SKOV3 and CAOV3 cells was observed in the presence of Y2O3:Eu@SiO2 nanoparticles with both 150 keV and 250 keV X-ray, and considerably more than with radiation alone. For the radiation-sensitive CAOV3 cells, the nanoparticles enhanced the therapeutic effect up to 40% in the 2 Gy of 150 keV X-ray. Most importantly, in the radio-resistant SKOV3 cells, more than 50% cell death was shown with Y2O3:Eu@SiO2 nanoparticles at 2 Gy of 150 keV X-ray irradiation. The Y2O3:Eu@SiO2 nanoparticles demonstrated significant therapeutic potential with lower dosage and energy X-ray irradiation in both radio-sensitive and resistant ovarian cancer cells.

Ovary is a radiosensitive tissue, and damage to ovary is of profound importance owing to the lack of repair of normal tissue and potentially severe sequelae. Because ovarian cancer is rarely confined to the pelvis, whole abdominal radiotherapy (WAR) was used to sterilize large volumes of micrometastatic intraperitoneal disease. Limited tolerance of the bowel, kidneys and liver also reduces the amount of radiation. Therefore, low-dose hyperfractionation could be considered as part of the standard management for ovarian cancer [62-65]. Encouraged by the in vitro results, we further investigated an approach that is relevant to clinical stereotactic body radiation therapy: combination of radio-sensitization enhancement with a fractionated radiation regimen. Radiation was administered in four fractions of 8 Gy every other day (q1d×4) (Figure 7A). The effects of various treatments on the growth of subcutaneous SKOV3 tumors are shown in Figure 7B. The tumors in the control group progressively increased in size, which enlarged nearly by four-fold in tumor volume within 14 d. Compared with the aggravating increase tendency in the control group, either Y2O3:Eu@SiO2 or X-ray radiation alone caused visible tumor growth delay within the first 4 d, accompanied by an approximately 25% and 50% tumor volume decrease at the end of 14 d, respectively. In the combination regimen, the tumor growth inhibition was enhanced; resulting in tumor growth stasis during the period of 25 d. Overall, tumor volume was delayed by five-fold compared to the control (474 mm3 vs. 2371 mm3). After 24 d, five of the six mice treated with Y2O3:Eu@SiO2 and X-ray survived. The survival rates in those treated with X-ray alone, Y2O3:Eu@SiO2 alone and control group were 66%, 0%, and 0%, respectively. (Figure 7C). No obvious toxicity was observed in the mice following Y2O3:Eu@SiO2 administration, such as sudden death, abnormal behavior, significant changes of food in body weight. In addition, the histopathology examination confirmed that the structural patterns of major organs, including heart, liver, spleen, lung and kidney, of both the Y2O3:Eu@SiO2 combined with X-ray irradiation group and X-ray alone group are similar to those of the control group. These results suggest that no obvious acute toxicity reaction was induced in the treatments (Figure S2).

 Figure 6

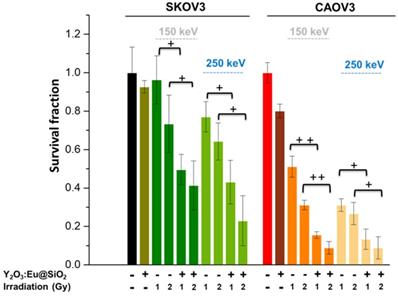

Survival of the ovarian cells for various tube voltages. Clonogenic survival assays of SKOV3 and CAOV3 cells treated with radiation alone or with Y2O3:Eu@SiO2 incubation for 24 h followed by X-ray radiation, respectively.

Theranostics Image
 Figure 7

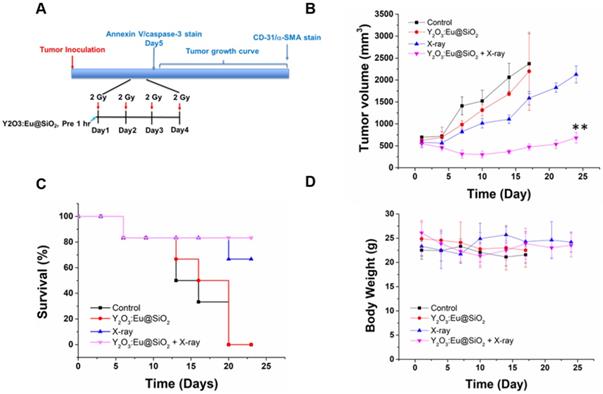

Synergistic effects on tumor growth delay with combined X-ray PDT and fractionated radiation therapy. (A) The treatment protocol for using hyperfractionated radiation therapy. (B) Radiosensitizing effect of Y2O3:Eu@SiO2 combined with X-ray irradiation in nude mice bearing SKOV3 tumors. Tumor growths after treatments with PBS, 8 Gy irradiation, Y2O3:Eu@SiO2 with or without 8 Gy irradiation. Each value represents the mean ± SEM of tumor volume in mm3 relative to that measured at the beginning of treatment. (C) Mouse survivals following various treatments. (D) The body weight of mice after various treatments.

Theranostics Image
 Figure 8

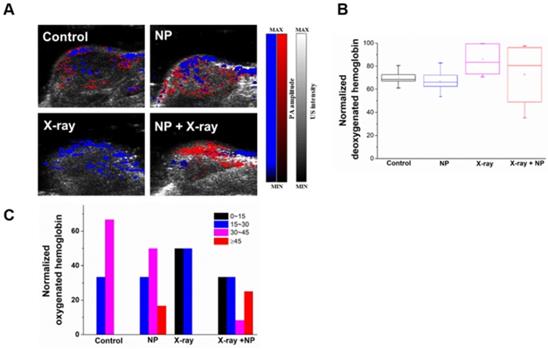

Validation of hypoxic conditions observed in photoacoustic images in vivo. (A) Oxygen saturation of a representative tumor cross-section profiled by photoacoustic image. (B) Mean deoxygenated hemoglobin of each group after X-ray irradiation. (C) Illustrations of the heterogeneous oxygenated hemoglobin distribution of different treatment groups.

Theranostics Image

It is well known that the response of tumor cells to radiation is closely related to oxygen supply through blood perfusion, and that fractionated radiotherapy minimizes radiation-induced vascular damage, thereby allowing reoxygenation of hypoxic tumor cells. To evaluate the contribution of Y2O3:Eu@SiO2 presence to radiation dose enhancement and reoxygenation, photoacoustic imaging (PAI) was performed to discern oxygen saturation (SO2) from the oxygenated and deoxygenated hemoglobin at different wavelengths of 850 and 750 nm, respectively [66-68]. As seen in Figure 8A, the PAIs did not show any observable changes between the control and Y2O3:Eu@SiO2 alone group. Furthermore, we noticed an unusual SO2 decrease was found in the X-ray alone group after the treatment process. Surprisingly, the PAI in the combined group exhibited an observable increase in the SO2. This is of particular interest when considering potential applications of Y2O3:Eu@SiO2 in X-ray PDT. Through measurement of SO2 levels, the relative mean SO2 showed a slight difference between the X-ray and the combined group (Figure 8B). Furthermore, the normalized sO2 at the periphery of Y2O3:Eu@SiO2 were obtained and quantified. It was found that the tumor treated with X-ray leads to a decrease of the SO2 distribution (sO2 was 50% at sO2 0~15% and 50% at sO2 15~30%), when compared to the control (sO2 was 33.3% at sO2 15~30% and 66.7% at sO2 30~45%) and the Y2O3:Eu@SiO2 alone groups (sO2 was 33.3% at sO2 15~30%, 50% at sO2 30~45% and 16.7% at sO2 ≥45%) (Figure 8C). This phenomenon is in agreement with the extant literature [69], and is ascribed to endothelial death (with a threshold dose of 5~10 Gy) and a decrease in oxygen supply after X-ray irradiation. Moreover, Hasan et al. reported that PDT, as well as high single-dose radiation therapy, can create a temporal hypoxia region in tissue adjacent to perfused blood vessel [70]. This event might be expected to attenuate radiation therapy response. Additionally, an inadequate supply of O2 (hypoxia) has long been recognized as a cause of radio-resistance, in which hypoxic tumor cells are approximately three times more resistant to radiotherapy (known as ''the oxygen effect”). Interestingly, the Y2O3:Eu@SiO2 with X-ray group showed enhanced sO2 level at the periphery of tumor administered with Y2O3:Eu@SiO2 (sO2 was 33.3% at sO2 0~15%, 33.3% at sO2 15~30%, 8.4% at sO2 30~40% and 25% at sO2 ≥45%). It could be reasonably speculate that, upon X-ray PDT, the oxygen demand in tumors is drastically diminished due to severe damage to tumor cells. On the other hand, the oxygen supply through blood perfusion continuously contributes to the intratumoral oxygen tension. Potiron et al. demonstrated that fractionated radiotherapy increased intratumoral doxorubicin diffusion [71]. These results are in accordance with Hansen et al., who reported that tumors displayed an increased mean accumulation of liposomes for radiation doses up to 10 Gy [72]. We observed obvious difference between the sO2 values of the X-ray alone and the combined groups at 1 h post-X-ray PDT.

Induction of apoptosis in SKOV3 tumors at the end after various treatments is depicted in Figure 9A. As illustrated in Figure 9A, tumors treated with X-ray combined with Y2O3:Eu@SiO2 showed the highest Annexin V expression, an early apoptosis marker, as compared to tumors with only X-ray irradiation and with Y2O3:Eu@SiO2 alone. Moreover, the strongest caspase 3 signal was also observed in the group of X-ray combined with Y2O3:Eu@SiO2, suggesting that Y2O3:Eu@SiO2 effectively enhanced radiotherapy via cell apoptotic cascade. To explore other possible mechanisms besides apoptosis that synergistically contributed to the enhanced inhibition of tumor growth in the presence of our annealed Y2O3:Eu@SiO2, we further assessed tumors harvested from various groups with immunofluorescence (IF) imaging of CD-31. The IF images showed a decrease in CD-31 positive endothelial cells at the end of treatment compared to the other groups (Figure 9B). Consistent with previous reports, high doses of radiation induced additional tumor cell killing through “non-classical” radiobiological mechanisms, mediated by tumor microvascular damage [73-75]. Specifically, Demidov et al. carried out longitudinal in vivo imaging observations, and demonstrated that maximal tumor shrinkage increases with dose, and the time to initial vascular volume density recovery is also dose-dependent. In our study, sO2 in the combined group increases rapidly after irradiation, probably due to damage in the endothelial cells followed by widening of the gaps between endothelial cells. However, we also observed the vascular volume density declined at the end of treatment in combined group. Wang and colleagues reported copper-cysteamine NPs-mediated X-PDT, which caused a decrease in the number of vessels, but did not inhibit the growth of radio-resistant melanoma [76]. In our study, we demonstrated NP-mediated X-ray PDT combined with fractionated radiation therapy, which decreased the tumor vessels at the end of in vivo study. Further, multi-shots X-ray PDT treatment improved oxygen distribution at the periphery of tumor administered with Y2O3:Eu@SiO2, and enhanced efficiency of X-ray to inhibit the growth of radio-resistant SKOV3. To further validate and assessed these findings, CD-31 and α-smooth muscle actin (α-SMA) stain was utilized to depict the vascular remodeling and pericyte recruitment. As shown in Figure 9C, a decrease in CD-31 (64%) intensity was found at the end of treatment compared to non-irradiated and NP alone tumors. Interestingly, in the X-ray alone group, an increase in α-SMA intensity was observed after three weeks of RT compared to non-irradiated (2.3-fold), NP alone (1.4-fold), and NPs combined with X-ray irradiated tumors (2.4-fold), indicating that the sublethal dose of irradiation could enhance radiotherapy-induced vascular remodeling at the late stage (Figure 9D). The X-ray induced vascular remodeling indexed with α-SMA was compromised in combined group is probably ascribed to the ROS generated by the annealed Y2O3:Eu@SiO2 following X-ray irradiation, where the photoexcited electrons and holes of Y2O3 react with an aqueous electron acceptor (i.e., molecular oxygen) and donor (i.e., water and hydroxyl ions) to produce different types of ROS that abolish pericyte recruitment. Together, these findings implicate that annealed Y2O3:Eu@SiO2 combined with fractionated radiation therapy has the potential to be utilized to reverse vascular remodeling-enhanced tumor resistance to radiation therapy.

 Figure 9

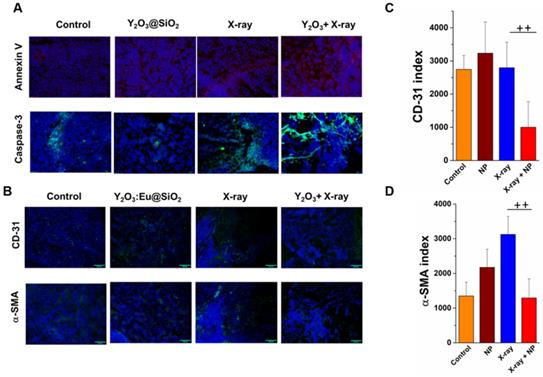

RT induces tumor redistribution and vascular damage. (A) Representative scanner images of immunohistochemistry for Annexin V and caspase-3 in SKOV3 tumors. (B) Representative scanner images of immunohistochemistry for endothelial cells (CD-31) and pericytes (α-SMA) for the different treatment groups after the four days radiation therapy. (C) (D) quantification of CD-31+ and α-SMA in SKOV3 tumor. Index values shown in (C) and (D) represent the mean of n≥3 ± SEM.

Theranostics Image

Conclusion

In summary, we have developed Y2O3:Eu@SiO2 nanoscintillators that could be potentially used for X-RL imaging-guided radiotherapy with a significant radio-sensitization enhancement. It is notable that the annealing pretreatment is critical for Y2O3:Eu@SiO2 to render such a PS-independent radio-sensitization enhancement that comprises comprehensive photodynamic effects and pronounced RL for possible imaging guidance and in-situ dosimetry assessment. This report further demonstrated that RL emission and ROS generation constitute two parallel and independent mechanisms, which is important as it implicates that the Y2O3:Eu@SiO2 could harness the ionizing radiation efficiently to reach the maximal theranostic utilization. In imaging, the red-emitted X-RL of Y2O3:Eu@SiO2 was quantitatively monitored for nanoparticle tumor accumulation and dosimeter assessment in vivo. However, in consideration of the penetration depth and scattering attribute of red X-RL in tissue, the quantitative dosimetry and imaging of Y2O3:Eu@SiO2 are constrained to superficial tumors. We have demonstrated the ability of ROS generation of Y2O3:Eu@SiO2 is independent of europium dopant ion concentration. Furthermore, due to the similar ionic radius of lanthanide ions to yttrium (for example, 1.933 A° for Yb, 1.761 A° for Er and 1.8 A° for Y), the challenge of producing high-penetration X-RL in our nanotheranostics may be addressed by substituting Eu3+ with other rare-earth-ions such as Yb3+ and Er3+ in the doping process, to possibly tuning and extending the peak emission wavelengths to near infrared I and II regions. In addition, the generation of electron-hole pairs in Y2O3 could react with an aqueous electron acceptor (i.e., molecular oxygen) and donor (i.e., water and hydroxyl ions), which essentially minimize oxygen dependency for the generation of reactive oxygen species. Furthermore, for the in-vivo radio-sensitizing effect of our established nanoparticles, the preliminary results from tumor xenografts suggested that the therapeutic enhancement observed in vivo by Y2O3:Eu@SiO2-derived radio-sensitization could be readily translated to favorable radiotherapy for tumor control. A new indication is noteworthy that Y2O3:Eu@SiO2 in combination with fractionated radiation therapy could induce vascular remodeling that accompanied by decreased hypoxia distribution intratumorally. It is anticipated to alleviate the radiobiological effect associated with tumor radioresistance and to substantially improve conventional PDT.

Supplementary Material

Supplementary figures and tables.

Attachment

Acknowledgements

This work was financially supported by research funds collectively from MOST 105-2113-M-400-007-MY3 (Ministry of Science and Technology of Taiwan) and 06A1-PP04-014 (National Health Research Institutes of Taiwan). We would also like to acknowledge the assistance in proof editing provided by Dr. Jeffery S. Souris in Department of Radiology, The University of Chicago, USA, and Dr. Maharajan Sivasubramanian in Institute of Biomedical Engineering and Nanomedicine, National Health Research Institutes, Taiwan.

Competing Interests

The authors have declared that no competing interest exists.
