Theranostics 2019; 9(7):1825-1836. doi:10.7150/thno.31893
Gold Clusters Prevent Inflammation-Induced Bone Erosion through Inhibiting the Activation of NF-κB Pathway
1. Department of Chemistry and Chemical Engineering, Beijing University of Technology, Beijing 100124, China
2. CAS Key Laboratory for the Biological Effects of Nanomaterials and Nanosafety, Institute of High Energy Physics, Chinese Academy of Sciences, Beijing 100049, China
Yuan Q, Gao F, Yao Y, Cai P, Zhang X, Yuan J, Hou K, Gao L, Ren X, Gao X. Gold Clusters Prevent Inflammation-Induced Bone Erosion through Inhibiting the Activation of NF-κB Pathway. Theranostics 2019; 9(7):1825-1836. doi:10.7150/thno.31893. Available from https://www.thno.org/v09p1825.htm
Inflammation-induced bone erosion is a major pathological factor in several chronic inflammatory diseases that often cause severe outcomes, such as rheumatoid arthritis and periodontitis. Plenty of evidences indicated that the inflammatory bone destruction was attributed to an increase in the number of bone-resorbing osteoclasts. However, anti-resorptive therapy alone failed to prevent bone loss in an inflammatory condition. Conventional anti-inflammation treatments are usually intended to suppress inflammation only, but ignore debilitating the subsequent bone destruction. Therefore, inhibition of proinflammatory activation of osteoclastogenesis could be an important strategy for the development of drugs aimed at preventing inflammatory bone destruction.
Methods: In this study, we synthesized a peptide coated gold cluster to evaluate its effects on inflammatory osteoclastogenesis in vitro and inflammation-induced bone destruction in vivo. The in vitro anti-inflammation and anti-osteoclastogenesis effects of the cluster were evaluated in LPS-stimulated and receptor activator of nuclear factor κB ligand (RANKL) stimulated macrophages, respectively. The LPS-induced expression of crucial pro-inflammation cytokines and RANKL-induced osteoclastogenesis as well as the activation of NF-κB pathway in both situations were detected. The inflammation-induced RANKL expression and subsequent inflammatory bone destruction in vivo were determined in collagen-immunized mice.
Results: The gold cluster strongly suppresses RANKL-induced osteoclast formation via inhibiting the activation of NF-κB pathway in vitro. Moreover, treatment with the clusters at a dose of 5 mg Au/kg.bw significantly reduces the severity of inflammation-induced bone and cartilage destruction in vivo without any significant toxicity effects.
Conclusion: Therefore, the gold clusters may offer a novel potent therapeutic stratagem for inhibiting chronic inflammation associated bone destruction.
Keywords: gold cluster, osteoclastogenesis, inflammatory bone destruction, NF-κB pathway
Inflammation-induced progressive bone destruction is a major pathological feature of chronic inflammatory diseases, including rheumatoid arthritis (RA), periodontitis and osteoporosis [1-3]. Conventional treatments for such chronic inflammatory diseases are intended to inhibit inflammation only, but few treatments are debilitating of inflammatory bone destruction [4, 5]. However, even under anti-inflammation treatment, a large number of patients continue to suffer from such severe bone destruction [1, 6]. Therefore, there is an urgent need for more effective therapeutics to reduce inflammation-induced bone destruction.
Bone erosion is considered to be mediated primarily by enhanced activation of osteoclasts (OCs) [6, 7]. In the pathogenesis of chronic inflammatory diseases, focal bone erosion is also predominantly generated by an increase in the number of bone- resorbing osteoclasts [4, 8]. The most crucial cytokine involved in osteoclast development and activation is the receptor activator of nuclear factor κB ligand (RANKL), which belongs to the TNF family . Expression of RANKL may be regulated by several pro-inflammatory cytokines, including tumor necrosis factor (TNF-α), interleukin 1 (IL-1) and interleukin 6 (IL-6) [7, 9]. Therefore, inhibition of pro-inflammatory activation of osteoclastogenesis could be an important strategy for the development of drugs aimed at preventing inflammatory bone destruction.
Recent years, gold clusters have attracted more attention for their excellent biocompatibilities and synergistic biomedical properties [10, 11]. In this study, we firstly synthesized a peptide coated gold cluster to evaluate its effects on inflammatory osteoclastogenesis in vitro and inflammation-induced bone destruction in vivo. The results showed that the gold cluster can significantly inhibit inflammation- induced RANKL expression and subsequent RANKL- triggered osteoclast differentiation, blocking inflammatory bone destruction in collagen-immunized DBA/1 mice without any significant toxicity effects. Further studies suggest that disruption of the activation of NF-κB pathway may contribute to osteoclastogenesis inhibition and bone protection activities of the gold cluster.
Reagents and cell line
All chemical reagents were purchased from Sigma-Aldrich (USA). The peptides were purchased from China Peptides Co. Ltd. (purity: 95%). All the primary antibodies were purchased from Cell Signaling Technology Inc., (USA) and the secondary antibody was bought from Beyotime Biotechnology (China). The blocking buffer and primary antibody dilution buffer for western blot were obtained from Beyotime Biotechnology. All cell culture reagents were purchased from Thermo Fisher Scientific Inc. (GibcoTM, USA). The mouse macrophage RAW 264.7 cell was obtained from the American Type Culture Collection (ATCC). Recombinant Mouse RANKL was purchased from R&D systems, Inc. (USA).
Preparation of Au25Sv9 clusters
An aqueous solution of HAuCl4 (25 mM, 16 μL) was slowly added to peptide solution (1.06 mM, 376 μL) in a 5 mL vial under vigorous stirring, and then NaOH (0.5 M, 8 μL) was added within 30 s to give a final pH of 10. The sample was sealed and stored in darkness for 15 h avoiding any disturbance to produce the Au25peptide9 products. The as-synthesized products were dialyzed for 12 h (Dialysis Tube MWCO: 500) to remove free HAuCl4 and NaOH. Then the sample was further concentrated by using an ultrafiltration tube (Millipore, USA, MWCO3000) to remove free peptides. The purified Au25peptide9 was sterilized by filtration with 0.22 μm filter for cell treatment. An aliquot was detected by ICP-MS to quantify the Au content and the rest was sealed and stored in dark under 4 ℃.
Characterization of Au25Sv9 clusters
A PerkinElmer (LS-55) fluorescence spectrometer (PerkinElmer, USA) with Xe lamp was used to detect the excitation/emission spectra of Au25Sv9. The excitation and emission slits were both 10 nm and the scanning speed was 400 nm/min. The synthetic Au25Sv9 was observed by high-resolution transmission electron microscopy (HRTEM). Samples were prepared by casting and evaporating on a 300-mesh holey carbon-coated copper grid (Electron Microscopy Sciences, Washington, USA). High resolution images were obtained by TENCAI F20 high resolution transmission electron microscopy (FEI, USA) at 200 kV accelerating voltage. The molecular composition of the synthesized clusters was analyzed by matrix- assisted laser desorption/ionization time of flight mass spectrometry (MALDI-TOF MS). An ABI MALDI-TOF system in positive ion linear mode was used. The α-Cyano-4-hydroxycinnamic acid was used as the matrix. Detections were repeated for three times.
Cell viability assay
The viability of RAW264.7 cells was measured by using Cell Counting Kit (CCK-8) (Dojindo Laboratories, Japan). Cells were seeded into 96-well plates at the density of 1×104 cells/well in triplicate. After incubation for 24 h, fresh medium containing different dose of Au25Sv9 was added and incubated for another 48 h. At the indicated time, 1/10 (v/v) CCK-8 solution was added to each well and incubated for 1 h at 37 °C. The absorbency at 450 nm of each wells were measured by a 96-well plate reader (MD, USA).
Osteoclastogenic culture of RAW264.7 cells
For osteoclastogenesis induction, RAW264.7 cells were seeded into 48-well plates at the density of 1 × 104 cells/well and incubated in complete DMEM medium containing 50 ng/mL RANKL (R&D Systems) for indicated days to generate osteoclasts. The inducing medium was refreshed every two days.
Tartrate-resistant acid phosphatase (TRAP) staining assay
After osteoclastogenic inducing for 6 days in the presence of different dose of Au25Sv9 (0.4, 2 and 4 µM), the RAW264.7 cells were washed with PBS twice and fixed with 3.7% paraformaldehyde for 15 min at room temperature followed by permeabilization with 0.1% triton X-100 for 10 min. Fixed cells were stained by using tartrate-resistant acid phosphatase (TRAP) staining kit (387A-1KT, Sigma-Aldrich) for 1 h at 37 °C in the dark following the manufacturer's instructions. TRAP-positive multinucleated (nuclei > 3) cells were counted as osteoclasts using a light microscope (IX71; Olympus).
Actin ring formation assay
RAW264.7 cells were seeded in confocal dishes at the density of 2 × 104 cells/dish and incubated in inducing medium for 6 days in the presence of different dose of Au25Sv9 (0.4, 2 and 4 µM) to form actin rings. Then, the cells were washed twice with PBS and fixed with 3.7% paraformaldehyde for 20 min followed by permeabilization with 0.1% triton X-100 for 15 min at room temperature. Actin rings were stained by rhodamine-conjugated phalloidin (Cytoskeleton, Inc., Denver, USA) after washed with PBS, and cell nucleus were stained with DAPI (Sigma-Aldrich) for 5 min. The formation of actin rings in each sample was visualized by confocal laser scanning microscopy (Nikon Ti-E imaging system, Tokyo, Japan).
Bone resorption assay
RAW264.7 cells were cultured in Corning Osteo Assay Surface 24-well plates coated with calcium phosphate substrate at the density of 2 × 104 cells/well. The medium was removed after 24 h incubation and inducing medium containing different dose of Au25Sv9 (0.4, 2 and 4 µM) was added. Culture medium was refreshed every two days. After about 6 days, cells were removed with a 10% sodium hypochlorite and rinsed for three times with water. The bone resorption pits were observed and photographed by light microscope. Image J software was use to quantified the percentage of resorbed bone surface area.
Quantitative real-time polymerase chain reaction (RT-PCR)
RAW264.7 cells were incubated with complete DMEM medium containing 50 ng/mL RANKL and different dose of Au25Sv9 (0.4, 2 and 4 µM) for 48 h. Total RNA was prepared by using an RNeasy Plus Mini Kit (Qiagen, Hilden, NW, Germany), and reverse transcribed with Oligo (dT)15 primer and M-MLV reverse transcriptase following the manufacturer's instructions (Promega, Fitchburg, WI, USA). The transcription of osteoclasts related genes were evaluated, including NFATc1, c-Fos, TRAP, and OSCAR. Quantitative RT reactions were performed by using iQ™ SYBR® Green Supermix and iQ™5 Multicolor Real-Time PCR Detection System (Bio-Rad Laboratories, Inc., Hercules, CA, USA) according to the manufacturer's recommendations. GAPDH was used as the internal control and the primers were as follows: NFATc1, forward 5'-TGT TCT TCC TCC CGA TGT CT-3' and reverse 5'-CCC GTT GCT TCC AGA AAA TA-3'; c-Fos, forward 5'-TTG CTG ATG CTC TTG ACT GG-3' and reverse 5'-GGA TTT GAC TGG AGG TCT GC-3'; TRAP, forward 5'-CTG GAG TGC ACG ATG CCA GCG ACA-3 and reverse 5'-TCC GTG CTC GGC GAT GGA CCA GA-3'; OSCAR, forward 5'-CTG CTG GTA ACG GAT CAG CTC CCC AGA-3' and reverse 5'-CCA AGG AGC CAG AAC CTT CGA AAC T-3'; GAPDH, forward 5'-AAA TGG TGA AGG TCG GTG TG-3' and reverse 5'-TGA AGG GGT CGT TGA TGG-3'.
Cells were lysed in ice-cold RIPA lysis buffer (Beyotime, China) containing protease inhibitors (Roch), incubated on ice for 20 min, and centrifuged at 4 °C at 12,000 g. For endonuclear protein detection, cytoplasmic and nuclear proteins were extracted separately by using the Nuclear and Cytoplasmic Protein Extraction Kit (Beyotime Biotechnology). The supernatants were collected from each sample and protein concentrations were determined by the BCA reagent (Beyotime, China). Protein samples were mixed with SDS-PAGE loading buffer (Beyotime, China) and then heated at 95 °C for 5 min. Samples were subsequently resolved on 12% Bis-Tris acrylamide gels, and transferred to PVDF membrane. After blocking with block buffre, the membranes were incubated with specific primary antibodies against IκBα, p-IκBα, NF-κB, p-NF-κB, ERK, p-ERK, JNK, p-JNK, p38, p-p38, Akt and p-Akt (Cell Signaling Technology, Danvers, MA) overnight at 4 °C. After being rinsed three times, the membranes were incubated with corresponding secondary antibodies (Cell Signaling Technology, Danvers, MA) for 1 h at room temperature. Immunoreactive bands were visualized by using the enhanced chemiluminescence (ECL) reagent (GE). For densitometric analysis, ImageJ software (the National Institutes of Health, USA) was used.
Reverse transcription-polymerase chain reaction (RT-PCR)
RAW264.7 cells were incubated with complete DMEM medium containing 1 μg/mL LPS and different dose of Au25Sv9 (0.4, 2 and 4 µM) for 48 h. Total RNA was prepared by using an RNeasy Plus Mini Kit (Qiagen, Hilden, NW, Germany), and reverse transcribed with Oligo (dT)15 primer and M-MLV reverse transcriptase following the manufacturer's instructions (Promega, Fitchburg, WI, USA). The transcription of pro-inflammatory factors was evaluated, including TNF-α, IL-1β and IL-6. PCR reactions were performed by using Q5® High-Fidelity PCR Kit (New England Biolabs, Inc., USA) according to the manufacturer's recommendations. The β-actin was used as an internal control. The amplification products were visualized by agarose gel electrophoresis. The primers were as follows: IL-1β, forward 5'-CAG GAT GAG GAC ATG AGC ACC-3', and reverse 5'-CTC TGC AGA CTC AAA CTC CAC-3'; TNF-α, forward 5'-CCT GTA GCC CAC GTC GTA GC-3', and reverse 5'-TTG ACC TCA GCG CTG AGT TG-3'; IL-6, forward 5'-GTA CTC CAG AAG ACC AGA GG-3', and reverse 5'-TGC TGG TGA CAA CCA CGG CC-3'; and β-actin, forward 5'-GTG GGC CGC CCT AGG CAC CAG-3', and reverse 5'-GGA GGA AGA GGA TGC GGC AGT-3'.
Collagen-induced arthritis (CIA) model and assessment
All animal care and experiments were approved by the Institutional Animal Care and Ethic Committee at the Chinese Academy of Sciences (Approved No. SYXK(jing)2014-0023). Native bovine type II collagen (Chondrex, Inc.) was dissolved in 0.1 mM acetic acid at 4 °C overnight and then emulsified with an equal volume of Complete Freund's Adjuvant (Chondrex, Inc) to prepare a 1 mg/mL immune emulsion. Male 6-week-old DBA/1 mice (Beijing Huafukang bioscience Co., Inc.) were subcutaneously (s.c.) injected at the base of the tail with 0.1 mL of emulsion containing 100 μg of type II collagen. At day 21 after the primary immunization, mice were boosted (s.c.) with 100 μg type II collagen immune emulsion once again. The day after the secondary immunization, mice were treated with Au25Sv9 or saline. The gold clusters were administered i.p. daily at dose of 5 mg Au/kg/day until day 49 after primary immunization. Mice were closely monitored for arthritis disease progression every second day and detected two clinical parameters: ankle circumference and clinical arthritis score. Each limb was graded, and a mean score was calculated for each animal. Body weight of each mouse was also measured every week. At day 49 after primary immunization, blood was collected from each mice for haematological and blood biochemical analysis. The hind limb of each mouse was harvested after sacrificed and imaged with three-dimensional microfocus computed tomography (IVIS Spectrum CT, Perkin Elmer, USA). For histological analysis, hind paws of 5 mice in each group were randomly collected and fixed with 10% paraformaldehyde, then decalcified in 10% EDTA and embedded in paraffin. 5-μm microsection slices were stained with haematoxylin and eosin or indicated antibody. The levels of phosphorylated NF-κB in the histologic sections were quantized by using Color Detection module of Immunohistochemistry (IHC) Image Analysis Toolbox in Image J software, according to the manufacturer's instructions . Joint samples of other 5 mice in each group were isolated from the hind paws and homogenized by ultra-low temperature grinding. The concentrations of TNF-α, IL-1β and IL-6 in the joint tissues lysate were determined using corresponding ELISA kits (Shanghai jianglaibio Co., LTD, China) according to the manufacturer's instructions. Measurement of RANKL was performed on the same samples using Western immunoblotting. The major organs were also excised and fixed in 10% formalin for histopathological examination.
Statistical analysis was performed using SPSS ver. 19.0 software (SPSS, Chicago, IL). Data are represented as mean ± Standard deviation (SD). Statistical differences were assessed by a one-way ANOVA and P < 0.05 was considered to be significant.
Preparation and characterization of Au25Sv9 gold cluster
The gold clusters were synthesized and purified according to a mature method we have established [13, 14]. Briefly, Sv peptide was used to anchor Au cluster via strong Au-S bonds in aqueous solution under mild conditions. Au25Sv9 has excellent water-solubility and the solution displays a clear red-brown colour under sunlight and emits a strong red fluorescence under UV light excited (Figure 1A). Spectral analysis showed the peaks of excitation and emission spectra at 560 nm (red curve) and 656 nm (black curve), respectively (Figure 1B). The precise molecular formula of the cluster was identified by matrix-assisted laser desorption/ionization time of flight mass spectrometry (MALDI-TOF MS) in positive ion mode. The mass spectra consisted of serial strong peaks between 5k-20k m/z and the step between adjacent intense peaks matched with the m/z of one peptide cut two thiol groups (Figure 1C). According to previous reports, Au25 cluster should be stabilized by 18 -SH groups, and each Sv peptide has two Cys. Therefore, we can speculate that the Au25 cluster is coated with 9 peptides [15, 16]. This assumption is confirmed by the serial intense peak in Figure 1C, where the first m/z peak matches the Au25S18 formula.
Effects of Au25Sv9 on LPS-induced inflammation in vitro
Several pro-inflammatory cytokines have been proved to be crucial in regulating the onset and progression of inflammatory bone destruction in chronic inflammatory diseases, including TNF-α, IL-1 and IL-6 [1, 17, 18]. Therefore, we investigated the anti-inflammation activity of Au25Sv9 in LPS-stimulated RAW264.7 cells. The cell viability of RAW264.7 cells with different concentrations of Au25Sv9 was firstly determined by CCK-8 assay. It was found that Au25Sv9 did not induce any significant cytotoxic effect on RAW264.7 cells even at concentrations up to 20 μM after 48 hour of incubation (Figure 2A). Immunoblotting detection showed that the secretions of TNF-α, IL-1β and IL-6 were all increased by LPS stimulation, and was suppressed by adding Au25Sv9 in a dose-dependent manner (Figure 2B). The transcriptional regulation of these cytokines was further determined by RT-PCR assay. The results indicated the transcriptional inhibitory activity of Au25Sv9 on LPS-induced overexpression of these pro-inflammatory cytokines (Figure 2C). There are conclusive evidences that the transcription factor NF-κB is critical for transcription of these cytokines in chronic inflammation diseases [19, 20]. Therefore, activation of the NF-κB pathway in LPS-stimulated RAW264.7 cells in the presence or absence of Au25Sv9 was detected by immunoblotting. According to the results, the phosphorylation of IκB and nuclear translocation of NF-κB were significantly enhanced by LPS when compared to the mock treatment. Supplementation of Au25Sv9 significantly inhibited the activation of NF-κB in a dose-dependent manner (Figure 2D). In addition, the inhibitory effects of the clusters on the LPS-induced activation of NF-κB as well as the secretion of IL-1β and IL-6 were also proved in bone marrow-derived macrophages (BMDMs) (Figure S1). These results indicated that the gold cluster possesses an anti-inflammation potent in activated macrophage.
Effects of Au25Sv9 on RANKL-induced osteoclast formation and bone resorption in vitro
Inflammation-induced bone erosion is caused by an increase in the number of bone-resorbing osteoclasts mediated by RANKL stimulation [5, 9, 21]. RANKL directly regulates the differentiation of osteoclast (OC) from monocyte/macrophage precursor cells and increases their expression by aforesaid pro-inflammatory cytokines under chronic inflammatory conditions [7, 9]. We next evaluated the effect of Au25Sv9 on RANKL-induced osteoclastogenesis in vitro. OCs differentiation from RAW264.7 cells could be identified by tartrate-resistant acid phosphatase (TRAP) staining [22, 23]. Therefore, the number of TRAP+ multinucleated cells (TRAP+ MNCs) in each treatment was counted. As shown in Figure 3A, on day 6 of culture, 50 ng/mL RANKL successfully induced osteoclastogenesis in both presence and absence of Au25Sv9. It was visually observed that RANKL alone induced the highest number of TRAP+ MNCs and supplementation of Au25Sv9 significantly decreased the amount in a dose-dependent manner (Figure 3A). Au25Sv9 inhibited the formation of TRAP+ MNCs from 100% (control) to 69.6%, 41.1%, and 14.3% at 0.4, 2, and 4 μM, respectively (Figure 3B). It's worth noting that, the Sv peptide alone did not affect the formation of TRAP+ MNCs induced by RANKL at an equal dose of 4 μM Au25Sv9, excluding the effect of peptides on osteoclastogenesis. Considering that Au25Sv9 did not have any significant effect on the viability of RAW 264.7 cells at selected concentrations (Figure 2A), it was demonstrated that the inhibitory effect of Au25Sv9 on osteoclast formation was not caused by cytotoxicity.

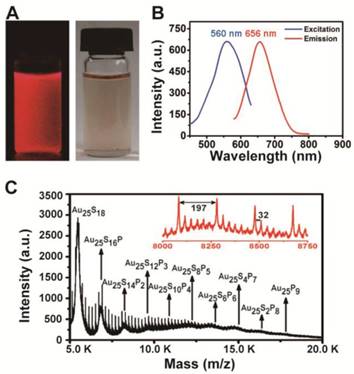

Characterization of the synthesized Au25Sv9 cluster. (A) The photographs of the Au25Sv9 solution under visible light and UV light. (B) The fluorescence excitation and emission spectra of Au25Sv9 (650 nm and 551 nm). (C) The MALDI-TOF-MS spectra of Au25Sv9, which can be expressed by formula of Au25peptidexS18-2x. The insets showed weak peaks from m/z 8.0 k to 8.75 k, the m/z 197 and 32 correspond to the single Au and S, respectively.(Click on the image to enlarge.)

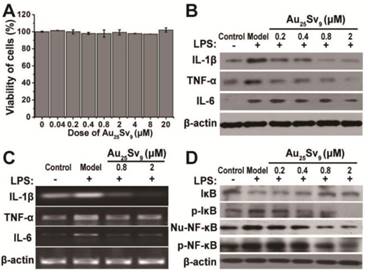

Effects of Au25Sv9 on LPS-induced expression of inflammatory cytokines and signaling pathways. (A) Cell viability of RAW264.7 in the presence of different dose of Au25Sv9 was measured using the CCK-8 assay, the data is presented as mean ± Standard deviation of triplicate experiments. (B) Western blotting for secretion of TNF-α, IL-1β and IL-6 in LPS-stimulated RAW264.7 cells in the presence or absence of Au25Sv9. (C) Transcriptional regulation of these cytokines by Au25Sv9 was determined by RT-PCR assay, β-actin was used as the loading control. (D) The LPS-induced activation of NF-κB in the presence or absence of Au25Sv9 was detected by Western blotting (degradation of IκB and nuclear translocation of NF-κB), β-actin was used as the loading control. Nu-NF-κB indicated as nuclei-NF-κB. Data was from three independent experiments and one representative result is shown here.(Click on the image to enlarge.)
The formation of large multinuclear cells after pre-osteoclast fusion is critical for osteoclast-mediated bone resorption . The fused large multinuclear cells will display an actin ring that allows them to resorb bone [24, 25]. Therefore, the actin ring formation of RAW264.7 cells induced by RANKL with or without Au25Sv9 was detected by immunofluorescence staining. RANKL was found to be effective in stimulating actin ring formation, while Au25Sv9 reduced it in a dose-dependent manner (Figure 3C). Supplementation of 4 μM Au25Sv9 showed almost no actin ring formation. This unique cytoskeletal structure allows osteoclasts to seal a zone on the bone surface and increase the activity of proteases on bone-resorption . Thus, the effect of Au25Sv9 on the bone resorption activity of OCs formed in vitro was assessed by a pit formation assay on the surface of osteoassay plate (Figure 3D). Quantitative analysis of the ratio of resorption pits per unit area of the osteoassay plate indicated that Au25Sv9 reduced RANKL induced resorption pits formation in a dose-dependent manner (Figure 3E). Based on these results, we deduced that the gold cluster can block the formation of multinucleated OCs and reduce their bone resorption activity in vitro.
Effects of Au25Sv9 on the expression of osteoclastogenic genes and RANKL-induced signaling pathways
The processes of differentiation, maturation and function of OCs are directly regulated by osteoclastogenic genes . To investigate the effect of Au25Sv9 on the expression of OC-specific genes in RANKL- treated RAW264.7 cells, real-time PCR was used to determine mRNA expression. Cells treated with or without RANKL were used as positive and negative controls, respectively, and GAPDH was used as an internal reference to normalize each group. NFATc1 and c-Fos are two pivotal OC-specific transcription factors involved in OC differentiation and are up- regulated following RANKL stimulation. As shown in Figure 4A, stimulation of RAW264.7 cells with RANKL induced over-expressions of both c-Fos and NFATc1, whereas supplementation of Au25Sv9 significantly decreased expression levels in a dose- dependent manner. The mRNA expressions of TRAP and OSCAR, two OC-specific genes that enhanced by c-Fos and NFATc1, were also significantly inhibited by supplementation of Au25Sv9 (Figure 4B). This expression regulation of TRAP correlated well with prior TRAP+ MNCs generation results (Figure 3A). Overall, Au25Sv9 significantly down-regulate the over-expression of RANKL-induced osteoclastogenic genes.
Under inflammatory conditions, higher level of RANKL will trigger a variety of intracellular signal transduction events leading to up-regulation of osteoclast-specific genes . Gene targeting studies indicate that NF-κB and mitogen-activated protein kinases (MAPKs) are the paramount downstream signaling pathways of RANKL stimulation that have crucial role in osteoclast differentiation [6, 7]. To investigate the biological mechanisms of inhibitory effects of Au25Sv9 on RANKL-induced OC differentiation, these signaling pathways were detected by Western blotting (Figure 4C-D). RAW264.7 cells were stimulated with RANKL in the presence or absence of Au25Sv9 and the activation of MAPKs (p38, ERK, and JNK) and NF-κB were measured at predetermined time points. RANKL stimulation significantly enhanced the phosphorylation of IκB and NF-κB compared to the absence of RANKL treatment (Figure 4C). Supplementation of Au25Sv9 significantly inhibited the activation of NF-κB in a dose-dependent manner (Figure 4C). Phosphorylated proteins are active forms of MAPKs that are increased by RANKL stimulation, but supplementation of Au25Sv9 did not significantly suppress their activation at selected time points (Figure 4D). These results indicated that RANKL-induced activation of NF-κB signaling pathway was specifically down-regulated by Au25Sv9. In addition, we detected the activation of another RANKL-induced signal pathway, AKT, which is important for inhibition of OC cell death. Phosphorylation levels of AKT were increased by RANKL stimulation, but decreased in the presence of Au25Sv9 (Figure 4C). This indicated that the AKT signaling pathway is also down-regulated by Au25Sv9.

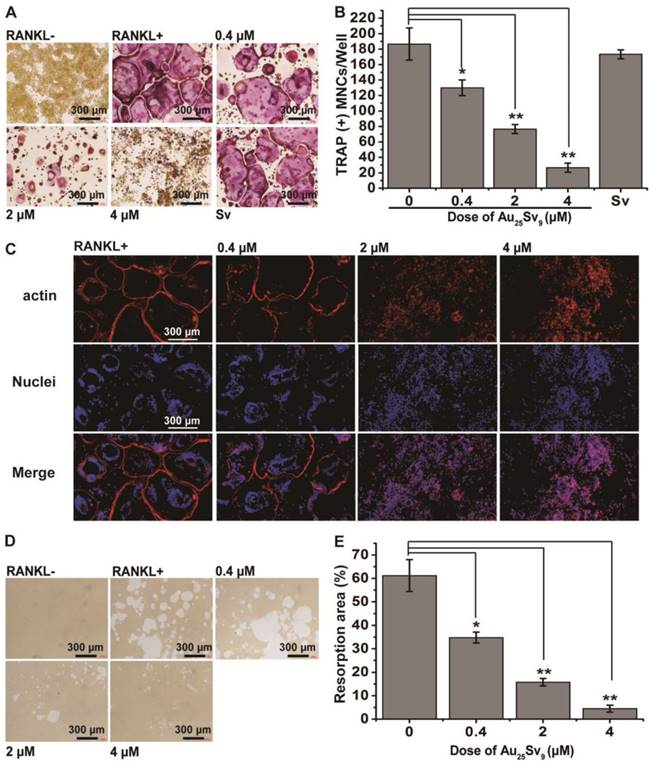

Effects of Au25Sv9 on RANKL-induced osteoclast formation and bone resorption in vitro. (A) RANKL stimulated RAW264.7 cells were treated with or without the indicated dose of Au25Sv9 and were stained with TRAP staining, Sv group indicated the equal dose of Sv peptide as 4 μM Au25Sv9. Data was from three independent experiments and one representative result is shown here. (B) The number of TRAP+ multinucleated cells (TRAP+ MNCs) in each treatment was counted. The data is presented as mean ± Standard deviation of triplicate experiments, *P < 0.05, **P < 0.01, compared to the RANKL only group. (C) The actin-ring formation of RAW264.7 cells induced by RANKL with or without Au25Sv9 was detected by immunofluorescence staining. Data was from three independent experiments and one representative result is shown here. (D) The effect of Au25Sv9 on the bone resorption activity of formed osteoclasts in vitro was assessed by a pit formation assay on surface of osteoassay plate. Data was from three independent experiments and one representative result is shown here. (E) Quantitative analysis of the ratio of resorption pits in unit area of the osteoassay plate. The data is presented as mean ± Standard deviation of triplicate experiments, *P < 0.05, **P < 0.01, compared to the RANKL only group.(Click on the image to enlarge.)
Au25Sv9 significantly inhibit inflammatory bone destruction in CIA mice
Since gold cluster can inhibit osteoclast differentiation and inflammation in vitro, we examined its effect on preventing inflammation-induced bone loss in vivo. Collagen induced arthritis (CIA) in mice was used as a model to evaluate the therapeutic effect of Au25Sv9 . According to the acute toxicity test (LD50 = 97.18 mg Au/kg body weight) , the therapeutic regimen of Au25Sv9 in CIA mice was determined to intraperitoneal injection (i.p.) of 5 mg Au/kg body weight per day. Changes in body weight of each group were monitored throughout the course of treatment. The data showed that CIA model can reduce the gain of body weight, but Au25Sv9 treatment can significantly reverse this reduction, especially in the fourth and fifth weeks (Figure 5A). The paws of CIA mice were found to have erythema swelling at week 4 after the first injection of collagen compared to saline-injected mice. The extent of arthritis reached its maximum at week 5-6. Treatment with Au25Sv9 (5 mg Au/kg) significantly suppressed the severity of clinical arthritis (p < 0.05), whereas no obvious suppressive effect was observed in vehicle-treated CIA mice, such as by paw swelling and arthritis clinical score (Figure 5B-C). Articular bone destructtion was performed by microCT (μCT) scan plus histological analysis on the ends of metatarsal, to determine whether treatment with Au25Sv9 was effective in reducing severe bone destruction. The microCT observations revealed that CIA caused very severe bone erosion and formed obvious absorption holes at the ends of metatarsal, while Au25Sv9 treatment can effectively attenuate this destruction (Figure 5D). Histological observations within joints were consistent with microCT scan results, indicating that CIA caused severe damage in both cartilage and bone, while Au25Sv9 treatment effectively attenuates the erosion (Figure 5E). Haematoxylin and eosin sections were scored according to histopathological changes, and analysis showed Au25Sv9 significantly prevented CIA induced cartilage and bone damage (Figure 5F). Moreover, no inflammation or tissue destruction was observed in HE sections from normal mice, but untreated CIA mice revealed prominent destructive inflammation of periarticular tissues and synovial hyperplasia (Figure 5E). In contrast, such inflammatory cellular infiltration and synovial hyperplasia were markedly reduced in mice treated with 5 mg Au/kg Au25Sv9 (Figure 5F). These results suggested the gold cluster can effectively attenuate inflammation and inflammatory bone destruction synergistically in chronic inflammatory diseases.

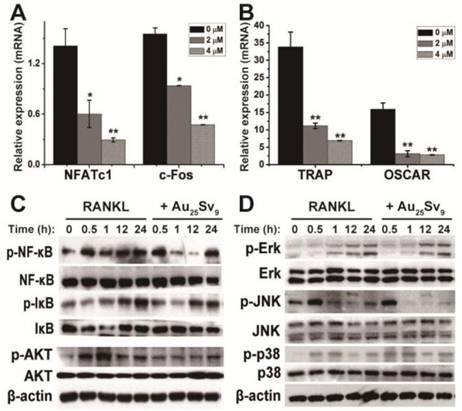

Effects of Au25Sv9 on the expression of osteoclastogenic genes and RANKL-induced signaling pathways. (A) RAW264.7 cells were induced with RANKL in the presence or absence of Au25Sv9, and the expression of NFATc1 and c-Fos was analyzed by real-time RT-PCR at 48 h, GAPDH was used as the loading control. The data is presented as mean ± Standard deviation of triplicate experiments, *P < 0.05, **P < 0.01, compared to the RANKL only group. (B) The expression of TRAP and OSCAR was analyzed by real-time RT-PCR at 48 h. The data is presented as mean ± Standard deviation of triplicate experiments, *P < 0.05, **P < 0.01, compared to the RANKL only group. (C) Western blotting for total NF-κB, IκB, AKT and their phosphorylated form was performed at indicated time. (D) Phosphorylation of MAPKs (ERK, p38 and JNK) was also assessed by western blotting. β-actin was used as the loading control. Data was from three independent experiments and one representative result is shown here.(Click on the image to enlarge.)
The systematic toxicity of gold cluster was determined in mice treated with 5 mg Au/kg Au25Sv9 for 28 days, except for the acute toxicity of gold cluster (LD50 = 97.18 mg Au/kg body weight). Both blood routine and blood biochemistry examinations of Au25Sv9 treated mice showed the same pattern as normal mice, indicating that Au25Sv9 injection did not induce significant hematological toxicity (Table S1 and Table S2). The histomorphology changes of main organs were also observed to determine whether the Au25Sv9 treatment induced organ damage. The observation indicated that Au25Sv9 injection did not induce any obvious damage to the detected organs (Figure S2). These results indicated that Au25Sv9 can reduce the major side-effects of traditional gold drugs.
Au25Sv9 suppresses pro-inflammation cytokines and inflammation-induced RANKL expression in vivo
To elucidate the in vivo therapeutic mechanism of Au25Sv9 in inflammation- induced bone loss, the effect of Au25Sv9 on biochemical parameters was detected in CIA mice. After treatment of Au25Sv9 in CIA mice, articular cytokines levels of TNF-α, IL-1β and IL-6 were measured by ELISA to elucidate the mechanism of inflammation inhibition in arthritic. The levels of TNF-α, IL-1β and IL-6 in the hind paws of CIA mice were significantly increased on day 28 post- immunization compared to baseline levels of normal mice (Figure 6A-C). Treatment with Au25Sv9 resulted in a significant reduction in these cytokines compared to the high levels found in vehicle treated CIA mice (Figure 6A-C). High level of RANKL in CIA mice is a key factor in osteoclastogenesis and is crucial for bone destruction under chronic inflammation [4, 5]. The inflammatory cytokines detected in this study can stimulate RANKL production by lymphocytes and fibroblasts [26, 27]. Therefore, RANKL expression in the hind paw of CIA mice was detected by immunoblotting after Au25Sv9 treatment or vehicle treatment. The results indicated that collagen immunization increased the expression of RANKL in joint, and supplementation with Au25Sv9 was effective in inhibiting this overexpression compared to vehicle treatment (Figure 6D). Au25Sv9 can effectively inhibit RANKL-induced osteoclastogenesis in vitro by suppressing the activation of NF-κB pathway. Therefore, phosphorylation of NF-κB in the joints of CIA mice was detected by immunohistochemical staining in histologic sections. The results revealed that the levels of phosphorylated NF-κB (p-NF-κB) were increased in CIA mice compared to normal mice, whereas Au25Sv9 treatment significantly inhibited this activation (Figure 6E). These data indicated that the gold cluster can suppress the production of pro-inflammatory cytokines, and that related RANKL expression can improve bone destruction in CIA joints by inhibiting the activation of NF-κB pathway in vivo.

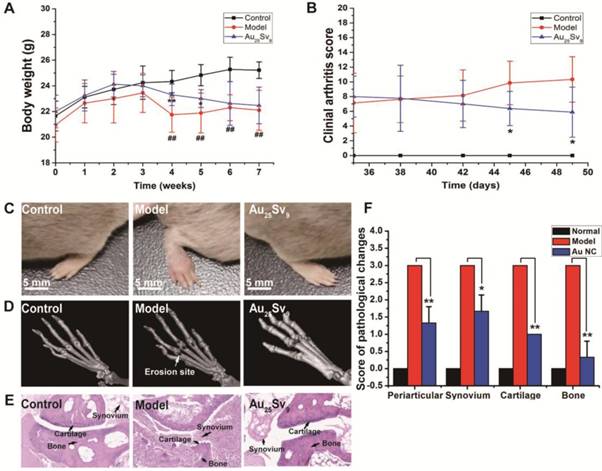

Effects of Au25Sv9 on bone destruction in CIA inflammation mice. (A) Change of body weight in each group was measured every week. The data is presented as mean ± Standard deviation, n = 10 per group, *P < 0.05, **P < 0.01, compared to the CIA model group, ## P < 0.01, compared to the normal control group. (B) According to the extent of erythema and swelling, the clinical arthritis score was assessed by grading each paw from 0 to 4, and a mean score was given for each mouse. The data is presented as mean ± Standard deviation, n = 10 per group, *P < 0.05, compared to the CIA model group. (C) Representative photographs of CIA mice treated with vehicle or Au25Sv9, and non-immunized normal mouse was used as control group, n = 10 per group. (D) Representative photographs of μCT observation in each group of CIA mice treated with vehicle or Au25Sv9, and normal control group, n = 5 per group. The typical site of severe bone erosion is marked by white arrows in Model group. (E) Representative histopathological images of joint sections from each group of CIA mice treated with vehicle or Au25Sv9, and normal mice, n = 5 per group. The cartilage, bone and synovium were indicated by black arrows respectively in each image. (F) Histological scores of cartilage and bone erosion as well as inflammation index in CIA mice treated with vehicle or Au25Sv9 (Au NC), and normal mice. The data is presented as mean ± Standard deviation, n = 5 per group, *P < 0.05, **P < 0.01, compared to the CIA model group.(Click on the image to enlarge.)
A large number of patients continue to suffer from severe bone destruction caused by chronic inflammation and the resultant dysfunction [1, 28]. However, anti-resorptive therapies alone does not prevent focal bone loss in clinical trials, suggesting that chronic inflammation promotes an overall catabolic state with increased osteoclast differentiation and resorptive activity . Pro-inflammatory cytokines produced by macrophages are crucial in initiating the associated bone destruction in chronic inflammatory diseases, such as TNF-α and IL-1β . These cytokines can promote the differentiation and activation of bone-resorbing osteoclasts through increasing the expression of RANKL [7, 19]. Under RANKL stimulation, osteoclasts can be differentiated from monocyte/macrophage lineage precursor. In this study, LPS-induced over-production of pro-inflammatory cytokines and RANKL-induced osteoclastogenesis as well as bone resorption in vitro were all significantly inhibited by Au25Sv9 in a dose-dependent manner. RANKL stimulation will trigger a variety of intracellular signal transduction events leading to up-regulation of osteoclast-specific genes . A crucial target downstream of RANKL signaling is the activation of NF-κB, which plays a key role in osteoclast differentiation . The central role for NF-κB in osteoclastogenesis has been demonstrated by gene-specific deletion of the NF-κB subunits that caused severe osteopetrosis due to the absence of osteoclasts [29, 30]. And a peptide named NBD that selectively blocking the activation of NF-κB was reported to inhibit the RANKL-induced osteoclast differentiation effectively both in vitro and in vivo . Therefore, the RANKL-induced osteoclast differentiation might be prevented by bloking NF- κB in osteoclast precursors. Previous studies reported, the gold nanoparticles prepared by electrical explosion or β-cyclodextrin (CD) conjugated could inhibit RANKL-induced osteoclast differentiation in vitro were also involved in the disturbing of NF-κB activation [32, 33]. Thus, the effect of Au25Sv9 on RANKL-induced NF-κB activation was clarified in this study. Au25Sv9 indeed inhibited RANKL-induced NF-κB activation and up-regulation of osteoclast- specific genes effectively (Figure 4). Considering the activated NF-κB is also responsible for the overexpression of pro-inflammatory genes in macrophages in chronic inflammatory diseases [19, 20]. Inhibiting the activation of NF-κB in monocyte-macrophages might offer an effective therapeutic approach for preventing inflammatory bone destruction. Indeed, the NBD peptide not only avoided bone destruction in inflammatory joints of arthritis mice but also suppressed the pro-inflammatory cytokine production almost completely . However, because NF-κB has other crucial roles in vary cells, such as anti-apoptotic activity, it has been suggested that its overall suppression may be limited use due to the possibility of extensive apoptosis . This concept was supported by a report that conditional deletion of IKKβ to complete block NF-κB may induce enhanced apoptosis and damage . Hence, inhibition of abnormal activated NF-κB in monocyte-macrophages relatively specific may be beneficial in preventing inflammatory bone destruction without affecting other physiological functions. In the course of chrysotherapy, gold was found to concentrate within inflamed synovial tissues selectively, and forming gold-rich deposits in synovial macrophages in rheumatoid patients [35-37]. Thus, macrophages have been assumed to be the target of gold reagents, which giving the gold cluster a certain targeting ability. In addition, the strong positive charge of the Sv peptide could assist the gold cluster to penetrate the cell membrane, which has been demonstrated in our previous study . We deduce the Au25Sv9 clusters possess an adequacy targeting ability to macrophages which would facilitate their therapeutic effects in inflammatory bone destruction. In addition, RANKL has been identified to support the survival of mature osteoclasts involved in the activation of AKT . The results revealed Au25Sv9 also attenuated the RANKL-induced phosphorylation of AKT.

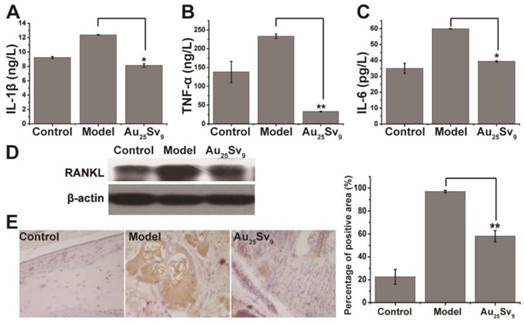

Effects of Au25Sv9 on the expression of pro-inflammation cytokines and RANKL in vivo. (A-C) The levels of pro-inflammatory cytokines (TNF-a, IL-1β, and IL-6) in the articular tissue of CIA mice, treated with vehicle or Au25Sv9 and normal control group. The data is presented as mean ± Standard deviation, n = 5 per group, *P < 0.05, **P < 0.01, compared to the CIA model group. (D) The expression of RANKL in the articular tissue of CIA mice treated with vehicle or Au25Sv9, and normal control group, were detected by Western blotting, β-actin was used as the loading control. Data was from three independent mice of each group and one representative result is shown here. (E) Immunohistochemistry was performed for p-NF-κB antibody to detect the activation of NF-κB in the articular tissue of CIA mice treated with vehicle or Au25Sv9, and normal control group, n = 5 per group and representative photographs were presented. The level of phosphorylated NF-κB in each group was quantized and compared. **P < 0.01, compared to the CIA model group.(Click on the image to enlarge.)
Although several gold nanoparticles were reported to suppress inflammation or prevent RANKL-induced osteoclast differentiation in vitro respectively, their activity in preventing inflammatory bone destruction in vivo has not been determined [32, 33, 38]. The Au25Sv9 clusters significantly inhibit LPS-induced and RANKL-induced activation of NF-κB in macrophages to suppress the overexpression of pro-inflammatory factors and osteoclastogenesis simultaneously. We therefore suggest the gold cluster might emerge unparalleled advantages in the prevention of inflammatory bone destruction by combining these two activities. Collagen-induced arthritis (CIA) mice, which develop a polyarthritis with severe cartilage and bone destruction, were used to evaluate the therapeutic effects of Au25Sv9 on inflammation-induced bone destruction in vivo. Collagen immunization increased the levels of several proinflammatory cytokines in CIA joints, while the supplementation of Au25Sv9 effectively reduced their levels, including TNF-α, IL-1β and IL-6. The subsequent up-regulation of RANKL in joint was also suppressed by Au25Sv9. Therefore, a schematic diagram was proposed to describe the action model of Au25Sv9 in preventing inflammation related bone destruction (Figure 7). Au25Sv9 suppresses the expression of pro-inflammatory factors in macrophages to inhibit over-expression of RANKL within inflammatory sites, thereby indirectly reducing osteoclastogenesis and subsequent bone erosion. On the other hand, Au25Sv9 blocks signal transduction from RANKL stimulation to certain transcription factors to inhibit differentiation and activation of osteoclasts directly (Figure 7). It is also worth noting that no obvious side-effect on test mice was observed in this study, particularly with regard to hematological toxicity and damage to main organs, which will facilitate the clinical application of gold cluster in the future.

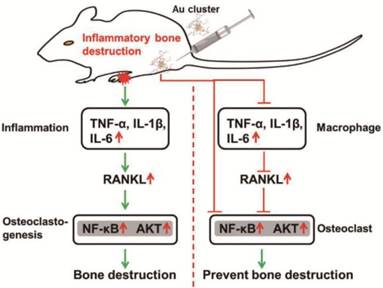

Biological mechanisms that involving in the prevention of inflammatory bone destruction in vivo of Au25Sv9 gold cluster.(Click on the image to enlarge.)
In this study, we prepared a novel gold cluster to ameliorate inflammation associated bone destruction in vivo. We demonstrate that the gold cluster strongly suppresses RANKL-mediated osteoclast formation in vitro which related to the inhibition of NF-κB pathway activation. In addition, this cluster significantly reduced the destruction of bone and cartilage in mice by reducing the levels of pro-inflammatory cytokines (TNF-α, IL-1β and IL-6) and they triggered RANKL. To our knowledge, this study is the first to demonstrate the therapeutic effect of gold clusters on inflammation-induced bone destruction.
This work was supported by the National Natural Science Foundation of China (21425522, 21727817, 11621505 and 31700874), Beijing Science and Technology Commission Special Project for Frontier Technology in Life Sciences (Z171100000417008) and Beijing municipal high level innovative team building program (IDHT20180504).
Q.Y., X.G. and F.G. designed the study. Q.Y., Y.Y., P.C., X. Z., J. Y., and K. H. conducted the experiments. Q.Y., F.G., P.C., L. G. and X. R. analyzed the data. Q.Y. and X.G. wrote the manuscript. All authors discussed the results and critically revised the manuscript.
Supplementary figures and tables.
The authors have declared that no competing interest exists.
